IHP FP6820-4S-DVFP Manuel utilisateur

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE

FACE SURROUND KIT MODELS:

FP6820-4S-DVFP

FP5616-4S-DVFP

INSTALLATION INSTRUCTIONS FOR DECORATIVE FACE SURROUND KIT.

P/N 900863-00

REV. NC, 09/2017

HEARTH PRODUCTS

KITS AND ACCESSORIES

SURROUND KIT

Cat. No. Model Description Kit Contents

F3451

F3452

FP6820-4S-DVFP

FP5616-4S-DVFP

4 Sided Surround (68” x 20”)

4 Sided Surround (56” x 16”)

Panel Assembly,

Top/Bottom (2 ea.)

Panel Assembly,

Sides (2 ea.)

MATERIALS NEEDED

Adhesive Liquid Nails (Not supplied)

GENERAL INFORMATION

Read this instruction sheet in its entirety before beginning the

installation.

If you encounter any problems, need clariﬁcation of these instruc-

tions or are not qualiﬁed to properly install this kit, contact you

local distributor or dealer.

Parts may scratch and bend. Great care should be used in handling

them.

ALL WARNINGS AND PRECAUTIONS IN THE INSTALLATION AND

OPERATION MANUAL PROVIDED WITH THE FIREPLACE APPLY TO

THESE INSTRUCTIONS.

TURN OFF THE FIREPLACE AND ALLOW IT TO COMPLETELY COOL

BEFORE PROCEEDING.

FP5616-4S-DVFP FOR USE WITH:

SUPERIOR - DRL6542 AND DRL3042 FIREPLACE SERIES

ASTRIA - RHAPSODY42 AND SIRIUS42 FIREPLACE SERIES

FP6820-4S-DVFP FOR USE WITH:

SUPERIOR - DRL6554 AND DRL3054 FIREPLACE SERIES

ASTRIA - RHAPSODY54 AND SIRIUS54 FIREPLACE SERIES

fire-parts.com

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE

P/N 900863-00 REV. NC 09/2017 1508 Elm Hill Pike, suite 108 • Nashville, TN 37210

IHP reserves the right to make changes at any time, without notice, in design, materials,

speciﬁcations, and prices, and also to discontinue colors, styles, and products.

Consult your local distributor for ﬁreplace code information.

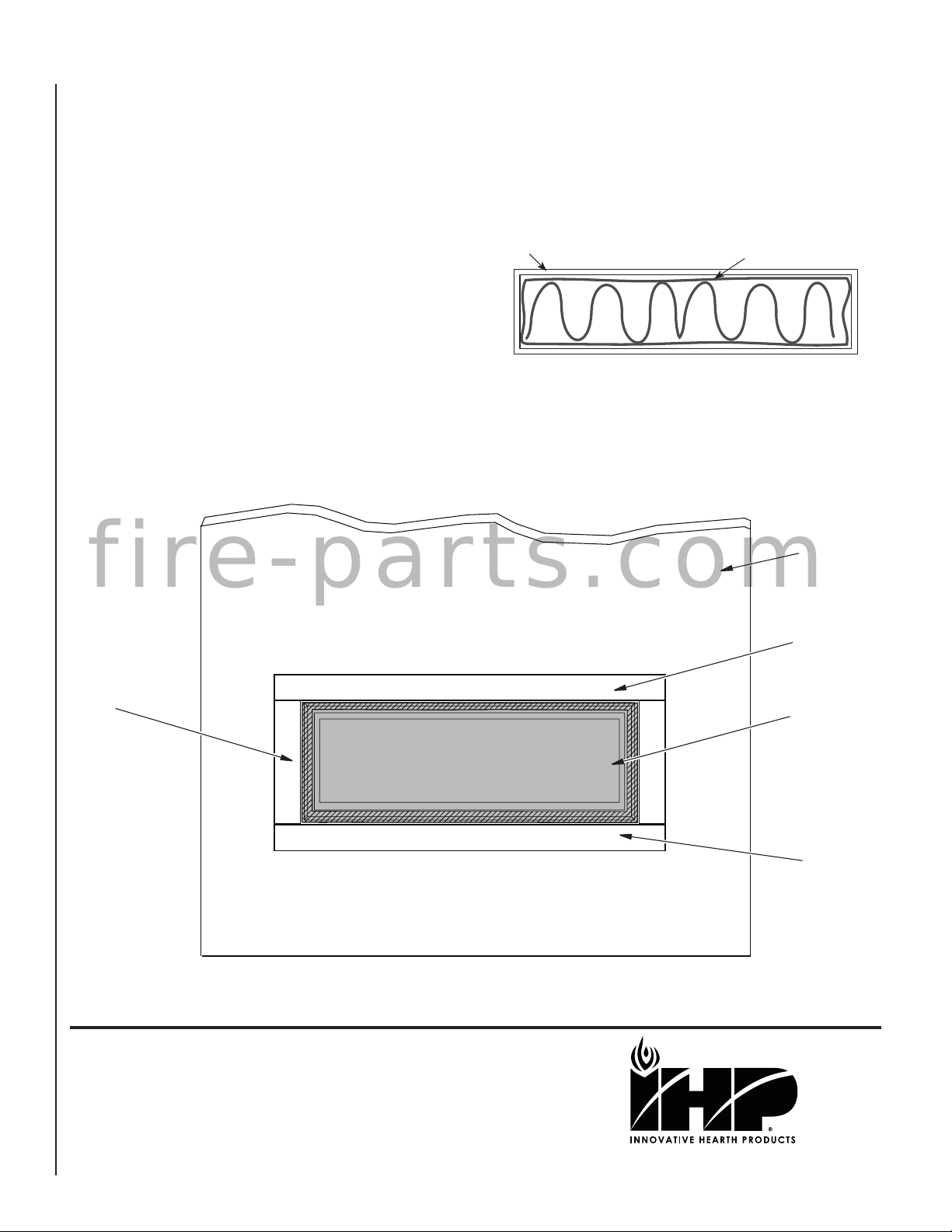

Figure 1 - Applying Glue to Back of Surround Face

(Back View Shown)

INSTALLATION INSTRUCTIONS

1. Peel off protective ﬁlm partially (from the back of the face up to the

front face edge) from each surround piece.

2. Apply approximately, 1/4" continuous bead of glue around and in zigzag

pattern to the back of surround pieces (see Figure 1).

Note: Continuous bead of glue across bottom is vital.

3. Install bottom surround piece centered with the ﬁreplace onto the wall

and ﬂush with bottom edge of screen barrier (see Figure 2).

4. Install side panels, ﬂush with edges of bottom surround piece and

edge of screen barrier (see Figure 2).

Surround Face Edge 1/4” Bead of Glue

Figure 2 - Surround Face Installation

Surround

Top Face

Surround

Side Face

Surround

Bottom

Face

5. Install top surround (after steps 3 and 4 are complete) ﬂush with face

sides and edge of screen barrier (see Figure 2).

6. Allow the glue to cure at least 24 hours prior to operation of ﬁreplace.

7. Peel off remaining protective ﬁlm from face surround pieces in its

entirety.

8. Installation is now complete.

Wall

Screen

Barrier

fire-parts.com
