IHP LPDBK Manuel utilisateur

Save this manual for future reference

INSTALLATION INSTRUCTIONS

MODEL LPDBK (F1084)

LOW PROFILE DUAL BLOWER KIT

ACCESSORY

For use with:

Astria™ Models:

DEVONSHIRE Series Direct Vent

Fireplace

P127164-01

P/N 127164-01 Rev. C 06/2015

For more information, visit IHP.US.com

WARNING: ELECTRICAL GROUNDING INSTRUCTIONS This appliance is equipped with a three-prong

(grounding) plug for your protection against shock hazard and should be plugged directly into a properly

grounded three-prong receptacle.

(Check your appliance owner's manual for speciﬁc applications and

additional instructions.)

IMPORTANT: Read entire instruction sheet before installing blower kit.

This blower kit is approved for use with models listed above. Do not

use blower kit in any other ﬁreplace models.

If any of these parts are missing or damaged, contact dealer where

you purchased this kit. If they cannot supply original replacement

parts, either contact your nearest Parts Central or contact IHP at

IHP.US.com for information.

Note: This installation requires the gas supply line to be disconnected

before removing log assembly. Call a qualiﬁed service person to

disconnect gas supply from ﬁreplace.

WARNING: Turn off, unplug, and let ﬁreplace cool

before installing blower kit. Only a qualiﬁed service

person should service and repair ﬁreplace.

PART NO. DESCRIPTION QTY.

126466-01 Blower Assembly L. 1

126466-02 Blower Assembly R. 1

126468-01 Speed Control Assembly 1

127164-01 Instruction Sheet 1

126972-01 Wiring Diagram 1

Parts included with this kit:

NOTICE: Log set/burner and hearth refractories, must be

removed before installing blower kit. Refer to owner's

manual for speciﬁc applications and additional instruc-

tions.

WARNING: A qualiﬁed service person must con-

nect and disconnect ﬁreplace with gas supply. Follow

all local codes.

WARNING: If there is a duplex electrical outlet

installed in the right or left side of the bottom of

the ﬁreplace base area, be sure that the electrical

power to the outlet is turned off before proceeding

with blower installation. Failure to do this may result

in serious injury.

The blower kit utilizes two rotary squirrel cage type blower with

magnetic attachment and variable speed control.

Note: This blower kit is approved for use with models listed on this

page. Do not use blower kit in any other ﬁreplace models.

fire-parts.com

IHP.US.com 127164-01C2

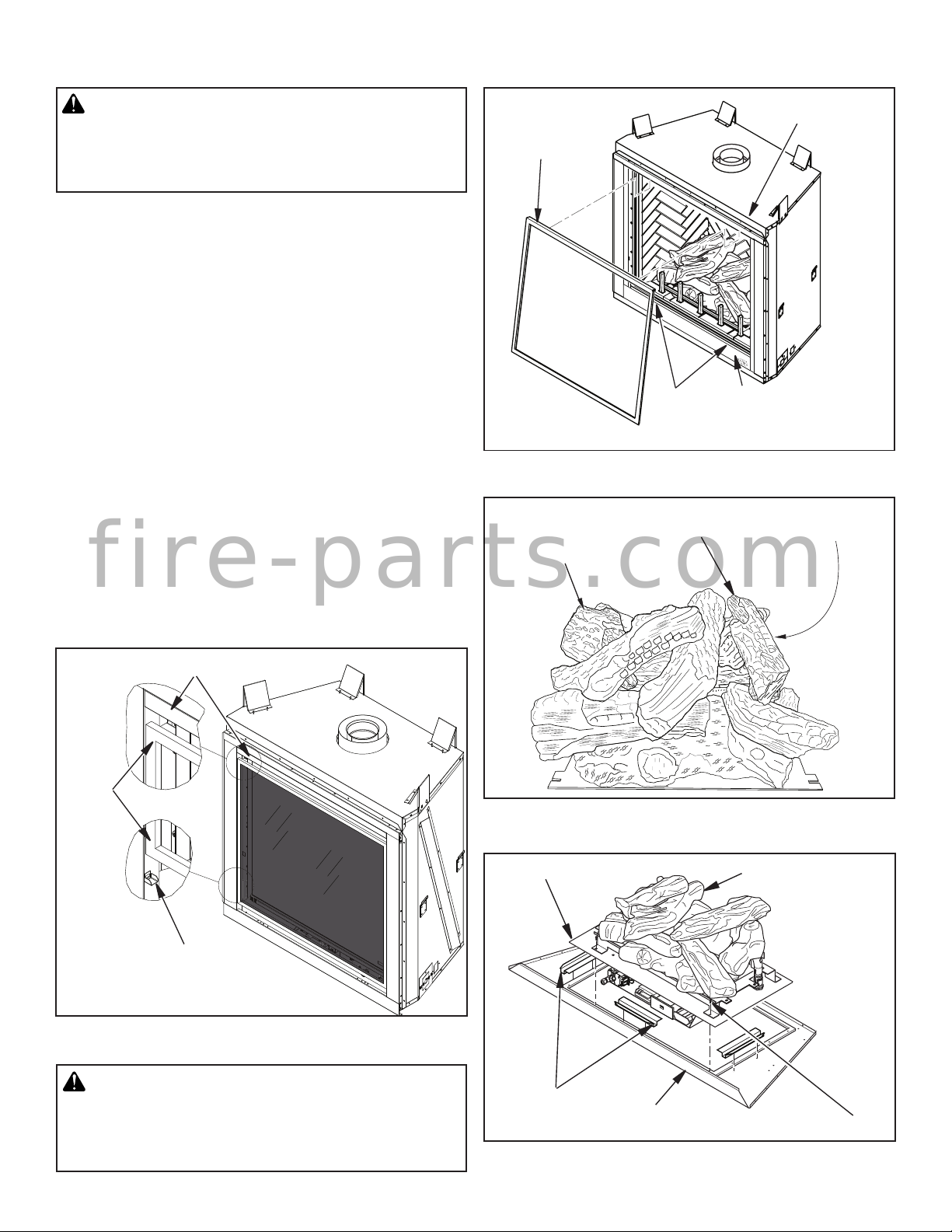

ACCESSING FIREPLACE

Figure 4 - Removing/Installing Burner Base

Log Assembly

Firebox Bottom

Burner Base

Screws

Spacers

Figure 3 - Removing Loose Logs 36'' Models Only

Loose Log #3

Loose Log #2

Loose Log #1

Underneath Log #2

CAUTION: Wear gloves and safety glasses while

handling or removing parts from your ﬁrebox. Some

metal edges may be sharp. Use caution with log sets

as logs are fragile.

1. Remove barrier by Holding the barrier in front of the glass

door and slide it up into the channel underneath the upper

front face and out of the slots on the bottom front face (see

Figure 1).

2. Remove access door by pulling it towards you.

3. Remove glass door by unlocking 2 door latches on bottom of

ﬁrebox (see Figure 2).

4. Tilt open glass door 45° from the bottom of ﬁrebox and lift up

to release door from ﬁrebox top retainer (see Figure 2).

5. Remove grate from slots in burner.

6. For 36" models only, remove 3 loose logs, log set and burner

base as shown in Figure 3.

7. For 42" models only, remove log set and burner base.

8. Carefully lift and remove 3 hearth refractories from ﬁreplace.

NOTE: Rear and side refractories do not need to be removed.

9. Remove 3 spacers and one back ﬂange from ﬁrebox bottom

by removing 13 screws from front, sides and back of ﬁrebox

burner base to disengage from ﬁrebox bottom. Lift up entire

base from unit (see Figure 4).

10. Reverse all the steps in order to reinstall removed items.

Figure 1 - Removing and Replacing Barrier

Channel

Barrier

Frame

Slot

Figure 2 - Removing/Replacing Glass Door and Access Door

Door

Retainer

Location

Glass

Door

Bottom

Access Panel

Door

Latches

Location

WARNING: Reinstall any barrier removed before

operating the ﬁreplace. The barrier is designed to

reduce the risk of burns from hot glass. Do not operate

the ﬁreplace without the barrier installed.

fire-parts.com

IHP.US.com127164-01C 3

Note: The LPDBK blower kit, is for application into direct-vent models

listed on the front page only and is already factory pre-wired. When

installing the LPDBK blower kit, you must ﬁrst check that all wiring

connections are secure from the speed control to the blower.

Make

sure gasket material adhered to the bottom casing of blower is intact

(See Figure 5).

1. For 36'' models only, place the blowers thru the opening of the

burner base already removed and against the rear wall of the

ﬁrebox outer wrapper with the exhaust ports directed upward

(see Figures 6 and 7).

2. For 42'' models only, the blowers have to be installed against

the rear wall and towards the sides making sure that the air ports

are not blocked by the ﬁrebox rear plenum (see Figures 6 and 8).

3. Be certain that all the terminals are securely attached to terminals

on blower and that the screws retaining the green ground wires

are tight (See Figure 5).

4. Mount speed control box by placing it in the front lower corner,

where it can be easily accessed. We recommend the front right

side of the ﬁreplace bottom (See Figure 8).

5. Install the optional remote control kit (WRC) if desired, this

remote control kit is for turning on/off the blower kit only. The

speed has to be set manually before using the remote control.

Follow the instructions included with this kit.

6. Reinstall log set/burner module. If needed, replace burner gasket

before reinstalling log set/burner module.

NOTE: Use two hands to place burner base/logs.

7. Reinstall 3 spacers and the rear ﬂange to bottom ﬁrebox (see

Figure 4).

8. Reinstall 3 hearth refractories

9. Reinstall grate, glass door, access door, and barrier.

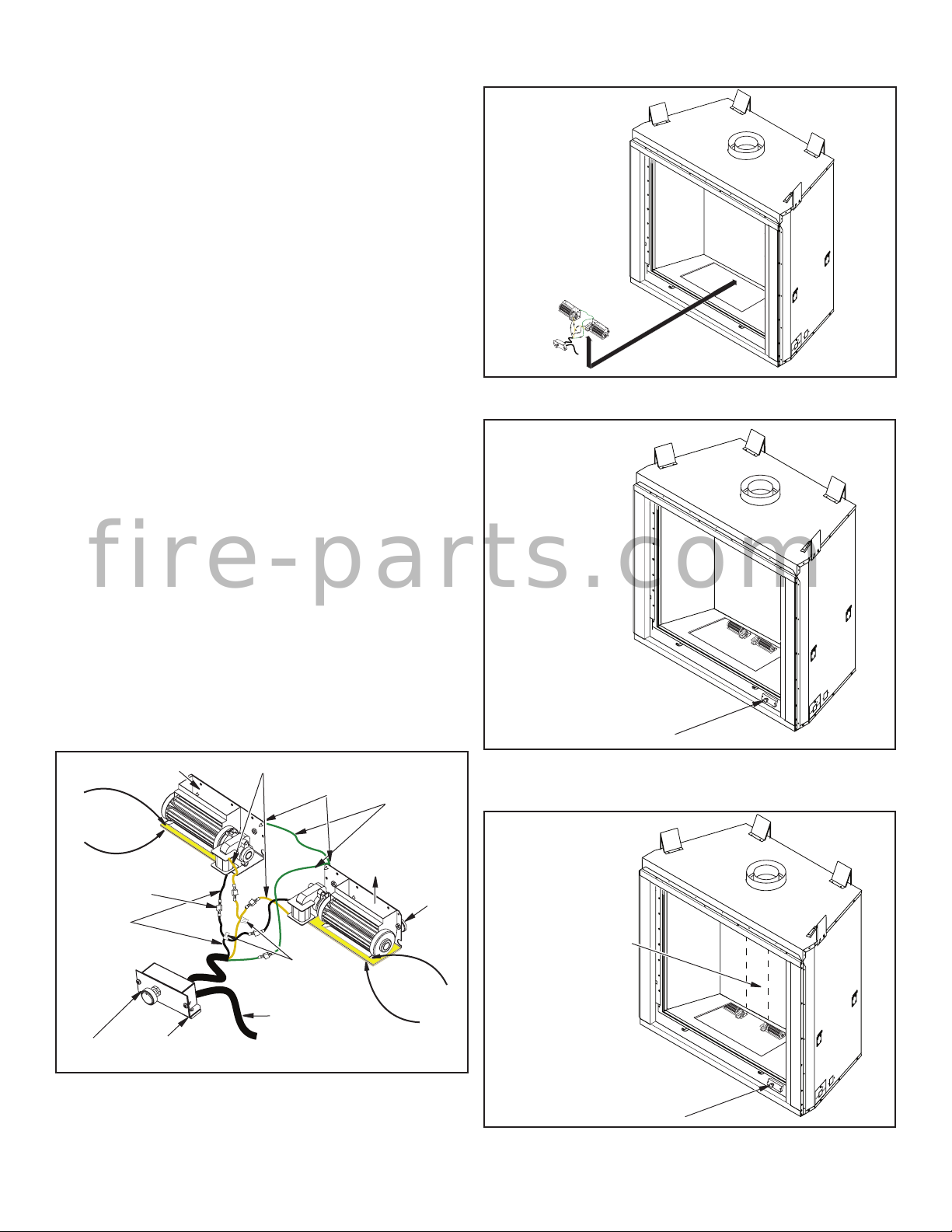

BLOWER INSTALLATION

Figure 5 - Blower Model LPDBK

Magnet

Exhaust Port

Ring Connectors

Spade

Connectors

White Wires

Black

Wires

Speed

Control

Ground

Wires

Wire Nut

Connectors

Power Cord

Air Flow

Direction

Figure 6 - Installing Blower Kit

Figure 8 - Blower Kit and Speed Control Location 42'' Models

only

Figure 7 - Blower Kit and Speed Control Location 36'' Models

only

Note: Refractory

Panels and Wires not

shown for clarity

Rear

rebox

Plenum

Location

Speed Control

Note: Refractory

Panels and Wires not

shown for clarity

Speed Control

Gasket

(Top &

Bottom)

Gasket

(Top &

Bottom)

fire-parts.com

CAUTION: Never touch the blower wheel while in

operation.

1. Check to make sure that the power cord is completely clear of

the blower wheel and that there are no other foreign objects in

blower wheel. Also double check all wire leads and make sure

wire routing is not pinched or in a precarious position. Correct

accordingly.

2. Turn on power to duplex outlet if previously turn off per the

warning on page 1.

3. Plug in blower power cord to duplex outlet.

4. Turn blower on and check for operation. Turn blower off by turn-

ing knob fully counterclockwise before continuing.

5. The blower will only run when the speed control knob is in the

ON position. The blower speed can be adjusted by rotating the

control knob. To turn off, turn knob fully counterclockwise until

it clicks off.

6. Peel off the backing paper and stick the supplied wiring diagram

decal on the left ﬁreplace bottom approximately 1.5'' in front of

the ﬁreplace lower face (see Figure 9).

7. Replace all panels and/or accessories if previously removed.

CONNECTING POWER AND OPERATING BLOWER

Figure 9: Location of Wiring Diagram Decal

Variable

Fan Switch

WhiteWhite

Black

Green

110/115

V.A.C.

Blower

Motor

Black

Off

Blower

Motor

120 Vac.

60 Hz.

.37 Amps

Figure 10: Wiring Diagram

REPLACEMENT PARTS

Note: Use only original replacement parts. This will protect your

warranty coverage for parts replaced under warranty.

Normally, all parts should be ordered through your IHP distributor

or dealer. Parts will be shipped at prevailing prices at time of order.

When ordering repair parts, always give the following information:

1. The model number of the ﬁreplace.

2. The serial number of the ﬁreplace.

3. The part number.

4. The description of the part.

5. The quantity required.

6. The installation date of the ﬁreplace.

TECHNICAL SERVICE

You may have further questions about installation, operation, or

troubleshooting. Please contact your IHP dealer for any questions

or concerns. When contacting your dealer please have your model

and serial numbers of your ﬁreplace ready. You can also visit our

web site at IHP.US.com.

ACCESSORIES

Purchase this accessory thru your IHP distributor or dealer..

F1080 - WRC Standard electronic ON/OFF remote control kit.

Innovative Hearth Products reserves the right to make changes at any time, without

notice, in design, materials, speciﬁcations, prices and also to discontinue colors, styles

and products. Consult your local distributor for ﬁreplace code information.

P/N 127164-01 Rev. C 06/2015.

P127164-01

Wiring Diagram Decal

approximately 1.5'' in

front of the replace

lower face

1508 Elm Hill Pike, Suite 108 • Nashville, TN 37210

fire-parts.com
