ICRealtime ICIP-B2000 Manuel utilisateur

1

ICIP-B2000

Installation/Accessing

2

Index

Dimensions ……………………………………………………………………………………...3

Connections ……………………………………………………………………………………..4

Installation & Focusing ………………………………………………………………………5-7

Web Operations/Accessing..……………………………………………………………….8-10

3

Dimensions

4

Connections

Ethernet Port: Connects to a standard Ethernet Cable.

Reset: Press it for 3 to 5 seconds; system hardware can restore default setup.

VIDEO OUT: Output analog video signal. It can connect to the TV monitor to view the video.

DC 12V: Input DC 12V Power Adaptor.

Alarm I/O: to make connections to external alarm devices.

AUDIO IN: Input audio signal. It can receive the analog audio signal from the pickup.

AUDIO OUT: Output audio signal to the devices such as the sound box.

5

Installation

Please follow the steps listed below to install the ICIP-B2000. Please refer the image above for

reference.

•Please draw the installation holes in the installation surface and then mark three

expansion bolts holes in the surface. Insert three bolts in the hole and secure firmly.

6

•Please line up the installation holes of the bottom of the pendant mount bracket to the

installation holes in the surface. Then insert the three bolts to the holes of the bottom of

the bracket. Finally fasten the device on the installation surface.

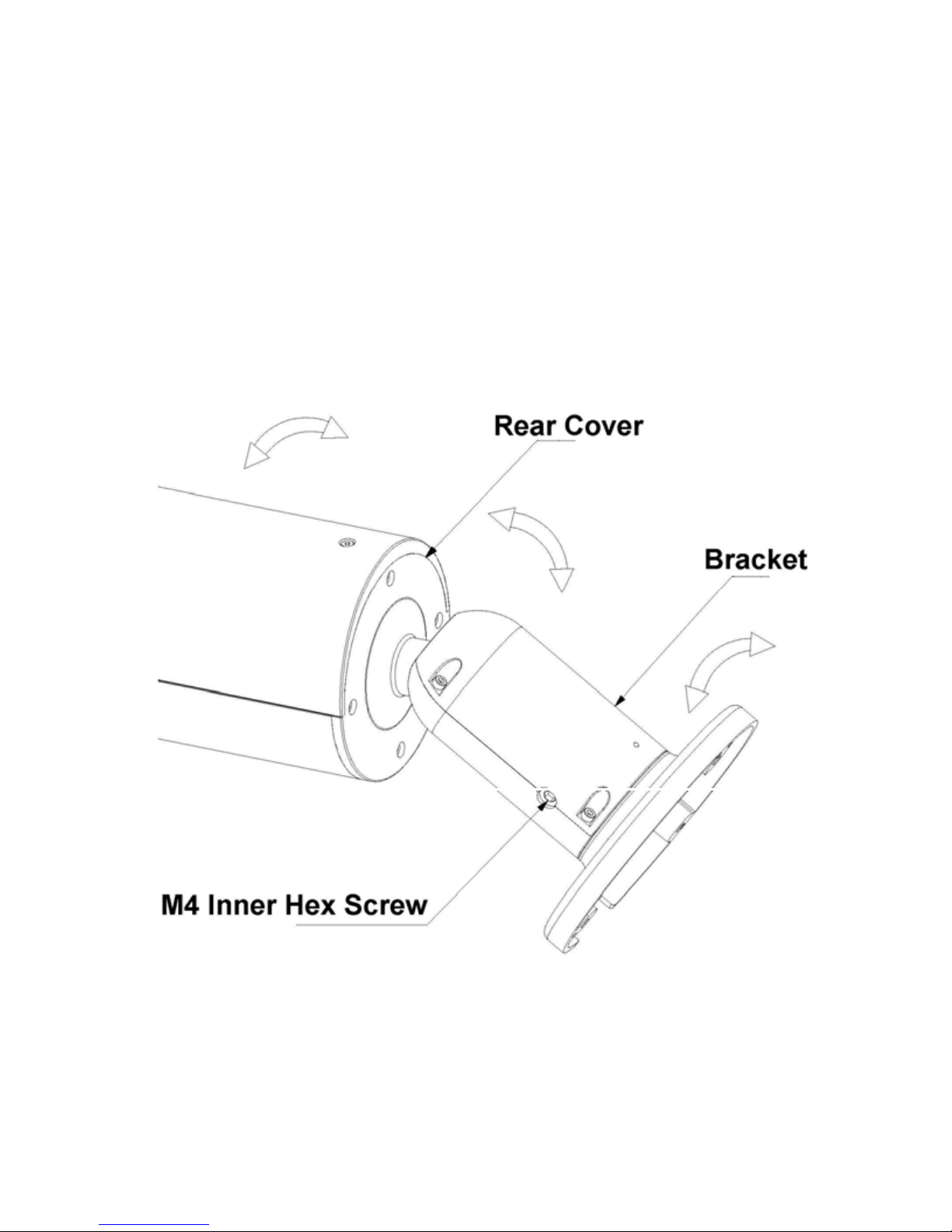

Bracket Adjustment

You can use the M4 inner hex screw to control the bracket. Please use the allen hex

wrench from the installation accessories bag to unfasten the screw. See Figure bellow.

The horizontal angle of the rear cover can rotate 360°, the tilt angle can rotate 90° and

the chassis can rotate 360°.

Please use the allen hex wrench to secure the screw firmly after you complete the

setup.

7

Lens Adjustment

Turn counter clockwise to remove the lens cover, now you can see the iris front and

rear control rod. The front control rod is to focus and the rear control rod is to zoom. See

the image bellow. Please turn clockwise to fix the lens cover back firmly.

Important

•Please remove the sunshield first and remove the lens cover if you cannot

unfasten the lens cover.

•The lens cover has the waterproof function. Please make sure it is secure after

you complete the lens adjustment.

8

Web Operation

This series IPC product support the Web access and management via PC.

Web includes several modules: monitor channel preview, system configuration, alarm

and etc.

Network Connection

Please follow the steps listed below for network connection.

•Make sure the IPC has connected to the network properly.

•IPC IP address and PC IP address shall be in the same network segment. IPC

default IP address is 192.168.1.108. If there is router, please set the

corresponding gateway and subnet mask.

Login and Logout

Open IE and input IP camera address in the address bar.

For example, if your camera IP is 192.168.1.108, then please input http:// 192.168.1.108

in IE address bar.

The login interface is shown as below.

Please input your user name and password.

9

Default factory name is admin and password is admin.

Note: For security reasons, please modify your password after you first login.

Input your IP address here.

If it is your first time to login in, system pops up warning information to ask you whether

install control webrec.cab or not after you logged in for one minute. Please click OK

button, system can automatically install the control. When system is upgrading, it can

overwrite the previous Web too. If you can’t download the ActiveX file, please check

whether you have installed the plug-in to disable the control download. Or you can lower

the IE security level.

10

After you logged in, you can see the main window.

Please refer to the Web Operation Manual included in the resource CD for detailed

operation instruction.
