ICRealtime ICIPP3020HDIR Manuel utilisateur

IR Speed Dome Installation Manual

Version 2.0

Table of Contents

1IR SPEED DOME INSTALLATION .....................................................................8

1.1 Installation Preparation .........................................................................................................................8

1.2 IR speed dome and network IR speed dome installation ................................................................9

1.2.1 Speed dome bracket installation .................................................................................................... 9

1.2.2 Pipe thread bracket installation....................................................................................................... 9

1.2.3 Clip wall mount bracket installation.............................................................................................. 10

1.2.4 Address and Baud Rate Setup..................................................................................................... 10

1.2.5 Install the IR speed dome and then connect the cable............................................................. 11

1.2.6 Secure the speed dome to the flange.......................................................................................... 12

1.3 Initial Setup...........................................................................................................................................12

1.4 Dial Switch Setup.................................................................................................................................12

1.4.1 Communication protocol and Baud rate...................................................................................... 13

1.4.2 Address Setup................................................................................................................................. 14

2BRACKET DIMENSIONS .................................................................................15

2.1 Wall mount bracket..............................................................................................................................15

2.2 Hanging mount bracket (Multiple Lengths)......................................................................................15

2.3 Corner mount bracket .........................................................................................................................16

2.4 Pole mount bracket .............................................................................................................................16

3WALL MOUNT BRACKET INSTALLATION......................................................17

3.1 Component Installation .......................................................................................................................17

3.2 Installation.............................................................................................................................................17

3.2.1 Installation Requirements.............................................................................................................. 17

3.2.2 Installation Steps............................................................................................................................. 17

4HANG MOUNT BRACKET INSTALLATION ..................................................... 19

4.1 Component Installation .......................................................................................................................19

4.2 Installation.............................................................................................................................................19

4.2.1 Installation Requirements.............................................................................................................. 19

4.2.2 Installation Steps............................................................................................................................. 19

5CORNER MOUNT BRACKET INSTALLATION ................................................21

5.1 Component Installation .......................................................................................................................21

5.2 Installation.............................................................................................................................................21

5.2.1 Installation Requirements.............................................................................................................. 21

5.2.2 Installation Steps............................................................................................................................. 21

6POLE MOUNT BRACKET INSTALLATION ...................................................... 23

6.1 Installation.............................................................................................................................................23

6.1.1 Installation Requirements.............................................................................................................. 23

7APPENDIX Ⅰ THUNDER PROOF AND SURGE PROTECTION .......................25

8APPENDIX Ⅱ ABOUT RS485 BUS ................................................................... 26

8.1 RS485 Bus Main Feature ...................................................................................................................26

8.2 RS485 Bus Transmission Distance ..................................................................................................26

8.3 The Problem in Practical Use ............................................................................................................26

8.4 RS485 Bus FAQ ..................................................................................................................................27

9APPENDIX Ⅲ THE RELATIONSHIP BETWEEN THE 24V AC CABLE

DIAMETER AND THE TRANSMISSION DISTANCE...............................................28

10 APPENDIX IV WIRE GAUGE REFERENCE SHEET .......................................29

Welcome

Thank you for purchasing our speed dome!

Please read the following safeguards and warnings carefully before you install or use the

product!

Important Safeguards and Warnings

Safety Measures

Qualified Engineer Needed

zThe installation engineer or maintenance engineer shall have corresponding CCTV system

installation certificate or maintenance qualification certificate.

zThe installation engineer or maintenance engineer shall have qualification certificate for work

at height.

zThe installation engineer or maintenance engineer shall have the basic knowledge and

operation technique for low-voltage cable layout and low-voltage electronic cable connection.

zPlease read the installation manual carefully and keep it well for future reference,

zWe are not liable for any problems caused by unauthorized modifications or attempted repair.

Lifting Appliance Requirement

zPlease select the proper speed dome installation mode and use the lifting appliances at the

safety environment.

zThe lifting appliances shall have the enough capacity to reach the installation height.

zThe lifting appliances shall have safe performance.

Precautions

Safety Transportation

zHeavy stress, violent vibration or water splash are not allowed during transportation, storage

and installation.

zThis series product must use split type package during the transportation.

zWe are not liable for any damage or problem resulting from the integrated package during

the transportation.

When device is malfunction

Shut down the device and disconnect the power cable immediately if there is smoke, abnormal

smell or abnormal function. Please contact your local retailer ASAP.

Do not try to dismantle or modify the device

zThere is risk of personal injury or device damage resulting from opening the shell.

zPlease contact your local retailer if there is internal setup or maintenance requirement.

zWe are not liable for any problems caused by unauthorized modifications or attempted repair.

Do not allow other object falling into the device

zPlease make sure there is no metal or inflammable, explosive substance in the speed dome.

zThe above mentioned objects in the device may result in fire, short-circuit or damage.

zPlease shut down the device and disconnect the power cable if there is water or liquid falling

into the camera. Please contact your local retailer ASAP.

zPlease pay attention to the camera. Avoid the sea water or rain to erode the camera.

Handle carefully

Do not allow this series product fall down to the ground.

Avoid heavy vibration.

Installation Environment Requirement

zThis series speed dome should be installed in a cool, dry place away from direct sunlight,

inflammable, explosive substances and etc.

zThis series product shall be away from the strong electromagnetism radiant, please keep it

away from wireless power, TV transmitter, transformer and etc.

Daily Maintenance

zPlease use the soft cloth to clean dust on the shell, or you can use soft cloth with cleaning

liquid to clean the shell and then use soft cloth to make it dry.

zDo not use gasoline, dope thinner or other chemical material to clean the shell. It may result

in shell transfiguration or paint flake.

zDo not allow the plastic or rubber material to touch the shell for a long time. It may result in

paint flake.

1IR SPEED DOME INSTALLATION

1.1 Installation Preparation

Basic Requirement

zAll installation and operation here should conform to your local electrical safety codes.

zBefore installation, please open the package and check all the components are included.

Please make sure the speed dome installation environment and installation mode can meet

your requirement. If there is special requirement, please contact your local retailer for more

information.

zWe assume no liability or responsibility for all the fires or electrical shock caused by

improper handling or installation.

Check installation space and installation location intension

Please make sure the installation environment has enough space to install the speed dome and

its corresponding bracket.

Please make sure the ceiling, wall and the bracket can support the speed dome and its

corresponding installation component. The safety factor shall be 4X.

About cable

Please select the cable according to your transmission distance.

The minimum video coaxial-cable requirement is:

z75 ohm.

zFull cable with copper conductor

z95% knitted copper shield

International Model Max Distance

(Ft\M)

RG59/U 750ft (229m)

RG6/U 1,000ft (305m)

RG11/U 1,500ft (457m)

Set dial switch button

Set dial switch button according to control protocol and speed dome address. (Please refer to

user’s manual for detailed information.)

Please keep all package material well for future use

Please keep speed dome package material well in case you need to send it back to your local

retailer or manufacturer for maintenance work.

Non-original package material may result in device damage during the transportation.

Check Accessories

Before the installation, please check the accessories one by one according to the packing list.

Please make sure all the components listed are includes.

1.2 IR speed dome and network IR speed dome installation

1.2.1 Speed dome bracket installation

The speed dome has several types of installation brackets. You can refer to the following

contents for detailed information. Here we are going to install the IR speed dome in wall mount

bracket.

1.2.2 Pipe thread bracket installation

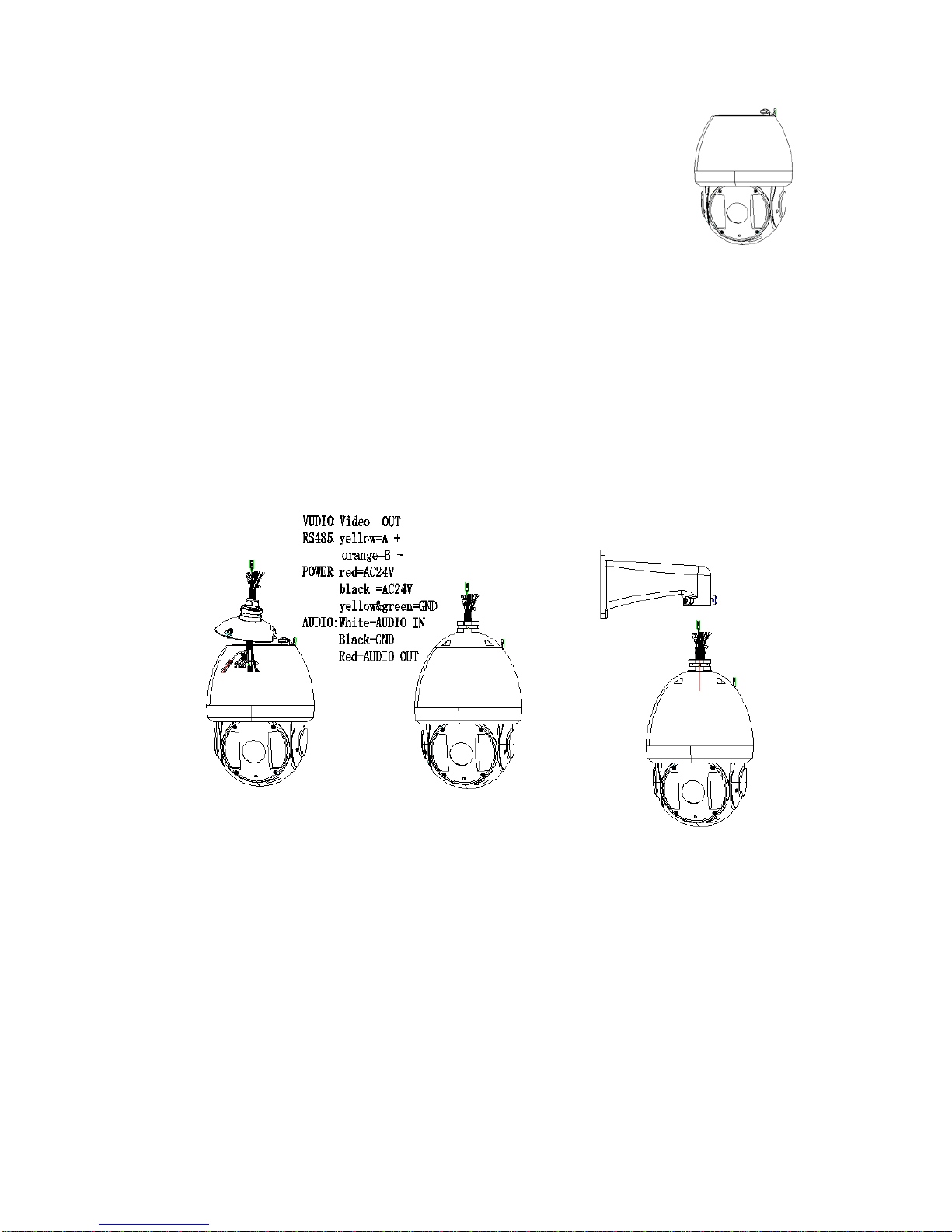

Please connect the quick installation port to the wall mount bracket (Pipe thread connection) and

then use the M4 stainless steel bolt to fix securely. Then you can connect the integrated cable to

the composite cable of the flanges. Please connect the corresponding power cable, video output

cable; RS 485 control cable, network cable, alarm input and output cable respectively (Please

connect as your actual requirements). Finally, you can connect the flange to the quick installation

port. See

Figure 1-1.

Please note the analog speed dome does not have the network cable connection. You can

connect the RS485, video output cable if necessary..

Wall mount bracket

M4 bolt

Quick

installation port

Flange

Waterproof

composite cable

Flange Installation Speed Dome

Figure 1-1

1.2.3 Clip wall mount bracket installation

Please connect the flange to the speed dome device. Connect the cable port of the flange to the

slot of the speed dome one by one (It includes power, video, RS485, network cable and alarm

input/output. Please note you can connect the network cable or the alarm input/output if

necessary.). After you connected the flange to the speed dome, please install it to the bracket.

Use the three inner hex screws to secure. See Figure 1-2.

For the corner mount installation or the pole mount installation, you can also refer to these

contents.

Figure 1-2

1.2.4 Address and Baud Rate Setup

Now you can set the IR speed dome address and baud rate. The IR speed dome interface is

shown as below. See Figure 1-3. There are two dial switches: SW1 and SW2. Here you can set

the address, baud rate, communication protocol and etc. Please refer to chapter 1.4 for detailed

information.
