ICRealtime ICIP360L4 Manuel utilisateur

HD Fisheye Panorama Network Camera

Quick Start Guide

Version 1.0.0

Welcome

Thank you for purchasing our network camera!

This user’s manual is designed to be a reference tool for your system.

Please read the following safeguard and warnings carefully before you use this series

product!

Please keep this user’s manual well for future reference!

1．Electrical safety

All installation and operation here should conform to your local electrical safety codes.

Please check if the power supply is correct before operating the device.

The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and

the Limited power source is rated 12V DC, DC5V or AC24V in the IEC60950-1. (Power

supply requirement is subject to the device label).

Please install easy-to-use device for power off before installing wiring, which is for

emergent power off when necessary.

Please prevent the line cord from being trampled or pressed, especially the plug, power

socket and the junction from the device.

Note: Do not connect these two power supplying sources to the device at the same

time; it may result in device damage!

We assume no liability or responsibility for all the fires or electrical shock caused by

improper handling or installation.

We are not liable for any problems caused by unauthorized modification or attempted

repair.

2．Environment

Please don’t aim the device at strong light (such as lighting, sunlight and so on) to focus;

otherwise it may cause overexposure (It is not the device malfunction), which will affect

the longevity of CCD or CMOS.

Please transport, use and store the device within the range of allowed humidity and

temperature.

Please don’t keep the device in a place which is wet, dusty, extremely hot, and extremely

cold and with strong electromagnetic radiation or unstable lighting.

Please do not allow water and other liquid falling into the camera in case that the internal

components are damaged.

Please do not allow rain or damp to the indoor device in case fire or lightning may occur.

Please keep the sound ventilation in case of heat accumulation.

Please pack the device with standard factory packaging or material with same quality

when transporting the device.

Heavy stress, violent vibration or water splash are not allowed during transportation,

storage and installation.

3. Operation and Daily Maintenance

Please do not touch the heat dissipation component of the device directly in order to

avoid scald.

Please do not dismantle the device; there is no component which can be fixed by users

themselves in the machine. It may cause water leakage or bad image for the device due

to unprofessional dismantling.

It is recommended to use the device with thunder proof device in order to improve

thunder proof effect.

The grounding holes of the product are recommended to be grounded to further enhance

the reliability of the camera.

Do not touch the CCD (CMOS) optic component directly. You can use the blower to

clean the dust or dirt on the lens surface. Please use a dry cloth wetted by alcohol to

wipe away the dust gently if it is necessary to clean.

Always use the dry soft cloth to clean the device. If there is too much dust, please use

the water to dilute the mild detergent first and then use it to clean the device. Finally use

the dry cloth to clean the device. Don’t use volatile solvent like alcohol, benzene, thinner

and etc or strong detergent with abrasiveness, otherwise it will damage the surface

coating or reduce the working performance of the device.

Dome cover is an optical device, please don’t touch or wipe cover surface directly during

installation and use, please refer to the following methods to deal with once dirt is found:

Stained with dirt

Use oil-free soft brush or hair dries to remove it gently.

Stained with grease or fingerprint

Use soft cloth to wipe the water drop or oil gently to make it dry, then use oil-free cotton

cloth or paper soaked with alcohol or detergent to wipe from the lens center to outward. It

is ok to change the cloth and wipe several times if it is not clean enough.

Warning

Please use the standard accessories provided by manufacturer and make sure the

device is installed and fixed by professional engineers.

Please prevent the device surface from the radiation of laser beam when using laser

beam device.

Please do not provide two or more power supply modes for the device, otherwise it may

cause damage to the device.

Statement

iii

Please refer to the actual product for more details; the manual is just for reference.

The manual will be regularly upgraded according to the product update; the upgraded

content will be added in the manual without prior announcement.

Please contact the supplier or customer service if there is any problem occurred when

using the device.

Please contact the customer service for the latest procedure and supplementary

documentation.

There may be deviation between the actual value of some data and the value provided in

the manual due to the reasons such as the real environment is not stable and so on.

Please refer to the company’s final explanation if there is any doubt or dispute.

The company is not liable for any loss caused by the operation which is not followed by

the manual.

Before installation, please open the package and check all the components are included.

Contact your local retailer ASAP if something is broken in your package.

Accessory Name

Amount

Network Camera

Quick Start Guide

Installation Accessories Bag

Table of Contents

1Structure................................................................................................................1

1.1 Device External Cables.........................................................................1

1.2 Dimensions..............................................................................................2

1.3 Bidirectional Talk....................................................................................3

1.3.1 Device-end to PC-end....................................................................3

1.3.2 PC-end to Device-end....................................................................3

1.4 Alarm Setup.............................................................................................4

2Installation .............................................................................................................5

2.1 Device Installation..................................................................................5

2.2 Micro SD Card Installation....................................................................6

3Quick Configuration Tool ....................................................................................8

3.1 Overview..................................................................................................8

3.2 Operation.................................................................................................8

4Web Operation....................................................................................................10

4.1 Network Connection ............................................................................10

4.2 Login and Main Interface ....................................................................10

4.3 Panorama Function on Web...............................................................11

1Appendix Toxic or Hazardous Materials or Elements..................................12

1 Structure

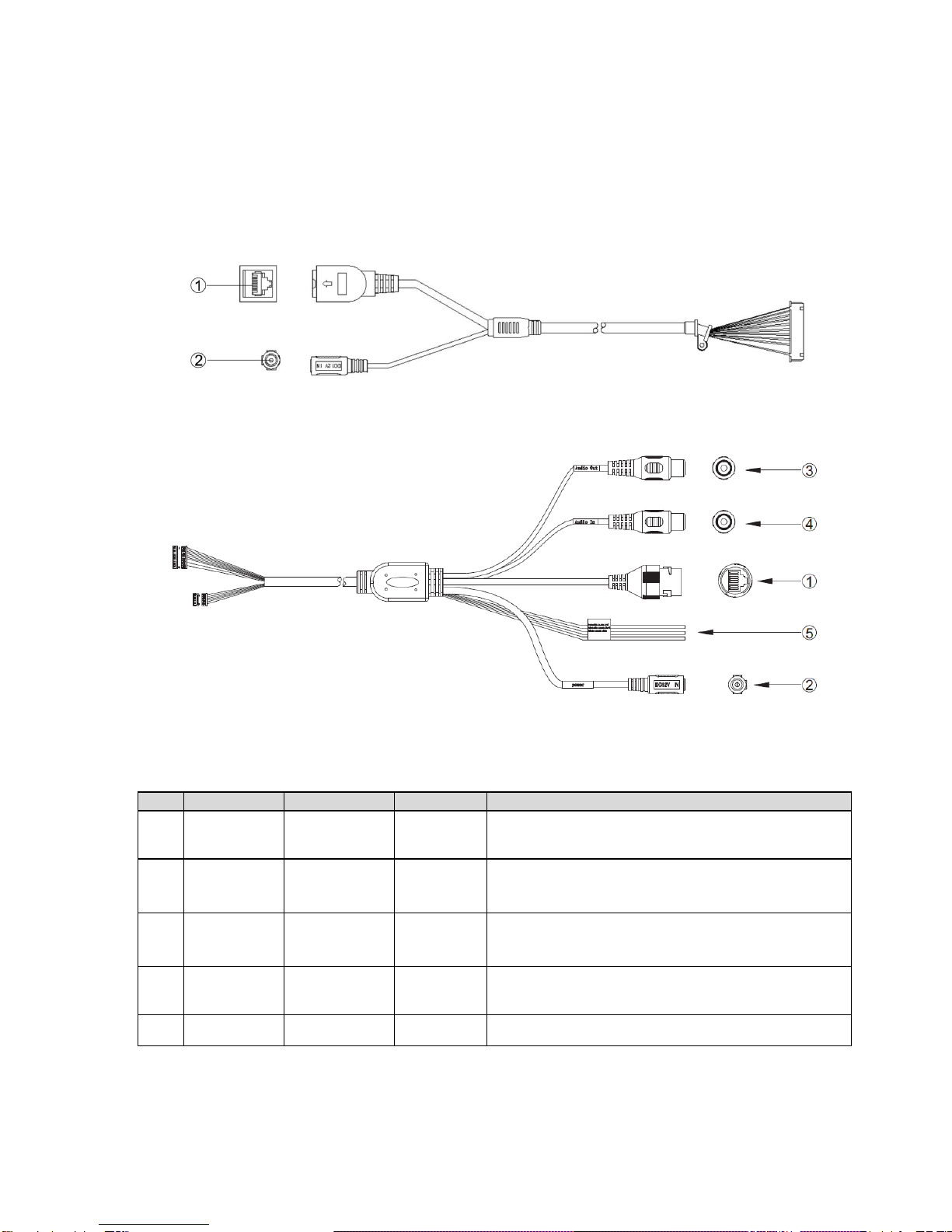

1.1 Device External Cables

Note: There is slight difference about appearance between the product models and the following

figures; please refer to Figure 1-1 or Figure 1-2 according to the actual products.

Figure 1- 1

Figure 1-2

Please see Sheet 1-1 for more details about external cable functions.

Port

Port name

Connector

Function Description

LAN

Network port

Ethernet

port

Connect standard Ethernet cable.

POWER

Power input

port

Connect DC 12V power, input power.

AUDIO

OUT

Audio output

port

RCA

Output audio signal to speaker and other devices.

AUDIO IN

Audio input

port

RCA

Input audio signal, receive analog audio signal

from pick-up and other devices.

I/O

I/O port

Connect I/O port.

Sheet 1-1

See Sheet 1-2 for more details about I/O port functions.

Port Name

Port SN

Port Connector name

Function Description

I/O Port

ALARM_IN1

Alarm input port, receive the on-off signal

from external alarm source.

ALARM_OUT1

Alarm output port, output alarm signal to

alarm device.

ALARM_GND

GND

Sheet 1-2

1.2 Dimensions

You can refer to the following figures for dimension information. The Unit is mm. See Figure 1- 3,

Figure 1- , and Figure 1- .

Figure 1- 3

Figure 1- 4

Figure 1- 5

1.3 Bidirectional Talk

1.3.1 Device-end to PC-end

Device Connection

Please connect the speaker or the MIC to the audio input port of the device, and then connect the

earphone to the audio output port of the PC. Login the Web and then click the “Talk”button to enable

the bidirectional talk function. You can see the button becomes orange after you enabled the

bidirectional talk function. Click “Talk”button again to stop the bidirectional talk function.

Listening Operation

At the device end, input the voice info to the speaker or MIC, and then receive the voice info sent via

earphone and other devices at the pc-end.

1.3.2 PC-end to Device-end

Device Connection

Please connect the speaker or the MIC to the audio input port of the PC, and then connect the

earphone to the audio output port of the device. Login the Web and then click the “Talk” button to

enable the bidirectional talk function. You can see the button becomes orange after you enabled the

bidirectional talk function. Click “Talk” button again to stop the bidirectional talk function. Bidirectional

talk function and on-site listening function can’t be used at the same time for the device.

Listening Operation

At the pc end, input the voice info to the speaker or MIC, and then receive the voice info sent via

earphone and other devices at the device-end.

1.4 Alarm Setup

Note:

Alarm function is only supported by some models.

Please refer to Figure 1-6 for more details.

Figure 1-6

Please follow the steps listed below for alarm input and output connection.

Step 1 Connect the alarm input device to the alarm input port of the I/O cable.

Step 2 Connect alarm output device to alarm output port of the I/O cable; alarm output is the output of

collector open circuit, which needs the alarm device to pull up 10K resistance to +3.3V

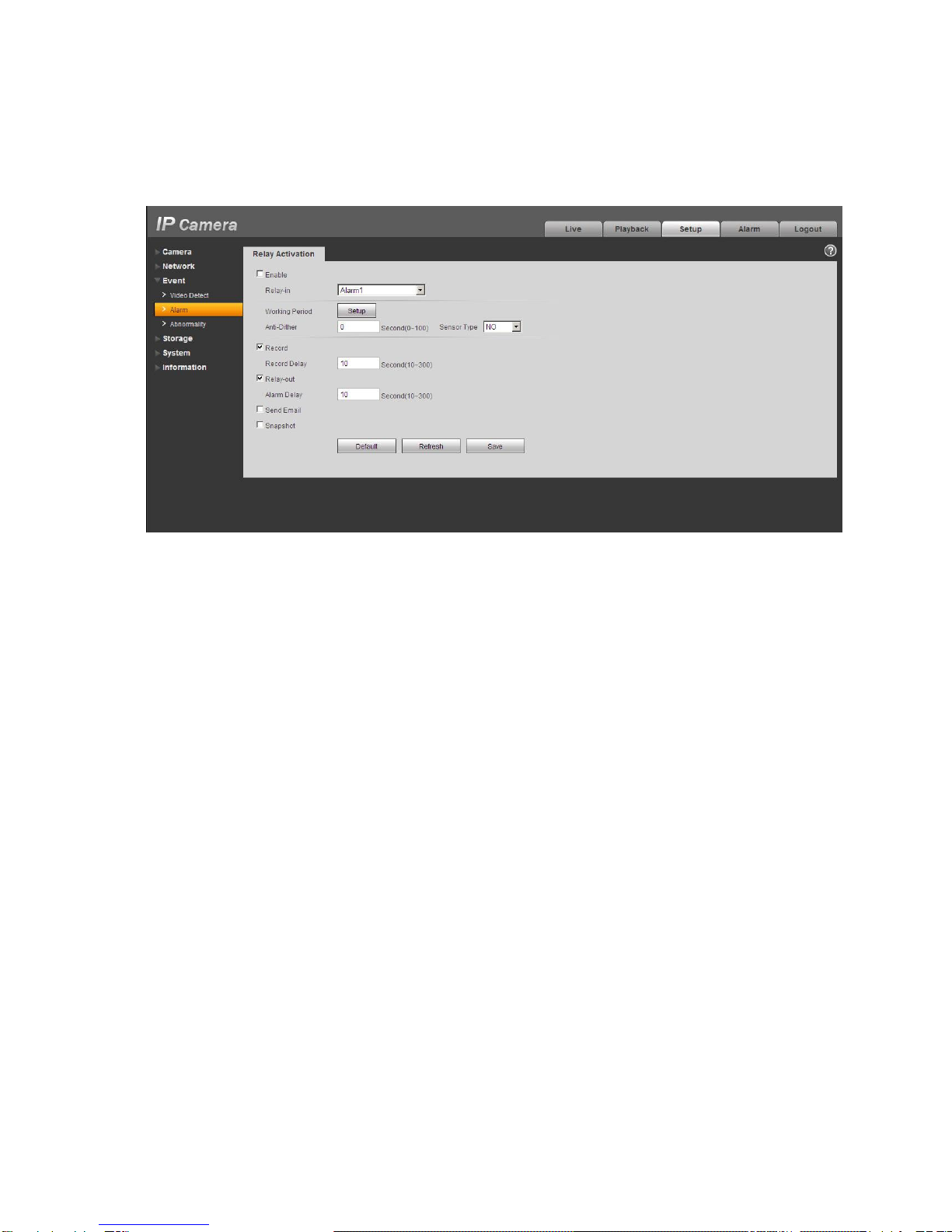

Step 3 Open WEB and set corresponding alarm input and output in the alarm setup. Please set the

alarm input of the WEB end to the alarm input of I/O port cable of the corresponding device.

Then set corresponding NO/NC input according to the high/low level signal generated when

alarm occurs to the alarm input device.

Step 4 Set the WEB alarm output. The alarm output is for the alarm output port of the device. It is the

alarm output port of the I/O cable.

The working current of alarm output port is recommended as <=10mA, max current is 80mA which is

used to drive external circuit; it is advised to add a relay when it is beyond this value.

2 Installation

Important

Before the installation, please make sure the installation surface can sustain at

least 3X weight of the bracket and the camera.

2.1 Device Installation

Please refer to Figure 2- 1 for device installation information.

Figure 2- 1

Step 1

Use the inner hex wrench from the accessories bag to unfasten the 3 hex screws on the dome camera

enclosure and then open the dome enclosure.

Step 2

Take the installation position diagram from the accessories bag and then paste it on the installation

ceiling or the wall according to the monitor area. Please dig three bottom holes of the plastic

expansion bolts according to the diagram. Take three expansion bolts from the accessories bag and

then insert them to the holes you just dug and then fix firmly.

Note:

If you need to dig a hole to pull through the cable on top of installation surface, you need to dig a cable

exit hole on the installation surface according to the installation positioning diagram.

If you need to pull through the cable on the side, you need to dig through the U-shape exit hole on the

side of chassis to form a cable access, and then pull the cable through the side exit hole on the

chassis.

Step 3

Table des matières

Autres manuels ICRealtime Caméra de sécurité

ICRealtime

ICRealtime IPEL-MB80F-IRW1 Manuel utilisateur

ICRealtime

ICRealtime ICIP D2010IR Manuel utilisateur

ICRealtime

ICRealtime AVS Series Manuel utilisateur

ICRealtime

ICRealtime AVS-D2110 Manuel utilisateur

ICRealtime

ICRealtime ICIPD4002IR28 Manuel utilisateur

ICRealtime

ICRealtime AVSD2218Z Manuel utilisateur

ICRealtime

ICRealtime ICR2200 Manuel utilisateur

ICRealtime

ICRealtime ICIP-D3077P Manuel utilisateur

ICRealtime

ICRealtime ICHD-2000P20X Instructions d'utilisation d'origine

ICRealtime

ICRealtime IPMX Series Manuel utilisateur

ICRealtime

ICRealtime AVS-4MD4025-IR Manuel utilisateur

ICRealtime

ICRealtime AVS-D8712SL-DP Manuel utilisateur

ICRealtime

ICRealtime I-Sniper EL-750W Manuel utilisateur

ICRealtime

ICRealtime ICIP B3000AF Manuel utilisateur

ICRealtime

ICRealtime ICIP-D2000VIR-B Manuel utilisateur

ICRealtime

ICRealtime ICIPD2730 Manuel utilisateur

ICRealtime

ICRealtime ICIPP3020HDIR Manuel utilisateur

ICRealtime

ICRealtime AVS-Z4212T Manuel utilisateur

ICRealtime

ICRealtime K6 Manuel utilisateur

ICRealtime

ICRealtime EL-2000 I-sniper Manuel utilisateur

ICRealtime

ICRealtime ICR-220-IR Manuel utilisateur

ICRealtime

ICRealtime HD-AVS Manuel utilisateur

ICRealtime

ICRealtime HD-PTZ-12X-W Manuel utilisateur

ICRealtime

ICRealtime ICIP-B2012VIR-B Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
