ICRealtime ICIP-D1300 Manuel utilisateur

Mini Network Dome Camera User’s Manual

Version 4.3.0

Welcome

Thank you for purchasing our network camera!

This user’s manual is designed to be a reference tool for your system.

Please read the following safeguard and warnings carefully before you use this series product!

Please keep this user’s manual well for future reference!

Important Safeguards and Warnings

1．Electrical safety

All installation and operation here should conform to your local electrical safety codes.

The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited

power source is rated 12V DC or 24V AC in the IEC60950-1. (Refer to general introduction) Please

note: Do not connect these two power supplying sources to the device at the same time; it may

result in device damage!

We assume no liability or responsibility for all the fires or electrical shock caused by improper handling

or installation.

We are not liable for any problems caused by unauthorized modification or attempted repair.

2．Transportation security

Heavy stress, violent vibration or water splash are not allowed during transportation, storage and

installation.

3．Installation

Do not apply power to the camera before completing installation.

Please install the proper power cut-off device during the installation connection.

Always follow the instruction guide the manufacturer recommended.

4．Qualified engineers needed

All the examination and repair work should be done by the qualified service engineers.

We are not liable for any problems caused by unauthorized modifications or attempted repair.

5．Environment

This series network camera should be installed in a cool, dry place away from direct sunlight,

inflammable, explosive substances and etc.

Please keep it away from the electromagnetic radiation object and environment.

Please make sure the CCD (CMOS) component is out of the radiation of the laser beam device.

Otherwise it may result in CCD (CMOS) optical component damage.

Please keep the sound ventilation.

Do not allow the water and other liquid falling into the camera.

Thunder-proof device is recommended to be adopted to better prevent thunder.

The grounding studs of the product are recommended to be grounded to further enhance the reliability

of the camera.

6. Daily Maintenance

Please shut down the device and then unplug the power cable before you begin daily maintenance

work.

iii

Do not touch the CCD (CMOS) optic component. You can use the blower to clean the dust on the lens

surface.

Always use the dry soft cloth to clean the device. If there is too much dust, please use the water to

dilute the mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the

device.

Please put the dustproof cap to protect the CCD (CMOS) component when you do not use the camera.

Dome enclosure is the optical component, do not touch the enclosure when you are installing the

device or clean the enclosure when you are doing maintenance work. Please use professional optical

clean method to clean the enclosure. Improper enclosure clean method (such as use cloth) may result

in poor IR effect of camera with IR function.

7. Accessories

Be sure to use all the accessories recommended by manufacturer.

Before installation, please open the package and check all the components are included.

Contact your local retailer ASAP if something is broken in your package.

Accessory Name

Amount

Network Camera Unit

Installation Accessories bag

Quick Start Guide

Table of Contents

1General Introduction ..................................................................................................................1

1.1 Overview........................................................................................................................1

1.2 Features.........................................................................................................................1

1.3 Specifications................................................................................................................2

1.3.1 Performance...........................................................................................................2

2Framework...................................................................................................................................4

2.1 Structure ........................................................................................................................4

2.2 Dimensions....................................................................................................................4

3Installation....................................................................................................................................7

3.1 Device Installation........................................................................................................7

3.2 Micro SD Card Installation..........................................................................................9

4Quick Configuration Tool.........................................................................................................11

4.1 Overview......................................................................................................................11

4.2 Operation.....................................................................................................................11

5Web Operation..........................................................................................................................13

5.1 Network Connection...................................................................................................13

5.2 Login and Main Interface...........................................................................................13

6FAQ ............................................................................................................................................15

Appendix Toxic or Hazardous Materials or Elements ...............................................................16

1 General Introduction

1.1 Overview

This series network camera integrates the traditional camera and network video technology. It adopts

audio and video data collection, transmission together. It can connect to the network directly without

any auxiliary device.

This series network camera uses standard H.264 video compression technology and MJPEG audio

compression technology, which maximally guarantee the audio and video quality.

This series network camera enclosure has the strong resistance capacity, which can guarantee the

proper work performance under heavy strike. It supports real-time monitor and motion detect function.

It can be used alone or used in a network area. When it is used lonely, you can connect it to the

network and then use a network client-end. Due to its multiple functions and various uses, this series

network camera is widely used in many environments such office, bank, road monitor and etc.

1.2 Features

User

Management

Different user rights for each group, one user belongs to one group.

The user right shall not exceed the group right.

Storage

Function

Support central server backup function in accordance with your configuration

and setup in schedule setting

Support record via Web and the recorded file are storage in the client-end

PC.

Support built-in Micro SD card. Support short-time storage when encounter

disconnection. (For some series only.)

Support network storage such as FTP.

Alarm

Function

Real-time respond to video detect as user pre-defined activation setup and

exert corresponding message in screen and audio prompt(allow user to pre-

record audio file)

Real-time video detect: motion detect, camera masking.

Can generate an alarm when network abnormal, Micro SD card abnormal

event occurred.

Network

Monitor

Network camera supports one-channel video data transmit to network

terminal and then decode. Delay is within 270ms (network bandwidth support

needed)

Max supports 20 connections.

Adopt the following audio and video transmission protocol: HTTP, TCP, UDP,

RTP/RTCP, RTSP and etc.

Support web access, widely used in WAN.

Network

Management

Realize network camera configuration and management via Ethernet.

Support device management via web or client-end.

Support various network protocols.

Power

External power adapter DC12V

Support PoE.

Warning！

Do not connect these two power supplying sources to the device at the

same time; it may result in device damage!

Assistant

Function

Log function

Day/Night mode auto switch.

Backlight compensation: screen auto split to realize backlight compensation

to adjust the bright.

Support digital WDR.

Support system resource information and running status real-time display.

Support video watermark function to avoid vicious video modification.

Support electronic shutter and gain setup.

Support dual bit stream, support ACF.

1.3 Specifications

1.3.1 Performance

Please refer to the following sheet for network camera performance specification.

Model

Parameter

ICIP D1300-28

System

Main

Processor

TI Davinci high performance DSP

Embedded LINUX

System

Resources

Support real-time network, local record, and remote operation at the

same time.

User Interface

Remote operation interface such as WEB, DSS, PSS

System Status

SD card status, bit stream statistics, log, and software version.

Video Parameter

Image Sensor

1/3-inch CMOS

1280(H)*960(V)

Pixel

Day/Night

Mode

Support day/night mode switch.

Gain Control

Fixed/Auto

White Balance

Manual/Auto

BLC

Off/BLC/WDR (1-100)/HLC(anti-flicker is outdoor and is valid only when

exposure mode is auto with range 1-100)

Electronic

Shutter

Manual/Auto

PAL: It ranges from 1/3 to 1/10000.

NTSC: It ranges from 1/4 to 1/10000.

Video

Compression

Standard

H.264/H.264H/ H.264B/MJPEG

Video Frame

Rate

PAL:

Main stream (1280*960@15fps)

Extra stream (704*576@15fps)

Main stream (1280*720@25fps)

Extra stream (704*576@25fps)

NTSC:

Main stream (1280*960@15fps)

Extra stream (704*480@15fps)

Main stream (1280*720@30fps)

Extra stream (704*480@30fps)

Video Bit Rate

H.264: 56Kbps-6144Kbps, adjustable

H.264H: 16Kbps-6144Kbps

H.264B 56Kbps-6144Kbps

MJPEG: 160Kbps-10240Kbps, adjustable and bit rate is adjustable.

Support customized setup.

Video Flip

Support mirror function.

Support flip function.

Snapshot

Max 1f/s snapshot. File extension name is JPEG.

Privacy Mask

Supports max 4 privacy mask zones

Video Setup

Support parameter setup such as bright, contrast.

Video

Information

Channel title, time title, motion detect, privacy mask.

Lens

2.8mm/MP

Lens Interface

M12. Lens is the default accessories

Video

Motion Detect

396 (18*22) detection zones; sensitivity level ranges from 0 to 100; area

threshold ranges from 0 to 100.

Activation event: video storage, image snapshot, log, email function and

etc.

Video Loss

Activation event: video storage, image snapshot, log, email function and

etc.

Record

and

Backup

Record

Priority

Manual> Video detect>Schedule

Local Storage

Do not support Micro SD card storage

Network

Wire Network

1-channel wire Ethernet port, 10/100 Base-T Ethernet

Network

Protocol

Standard HTTP, TCP/IP, IPv4/IPv6, ARP, IGMP, ICMP, RTSP, RTP,

UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, Bonjour,

SNMP.

Platform

interface

Standard

ONVIF

Remote

Operation

Monitor, system setup, log information, maintenance , upgrade and etc

AUX

Interf

ace

Reset

Built-in RESET button

General Parameter

Power

Support DC12V and PoE

Power

Consumption

DC 12V 1.5W MAX

Working

Temperature

-20℃~+50℃

Working

Humidify

≤95%

Dimensions(m

¢110×54

Weight

0.25Kg

Installation

Installed in the places such as wall or the ceiling

2 Framework

2.1 Structure

Please refer to the following figure for detailed information. See Figure 2-1.

Figure 2-1 Structure

Please refer to the following sheet for detailed structure information.

Please refer to the following sheet for detailed port information.

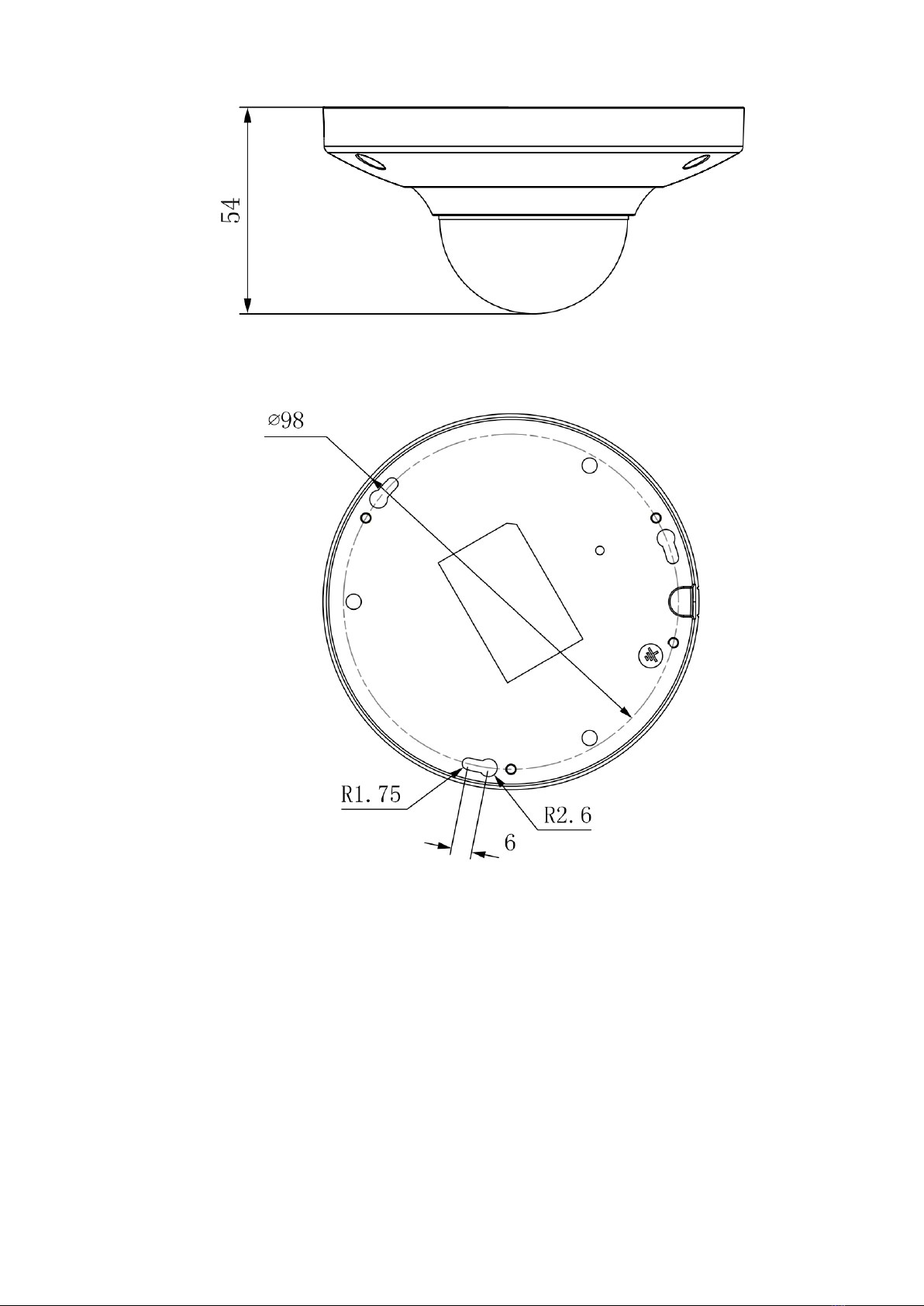

2.2 Dimensions

Please refer to the following figure for the dimension information. The unit is mm. See Figure 2-2

through Figure 2-4.

Name

X-Y-Z rotation module

Device lens

Dome camera enclosure

Name

Function

Power input port

Connect to the DC 12+ power to

input the power.

Network port

Network data input, output and

PoE.

Figure 2-2 Dimension illustration 1

Figure 2-3 Dimension illustration 2

Autres manuels pour ICIP-D1300

Table des matières

Autres manuels ICRealtime Caméra de sécurité

ICRealtime

ICRealtime Max Series Manuel utilisateur

ICRealtime

ICRealtime HD-AVS Manuel utilisateur

ICRealtime

ICRealtime AVSZ4112T Manuel utilisateur

ICRealtime

ICRealtime AVS-B2218Z Manuel utilisateur

ICRealtime

ICRealtime ICIP-3000CCD-W Manuel utilisateur

ICRealtime

ICRealtime AVSD2208VF Manuel utilisateur

ICRealtime

ICRealtime PTZ2300SIR Manuel utilisateur

ICRealtime

ICRealtime PTZN23X4D Manuel utilisateur

ICRealtime

ICRealtime PTZ-3660SIR Manuel utilisateur

ICRealtime

ICRealtime IPEL-M60F-IRW1 Manuel utilisateur

ICRealtime

ICRealtime F Series Manuel utilisateur

ICRealtime

ICRealtime Elite Series Manuel utilisateur

ICRealtime

ICRealtime ICIP B3000AF Manuel utilisateur

ICRealtime

ICRealtime Elite IPEL-E80F-IRB2 Manuel utilisateur

ICRealtime

ICRealtime ICIP-D2000-IR-B Manuel utilisateur

ICRealtime

ICRealtime ICIPS1300WDR Manuel utilisateur

ICRealtime

ICRealtime IPMX-E20F-IRB1 Manuel utilisateur

ICRealtime

ICRealtime AVSD2218Z Manuel utilisateur

ICRealtime

ICRealtime ICHD850VDIR Manuel utilisateur

ICRealtime

ICRealtime AVS-4MB4012-IR Manuel utilisateur

ICRealtime

ICRealtime EL9036 Manuel utilisateur

ICRealtime

ICRealtime ICIP-D2000-VIR Manuel utilisateur

ICRealtime

ICRealtime ICHD-2000P20X Instructions d'utilisation d'origine

ICRealtime

ICRealtime ICIPD1300 Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
