ICP DAS USA LinPAC-51 Series Manuel utilisateur

ICPDAS LinPAC-51xxQuickStart - 1 -

C-

-5

Version 1.4 2013/06/06

ÂWhat’s in the Box?

LP-51xx module microSD card Software Utility CD Screwdriver RS-232 Cable

ÂPreparing to start your LP-51xx

Power Supply: +10V to +30VDC (E.g., DP-665)

http://www.icpdas.com/products/Accessories/power_supply/power_list.htm

ÂDiagram of the LP-51xx

1 USB Port 6 COM 1 (RS-232)(console) 11 LED Indicator

2 Ethernet Port 7 COM 2 (RS-485) 12 microSD socket

3 Ethernet Port 8 COM 3 (RS-232) 13 VGA Port

4 Microphone In 9 DC (PWR, GND) 14 XWboard (optional)

5 Earphone Out 10 Frame Ground 15 Operating Modes Selector

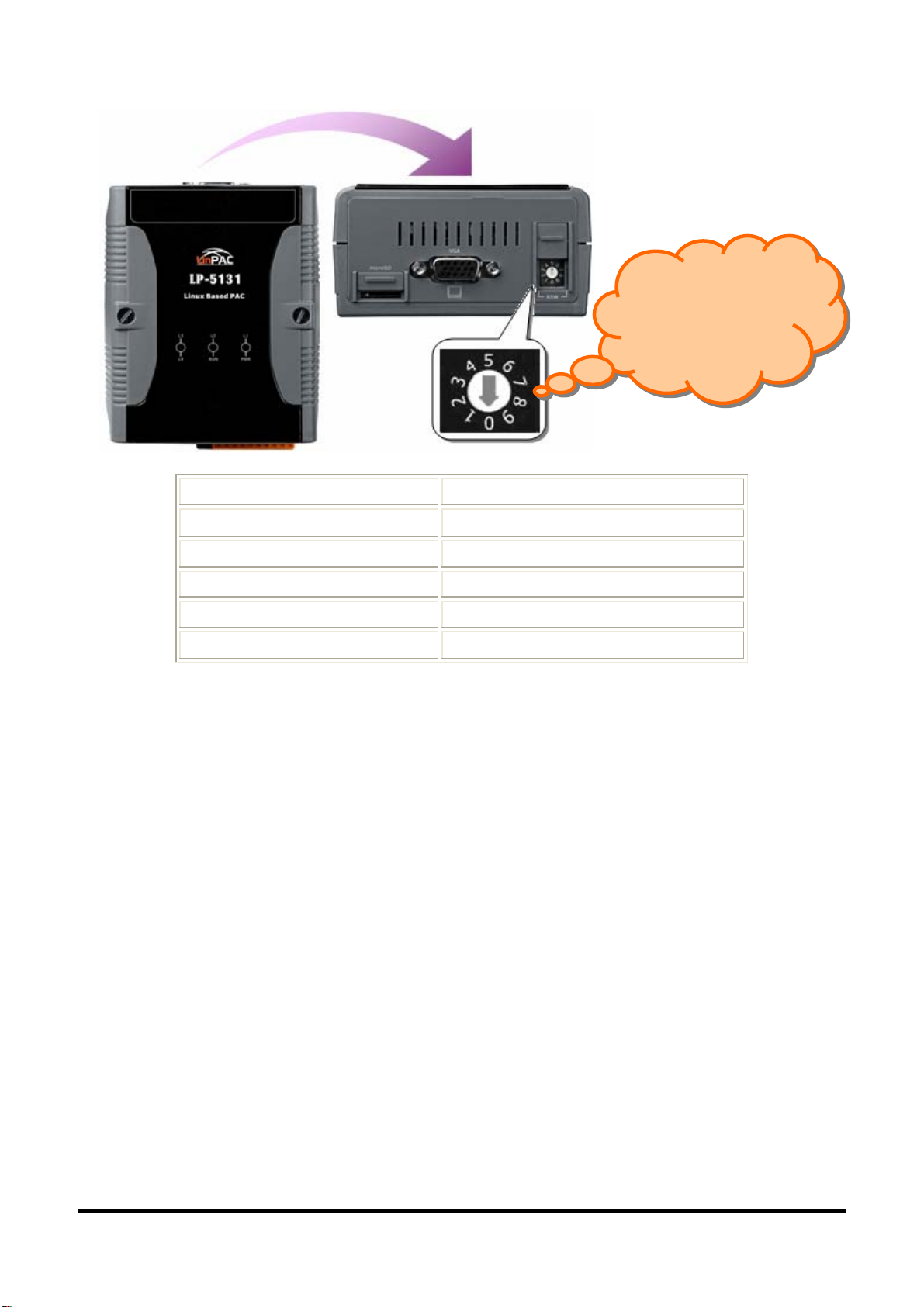

ÂConfiguring the Operating Mode

ICPDAS LinPAC-51xxQuickStart - 2 -

Rotary Switch Position Operation Mode

0 Normal Mode(Default)

1 Quick Mode

2 OS Update Mode

3 Debug Mode

Others Reserved

Enure the

rotary switch

is in the “0”

position

Normal Mode(Default)

Normal mode is the default operation mode for the LP-51xx. Use this mode to perform

additional tasks and configuration. Programs are also executed in this mode.

Quick Mode

Quick mode is used to bypass the LP-51xx boot screen when booting form a

microSD/microSDHC card, so as to speed up the booting process.

OS Update Mode

This mode is used to update the OS image. Note that the Linux OS image is only suitable

for the LP-51xx. If the LP-51xx cannot be booted or operated in normal mode, use this

mode to update OS image again. Ensure that you backup any important files, before

updating the OS image. For more information, refer to the “LP-51xx OS update manual”.

Debug Mode

This mode is only for use by ICP DAS during development of the device.

Reserved

Rotary switch positions 4~9 are reserved by ICP DAS.

ÂConnecting the LP-51xx to a Windows PC

The RS-232 connector is a standard non-isolated serial port (COM1 -

TxD, RxD, GND), and is located on the upper right-hand corner on the

LP-51xx module.

Connect the LP-51xx console to the COM port on the Host PC. Note that

it is unnecessary to connect to a converter.

Open HyperTerminal by clicking the Start button, point to All Programs,

point to Accessories, point to Communications, and the click Hyper

Terminal.

In the ‘Port Setting’ dialog box, set the parameters for COM 1 to 115200

bps,8 data bits,no parity,1 stop bit and no flow control, and then

press the OK button to save the settings.

ICPDAS LinPAC-51xxQuickStart - 3 -

Turn on the LP-51xx power and the following message will be displayed to

indicate that the configuration process has been completed.

Press ‘Enter’, you will see ‘linpac-51xx login:’ prompt.

At the LP-51xx login prompt, enter the root ID and password (Default ID and

password is root).

ICPDAS LinPAC-51xxQuickStart - 4 -

ÂConnecting the LP-51xx to a Linux PC

Install a HyperTerminal tool on the Linux PC, such as Minicom, or GTKTerm,

etc.

Using Minicom as an example:

In the terminal window, type ’minicom -s’ to enter the Minicom

configuration menu. To configure the COM1 port, use the keyboard

arrow keys to select the menu item labeled ‘Serial port setup’ and then

press Enter. Set the parameters for COM 1 and then press ‘Exit’.

ICPDAS LinPAC-51xxQuickStart - 5 -

A sample of the Minicon operation.

Turn on the LP-51xx power.

Once the boot sequence is complete, press ‘Enter’, you will see ‘linpac-51xx

At the LP-51xx login prompt, enter the root ID and password (Default ID and

password is root).

ICPDAS LinPAC-51xxQuickStart - 6 -

ÂConnect to the LP-51xx via Telnet

In HyperTerminal:

;OnaLinuxPC ;On a Windows PC

ICPDAS LinPAC-51xxQuickStart - 7 -

ÂConfiguring the IP Address for the LP-51xx

There are two methods of assigning the LP-51xx network settings. The first

uses DHCP and the other uses a manually Assigned IP address. The factory

default setting for the LP-51xx is DHCP, and this is the easiest method. However,

if your network system does not include a DHCP server, then you will need to

manually configure the network settings by using the Assigned IP method. To do

this:

Boot the device and establish a connection to the LP-51xx via Telnet.

Type in “vi /etc/network/interfaces” to open the network settings file.

ÂTechnical Support

This manual is applicable to the following devices:

Module Status Module Status Module Status

LP-5131 OK LP-5141-OD OK LP-5341 Phased out

LP-5131-OD OK LP-5331 Phased out LP-5441 Phased out

LP-5141 OK LP-5431 Phased out LP-5331-XW107i OEM only

ICP DAS Website: http://www.icpdas.com

ICP DAS Service :

[email protected]
