tPET-P2R2 2-ch DI and 2-ch relay Tiny Ethernet module - QuickStart (Dec/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 1

tET/tPET-P2R2

2-ch DI and 2-ch relay Tiny Ethernet

module

Quick Start Guide

What’s in the box?

The package includes the following items:

tET/tPET-P2R2 Module x 1 Quick Start x1 (This Document)

Product Website:

https://www.icpdas-usa.com/tet_p2r2.html

https://www.icpdas-usa.com/tpet_p2r2.html

tPET-P2R2 2-ch DI and 2-ch relay Tiny Ethernet module - QuickStart (Dec/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 2

1 Connecting the Power and Host PC

1) Make sure your PC has workable network settings.

Disable or well configure your Windows firewall and Anti-Virus firewall first,

else the “Search Servers” on Chapter 6 may not work. (Please contact

with your system Administrator)

2) Connect both the tET/tPET-P2R2 and your PC to the same sub network or

the same Ethernet switch.

3) Supply power (PoE or +12~+48 VDC)to the tET/tPET- P2R2.

tPET-P2R2 2-ch DI and 2-ch relay Tiny Ethernet module - QuickStart (Dec/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 3

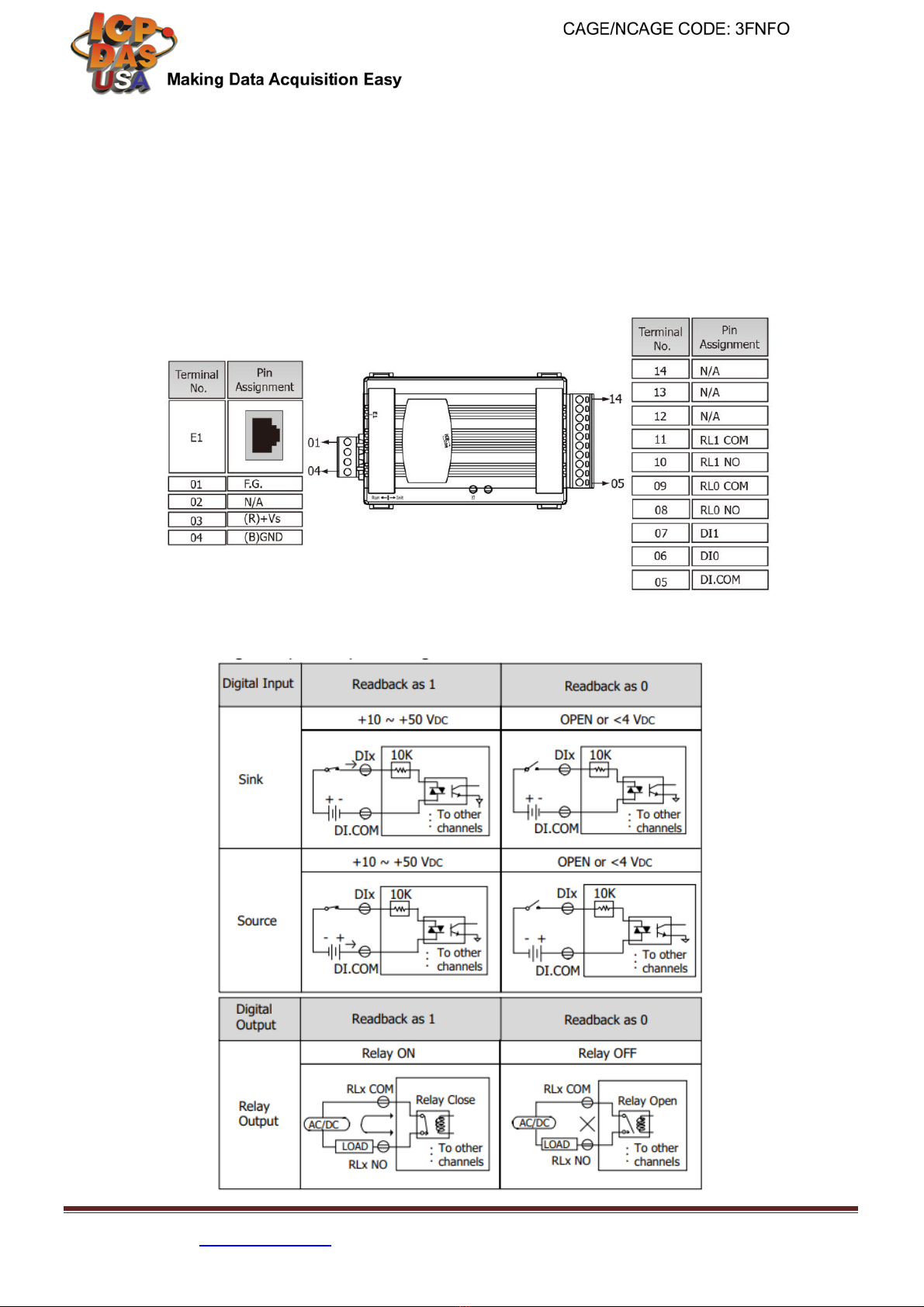

2 Pin Assignments & Wiring Note

Pin Assignments:

Digital Input/Output Wiring:

tPET-P2R2 2-ch DI and 2-ch relay Tiny Ethernet module - QuickStart (Dec/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 4

3 Modbus Address

(0xxxx) DO address:

Begin

Bits

Access

Points

Description

Per

Range

address

Type

Point

0 (0x0)

1~2

Digital Output Channels

0: OFF, 1: ON

R/W

32 (0x20)

Clears the status of all high

1: Clear

latched DI channels

33 (0x21)

Clears the status of all low

1: Clear

latched DI channels

235

1~2

Sets the Power-on value for

0: OFF, 1: ON

R/W/F

(0xEB)

all DO Channels

(Default: 0)

267

1~2

Sets the Safe value for all DO

0: OFF, 1: ON

R/W/F

(0x10B)

Channels

(Default: 0)

(1xxxx) DI address:

Begin

Bits

Access

Points

Description

Per

Range

address

Type

Point

1~2

Digital Input

0:Off

(0x0)

1:On

1~2

Digital latched status (high)

0:no

(0x20)

1:latched

1~2

Digital latched status (low)

0:no

(0x40)

1:latched

Note

For detail “DI/DO Modbus Address” information, refer to Section 6.3 Modbus Register Table

of user’s manual (http://ftp.icpdas.com/pub/cd/tinymodules/napdos/tpet/document/).

tPET-P2R2 2-ch DI and 2-ch relay Tiny Ethernet module - QuickStart (Dec/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 5

4 Wire the DI and DO for Self-test

1) Connect the RL0 COM pin (Pin09) and DI0 pin (Pin06).

2) Supply the External Power +24V to RL0 NO pin (Pin08).

3) Supply the External Power GND to DI.COM pin (Pin05).

5 Installing Software on Your PC

Install eSearch Utility, which can be obtained from the

ICPDAS web site:

http://ftp.icpdas.com/pub/cd/tinymodules/napdos/software/esearch/

ftp://ftp.icpdas.com/pub/cd/tinymodules/napdos/software/esearch/

tPET-P2R2 2-ch DI and 2-ch relay Tiny Ethernet module - QuickStart (Dec/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 6

6 Configuring Network Settings

1) Double-click the eSearch Utility shortcut on the desktop.

2) Click the “Search Servers” to search your tET/tPET- P2R2.

3) Double-click your tET/tPET- P2R2 to configure the settings







Factory Default Settings of tET/tPET-P2R2:

IP Address

192.168.255.1

Subnet Mask

255.255.0.0

Gateway

192.168.0.1

4) Contact your Network Administrator to obtain a correct network

configuration (such as IP/Mask/Gateway). Enter the network settings

and click “OK”. Note: The tET/tPET-P2R2 will use the new

settings 2 seconds later.



tPET-P2R2 2-ch DI and 2-ch relay Tiny Ethernet module - QuickStart (Dec/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 7

7 Testing your tET/tPET Module

1) Wait 2 seconds and click “Search Servers” button again to ensure

the tET/tPET- P2R2 is working well with new configuration.

2) Click the name of tET/tPET- P2R2 to select it.

3) Click the “Web” button to log in to the web configuration pages.

(Or enter the URL address of the tET/tPET- P2R2 in the address bar

of the browser.)





tPET-P2R2 2-ch DI and 2-ch relay Tiny Ethernet module - QuickStart (Dec/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 8

4) Enter the password in the “login password” field and click “Submit”.

Use the default

password: Admin



5) In the “Home” page allows a simple test to be performed to verify

the Digital Input and Output functionality.

6) In the “Digital I/O” section, click the “DO0” button to ON (Red).

7) The corresponding DI becomes green for DI0 is ON.






