Huawei CR-P1RS Manuel utilisateur

Quidway® NetEngine 80 Core Router OC-48/STM-16 CPOS Optical Interface Boards

Copyright ©2007 Huawei Technologies Co., Ltd. All Rights Reserved.

http://www.huawei.com/products/datacomm/ 1

Quidway® NetEngine 80 Core Router

OC-48/STM-16 CPOS Optical Interface Boards

Overview

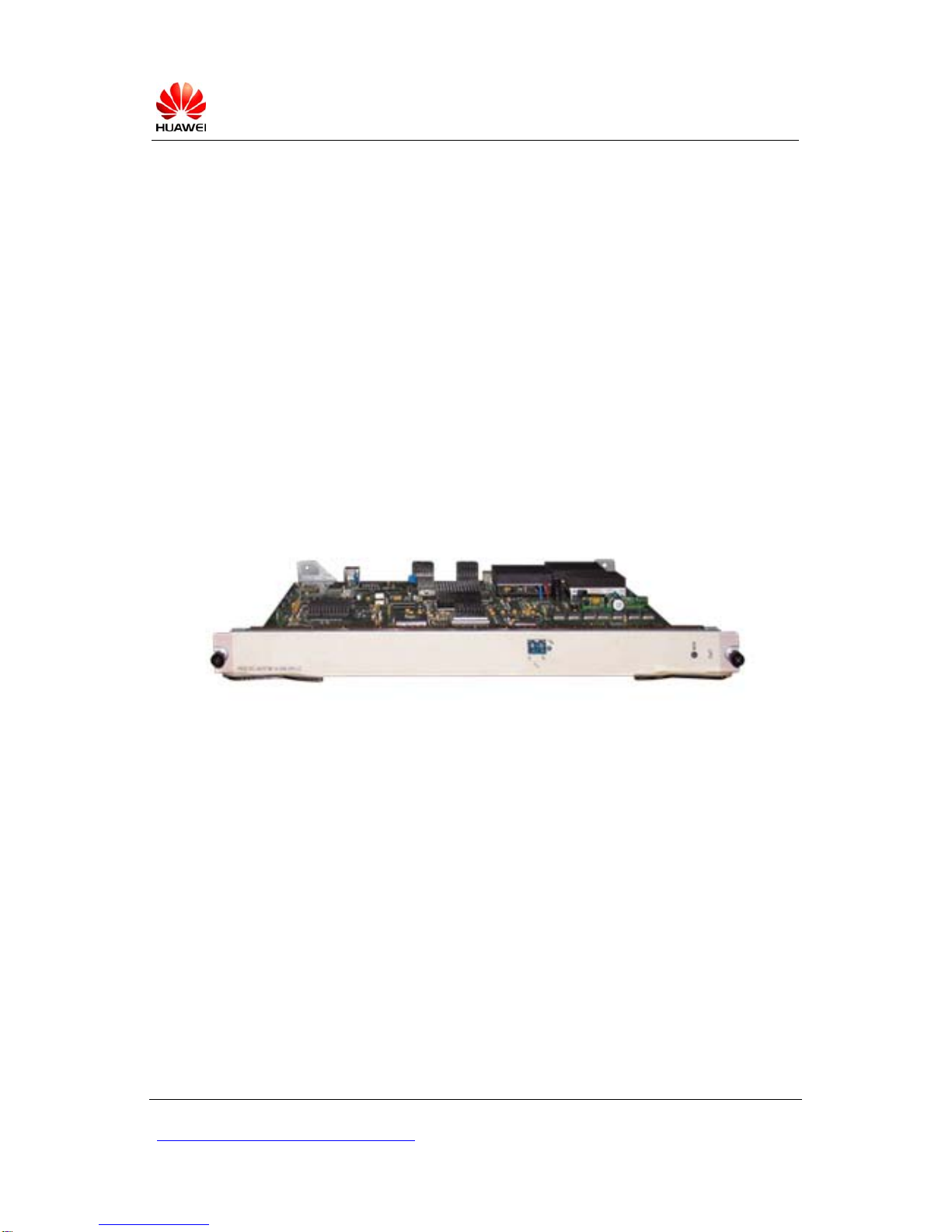

The OC-48/STM-16 CPOS optical interface board of the Quidway®NetEngine 80 core router

(abbreviated to NE80) consists of the PIC OC-48/STM-16 CPOS optical interface and the Line

Processing Unit (LPU).

The LPU implements processing and encapsulation of link layer protocols, data flow classification

and packet filtering, data forwarding and control packet processing. The OC-48/STM-16 CPOS

optical interface mainly implements POS frame encapsulation/decapsulation of data flows and

SDH/SONET mapping/demapping of POS frames, provides 2.5-Gbps channelized to 155M optical

interfaces, and enables such functions as loopback, environment monitoring and information query.

CR-P1RZ

The OC-48/STM-16 CPOS optical interface board is used by the router to converge low-speed

POS interfaces, and can be channelized to 16 155M POS interfaces at most. It usually needs to be

used together with a 2.5G SDH transmission ring network for networking.

Specifications

The NE80 provides 1-port OC-48/STM-16 CPOS optical interface boards using fixed optical

modules. In terms of transmission distances, the board can be categorized into the following two

types:

Quidway® NetEngine 80 Core Router OC-48/STM-16 CPOS Optical Interface Boards

Copyright ©2007 Huawei Technologies Co., Ltd. All Rights Reserved.

http://www.huawei.com/products/datacomm/ 2

Module name Interface type Description

CR-P1RZ LC 1-port 2.5G channelized to 155M POS optical interface

board (single-mode): The maximum transmission distance is

2 km, and the center wavelength is 1310 nm.

CR-P1RS LC

1-port 2.5G channelized to 155M POS optical interface

board (single-mode): The maximum transmission distance is

15 km, and the center wavelength is 1310 nm.
