Huawei OptiXstar W616E-D Manuel utilisateur

Huawei OptiXstar W616E-D

Quick Start

Issue 01

Date 2022-04-15

HUAWEI TECHNOLOGIES CO., LTD.

No part of this document may be reproduced or transmitted in any form or by any means without prior

written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective

holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and

the customer. All or part of the products, services and features described in this document may not be

within the purchase scope or the usage scope. Unless otherwise specied in the contract, all statements,

information, and recommendations in this document are provided "AS IS" without warranties, guarantees

or representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every eort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute a warranty of any kind, express or implied.

Huawei Technologies Co., Ltd.

Address: Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website: https://www.huawei.com

Email: [email protected]

Contents

1 Product Overview.................................................................................................................... 1

2 Wired Network Expansion.....................................................................................................4

3 Parameter.................................................................................................................................. 5

4 FAQs............................................................................................................................................ 6

Huawei OptiXstar W616E-D

Quick Start Contents

1 Product Overview

The Huawei OptiXstar W616E-D is an AX3000Mbps Wi-Fi 6 Slave FTTR for FTTR

all-optical Wi-Fi solution. Through optical and Ethernet upstream technology, it

achieves Ultra-wideband access and provides dual-band Gigabit Wi-Fi 6 and

Gigabit internet access for users.

NO TE

This device can only be used with the Master FTTR for FTTR all-optical Wi-Fi solution. Do

not use it independently.

Huawei OptiXstar W616E-D

Quick Start 1 Product Overview

Description of Indicator

Indica

tor

Status Description

White steady on The device is started and connected to the PON/LAN

upstream network.

Blinking The device is started and connected to the Wi-Fi

upstream network.

Red steady on Internet access is unavailable.

The device is being powered on.

The device is not connected to the upstream gateway.

Red: Blinking

slowly

(once per

second)

The device has detected a pairable device.

Red: Blinking

quickly(twice

per second)

● WPS pairing is being performed on the device as an

access point.

● The device is being cascaded.

The device is performing WPS pairing.

NO TICE

In the FTTR solution, it is recommended that optical bers be used for upstream

transmission. The Wi-Fi upstream network only serves as the backup link after the

optical ber is disconnected.

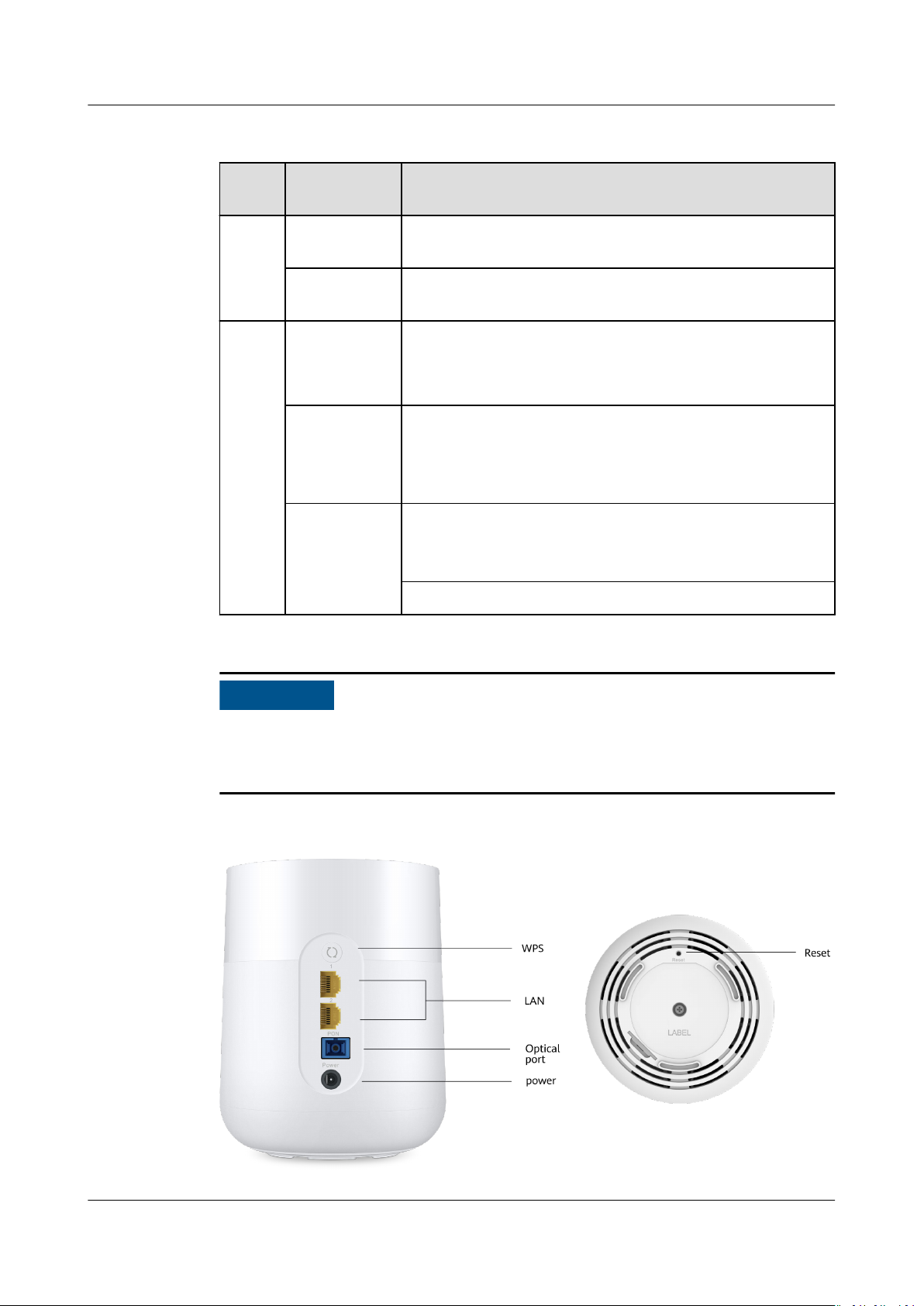

Ports and Buttons

Huawei OptiXstar W616E-D

Quick Start 1 Product Overview

Interface or

button

Description

WPS Enables the WPS pairing function.

LAN1-LAN2 The port is auto-negotiated to a LAN port when connected to a

computer or STB, and to a WAN port when connected to the

LAN port of a Master FTTR.

Optical port Connects to the Master FTTR to implement ber-to-room

transmission.

Power Connects to the power adapter.

Reset When the device is starting, use a needle-shaped object to

press and hold this button for more than 2 seconds until

indicator turn o. After the device restarts and the indicator

turns on, the factory settings are restored.

NOTE

Exercise caution when pressing the button. If you cannot access the

Internet after the device is restored to factory settings, contact your

service provider for help.

NO TE

● The device can only be used indoors. It can be mounted be placed horizontally on a

desktop. Do not install it in other modes, such as on the ceiling.

● Keep a clearance of more than 10 cm around the device to ensure proper ventilation.

● Keep the device away from electric appliances that generate strong magnetic or electric

elds, such as microwave ovens.

● The gures shown in this document may dier from the actual products, but the

dierences do not aect the functions of the products.

Huawei OptiXstar W616E-D

Quick Start 1 Product Overview

2 Wired Network Expansion

In the FTTR all-optical Wi-Fi solution, the W616E-D can work with the Master

FTTR to provide ultra-high-speed gigabit Wi-Fi coverage for the entire house.

In the FTTR solution, only optical bers need to be used to connect the optical

port of the device. The device is plug-and-play and does not require any

conguration.

NO TE

When Ethernet upstream and PON upstream are unavailable, the W616E-D can switch to

Wi-Fi upstream to connect to the Master FTTR.

Huawei OptiXstar W616E-D

Quick Start 2 Wired Network Expansion

3 Parameter

Item Specications

Model W616E-D

Conguration 2GE+2.4GHz & 5GHz Wi-Fi 6+1 Optical port

Extended

interface

None

Wi-Fi modes 2.4GHz & 5GHz Wi-Fi 6

Operating

temperature

0°C to 40°C (32°F to 104°F)

Operating

humidity

5% to 95%, non-condensing

Power

consumption

< 12 W

Power supplyx 12 V DC, 1 A

Power adapter

input

170 V to 240 V AC, 50/60 Hz

Dimensions Diameter: φ109 to φ117mm

Height: 145mm

Weight

(excluding

adapter)

< 700 g

Shell color White

Huawei OptiXstar W616E-D

Quick Start 3 Parameter

4 FAQs

What can I do if a problem occurs when I set the Internet access mode in a

wired network expansion scenario?

You can check the indicator status of the Huawei OptiXstar device. If the indicator

is steady red, Internet access is unavailable.

1. Cannot nd the Wi-Fi of the device: Ensure that the device is powered on.

Wait for a moment. After the device is started, scan for the Wi-Fi again.

2. Cannot access the conguration page: Ensure that the mobile phone is

connected to the Wi-Fi network of the device and enter the IP address in the

address box of a browser. (For details about the IP address, see the product

nameplate.)

3. Cannot access the Internet after the settings: Ensure that the home gateway

connected to the device can access the Internet. If a network cable is

connected, ensure that network cable is connected securely.

How to restore the factory settings of the device?

Press and hold the Reset button of the device for more than 2 seconds using a

needle, and release the button after the indicator turns o. After the device

restarts and the red indicator turns on, the factory settings are restored.

NO TE

After the W616E-D is restored to factory settings, connect it to the Master FTTR. The device

automatically synchronizes the conguration of the Master FTTR. The W616E-D does not

need to be congured.

Does the device support 5GHz Wi-Fi? How to connect to the 5GHz Wi-Fi?

Yes. The device supports 5GHz Wi-Fi. By default, the 2.4GHz/5GHz Wi-Fi names

are the same. The device automatically connects to an optimal frequency band. To

x the connection to the 5GHz frequency band, disable the Dual-Band Steering as

follows:

● To x the connection to the 5GHz frequency band for the FTTR solution,

congure it on the Master FTTR. The W616E-D will be automatically

synchronized.

Huawei OptiXstar W616E-D

Quick Start 4 FAQs

● To x the connection to the 5GHz frequency band for one room, congure it

on the the W616E-D. For the conguration method, please refer to the

following steps:

a. Connect a mobile phone to the Wi-Fi network of the device.

b. Enter the IP address in the address box of a browser and press Enter. (For

details about the IP address, see the product nameplate.)

c. On the displayed login page, enter the login password as prompted.

d. Choose My Wi-Fi and turn o Dual-band Combination. Then, two Wi-Fi

names are displayed. Connect to the Wi-Fi with the sux _5G.

How to change the Wi-Fi name and password of the device?

For the FTTR all-optical Wi-Fi solution, you are advised to change the Wi-Fi name

and password on the Master FTTR. The W616E-D automatically synchronizes the

modication.

How Can I Retrieve My Login Password?

1. Restore the factory settings of the Master FTTR. The W616E-D automatically

synchronizes the modication.

Press and hold the Reset button of the device for more than 10 seconds using

a needle, and release the button after the indicator turns o. After the device

restarts and the red indicator turns on, the factory settings are restored.

2. Enter the IP address in the address box of a browser and press Enter. (For

details about the IP address, see the product nameplate. No password is

required for the rst login.)

3. Follow the guide to set administrator login password. You can also set the Wi-

Fi password as the device management password.

Huawei OptiXstar W616E-D

Quick Start 4 FAQs
