HP A5830AF-48G Manuel utilisateur

HP A5830AF-48G Fan Trays

(JC692A & JC693A)

User Guide

5998-2056

Part number: 5998-2056

Document version: 6PW102-20111103

Legal and notice information

No part of this documentation may be reproduced or transmitted in any

form or by any means without prior written consent of Hewlett-Packard

Development Company, L.P.

The information contained herein is subject to change without notice.

HEWLETT-PACKARD COMPANY MAKES NO WARRANTY OF ANY

KIND WITH REGARD TO THIS MATERIAL, INCLUDING, BUT NOT

LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE. Hewlett-Packard shall not be

liable for errors contained herein or for incidental or consequential

damages in connection with the furnishing, performance, or use of this

material.

The only warranties for HP products and services are set forth in the

express warranty statements accompanying such products and services.

Nothing herein should be construed as constituting an additional

warranty. HP shall not be liable for technical or editorial errors or

omissions contained herein.

Contents

Fan tray overview ····················································································1

Back-to-front airflow fan tray ·····························································1

Introduction to back-to-front airflow fan tray ······························1

Back-to-front airflow fan tray specifications································3

Front-to-back airflow fan tray ····························································3

Introduction to front-to-back airflow fan tray ······························3

Front-to-back airflow fan tray specifications·······························5

Installing and replacing a fan tray·························································6

Installing a fan tray ············································································6

Replacing a fan tray ··········································································8

Support and other resources································································ 11

Contacting HP·················································································· 11

Subscription service··································································· 11

Related information ········································································· 12

Documents ·················································································· 12

Websites····················································································· 12

Conventions ····················································································· 12

Fan tray overview

Back-to-front airflow fan tray

Introduction to back-to-front airflow fan tray

The HP A5830AF-48G back (power side) to front (port side) airflow Fan

Tray (JC692A), referred to as back-to-front airflow fan tray hereafter, is a

fan tray with blowing fans that blow air to the inside of the device. It

comprises four separate fans. The back-to-front airflow fan tray features

small size, fast heat dissipation, and hot swapping, and can

automatically adjust the fan speed based on the device temperature.

Figure 1 shows the structure and air flow of the fan tray.

The fan tray provides a status LED to indicate the operating status of the

module. When the switch is running, the LED can have the following

statuses:

•The LED displays green—The fan tray operates properly.

•The LED displays red—The fan tray has a fault.

•The LED is off—The fan tray is not correctly installed or has a fault.

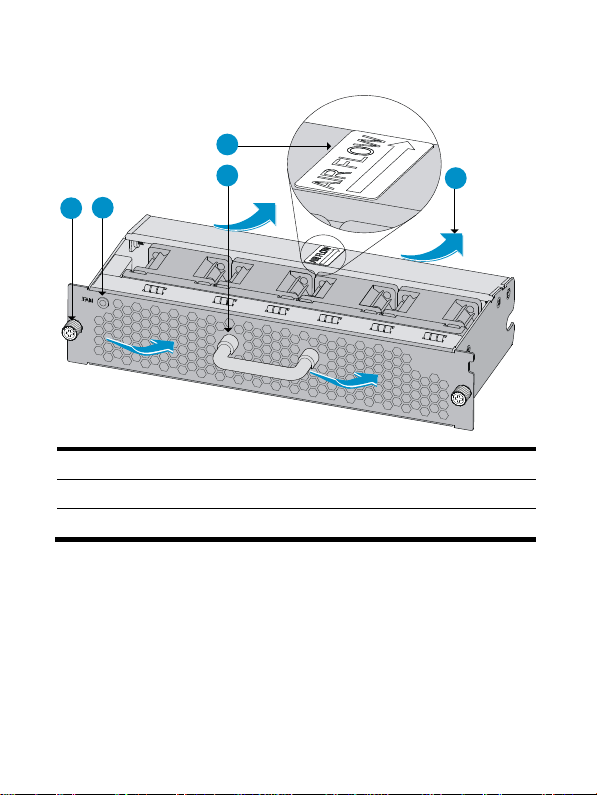

Figure 1 Back-to-front airflow fan tray structure

(1) Captive screw (2) Status LED

(3) Handle (4) Airflow direction label

(5) Airflow

Back-to-front airflow fan tray specifications

Table 1 Back-to-front airflow fan tray specifications

Model Item Specification

Fans Four 40 × 40 × 28 mm (1.57

× 1.57 × 1.10 in) fans

Max fan speed

9500 rpm (revolutions per

minute)

Max airflow 40 CFM (cubic foot per

minute)

Max power

consumption 8.42 W

Back-to-front

airflow fan

tray

Min power

consumption 0.87 W

Front-to-back airflow fan tray

Introduction to front-to-back airflow fan tray

The HP A5830AF-48G front (port side) to back (power side) airflow Fan

Tray (JC693A), referred to as front-to-back airflow fan tray hereafter, is

a fan tray with drawing fans that draw air from the inside of the device.

It comprises four separate fans. The front-to-back airflow fan tray

features small size, fast heat dissipation, and hot swapping, and can

automatically adjust the fan speed based on the device temperature.

Figure 2 shows the structure and air flow of the fan tray.

The fan tray provides a status LED to indicate the operating status of the

module. When the switch is running, the LED can have the following

statuses:

•The LED displays green—The fan tray operates properly.

•The LED displays red—The fan tray has a fault.

•The LED is off—The fan tray is not correctly installed or has a fault.

Figure 2 Front-to-back airflow fan tray structure

(1) Captive screw (2) Status LED

(3) Handle (4) Airflow direction label

(5) Airflow

Front-to-back airflow fan tray specifications

Table 2 Front-to-back airflow fan tray specifications

Model Item Specification

Fans

Four 40 × 40 × 28

mm (1.57 × 1.57 ×

1.10 in) fans

Max fan speed 9500 rpm

Max airflow 40 CFM

Max power

consumption 8.42 W

Front-to-back airflow

fan tray

Min power

consumption 0.87 W

Installing and replacing a fan tray

You can install and replace the back-to-front airflow fan tray and

front-to-back airflow fan tray in the same way. For more information, see

“Installing a fan tray“ and “Replacing a fan tray.”

Installing a fan tray

IMPORTANT:

Before installing a fan tray, make sure that the airflow direction of

the module meets the ventilation requirement at the installation site.

Follow these steps to install a fan tray:

Step1 Wear an ESD-preventive wrist strap, and make sure that it

makes good skin contact and is properly grounded.

Step2 As shown in callout 1 of Figure 3, use a screwdriver to loosen

the captive screws on the blank filler panel of the fan tray slot,

and then remove the blank filler panel.

Step3 Unpack the fan tray.

Step4 As shown in callout 2 of Figure 3, holding the fan tray with both

hands with the upside (marked with an airflow direction label)

on top, gently push the fan tray into the slot along the guide

rails until the fan tray completely seats into the slot.

Step5 Use a Phillips screwdriver to fix the captive screws on the fan

tray to secure it into the switch chassis.

Step6 When the switch is running, check the status LED of the fan tray.

If the LED displays green, the installation is correct.

Figure 3 Install a fan tray

(1) Remove the blank filler panel (2) Install a fan tray
