Diskette drive installation

HP xw Workstation series

This document describes how to install a diskette drive in your workstation.

Kit contents

This kit includes the following components:

This product ships with the necessary supplies for installing a diskette drive in various workstation

models, so you might not use all of the cables, bezels, or screws.

●Diskette drive

●Cables

◦Round cable for HP xw8200 and xw6200 Workstations

◦Flat cable for HP xw4000 series workstations

●Three bezels (one for each workstation)

◦13.335 cm (5.25 inch) bezel for HP xw8000 and xw9000 series workstations

◦8.89 cm (3.5 inch) bezel for HP xw6000 series workstations (thinner than those for the HP

xw4300, xw4200, and xw4100 Workstations)

◦8.89 cm (3.5 inch) bezel for HP xw4000 series workstations (thicker than that for the HP

xw6200 Workstation)

●Screws are not required for HP xw6000 series workstations

●Bracket for the HP xw8000 and xw9000 series workstations only

trademark of Hewlett-Packard Development Company, L.P.

ENWW HP xw Workstation series 1

Warnings and cautions

WARNING! Any surface or area of the equipment marked with this symbol indicates the presence

of a hot surface or hot component. If this surface is contacted, the potential for injury exists. To reduce

the risk of injury from a hot component, enable the surface to cool before touching.

WARNING! Any surface or area of the equipment marked with this symbol indicates the presence

of an electrical shock hazard. To reduce the risk of injury from electrical shock, do not open any enclosed

area marked with this symbol.

WARNING! To reduce the risk of electric shock or damage to your equipment:

— Do not disable the power cord grounding plug. The grounding plug is an important safety feature.

— Plug the power cord in a grounded (earthed) outlet that is easily accessible at all times.

— Disconnect power from the equipment by unplugging the power cord from the electrical outlet.

WARNING! To reduce the risk of serious injury, read the Safety & Comfort Guide. It describes proper

workstation setup, posture, health, and work habits for computer users, and provides important electrical

and mechanical safety information. This guide is located at http://www.hp.com/ergo and on the

documentation CD (if one is included with the product).

WARNING! If a product is shipped in packaging marked with this symbol, , the product must always

be lifted by two persons to avoid personal injury due to product weight.

CAUTION: Static electricity can damage the electronic components of the workstation. Before

beginning these procedures, be sure you discharge static electricity by briefly touching a grounded metal

object.

CAUTION: Observe the following cautions when removing or replacing a processor:

— Installing a processor incorrectly can damage the system board. Contact an HP authorized reseller

or service provider to install the processor. If you plan to install the processor yourself, read all of the

instructions carefully before you begin.

— Failure to follow the workstation preparation instructions can result in an improperly installed

processor, causing extensive workstation damage.

— Processor socket pins are delicate and bend easily. Use extreme care when placing the processor

in the socket.

2 Diskette drive installation ENWW

CAUTION: To prevent damage to the workstation, observe the following Electrostatic Discharge

(ESD) precautions while performing the system parts removal and replacement procedures:

— Work on a static-free mat.

— Wear a static strap to ensure that any accumulated electrostatic charge is discharged from your body

to the ground.

— Create a common ground for the equipment you are working on by connecting the static-free mat,

static strap, and peripheral units to that piece of equipment.

NOTE: HP accessories are for use in HP Workstation products. They have been extensively tested

for reliability and are manufactured to high quality standards.

ENWW Warnings and cautions 3

Step 1—Preparing the workstation

Your workstation documentation includes instructions for preparing the workstation for component

installation.

To prepare the workstation for component installation:

1. Power down the workstation.

2. Disconnect power from the workstation.

3. Open the access cover.

For product-specific information, see the Service and Technical Reference Guide for your HP

workstation at http://www.hp.com/support/workstation_manuals.

Step 2—Installing the diskette drive

1. Remove the front bezel, the necessary bezel blank, and the EMI filler blank (if necessary).

2. For HP xw8000 and xw9000 Workstation series, insert the diskette drive in the bracket, and secure

the diskette drive by inserting two M3 screws in the rear holes.

Figure 1. Installing the drive in the bracket

3. Slide the drive into the bay. For an HP xw4000 series workstation, you must add four screws to

secure the diskette drive to the chassis.

4 Diskette drive installation ENWW

HP xw8000 and xw9000 series

workstations

HP xw6000 series workstation HP xw4000 series workstation

Figure 2. Installing the drive in the bay

4. Connect a data cable from the system board to the diskette drive and connect the power cable

from the power supply to the diskette drive.

NOTE: Depending on your workstation, the location of the system board connector and the

correct power cable might be different. Refer to the service label on your workstation side panel

for product-specific information.

Figure 3. Connecting the data cable

5. Route the diskette drive data cable between the system board and the hard drive cage. Your cable

might look different than the one shown in Figure 3.

CAUTION: The cable must stay between the system board and the hard drive cage. You might

have to push the cable down so that it catches on the system board. This routing method is

important because you do not want to interfere with the heatsink fans or block airflow.

ENWW Step 2—Installing the diskette drive 5

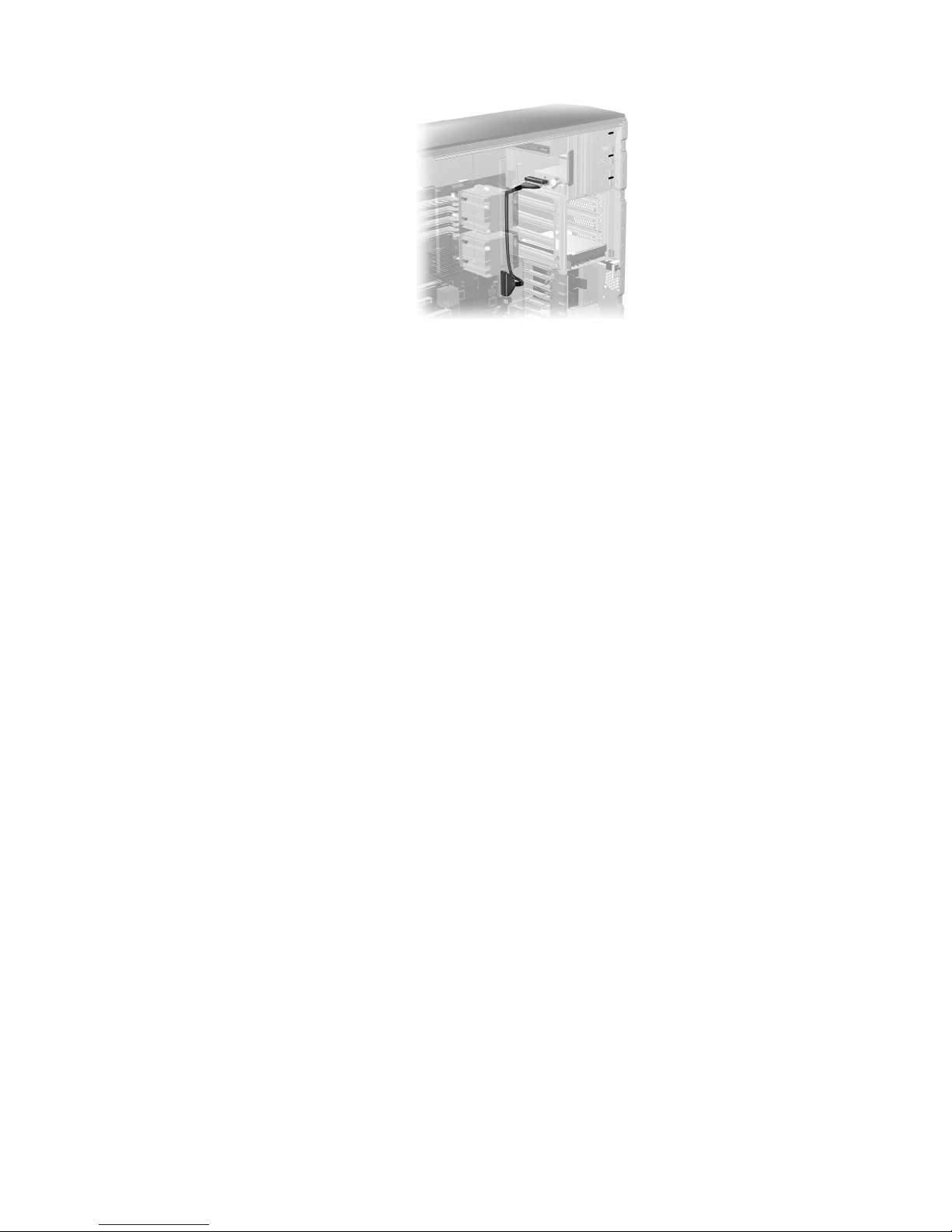

Figure 4. Positioning the data cable

6. Replace the diskette drive bezel, front bezel, access panel, reconnect power, and turn on the

workstation.

Step 3—Reassembling the workstation

After installation, reassemble the workstation using the instructions in the workstation documentation.

The reassembly process involves reinstalling the side access panel and restoring power to your

workstation.

6 Diskette drive installation ENWW
