Honeywell ADEMCO 5869 Manuel utilisateur

The 5869 Holdup Switch/Transmitter is a finger-operated RF transmitting

device. It is typically mounted under a counter or money draw for

inconspicuous operation. When the transmitter is activated, it emits an

RF signal to the receiver. The security system control panel sends a

burglary alarm to the central station when a RF signal is received from

an enrolled Holdup Switch/Transmitter.

Once activated, the 5869 Holdup Switch/Transmitter can only be reset

by the reset key. The 5869 also incorporates tamper switches that are

activated when the cover is removed, or if the unit is forcibly removed

from its installation location.

•No wires to run

•Front and back tamper resistant

•Easily Mounted

•Quick enrollment

•Includes battery

FEATURES:

5869

ORDERING:

Part No. Description

5869 Holdup Switch/Transmitter

Compatibility

•Fully compatible with all Vista Control

Panels

Holdup

Switch/

Transmitter

5869

SPECIFICATIONS:

165 Eileen Way, Syosset, NY 11791

Honeywell International Inc.

ADEMCO is an ISO9001 Registered

Company

Physical:

•1-15/16" W x 5-15/16" H x 1-3/16"D

(50mm x 150mm x 30mm)

Frequency:

•345MHz

Battery:

•3-volt Lithium. ADEMCO 466

or equivalent.

Agency Listings:

•UL Listed for Household Burg UL1023

and Hold Up Burg UL636. Using 5881ENHC

with appropriate ADEMCO commercial listed panels

Holdup

Switch/

Transmitter

HOLDUP

TRANSMITTER

DEVICE

MOUNTING

HOLE COVER

SCREW

TRIGGER

MOUNTING

HOLE

COVER

SCREW

MOUNTING

HOLE

COVER

ATTACH

HOLE

COVER REMOVED

INSIDEVIEW

WITHOUT

CIRCUIT BOARD

BREAKAWAY

TAMPER

RELEASE TAB

MOUNTING

HOLE

SCREW

HOLE

SECURING

TABS FOR

CIRCUIT

BOARD

COVER

ATTACH

HOLE

5869-003-V0

5869-002-V0

MOUNTING

HOLE

TRIGGER

HOLE

TRIGGER

BREAKAWAY

TAMPER

RELEASE

RESET

KEY

COVER

TAMPER

RELEASE

SWITCH

MOUNTING

HOLE

COVER

SCREW (2)

No. 6X1/2

COVER

LITHIUM

BATTERY

CIRCUIT

BOARD

COVER

ATTACH HOLE

COVER

ATTACH

HOLE

MOUNTING

SCREW (2)

No. 6X2

BREAKAWAY

TAMPER

RELEASE

SCREW HOLE

INDEX

TAB

COVER

SCREW

NOTE

CIRCUIT BOARD REMOVED

FOR CLARITY ONLY.DO NOT

REMOVE CIRCUIT BOARD

DURING INSTALLATION.

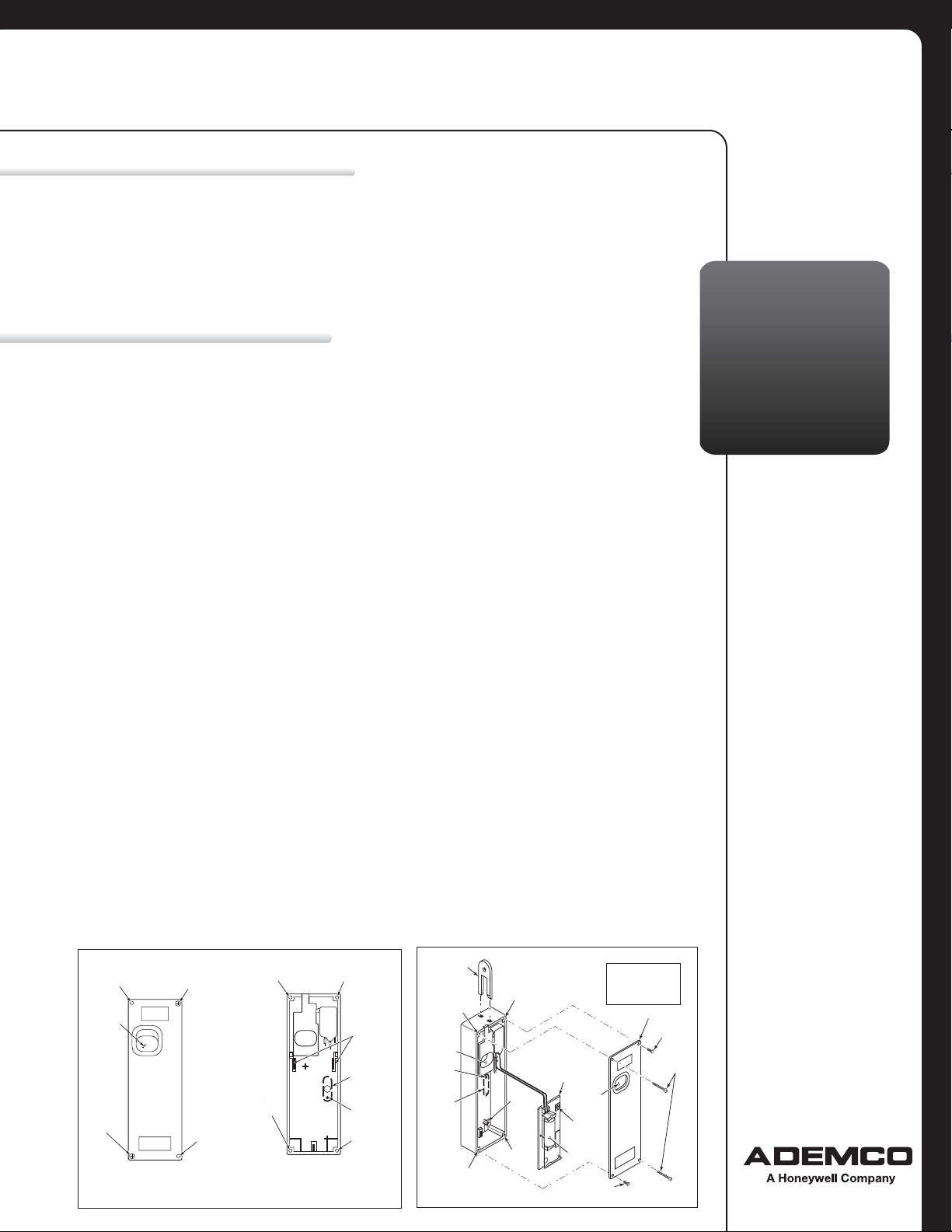

FIGURE 1 FIGURE 2

1. Remove the two screws (Figure 1)

securing the cover to the 5869 case.

NOTE: The holes located in the opposite

corner, to the screws that secure the cover

to the case, provide a means for securing

the transmitter to the counter or drawer.

2. Using the case as a drill template, position

the case in the desired location.

3. Drill a 1/16-inch pilot hole at the breakaway

tamper release hole and the two case

mounting holes (Figure 2).

4. Attach the case to the counter or money

drawer using one No. 6 x 3/4 screw

(supplied) at the breakaway tamper

release.

5. Install the battery (see BATTERY

INSTALLATION/REPLACEMENT).

6. Secure the cover to the case with the two

screws removed in step 1.

7. Secure the assembled case to the counter

or drawer using the two No. 6 x 2

mounting screws supplied (Figure 2).

Mount the 5869 under a counter or money drawer for easy access by the cashier. Refer to the

steps and figures that follow for typical mounting instructions.

Before mounting the 5869 permanently, perform Go/No Go tests to verify adequate transmitter

signal strength at desired mounting location (refer to the Security System Control Panel

Installation and Setup Guide).

Programming

The 5869 Holdup Switch/Transmitter should

be programmed as a 24-hour silent zone

type. Refer to the Security System Control

Panel Installation and Setup Guide for

programming instructions.

NOTES:

•During programming of the control panel,

the 5869 Holdup Switch/Transmitter

should be treated as “RF” (i.e., supervised

RF) Type.

•The 5869 is one closed input loop zone

(loop 1).

Battery Installation/Replacement

1. Remove and retain screws securing the

5869 cover.

2. Observing correct polarity, insert the

battery into the battery holder.

NOTE: Use care not to bend the antenna

while attempting to install battery.

3. Re-install screws to secure cover and/or

assembly. Refer to Figure 1.

L/5869TRAN/D 4/03

INSTALLATION:
