Honeywell MM14CCS Manuel utilisateur
For product inquiries or support / Informacje o produkcie i wsparcie techniczne:
www.honeywellportableac.com
www.duraterm.pl
Customer Support / Obsługa Klienta:
Tel. + 48 23 662 4904
Portable Air Conditioner
Klimatyzator Przenośny
OWNER’S MANUAL
Read and save these instructions before use
INSTRUKCJA UŻYTKOWNIKA
Przeczytaj instrukcjęprzed rozpoczęciem użytkowania
Model: MM14CCS
Made in China
Wyprodukowano w Chinach
Voltage rating / Napięcie znamionowe: 220-240V~50Hz
Power rating / Moc znamionowa: 1400W
THANK YOU.....................................................................................................
INDEX .............................................................................................................. 1
2
3
4
6
7
13
15
16
USER TIPS........................................................................................................
SAFETY ............................................................................................................
PARTS DESCRIPTION.....................................................................................
INSTALLATION.................................................................................................
10
USE & OPERATION..........................................................................................
CLEANING & MAINTENANCE..........................................................................
TROUBLESHOOTING GUIDE...........................................................................
14
WATER CONDENSATION DRAINAGE............................................................
TECHNICAL SPECIFICATIONS.........................................................................
2.
1.
3.
4.
5.
6.
7.
8.
10.
9.
11.
SECTION PAGE
1
INDEX
Read all instructions carefully before setting up and operating the unit. Keep this
instruction manual for future reference. This manual is designed to provide important
information needed to setup, operate, maintain and troubleshoot your portable air
conditioner. Failure to follow these instructions may void the warranty.
Congratulations on your purchase of this versatile Honeywell Portable Air Conditioner.
Honeywell Portable Air Conditioners are ideal for spot cooling. The compressor, condenser
and evaporator are housed in a compact unit. The air is filtered, dehumidified and cooled while
a flexible air outlet hose sends heat outside. The air conditioner includes a window venting kit.
No permanent installation is needed. The unit is easy to move from room to room and offers a
truly flexible air conditioning solution.
Auto Evaporation System - The unit automatically evaporates the condensate through the air
outlet hose. There is no need to empty the drainage tank except in very high humidity conditions.
Read and follow the instructions carefully.
2
THANK YOU
r.
3
USER TIPS
To ensure optimal efficiency of the product, keep doors and windows closed when it
is used as an air conditioner or dehumidifier.
If the product is being used with the fan function only, an open window could improve
air circulation.
Important : Before installing the unit, place it UPRIGHT for 20 minutes
before use to allow the refrigerant to stabilize.
• Follow installation instructions to set up the unit.
• Plug the unit into a properly grounded circuit.
Cooling and Dehumidifying Operation Fan Operation
4
SAFETY
WARNING
READ AND SAVE THESE INSTRUCTIONS
Improper handling can cause serious damage to the appliance.
DO NOT operate the unit with a damaged plug or loose wall outlet. If the power
cord is damaged, it must be replaced by the manufacturer or an authorized service agent.
DO NOT cover the air intake and exhaust when in use.
This appliance is not intended for use by children. Children should be supervised
and should not play on or around the appliance.
DO NOT place objects on or sit on the unit.
Always turn off and unplug the unit when cleaning or servicing.
If service is needed contact an authorized service agent.
Unplug the unit when stored or not in use.
1.
2.
3.
4.
5.
6.
7.
DO NOT run the power cord under carpeting and rugs.
Use caution to prevent tripping on cord.
DO NOT use in areas where gasoline, paint or other flammable goods are stored.
Basic safety precautions should always be followed when using electrical appliances.
8.
9.
10.
11.
5
SAFETY
6
PARTS DESCRIPTION

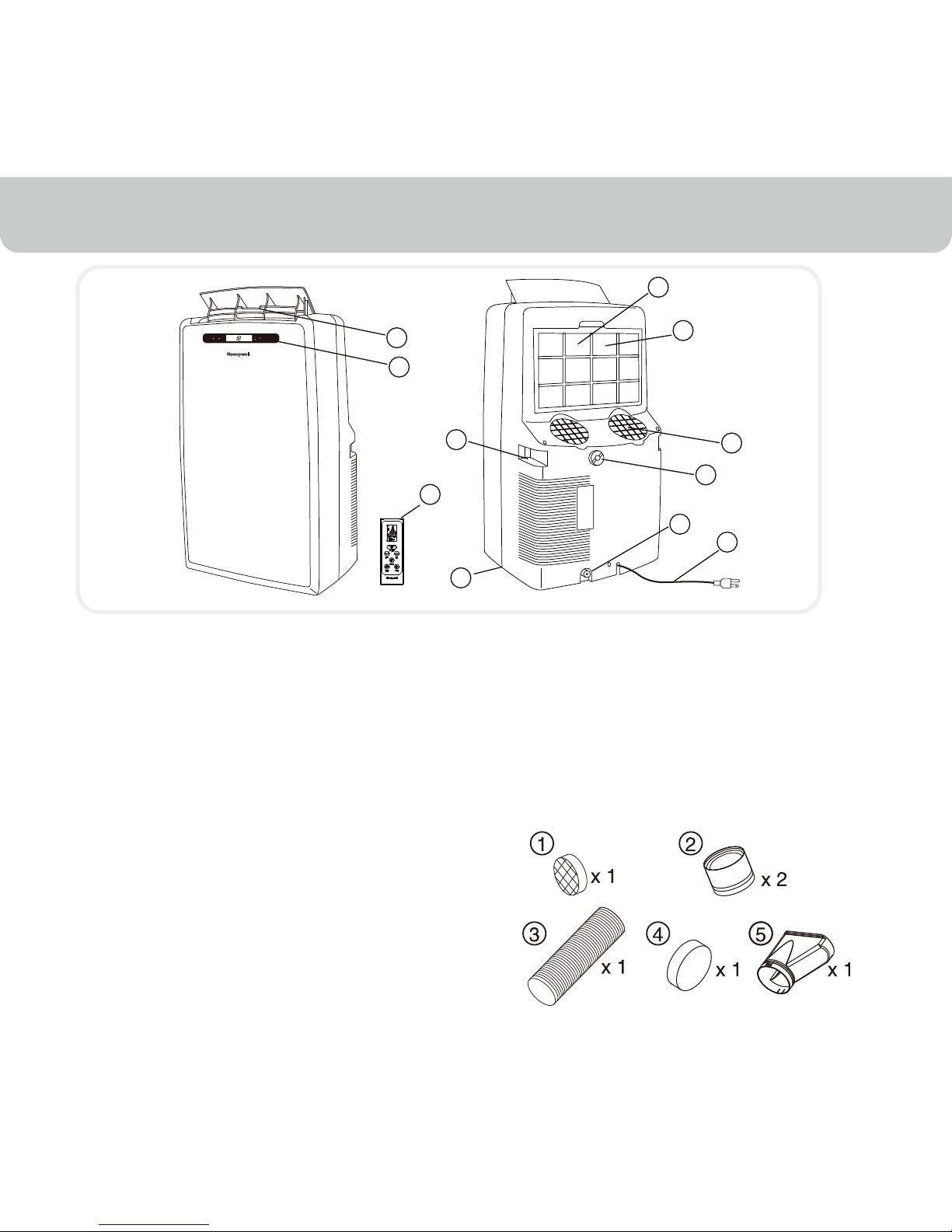

1. Control Panel (Incl. Signal Receptor)
2. Air Outlet
3. Handle
4. Casters
5. Upper Drain Plug
6. Air Filter
7. Back Grill
8. Lower Drain Plug
9. Power Supply Cord
10. Exhaust Hose Connector
11. Remote Control
1
2
6
7
5
4
310
11
9
8
Installation Kit Part List:
1. Flange Fixture…………….…….……
2. Hose Connector……………………...
3. Plastic Hose………………..…..….....
4. Hole Cover…………………...............
1 Piece
2 Pieces
1 Piece
5. Exhaust Nozzle……………..…..…....
1 Piece
1 Piece
7
INSTALLATION
1.
2.
3.

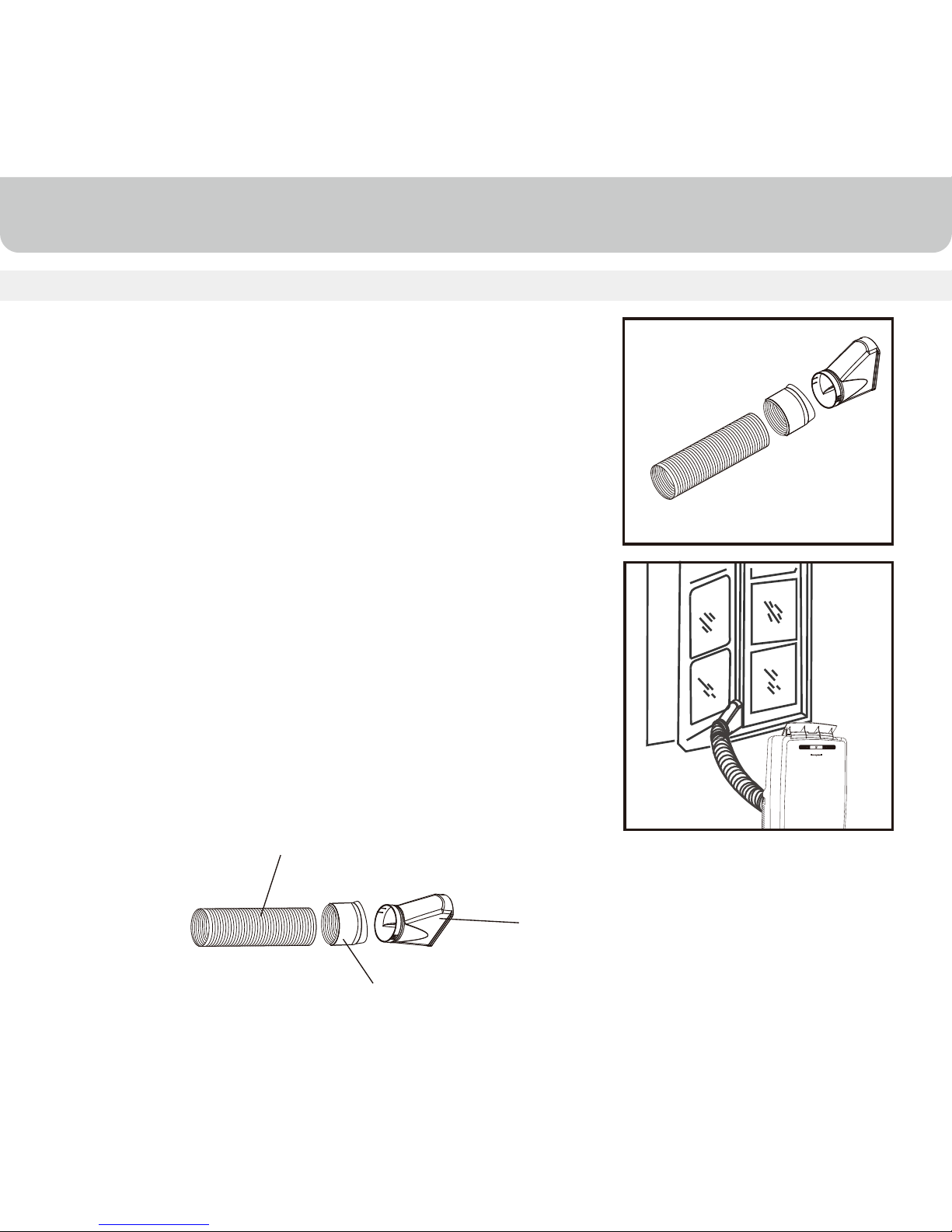

Insert one end of the Plastic Hose into a Hose Connector
and Exhaust Nozzle by twisting anti-clockwise until it
stops.
Fix the other end of the Plastic Hose onto the other Hose
Connector and then onto the rear Exhaust outlet of the
unit. This is achieved by sliding the hose downwards over
the the Exhaust outlet of unit ensuring that the lugs on the
Hose Connector are engaged with the grooves on the
Hose Connector of the unit.
Extend the Exhaust Hose and close the windows as far as
possible trapping the Exhaust Nozzle as shown below.
Exhaust Hose Kit Assembly & Installation
Plastic Hose
Hose Connector
Exhaust Nozzle
Through an Open Window
INSTALLATION
1.
2.
3.
4.

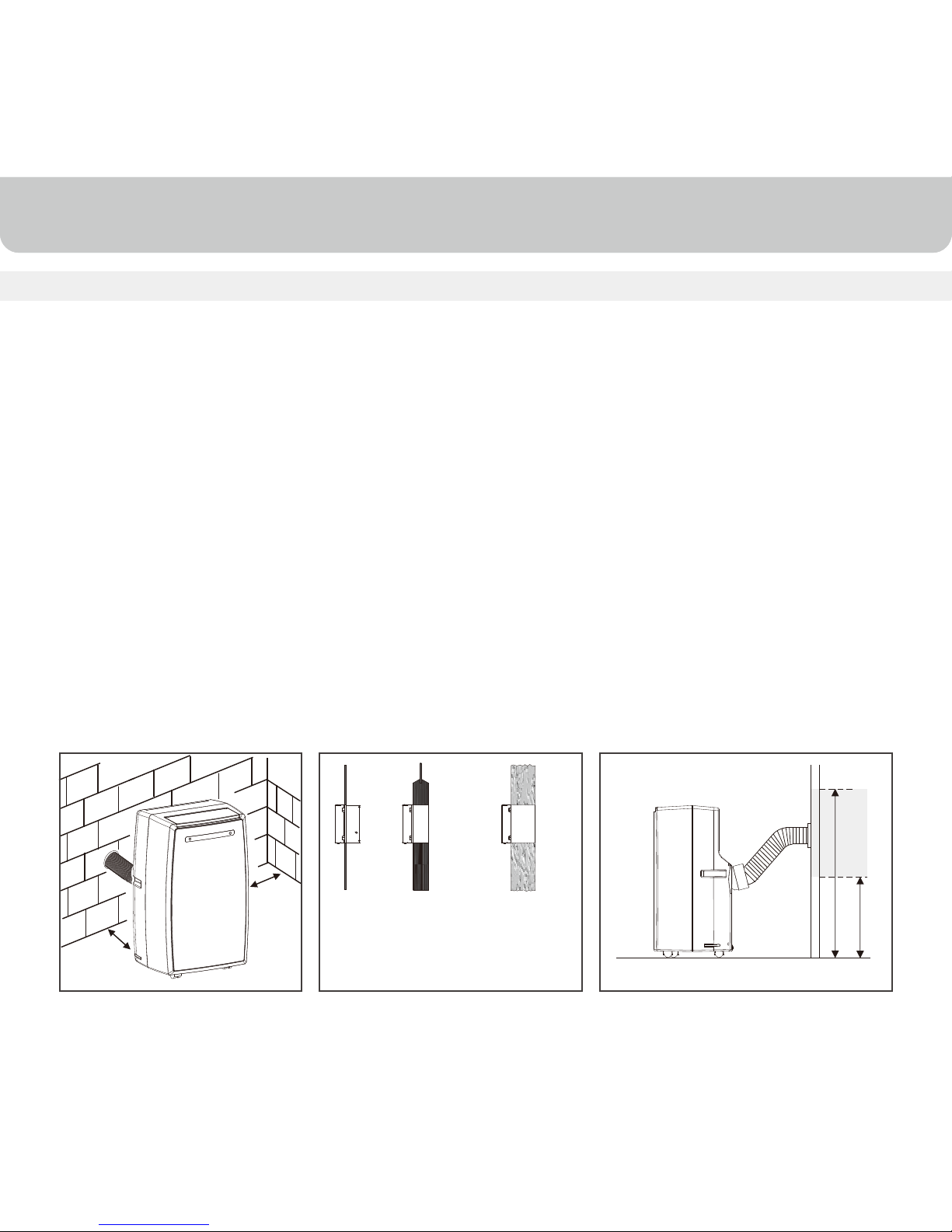

Drill a hole in an outside wall or through a window pane. Respect the height and
dimensions of the hole given in Fig. 2.
Insert & secure the Flange Fixture into the newly drilled hole.
Fix one end of the Plastic Hose into the Flange Fixture that was secured on the wall.
Fix the other end of the Plastic Hose onto the Hose Connector and then onto the rear
Exhaust outlet of the unit (See Fig. 3).
NOTE: When the unit is not in use, remove the Plastic Hose from the Flange Fixture on
the wall and use the included Hole Cover to cover the hole on the wall.
IMPORTANT: When installing the air conditioner semi-permanently, you should leave a
door slightly open (as little as 1cm) to guarantee sufficient ventilation.
Through a Drilled Hole in the Wall or Window
8
30 cm
30 cm
Fig.1
125 mm
in the
window
panel
in the wooden
kickboard of a
french window
in the wall : you are
recommecded to
insulate the section
of wall using suitable
insulation
Fig.2 Fig.3
MIN. 35 cm
MAX. 100 cm
If required, your Portable Air Conditioner can be installed semi-permanently.
The supplied exhaust hose can be extended from 30.5 cm to 1.2 m.

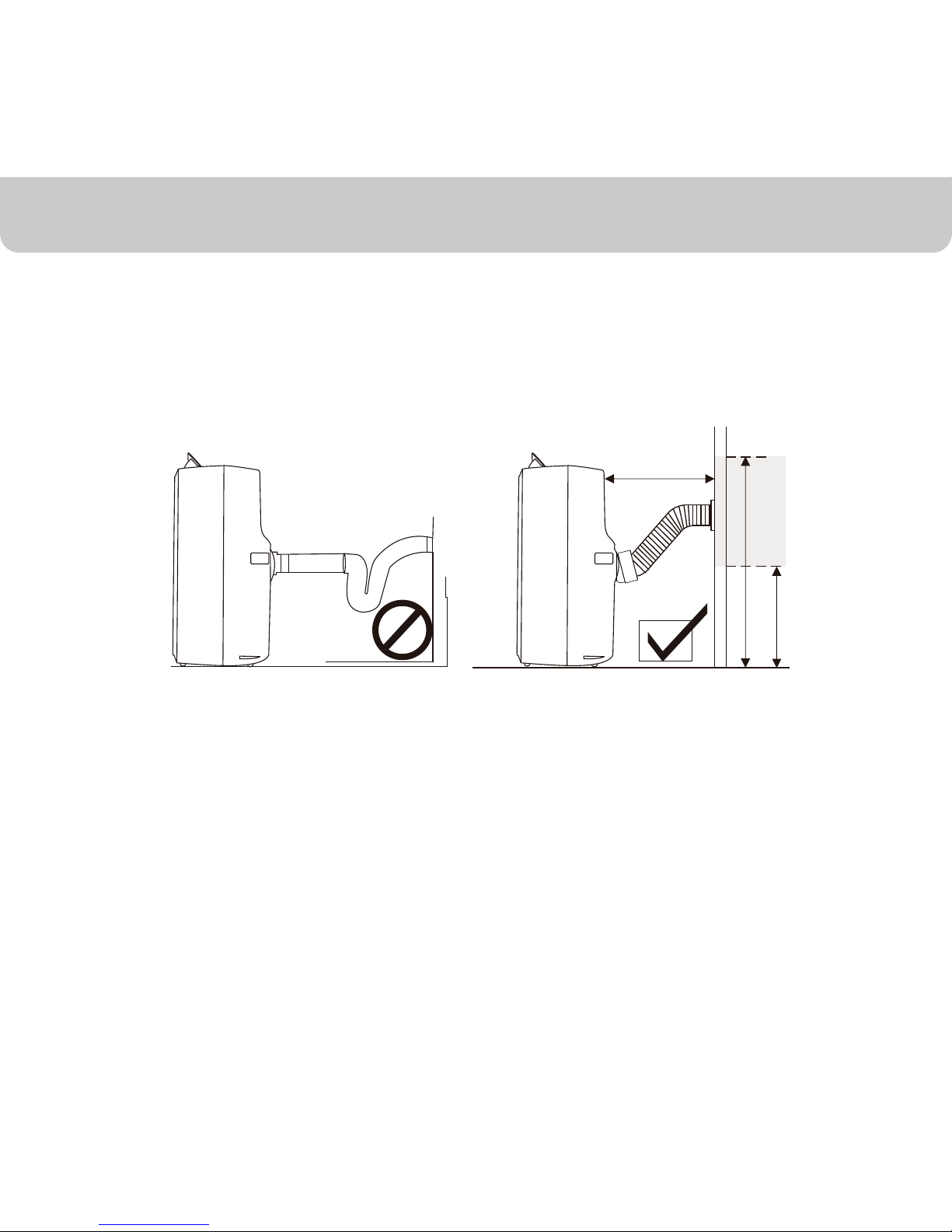

Do not bend (to the extent shown below) the exhaust hose.
A bent hose will block exhaust air and cause the unit to malfunction or shut-off.
The length of the exhaust hose is determined by the product specifications. Do not
replace or lengthen it as this could cause the unit to malfunction.
Make sure the back of the unit is at least 50 cm away from a wall.
Do not place the unit in front of curtains or drapes as this could obstruct the
airflow.
9
INSTALLATION
Note:
1.
2.
RECOMMENDEDNOT RECOMMENDED
Warning:
•
•
MIN. 35 cm
50 cm
MAX. 100 cm
