Honeywell CL48PM Manuel utilisateur

Portable Evaporative Air Cooler

OWNER'S MANUAL

Read and save these instructions before use

for Outdoor, Indoor & Commercial Use

Model: CL48PM

Power rating: 140 Watts

Voltage rating: 220 Volt AC, 50Hz

For product inquiries or support, visit www.honeywellaircoolers.com

Made in P.R.C.

TES Scandinavia AB

www.tesscandinavia.se, +46 (0)31 761 36 10

OFF

COOL

OFF

SPEED SWING

MAX

MIN

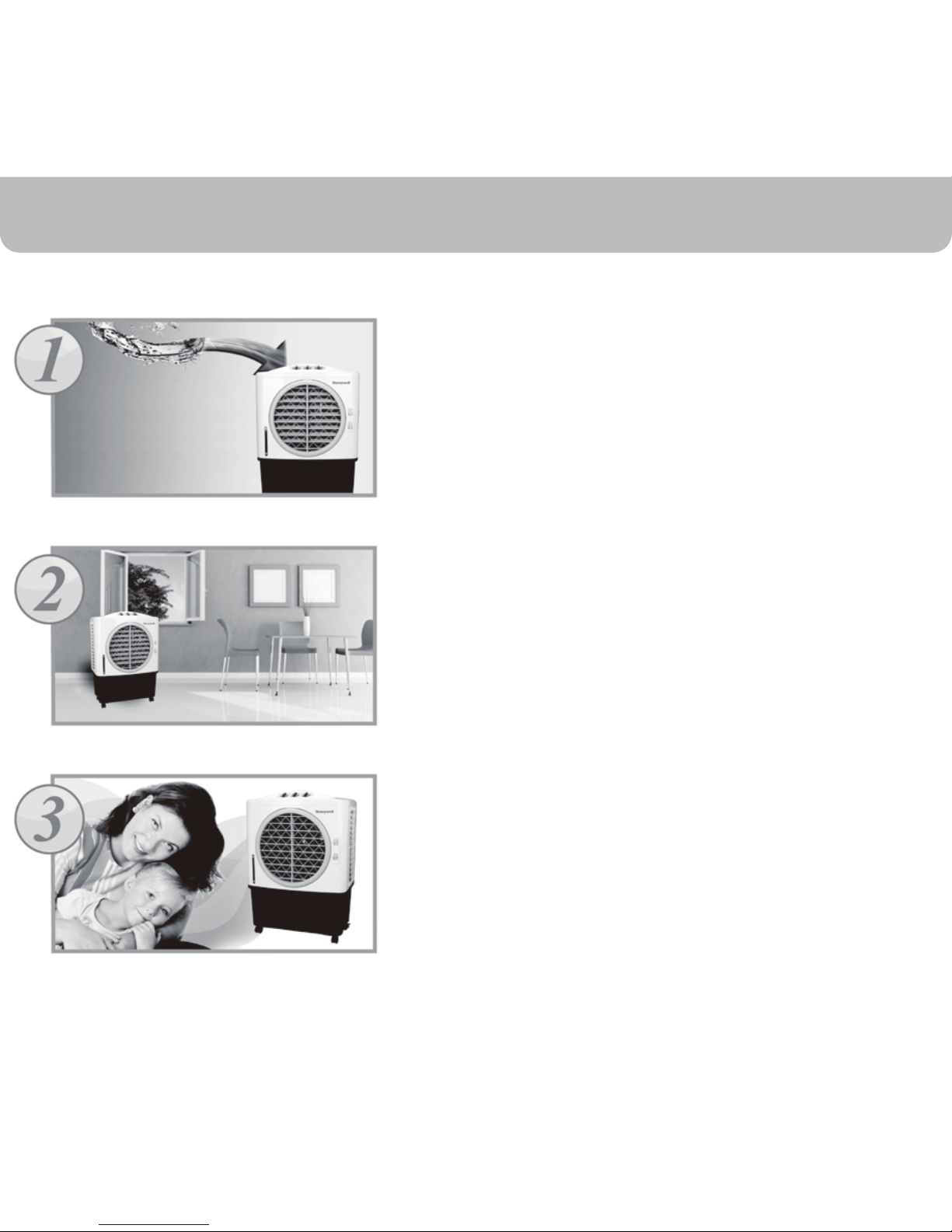

QUICK START GUIDE

Fill with water and plug into a standard

power outlet.

Place near an open door or window.

Note: Please make sure the household power voltage

matches the product specifications.

Note : Evaporative air cooler requires cross ventilation.

Turn ON and enjoy the cooling breeze.

Note: Start with LOW speed and gradually increase

to higher speed for optimum cooling performance.

SECTION PAGE

1. THANK YOU .........................................................................................................

2. USER TIPS ...........................................................................................................

3. SAFETY RULES ...................................................................................................

4. PARTS DESCRIPTION ........................................................................................

5. USE & OPERATION .............................................................................................

Control Panel ....................................................................................................

Control buttons ................................................................................................

6. CLEANING & MAINTENANCE .............................................................................

7. TROUBLESHOOTING GUIDE .............................................................................

8. TECHNICAL SPECIFICATIONS ...........................................................................

9. ELECTRICAL WIRING DIAGRAM ........................................................................

Filling water ...................................................................................................... 11

INDEX

Read all instructions carefully before setting up and operating the cooler, and please keep

this instruction manual for future reference. This manual is designed to provide you with

important information needed to setup, operate, maintain, and troubleshoot your cooler.

Failure to follow these instructions may damage and/or impair its operation and void the

warranty.

THANK YOU!

Congratulations on your purchase of this versatile Honeywell Evaporative Air Cooler. For optimum

cooling from your cooler, fill the water tank to maximum level and load ice inside the ice

compartment before you turn on your air cooler.

Cooler Location (Important - Please Read!)

Place the cooler in front of an open door or window. Ensure that there is adequate cross -ventilation

in the room by leaving a door or window open opposite the cooler. Following these guideline will

ensure your cooler will work as effectively as possible.

Not an Air Conditioner (Important - Please Read!)

The evaporative air cooler is not an air conditioner as it does not use a compressor or refrigerant

gas. It should not be expected to cool as efficiently as a refrigerated air conditioner.

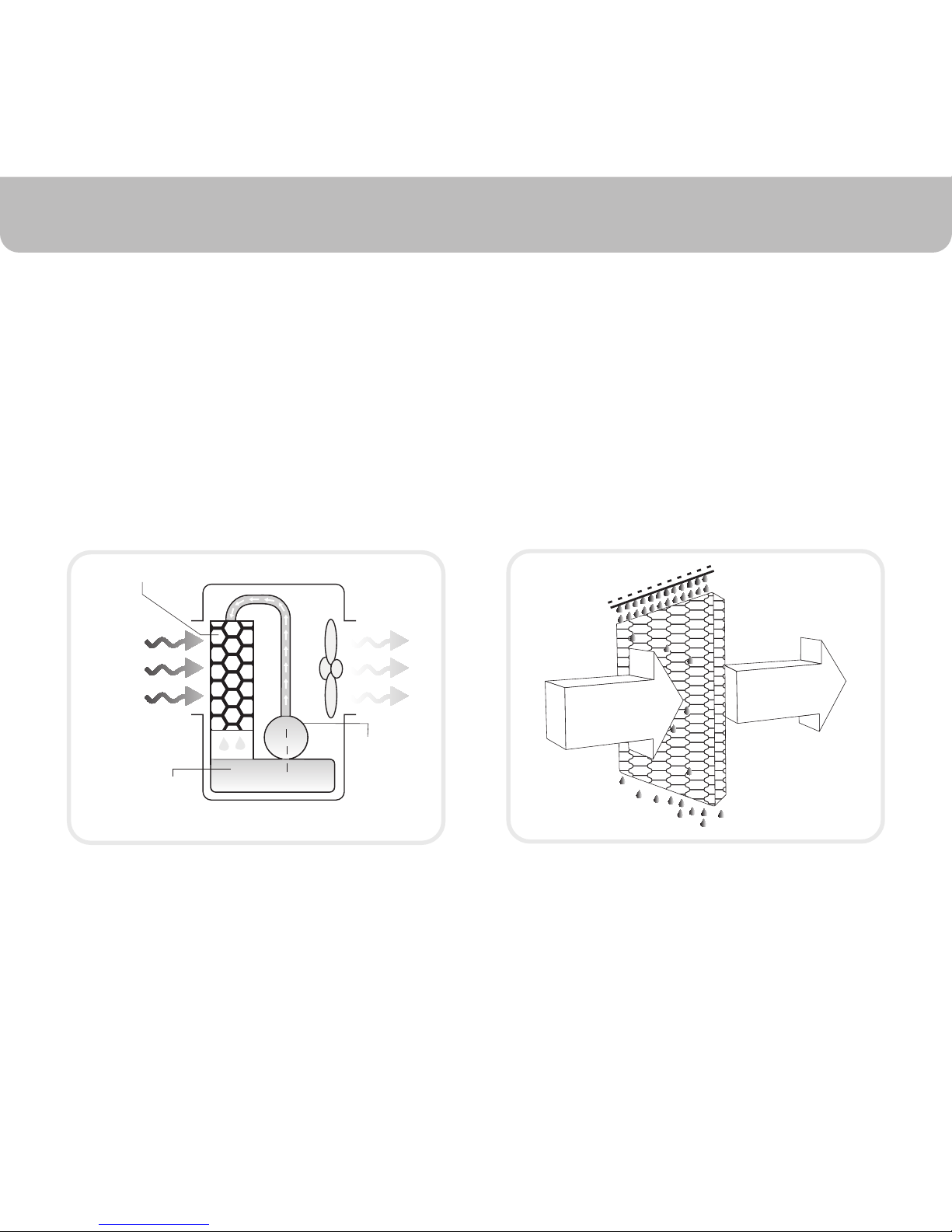

Energy Efficient, No Compressor

Pump

Water

Honeycomb Cooling Media

Evaporative Air Cooling Mechanism

Warm and

dry air

Cold and

humid air

Honeywell Evaporative Air Coolers are built to maximize energy efficiency and keep costs low.

Warm air is drawn into the cooler and enters the Honeycomb Cooling Media. Water pumped from

the tank pours over the honeycomb media. As the warm air passes through the media, the water

absorbs the heat, naturally cooling and humidifying the air. A fan propels the cooled air out into the

room. This no-compressor system cools naturally, efficiently and inexpensively.

USER TIPS

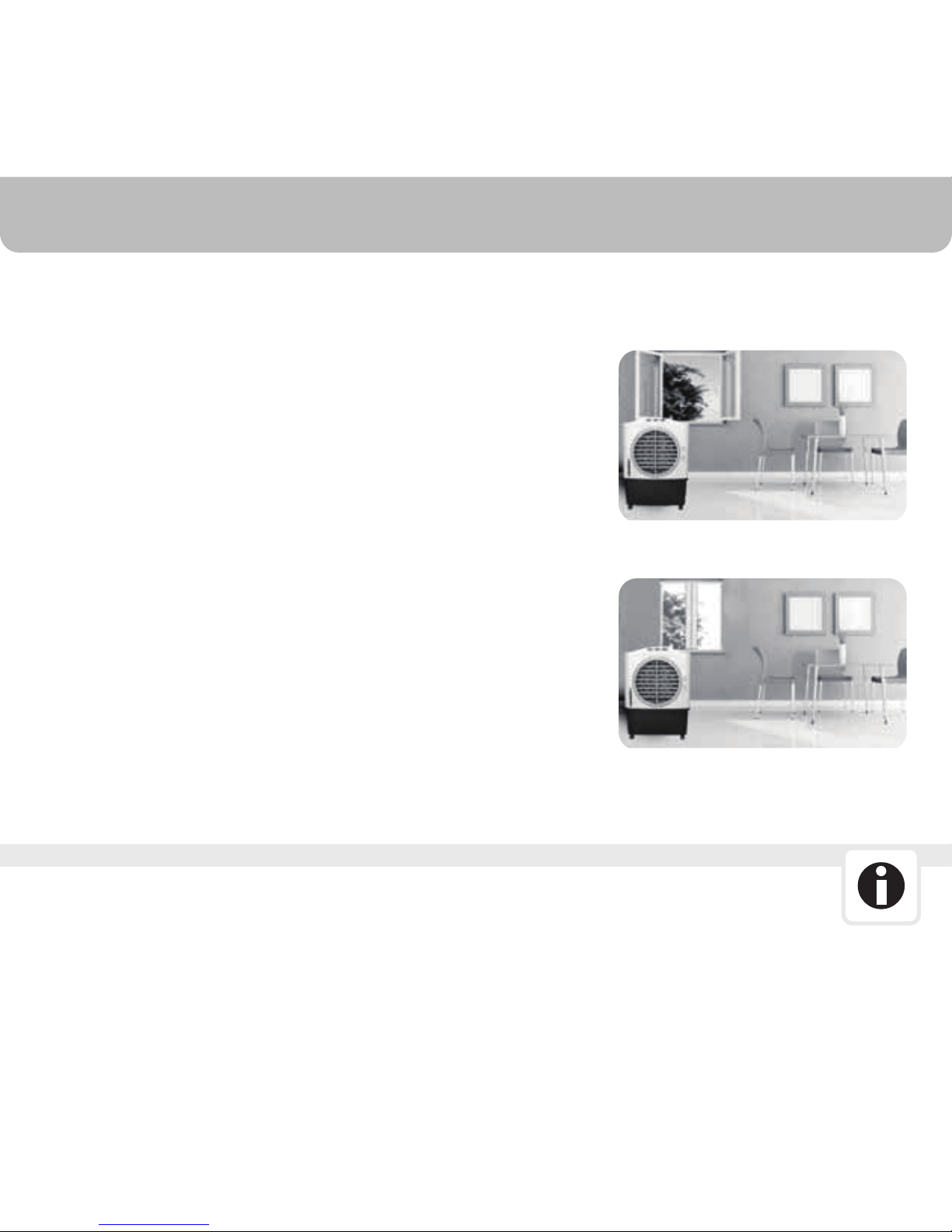

Room with open windows & door

(RECOMMENDED)

Room with closed windows & door

(NOT-RECOMMENDED)

Note:

USER TIPS

When the product is used for the first time the Honeycomb

Cooling Media will have an odor which will dissipate in a few

hours or so of initial use.

The recommended maximum relative humidity level is 60% or

less, which allows a noticeable temperature decrease. The

temperature decrease will be greater in drier climates because

higher evaporation occurs when the humidity is low.

The evaporative air cooler should not be used in enclosed

spaces. It must be kept level and there must be water in the

water tank. The room should have doors and windows opened

to allow free air flow. The evaporative air cooler works best

when placed near an open window, so that outside air is drawn

into the evaporative air cooler, the air circulates in the room,

then exits via the door. The maximum cooling effect is felt

when a person is in the flow of air coming out of the

evaporative air cooler.

The evaporative air cooler can also be used to humidify dry air

during cool weather. To be used for humidification the windows

and doors should be closed to allow the humidified air to

accumulate.

OFF

COOL

OFF

SPEED SWING

MAX

MIN

READ AND SAVE THESE INSTRUCTIONS:

SAFETY RULES

220 Volt AC 50Hz

SHOCK HAZARD

When using electrical appliances, basic safety precautions should always be followed:

•

Your cooler runs on 220 Volt AC, 50Hz current. Check the

household voltage to ensure it matches the appliance's rate

specification.

Before operating the product remove it from its packaging and

check it is in good condition.

DO NOT operate any product with a damaged cord or plug.

DO NOT run power cord under carpeting, or cover it with rugs

or runners. Keep the cord away from areas where it may be

tripped over.

Always unplug the product before refilling the water tank.

Always unplug the appliance from the power source before

cleaning, servicing or relocating the unit.

Remove the power cord from the electrical receptacle by

grasping and pulling on the power cord plug-end only, never

pull the cord.

DO NOT use the product in areas where gasoline, paint or

other flammable goods and objects are stored.

When using the ''COOL'' setting, check the water tank to

ensure that it is full. Operation of this cooler on the ''COOL''

setting with an empty tank may result in damage to the water

pump.

Water Level Indicator

OFF

COOL

OFF

SWING

123

Water / Ice compartment

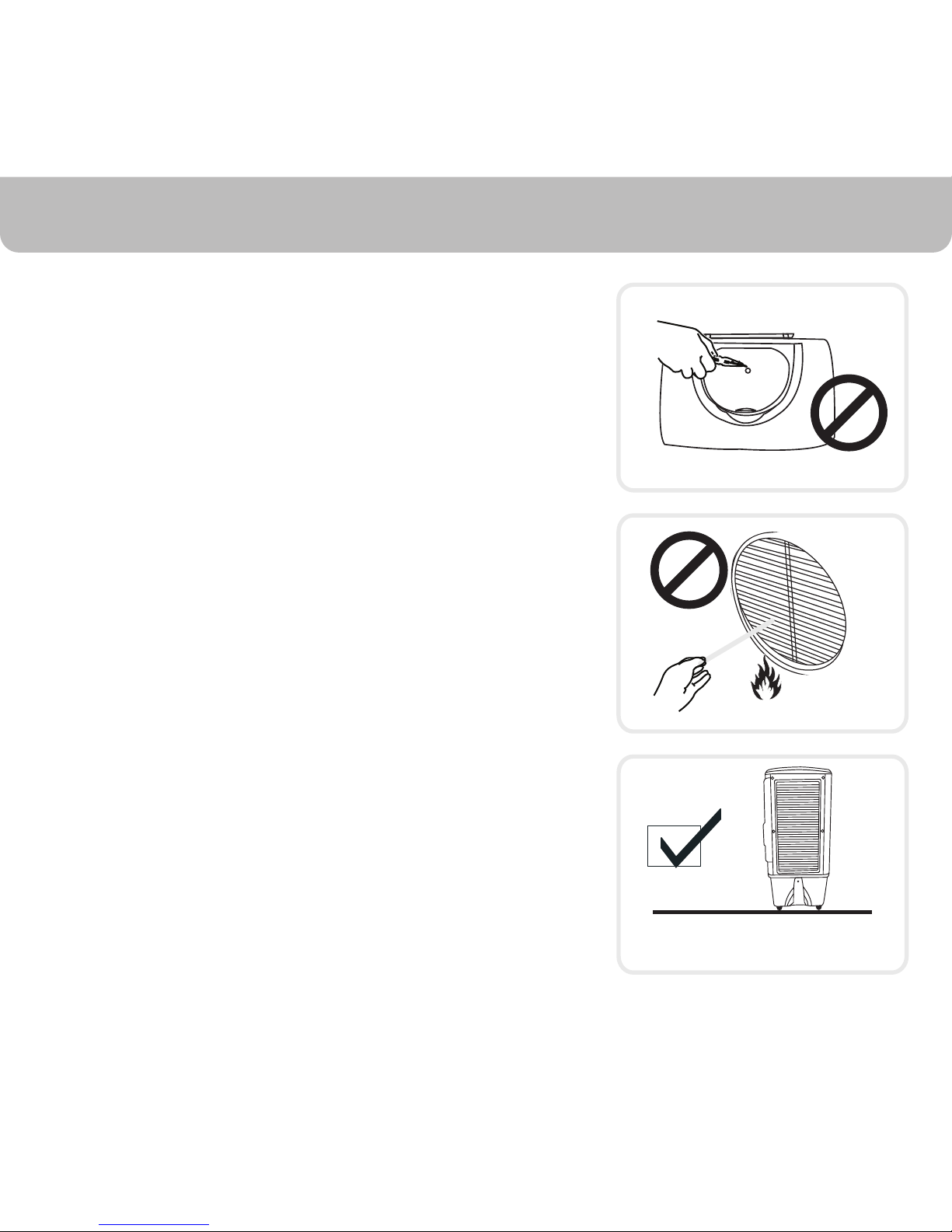

SAFETY RULES

FLOOR LEVEL

•

DO NOT attempt to repair or adjust any electrical or

mechanical functions of the cooler, as this may void the

warranty.

DO NOT cover the air inlet or outlet on the appliance as this

may cause motor damage.

DO NOT insert or allow objects to enter any ventilation or

exhaust opening as this may damage the product and could

cause an electrical shock or fire.

DO NOT operate with the Honeycomb Media removed as this

will overload and damage the motor.

DO NOT leave the operating appliance unattended for any

extended period of time.

DO NOT let children play with this appliance, packaging or

plastic bags.

If the unit is damaged or it malfunctions, do not continue to

operate it. Refer to the troubleshooting section and seek

professional advice.

Place the unit on a level floor.

This product is not intended for use in wet or damp locations.

DO NOT use in bathrooms. Never locate the product where it

may fall into a bathtub or other water container.

Store in a dry area when not in use.

This appliance is not intended for use by persons (including

children or elderly) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless they

have been given supervision or instruction concerning use of

the appliance by a person responsible for their safety.

Always grip the side handles to move the cooler.

SAFETY RULES

•

Look for extension cords specifically marked for outdoor use. Look for extension cords that have

a GFCI (Ground Fault Circuit Interrupter) built in.

Make sure the amperage rating for the extension cord is higher than the amperage rating for the

appliance. Check labels and owner's manuals on the appliance and the extension cord for

amperage ratings.

Power cords have to be contained. If they must run along the ground, make sure every inch of

them is secured so they will not be tripped over.

The wiring and connections must be waterproof. Be sure the connections (to the air cooler) never

get wet. Your unit is waterproof, but everything attached to it must be waterproof, too.

Set up your unit so it cannot be tripped over or wobble loose. It must rest on a solid support.

OFF

COOL

OFF

SPEED SWING

MAX

MIN

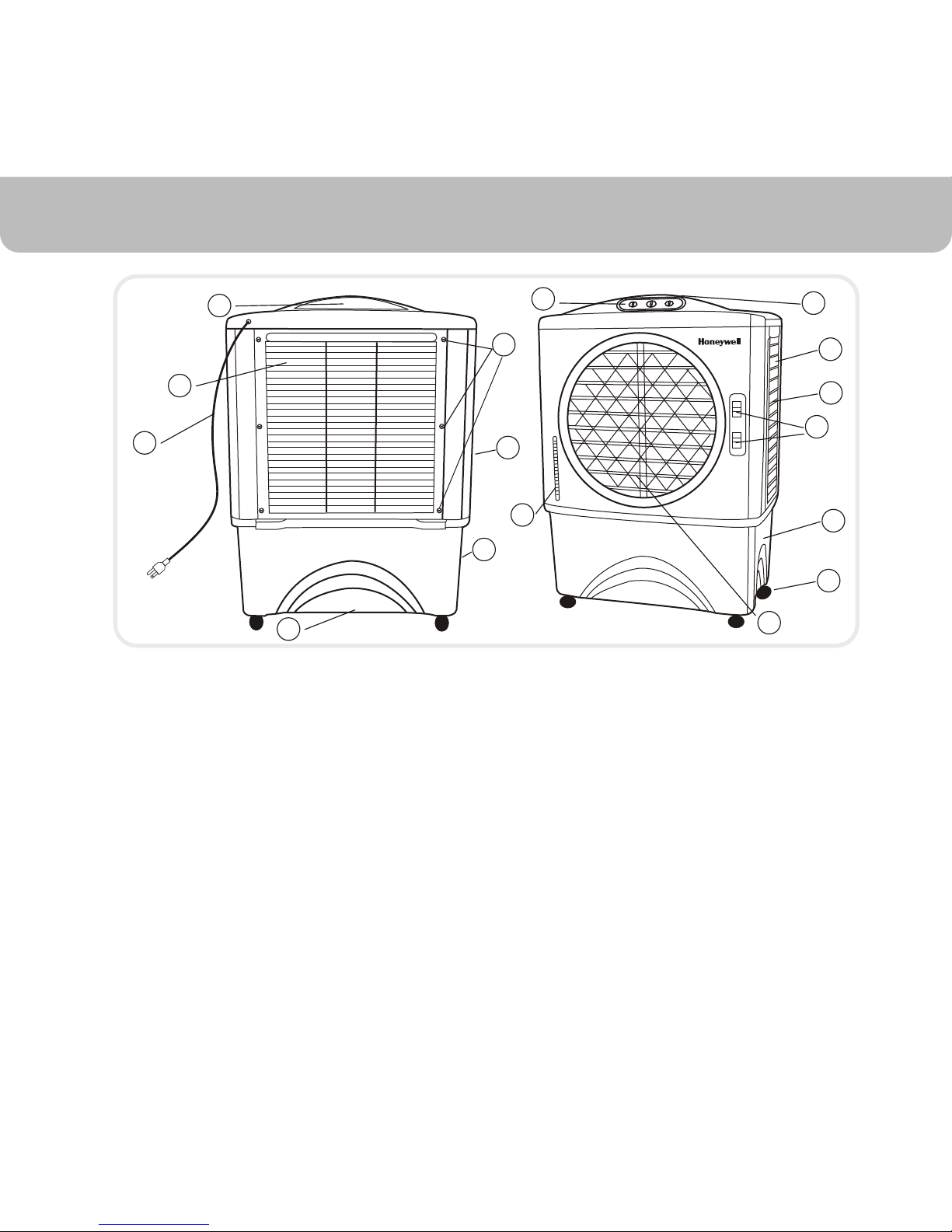

1 Water Inlet and Ice

Loading Compartment

2 Handle

3 Left Honeycomb Panel

4 Lever for Horizontal Louvers

5 Water Tank

6 Casters

7 Horizontal Louvers

8 Water Level Indicator

9 Control Panel

10 Right Honeycomb Panel

11 Continuous Water Supply Connection

12 Drain Plug

13 Backside Honeycomb Panel

14 Power Cord & Plug

15 Rear Grill Removal Screws

16 Water Fill Door

PARTS DESCRIPTION
