Portable Evaporative Air Cooler

OWNER’S MANUAL

Read and save these instructions before use

Model: CL30XC

Power rating: 250 Watts

Made in P.R.C.

Voltage rating:

230 Volt, 50Hz

QUICK START GUIDE

Fill with water and plug into a standard

power outlet.

Place near an open door or window.

Note : Evaporative air cooler requires cross ventilation.

Turn ON and enjoy the cooling breeze.

Note: Start with LOW speed and gradually increase

to higher speed for optimum cooling performance.

Note: Please make sure the household power voltage

matches the product specifications.

SECTION PAGE

.............................................

................................................

.......................................

.............................

....................................

..............

....................

................

............

INDEX

........................................................... .................... ...............

.......................................................................................................

.........................................................................................................

.... ............ 13

........................................................................................................... 8

THANK YOU ..................................................................

USER TIPS .................................................................

SAFETY ...............................................................................

PARTS DESCRIPTION .................................................................

USE & OPERATION ...............................................................

CLEANING & MAINTENANCE .....................................................................

TROUBLESHOOTING GUIDE ...............................................................

TECHNICAL SPECIFICATIONS .................................................................

ELECTRICAL WIRING DIAGRAM ..................................................................

Filling Water

Function Buttons

Remote Control

Control Panel

Room Cooling and Humidifying .................................................................................. 11

Read all instructions carefully before setting up and operating the cooler, and

please keep this instruction manual for future reference. This manual is designed to

provide you with important information needed to setup, operate, maintain, and

troubleshoot your cooler. Failure to follow these instructions may damage and/or

impair its operation and void the warranty.

THANK YOU

Congratulations on your purchase of this versatile Honeywell Evaporative Air Cooler. For

optimum cooling from your cooler, fill the water tank to maximum level and load ice inside

the ice compartment before you turn on your air cooler.

Cooler Location (Important - Please Read!)

Place the cooler in front of an open door or window. Ensure that there is adequate cross -

ventilation in the room by leaving a door or window open opposite the cooler.

Following these guideline will ensure your cooler will work as effectively as possible.

Not an Air Conditioner (Important - Please Read!)

The evaporative air cooler is not an air conditioner as it does not use a compressor or refrig-

erant gas. It should not be expected to cool as efficiently as a refrigerated air conditioner.

USER TIPS

Pump

Water

Honeycomb Cooling Media

Evaporative Air Cooling Mechanism

Warm and

dry air

Cool and

humid air

Energy efficient, No compressor

Honeywell Evaporative Air Coolers are built to maximize energy efficiency and keep costs low.

Warm air is drawn into the cooler through a dust and odor-reducing carbon filter and enters the

Honeycomb Cooling Media. Water pumped from the tank pours over the honeycomb media. As

the warm air passes through the media, the water absorbs the heat, naturally cooling and humidi-

fying the air. A fan propels the cooled air out into the room. This no-compressor system cools

naturally, efficiently and inexpensively.

NOTE

USER TIPS

Room with open windows & door

(RECOMMENDED)

Room with closed windows & door

(NOT-RECOMMENDED)

When the product is used for the first time the Honeycomb Cooling Media will have an odor

which will dissipate in a week or so of initial use.

The recommended maximum relative humidity level is 60% or

less, which allows a noticeable temperature decrease. The

temperature decrease will be greater in drier climates

because higher evaporation occurs when the humidity is low.

The evaporative air cooler should not be used in enclosed

spaces. It must be kept level and there must be water in the

water tank. The room should have doors and windows

opened to allow free air flow. The evaporative air cooler works

best when placed near an open window, so that outside air is

drawn into the evaporative air cooler, the air circulates in the

room, then exits via the door. The maximum cooling effect is

felt when a person is in the flow of air coming out of the

evaporative air cooler.

The evaporative air cooler can also be used to humidify dry

air during cool weather. To be used for humidification the

windows and doors should be closed to allow the humidified

air to accumulate.

READ AND SAVE THESE INSTRUCTIONS:

When using electrical appliances, basic safety precautions should always be followed:

SAFETY

230 Volt 50 Hz

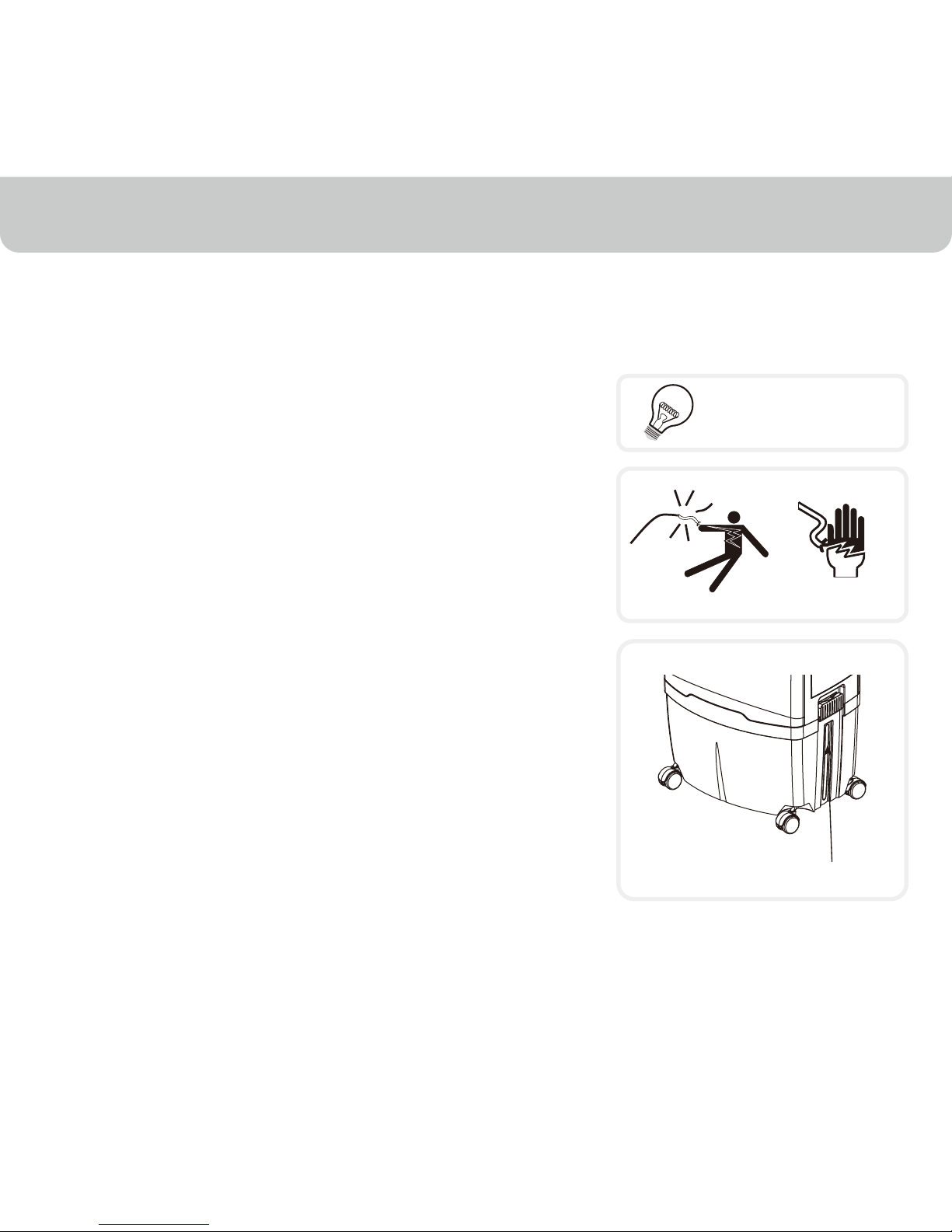

SHOCK HAZARD

WATER LEVEL INDICATOR

•

Your cooler runs on 230 Volt AC, 50 Hz current. Check the

household voltage to ensure it matches the appliance's rate

specification.

Before operating the product remove it from its packaging

and check that it is in good condition.

DO NOT operate any product with a damaged cord or plug.

We recommend not using an extension cord with this appli-

ance.

DO NOT run power cord under carpeting, or cover it with rugs

or runners. Keep the cord away from areas where it may be

tripped over.

Always unplug the product before refilling the water tank.

Always unplug the appliance from the power source before

cleaning, servicing or relocating the unit.

Remove the power cord from the electrical receptacle by

grasping and pulling on the power cord plug-end only, never

pull the cord.

DO NOT use the product in areas where gasoline, paint or

other flammable goods and objects are stored.

When using the ''COOL'' setting, check the water tank to

ensure that it is full. Operation of this cooler on the ''COOL''

setting with an empty tank may result in damage to the water

pump.

FLOOR LEVEL

SAFETY

•

DO NOT attempt to repair or adjust any electrical or mechani-

cal functions of the cooler, as this may void the warranty.

DO NOT cover the air inlet or outlet on the appliance as this

may cause motor damage.

DO NOT insert or allow objects to enter any ventilation or

exhaust opening as this may damage the product and could

cause an electrical shock or fire.

DO NOT operate with the Honeycomb media removed as this

will overload and damage the motor.

DO NOT leave the operating appliance unattended for any

extended period of time.

DO NOT let children play with this appliance, packaging or

plastic bags.

If the unit is damaged or it malfunctions, do not continue to

operate it. Refer to the troubleshooting section and seek

professional advice.

Place the unit on a level floor.

This product is not intended for use in wet or damp locations.

DO NOT use in bathrooms. Never locate the product where

it may fall into a bathtub or other water container.

Store in a dry area when not in use.

This appliance is not intended for use by persons (including

children or elderly) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety.

Always grip the side handles to move the cooler.

Control Panel

Handle

Louvers

Left Side Panel

Water Tank

Power Cord

Power Plug

Casters

Front Panel

Water Level Indicator

Remote Control

Latch

Right Side Panel

Water Fill Door

Ice Compartment Lid

Back Grill

18 Water Regulator

Rear Grill Removal Screws

PARTS DESCRIPTION

ACCESSORIES:

Remote Control ( Batteries not included)

Drainage Tube / Cap

CONTROL PANEL

USE & OPERATION

Icons on LCD

Cool

Fan operating

Sleep

Low speed

Medium speed

High speed

Swing

Time delay set

COOL

SPEED

SLEEP

TIMER

SWING
