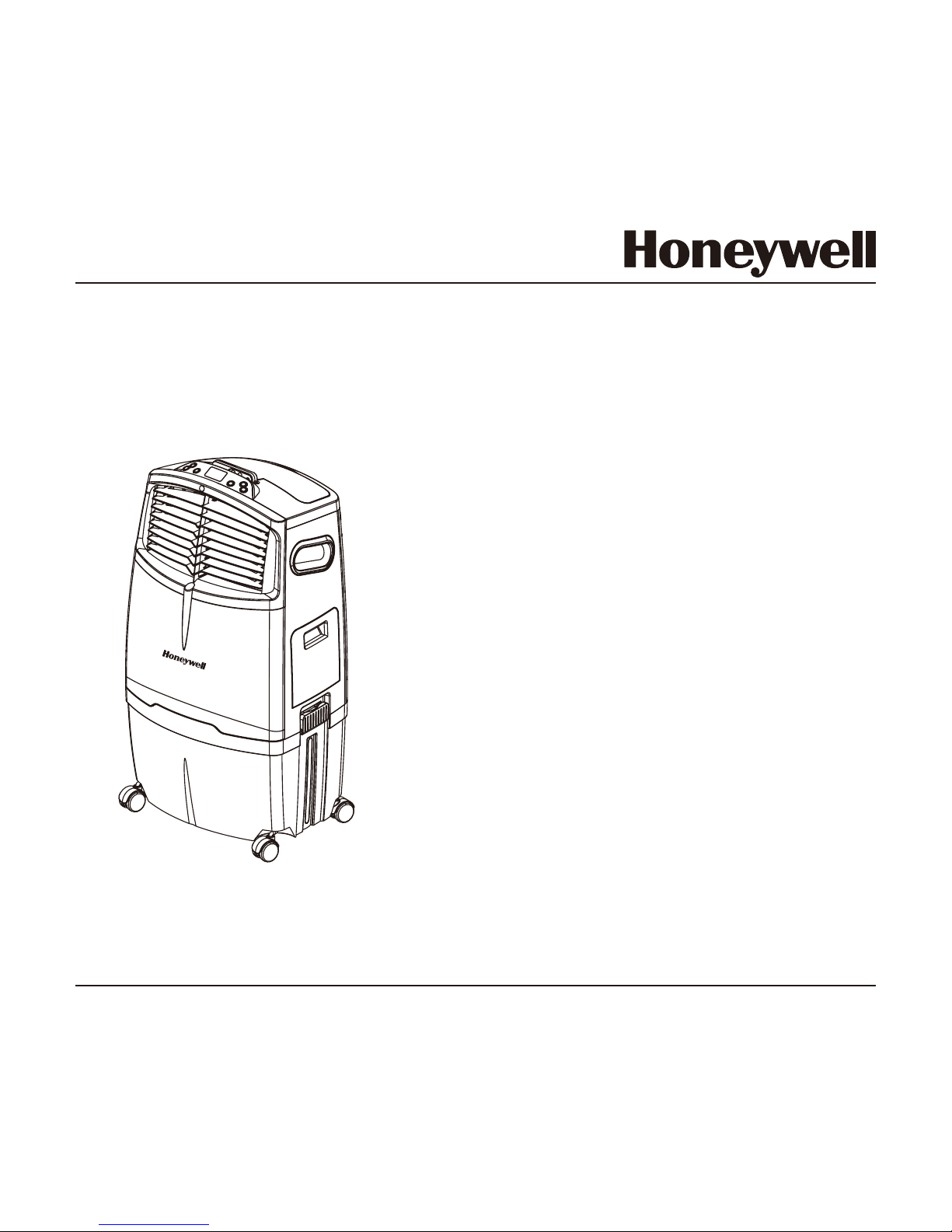

Honeywell CL30XC Manuel utilisateur

Portable Evaporative Air Cooler

Enfriador de Aire Portátil Por Evaporación

OWNER’S MANUAL

MANUAL DEL USUARIO

Read and save these instructions before use

Lea y guarde estas instrucciones antes de usar

Model: CL30XC

Modelo: CL30XC

Power rating: 288 Watts

Potencia: 288W

Voltage rating: 120 Volt AC, 60Hz

Tensión: 120V~60Hz

Made in China

Fabricado en China

Customer Support : 1-800-474-2147

Centro de servicios al cliente: 1-800-474-2147

For product inquiries or support, visit www.honeywellaircoolers.com

Para consultas sobre productos o soporte técnico visite: www.honeywellaircoolers.com

Fill with water and plug into a standard

power outlet.

Place near an open door or window.

Note : Evaporative air cooler requires cross ventilation.

Turn ON and enjoy the cooling breeze.

Note: Start with LOW speed and gradually increase

to higher speed for optimum cooling performance.

Note: Please make sure the household power voltage

matches the product specifications.

QUICK START GUIDE

SECTION PAGE

1. THANK YOU .........................................................................................................

2. USER TIPS ...........................................................................................................

3. SAFETY INSTRUCTIONS ...................................................................................................

4. PARTS DESCRIPTION ........................................................................................

5. USE & OPERATION .............................................................................................

6. CLEANING & MAINTENANCE .............................................................................

7. TROUBLESHOOTING GUIDE .............................................................................

8. TECHNICAL SPECIFICATIONS ...........................................................................

9. ELECTRICAL WIRING DIAGRAM ........................................................................

10. SERVICE AND WARRANTY ................................................................................ 20

INDEX

Read all instructions carefully before setting up and operating the unit, and please keep

this instruction manual for future reference. This manual is designed to provide you with

important information needed to setup, operate, maintain, and troubleshoot your cooler.

Failure to follow these instructions may damage and/or impair its operation and void the

warranty.

Fill Water ......................................................... .................... ...............

Function Buttons .................................................................................................

Low water alarm and cooler location ...................................................................

Remote Control ...................................................................................................

.... ............ 14

Control Panel..................................................................................................... 8

Room Cooling and Humidifying ........................................................................... 12

THANK YOU

Congratulations on your purchase of this versatile Honeywell Evaporative Air Cooler. For

optimum cooling from your cooler, fill the water tank to maximum level and load ice inside

the ice compartment before you turn on your air cooler.

Cooler Location (Important - Please Read!)

Place the cooler in front of an open door or window. Ensure that there is adequate cross -

ventilation in the room by leaving a door or window open opposite the cooler.

Following these guideline will ensure your cooler will work as effectively as possible.

Not an Air Conditioner (Important - Please Read!)

The evaporative air cooler is not an air conditioner as it does not use a compressor or

refrigerant gas. It should not be expected to cool as efficiently as a refrigerated air conditioner.

USER TIPS

Pump

Water

Honeycomb Cooling Media

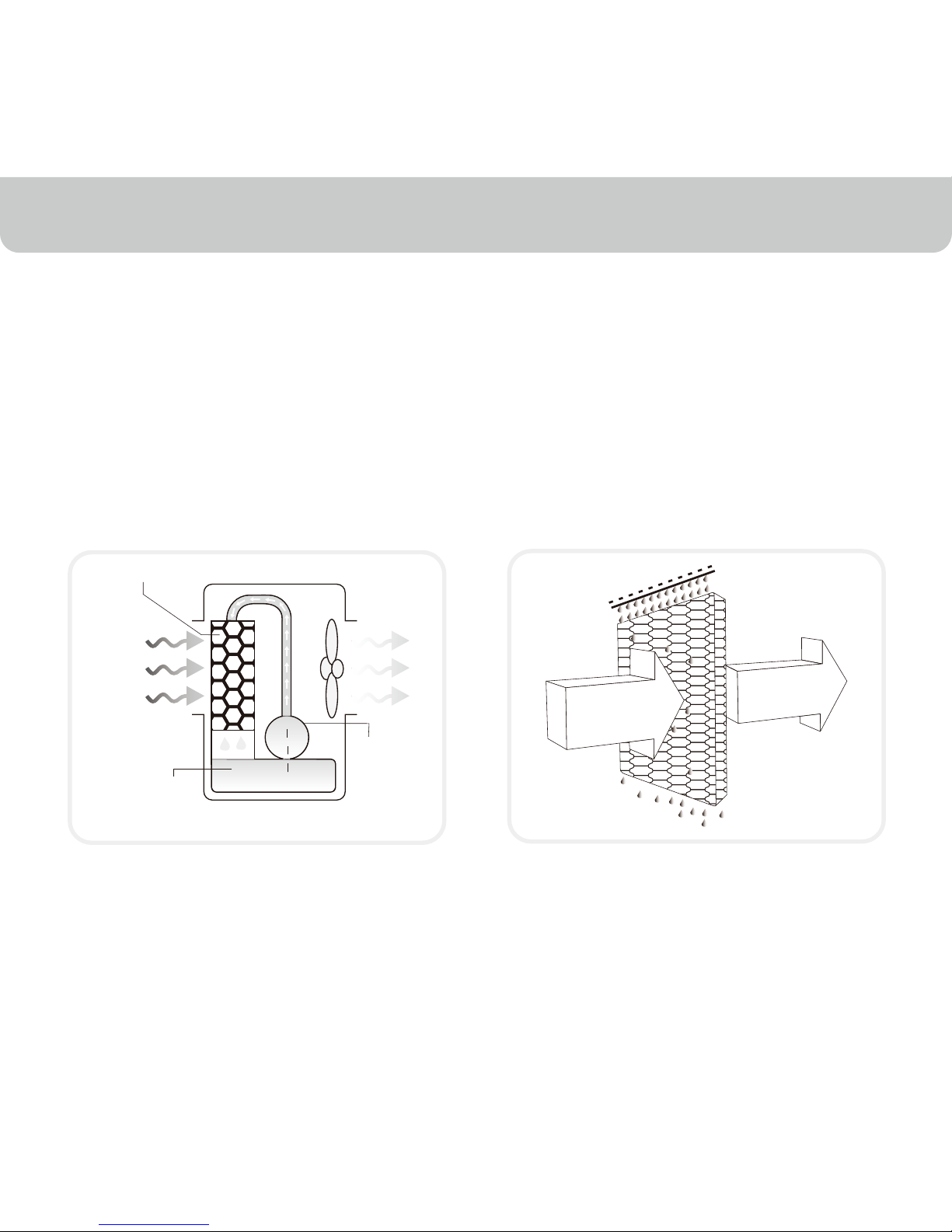

Evaporative Air Cooling Mechanism

Warm and

dry air

Cool and

humid air

Energy Efficient, No Compressor

Honeywell Evaporative Air Coolers are built to maximize energy efficiency and keep costs low.

Warm air is drawn into the cooler through a dust and odor-reducing carbon filter and enters the

Honeycomb Cooling Media. Water pumped from the tank pours over the honeycomb media.

As the warm air passes through the media, the water absorbs the heat, naturally cooling and

humidifying the air. A fan propels the cooled air out into the room. This no-compressor system

cools naturally, efficiently and inexpensively.

USER TIPS

NOTE

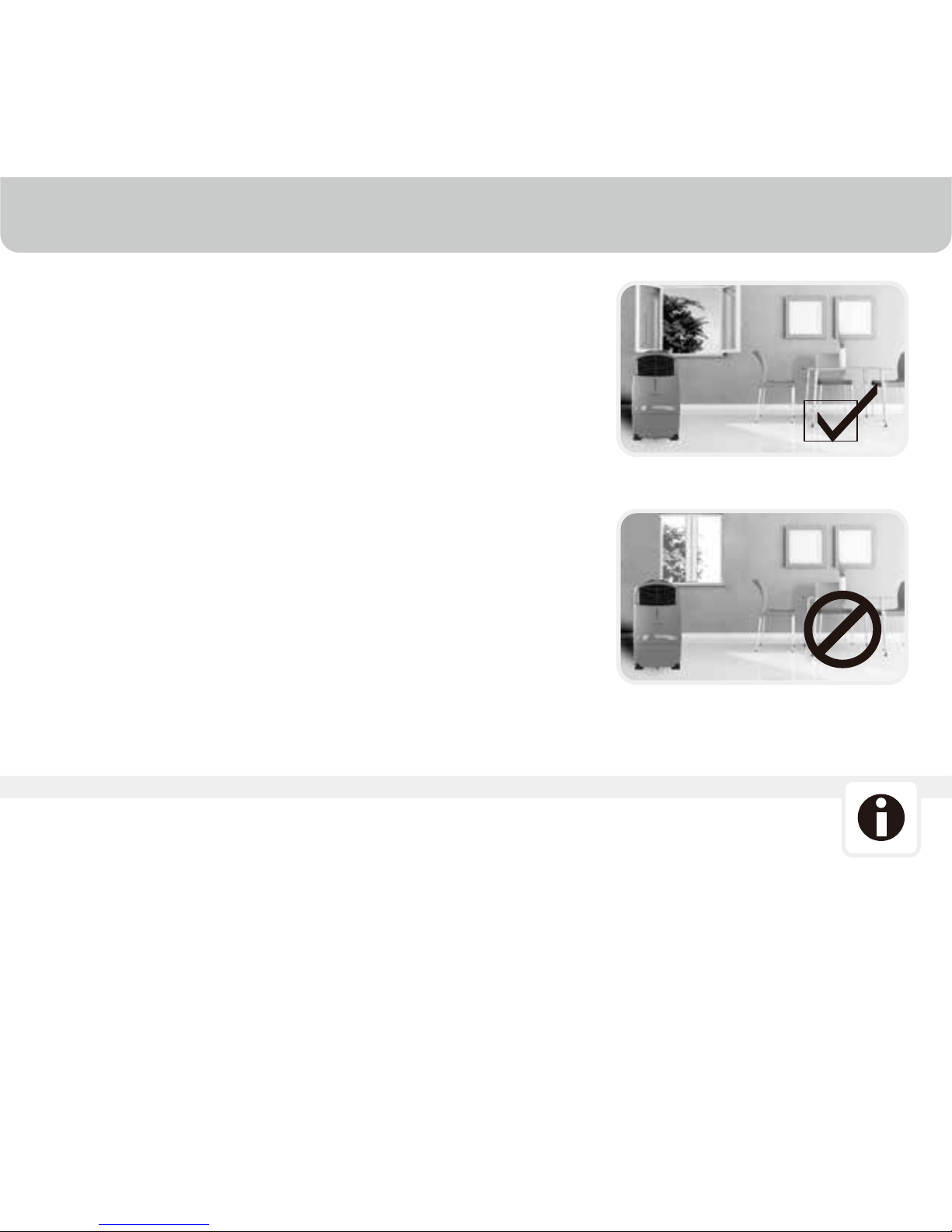

Room with open windows & door

(RECOMMENDED)

Room with closed windows & door

(NOT-RECOMMENDED)

When the product is used for the first time the Honeycomb Cooling Media will have an odor

which will dissipate in a few hours or so of initial use.

The recommended maximum relative humidity level is 60% or

less, which allows a noticeable temperature decrease. The

temperature decrease will be greater in drier climates

because higher evaporation occurs when the humidity is low.

The evaporative air cooler should not be used in enclosed

spaces. It must be kept level and there must be water in the

water tank. The room should have doors and windows

opened to allow free air flow. The evaporative air cooler works

best when placed near an open window, so that outside air is

drawn into the evaporative air cooler, the air circulates in the

room, then exits via the door. The maximum cooling effect is

felt when a person is in the flow of air coming out of the

evaporative air cooler.

The evaporative air cooler can also be used to humidify dry

air during cool weather. To be used for humidification the

windows and doors should be closed to allow the humidified

air to accumulate.

READ AND SAVE THESE INSTRUCTIONS:

When using electrical appliances, basic safety precautions should always be followed:

SAFETY RULES

120 Volt AC, 60 Hz

SHOCK HAZARD

Always unplug the product before refilling the water tank.

•

Always unplug the appliance from the power source before

cleaning, servicing or relocating the unit.

•

Remove the power cord from the electrical receptacle by

grasping and pulling on the power cord plug-end only, never

pull the cord.

•

DO NOT use the product in areas where gasoline, paint or

other flammable goods and objects are stored.

•

WATER LEVEL INDICATOR

When using the ''COOL'' setting, please check the water tank

to ensure it is full. Operation of this unit on the ''COOL'' setting

with an empty tank may result in damage tothe water pump.

•

DO NOT run power cord under carpeting, or cover it with

rugs or runners. Keep the cord away from areas where it

may be tripped over.

•

•Your unit runs on 120 Volt AC, 60 Hz current. Check the

household voltage to ensure it matches the appliance's rate

specification.

•Before operating the product remove it from its packaging

and check it is in good condition.

•DO NOT operate any product with a damaged cord or plug.

We recommend not using an extension cord with this

appliance.

may cause motor damage.

SAFETY RULES

This appliance is not intended for use by persons (including

children or elderly) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless they

have been given supervision or instruction concerning use of

the appliance by a person responsible for their safety.

•

When the unit is not in use always store in a dry area.

•

This product is not intended for use in wet or damp locations.

•

DO NOT let children play with this appliance, packaging or

plastic bags.

•

DO NOT leave the appliance operating unattended for any

extended period of time.

•

DO NOT operate with the Honeycomb media removed as this

will overload and damage the motor.

•

DO NOT insert or allow objects to enter any ventilation or

exhaust opening as this may damage the product and could

cause an electrical shock or fire.

•

DO NOT attempt to repair or adjust any electrical or mechanical

functions of the cooler, as this may void the warranty.

•

DO NOT cover the air inlet or outlet on the appliance as this

•

FLOOR LEVEL

If the unit is damaged or it malfunctions, do not continue to

operate it. Refer to the troubleshooting section and /or please

seek professional advice.

•

Place the unit on a level floor.

•

DO NOT use in bathrooms or outdoors. Never locate the

product where it may fall into a bathtub or other water

container.

•

Always grip the side handles to move the unit.

•

Control Panel

Handle

Louvers

Left Side Panel

Water Tank

Power Cord

Power Plug

Casters

Back Grill

Front Panel

Water Level Indicator

Remote Control

Latch

Right Side Panel

Water Fill Door

Ice Compartment Lid

Water Regulator (under part 9)

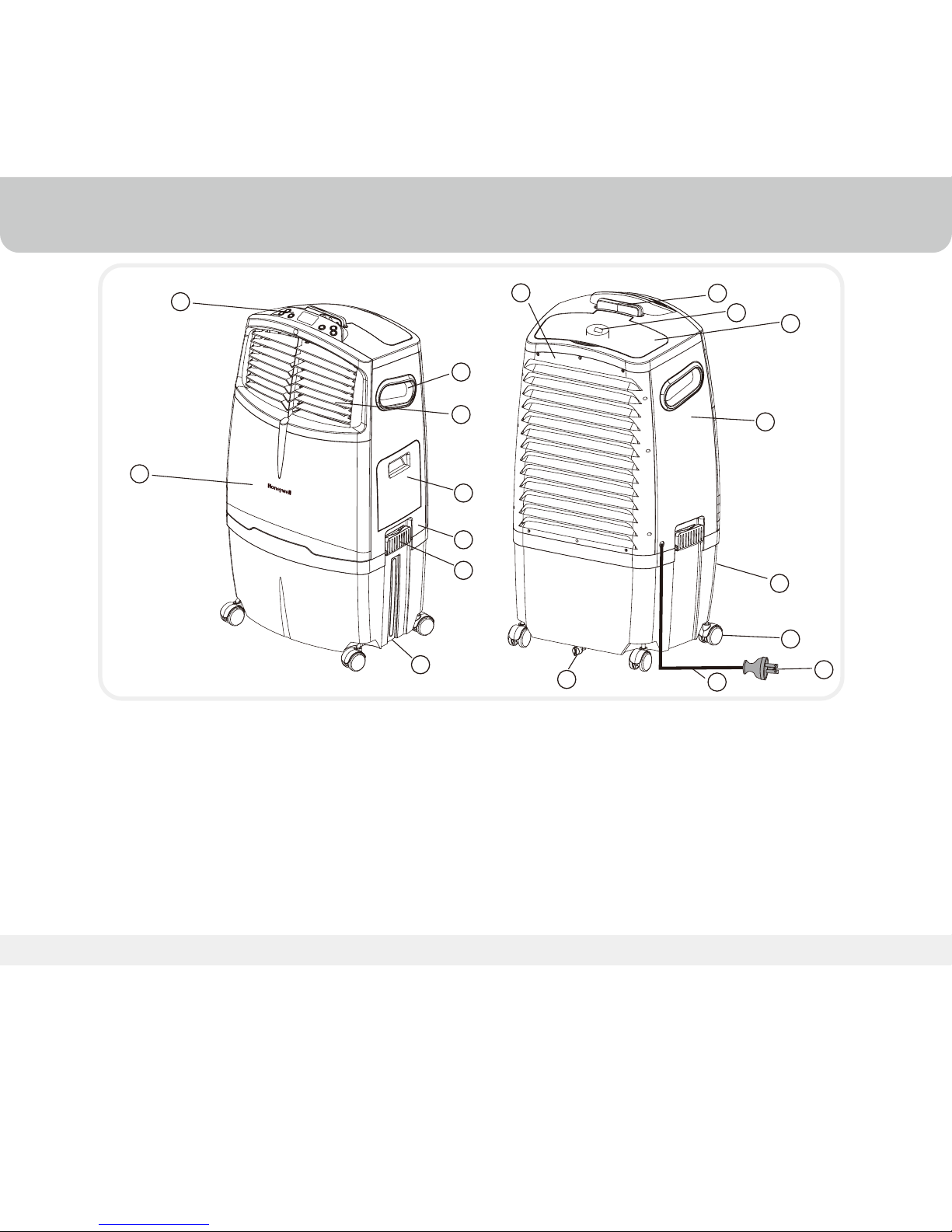

PARTS DESCRIPTION

12 17

ACCESSORIES:

Remote Control (2 AAA Batteries not included)

Drain Plug

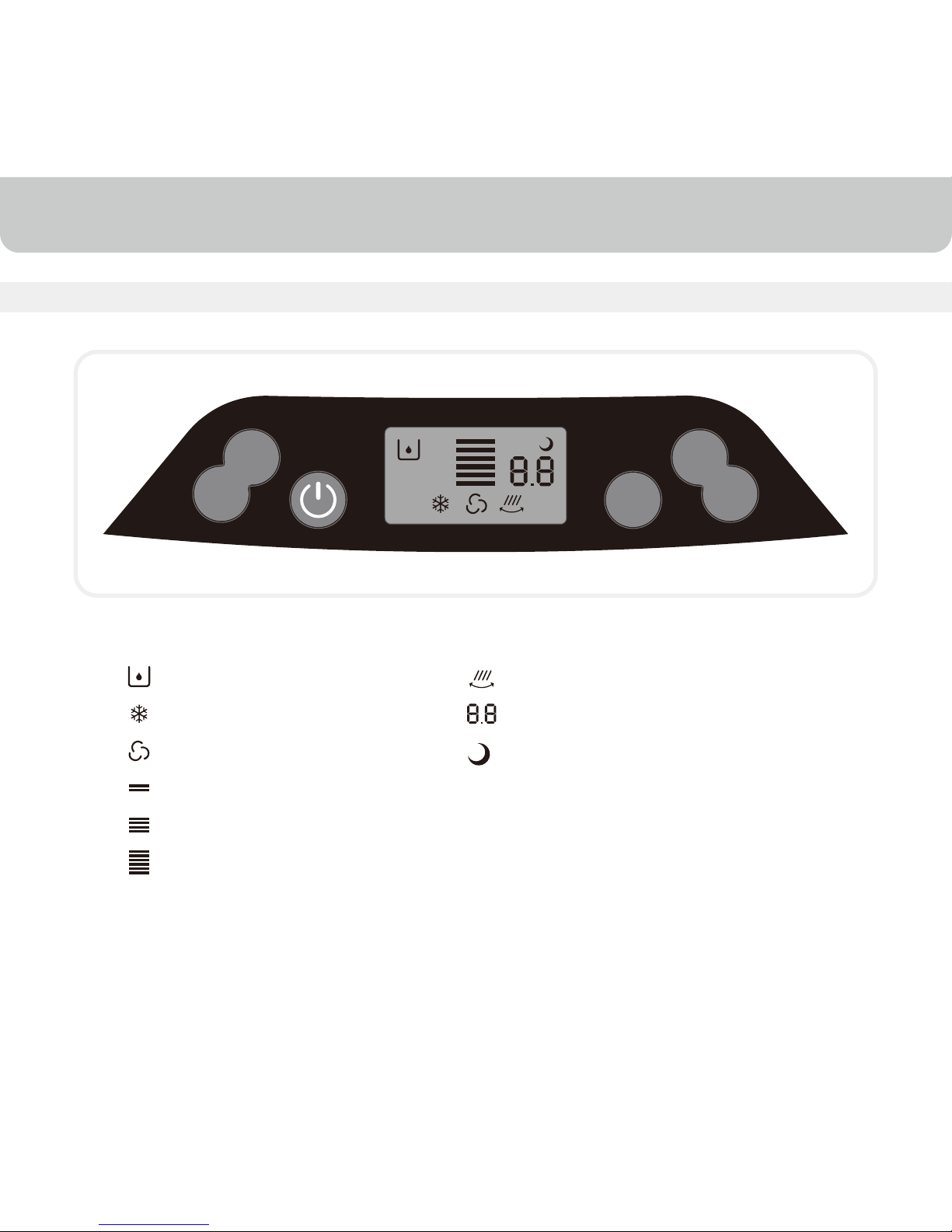

CONTROL PANEL

USE & OPERATION

Icons on LCD

Low water level in tank

Cool

Fan operating Sleep

Low speed

Medium speed

High speed

Swing

Time delay set

COOL

SPEED

SLEEP

TIMER

SWING
