Honeywell CL60PM Series Manuel utilisateur

Portable Evaporative Air Cooler

OWNER’S MANUAL

Read and save these instructions before use

Model:

CL60PM

Voltage rating: 220-240V`50Hz

Power rating: 220W

For product inquiries or support, visit www.honeywellaircoolers.com

Or call Tel +44 (0) 1477 539 500 Fax +44 (0)1477 539 530

Email sales@scott-air-cooling.co.uk

Made in P.R.C.

This page is intentionally left blank

INDEX

Read all instructions carefully before setting up and operating the unit, and please keep this

instruction manual for future reference. This manual is designed to provide you with

important information needed to setup, operate, maintain and troubleshoot your cooler.

Failure to follow these instructions may damage and/or impair its operation and void

the warranty.

SECTION PAGE

THANK YOU .........................................................................................................

USER TIPS ...........................................................................................................

SAFETY RULES ...................................................................................................

PARTS DESCRIPTION ........................................................................................

USE & OPERATION .............................................................................................

Installing Hose Adapter and Float Valve / Fill Water

........................................................

...................

...............

Control Knobs

.........................................................

....

....................

............

....

CLEANING & MAINTENANCE .............................................................................

TROUBLESHOOTING GUIDE .............................................................................

TECHNICAL SPECIFICATIONS ...........................................................................

ELECTRICAL WIRING DIAGRAM ........................................................................

10.

WARRANTY .......................................................................................................

THANK

YOU

THANK YOU!

Congratulations on your purchase of this versatile Honeywell Evaporative Air Cooler. For optimum

cooling performance from your unit, first fill it with water.

Please read these instructions carefully.

USER

TIPS

COOL ~ EFFICIENT ~ NATURAL

Evaporative air cooling is the natural way of cooling, similar to a breeze blowing across a lake.This

breeze drops thetemperatureand has a relaxing cooling effect.

The evaporative air cooler cools the air by means of the evaporation of water. When water

evaporates into the air, the result is a mixture of air and water molecules. This chemical change

requires heat which is taken from the water molecules, resulting in cooler air propelled from the

unit.

Honeycomb Cooling Media

Pump

Water

Evaporative Air Cooling Mechanism

USER

TIPS

The recommended maximum relative humidity level is 60% or

less, which allows a noticeable temperature decrease. The

temperature decrease will be greater in drier climates because

higher evaporation occurs when the humidity is low.

The evaporative air cooler should not be used in enclosed

spaces. It must be kept level and there must be water in the

water tank. The room should have doors and windows opened

to allow free air flow. The evaporative air cooler works best

when placed near an open window, so that outside air is drawn

into the evaporative air cooler, the air circulates in the room, and

exits via the door. The maximum cooling effect is felt when a

person is in the flow of air coming out of the evaporative air

cooler.

The evaporative air cooler can also be used to humidify dry air

during the cool weather months. To be used for humidification

the windows and doors should be closed to allow the humidified

air to accumulate. The evaporative air cooler is not an air

conditioner as it does not use a compressor or refrigerant gas. It

should not be expected to cool as to a selected, fixed

temperature like a refrigerated air conditioner.

NOTE

When the product is used for the first time the Honeycomb

cooling media will have an odour which will dissipate in a week

or so of initial use.

SAFETY

RULES

READ AND SAVE THESE INSTRUCTIONS:

When using electrical appliances, basic safety precautions should always be followed:

• Your cooler runs on 220-240 Volt AC, 50 Hz current.

Check the household voltage to ensure it matches the

appliance's rate specification.

• Before operating the product remove it from its packaging

and check it is in good condition.

• DO NOT operate any product with a damaged cord or plug.

We recommend not to use an extension cord with this

appliance.

• DO NOT the run power cord under carpeting, or cover it with

rugs or runners. Arrange the cord away from areas where it

may be tripped over.

• Always unplug the product before refilling the water tank.

• Always unplug the appliance from the power source before

cleaning, servicing or relocating the unit.

• Remove the power cord from the electrical receptacle by

grasping and pulling on the power cord plug-end only, never

pull the cord.

• DO NOT use the product in areas where gasoline, paint or

other flammable goods and objects are stored.

• When using the ''Cool'' setting, please check the water

tank to ensure it is full. Operation of this unit on the

''Cool'' setting with an empty tank may result in damage

to the water pump.

220 -240Volt AC

50 Hz

SHOCK HAZARD

WATER LEVEL INDICATOR

SAFETY

RULES

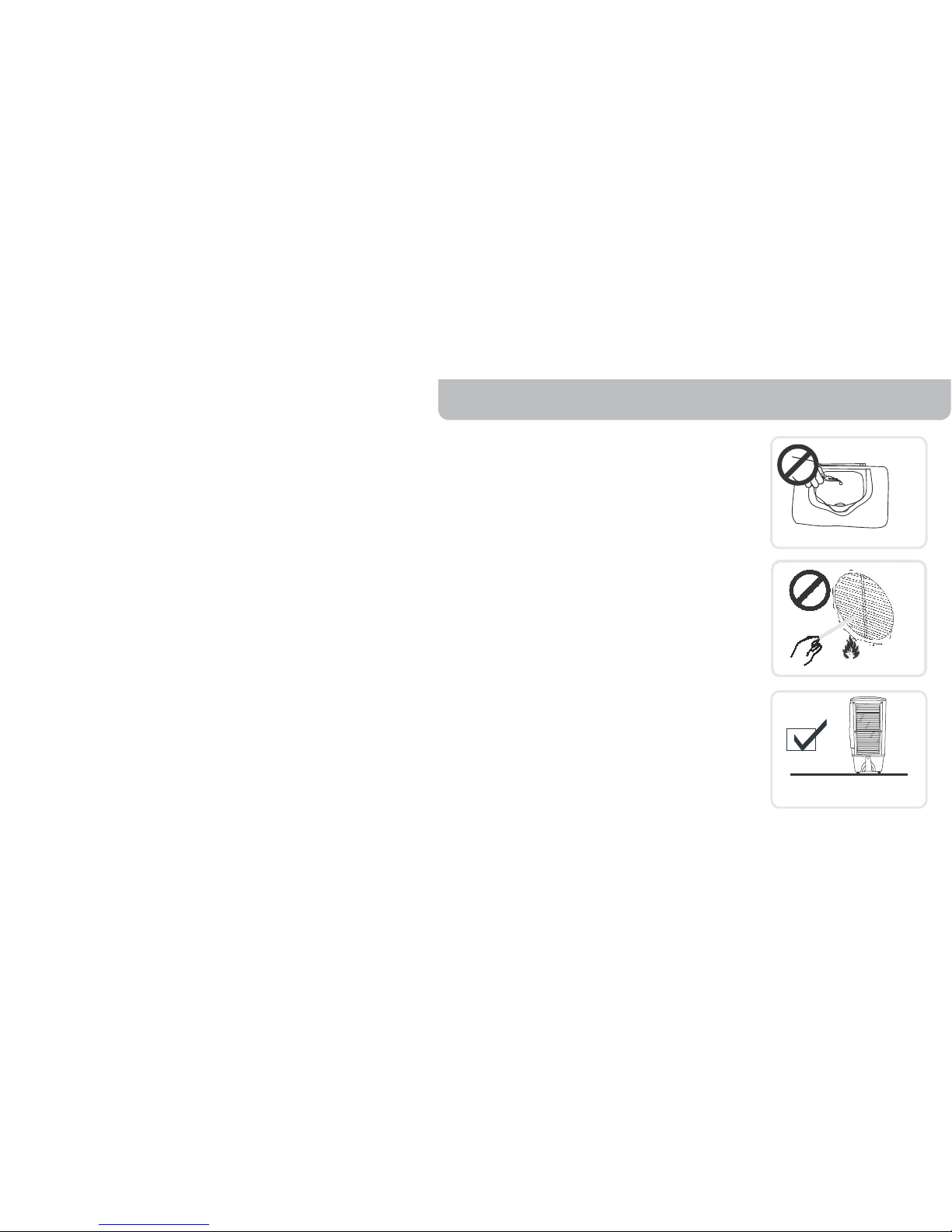

• DO NOT attempt repair or adjust any electrical or mechanical

functions of the cooler, as this may void the warranty.

• DO NOT cover the air inlet or outlet on the appliance as this

may cause motor damage.

• DO NOT insert or allow objects to enter any ventilation or

exhaust opening as this may damage the product and could

cause an electrical shock or fire.

• DO NOT operate with the Honeycomb media removed as this

will overload and damage the motor.

• DO NOT leave the appliance operating unattended for any

extended period of time.

• DO NOT let children play with this appliance, packaging or

plastic bags.

• If the unit is damaged or it malfunctions, do not continue to

operate it. Refer to the troubleshooting section and /or please

seek professional advice.

• Place the unit on a level floor.

• This product is not intended for use in wet or damp locations.

• Never locate the product where it may fall into a bathtub or

other water container. DO NOT use in bathrooms.

• When it is not in use always store in a dry area.

• This appliance is not intended for use by persons (including

children or elderly) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless they

have been given supervision or instruction concerning use of

the appliance by a person responsible for their safety.

• Always grip the side handles to move the unit.

Water /

Ice compartment

FLOOR LEVEL

PARTS

DESCRIPTION

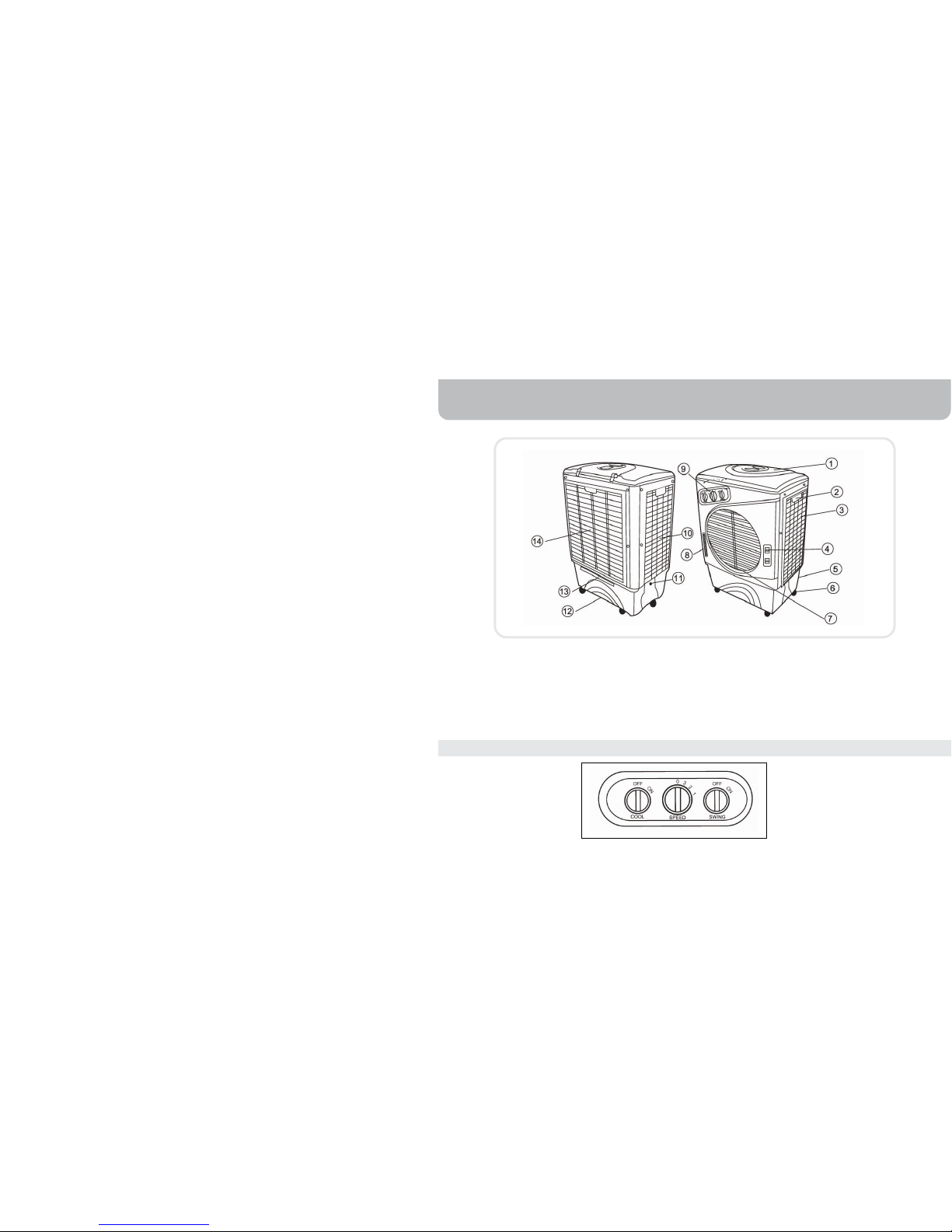

1 Water Inlet

2 Handle

3 Right Panel

4 Lever for Horizontal Louvres

5 Water Tank

6 Castors

7 Horizontal Louvres

CONTROL PANEL

8 Water Level Indicator

9 Control Panel

10 Left Panel

11 Continuous Water Inlet

12 Drain Plug

13 Manual Water Inlet

14 Back Panel

USE

& OPERATION

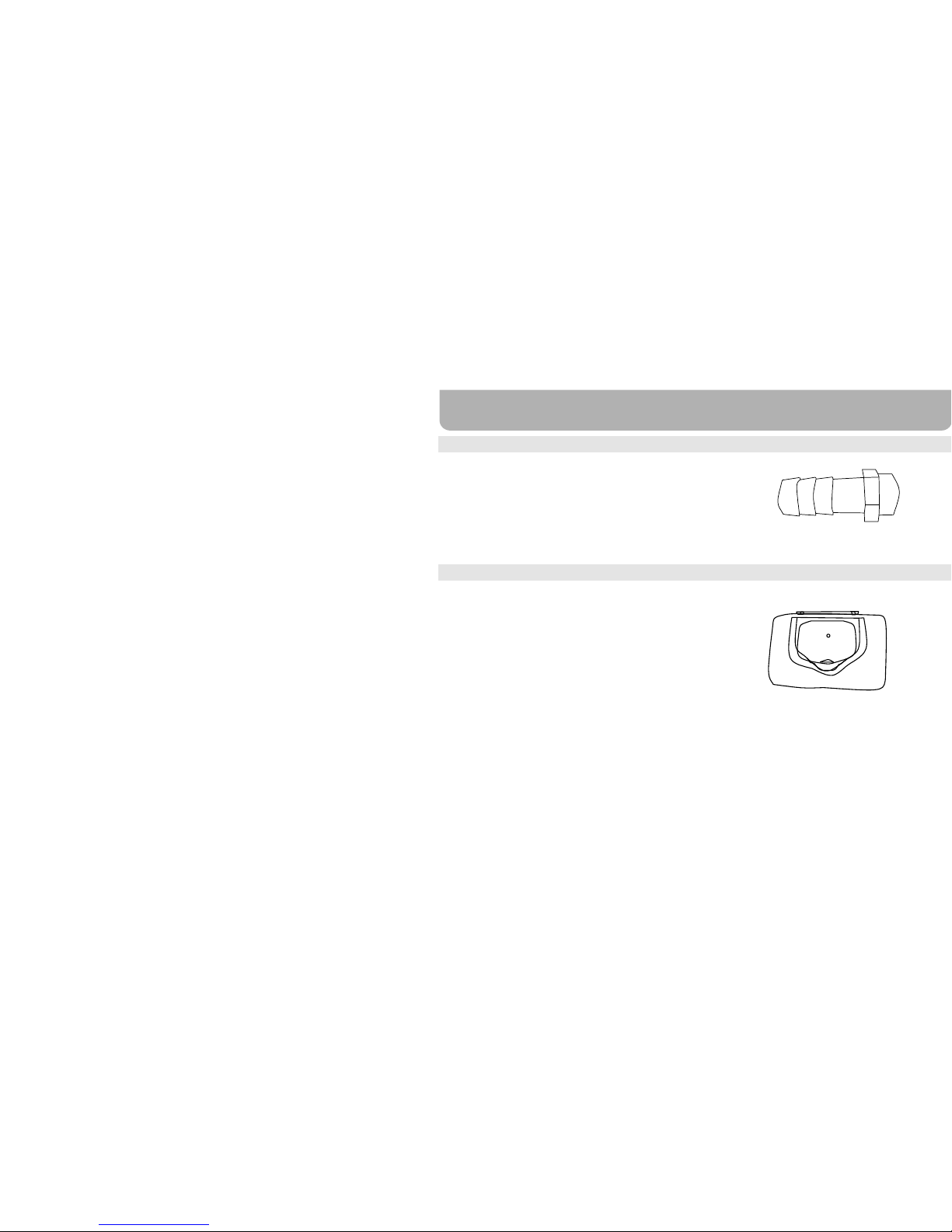

INSTALLING HOSE ADAPTER AND FLOAT VALVE

• Connect the garden hose Connector and turn on the water.

• Verify water tight connections by visually examining both

the float/hose connections.

Hose Connector

FILLING WATER

Water can be filled into the air cooler by

Continuous

water

supply

Connect a garden hose to the continuous water supply inlet.

Manual

operation

Water can be poured into the unit from the back.

Water

compartment

Water can be put into the tank through the top opening.

There is a hole for water to flow into the tank.

Water compartment
