Portable Air Conditioner

User Manual

Read and save these instructions before use

Model :

MM14 Series: MM14CCS, MM14CCSBB, MM14CCSWW, MM14CHCS, MM14CHCSBB, MM14CHCSWW

USER TIPS

THANK YOU

Congratulations on your purchase of this versatile Honeywell Portable Air Conditioner.

Honeywell Portable Air Conditioners are ideal for spot cooling. The compressor, condenser and

evaporator are housed in a compact unit. The air is ﬁltered, dehumidiﬁed and cooled while a ﬂexible air

outlet hose sends heat outside. The air conditioner includes a window venting kit.

No permanent installation is needed. The unit is easy to move from room to room and offers a truly

ﬂexible air conditioning solution.

Auto Evaporation System - The unit automatically evaporates the condensate through the air

outlet hose. There is no need to empty the drainage tank except in very high humidity conditions.

Read and follow the instructions carefully.

•

Follow installation instructions to set up the unit.

Plug the unit into a properly grounded circuit.

Important:

Before installing the unit, place it UPRIGHT for 20 minutes before use to allow the refrigerant to

stabilize.

Manually adjust the air vent located at the top of the unit to adjust the direction of air ﬂow.

USER TIPS

To ensure optimal efﬁciency of the product, keep doors and windows closed when it is used as an air

conditioner or dehumidiﬁer. If the product is being used with the fan function only, an open window could

improve air circulation.

Cooling and Dehumidifying Operation Fan Operation

READ AND SAVE THESE INSTRUCTIONS

Improper handling can cause serious damage to the appliance.

WARNING:

•

DO NOT operate the unit with a damaged plug or loose wall outlet. If the power cord is damaged, it

must be replaced by the manufacturer or an authorized service agent.

DO NOT cover the air intake and exhaust when in use.

This appliance is not intended for use by children. Children should be supervised and should not play

on or around the appliance.

DO NOT place objects on or sit on the unit.

Always turn off and unplug the unit when cleaning or servicing.

If service is needed contact an authorized service agent.

Unplug the unit when stored or not in use.

DO NOT run the power cord under carpeting and rugs.

Use caution to prevent tripping on cord.

DO NOT use in areas where gasoline, paint or other ﬂammable goods are stored.

Basic safety precautions should always be followed when using electrical appliances.

This appliance has been manufactured for use in domestic environments and should not be used for

other purposes.

SAFETY

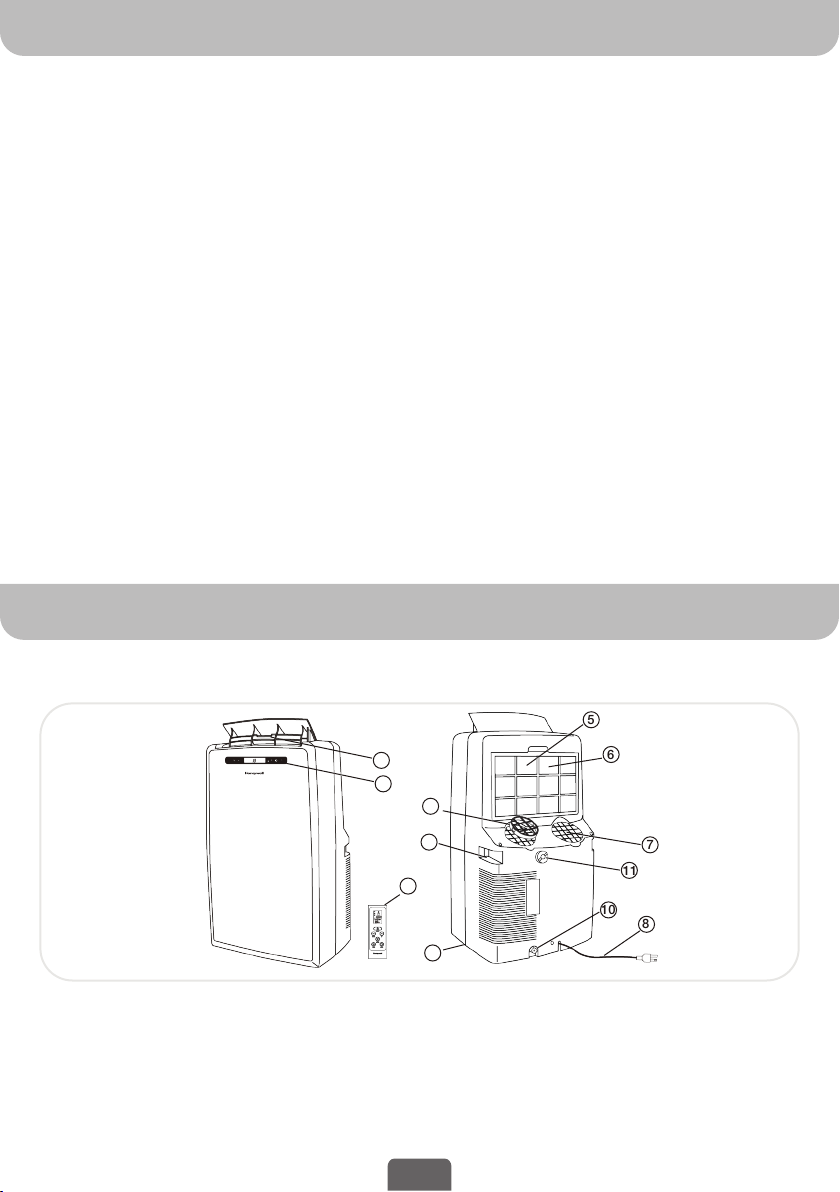

PARTS DESCRIPTION

5) Air Filter

6) Back Grill

7) Exhaust Hose Connector

8) Power Supply Cord

9) Remote Control

10) Lower Drain Plug

(Air Conditioning Mode)

11) Upper Drain Plug

(De-humidiﬁer Mode)

1) Control Panel

(Incl. Signal Receptor)

2) Air Outlet

3) Handle

4) Casters

12) Air inlet ﬁlter

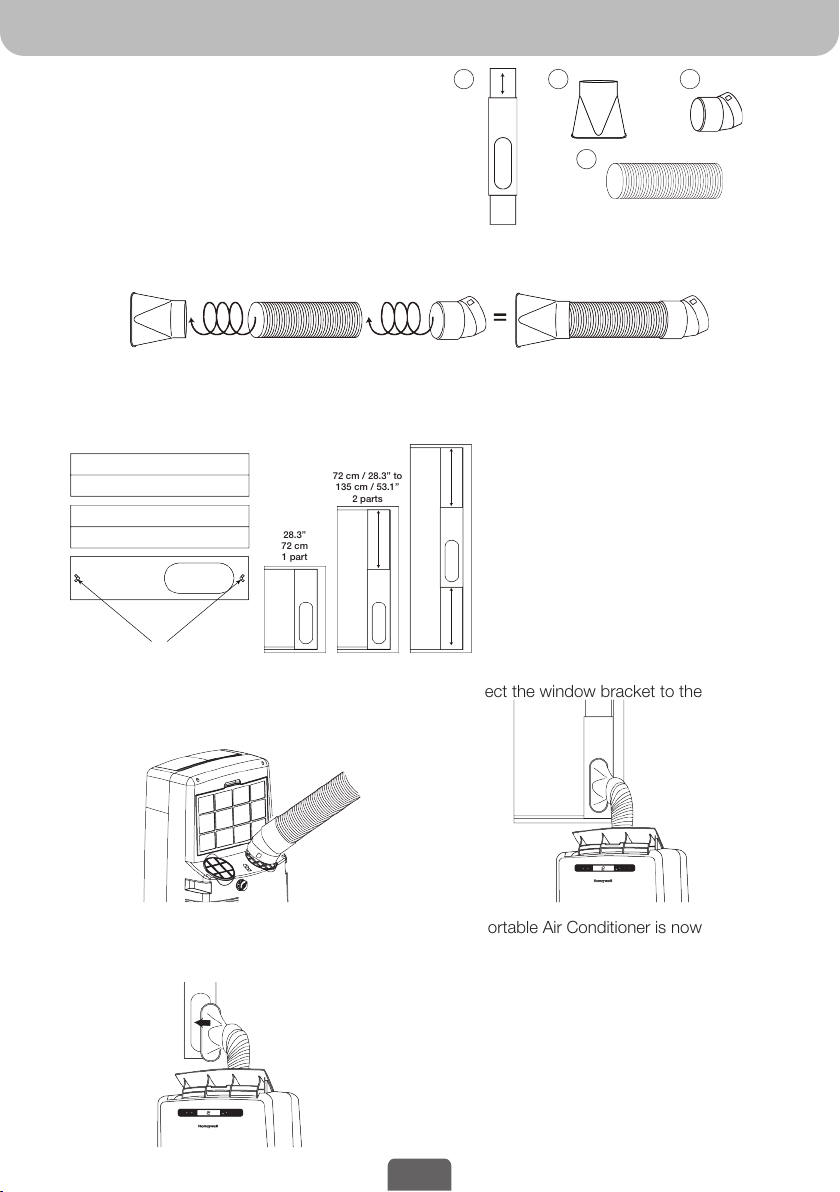

To install the window bracket to the

window frame, you need to adjust the

height or width of the window bracket by

extending the length according to the

height or width of the window or balcony

door. When the length is set, tighten the

butterﬂy screws (preinstalled on the

window bracket) to ensure the window

bracket is secured in the desired position.

Use one or all three pieces of window

bracket as needed.

1. Install the plastic hose with window bracket adapter and hose connector on both sides. Ensure

proper ﬁt on both ends.

2. The Window Brackets are approximatley 72 cm / 28.3 inches each, allowing you to install to

windows and balcony doors of different heights or width.

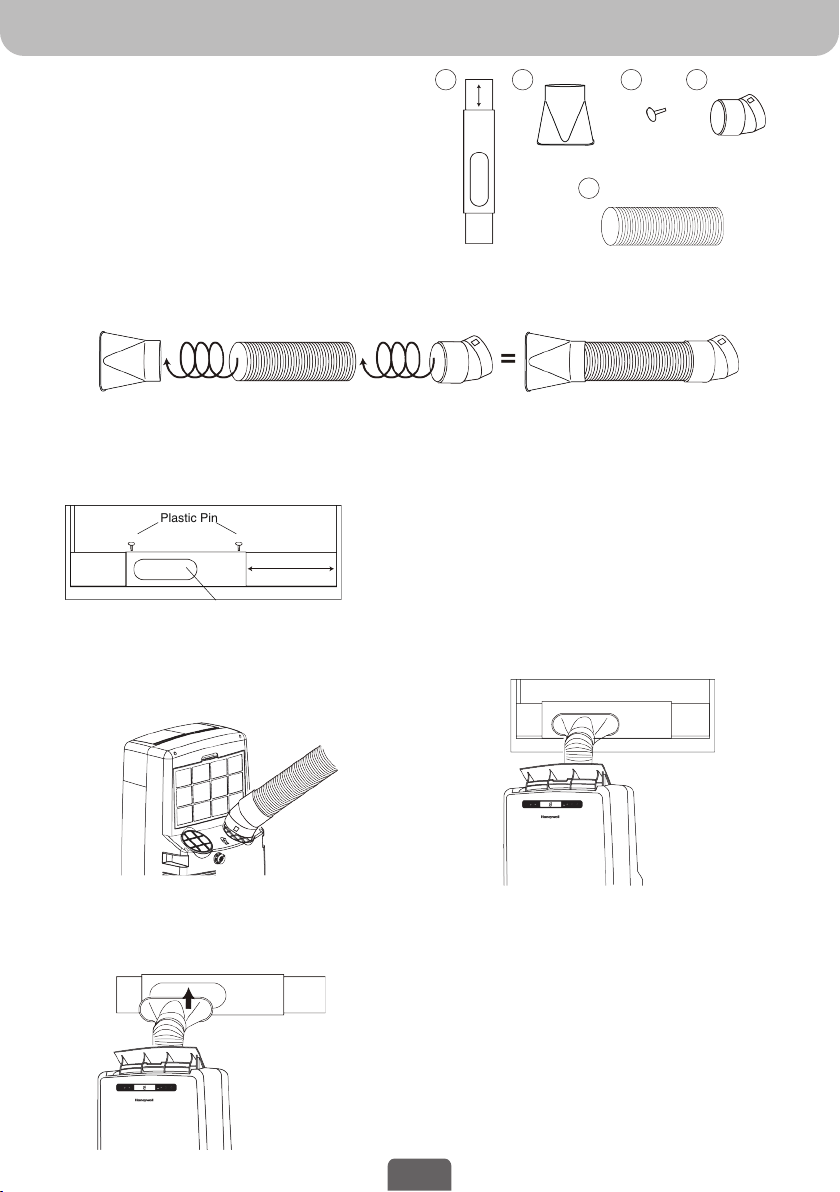

INSTALLATION

Window Bracket Kit.............................

Window Bracket Panel Adapter...........

Hose Connector..................................

Plastic Hose........................................

Installation Kit:

Installation Steps:

1 Set

1 Piece

4. Connect the window bracket to the opposite

end of the plastic hose. Ensure that all

connections are tight and installed properly.

5. Connect the window bracket to the window.

6. The Portable Air Conditioner is now ready to

use.

28.3”

72 cm

1 part

72 cm / 28.3” to

135 cm / 53.1”

2 parts

2 m / 78.7”

3 parts

Butterﬂy Screws

Connect the plastic hose to the rear exhaust

outlet on the back of the unit. Push-in until it is

locked in place.

x 1

4x 1

x 1 x 1

1. Install the plastic hose with window bracket adapter and hose connector on both sides.

Ensure proper ﬁt on both ends.

2. Adjust the window bracket as per width or height of your window and insert the plastic pins to ﬁx at

the desired position. There is a hole where the Plastic Hose will be inserted later. Make sure this hole

is not blocked.

3. Connect the plastic hose to the hose

connector on back of the unit.

Push-in until it

is locked in place.

4. Connect the window bracket to the opposite

end of the plastic hose. Ensure that all

connections are tight and installed properly.

Note:

Do not install the window bracket to your window. This

step is required only to adjust it to the size of your

window. The bracket should be removed from the

window after the size is adjusted.

INSTALLATION

Window Bracket Kit.............................

Window Bracket Panel Adapter...........

Plastic Pin............................................

Hose Connector..................................

Plastic Hose........................................

Installation

Kit:

Installation Steps:

1 Set

1 Piece

2 Pieces

1 Piece

Plastic Pin

Hole for Plastic Hose

5. Connect the window bracket to the window.

6. The Portable Air Conditioner is now ready to

use.

x 1

x 1x 1

x 2 x 1

EN 3

Drill a hole in an outside wall or through a window pane. Respect the height and dimensions of the

hole given in Fig. 2 and Fig. 3.

Insert & secure the Flange Fixture into the newly drilled hole.

Fix one end of the Plastic Hose into the Flange Fixture that was secured on the wall.

Fix the other end of the Plastic Hose onto the Hose Connector and then onto the rear Exhaust outlet

of the unit (See Fig. 3).

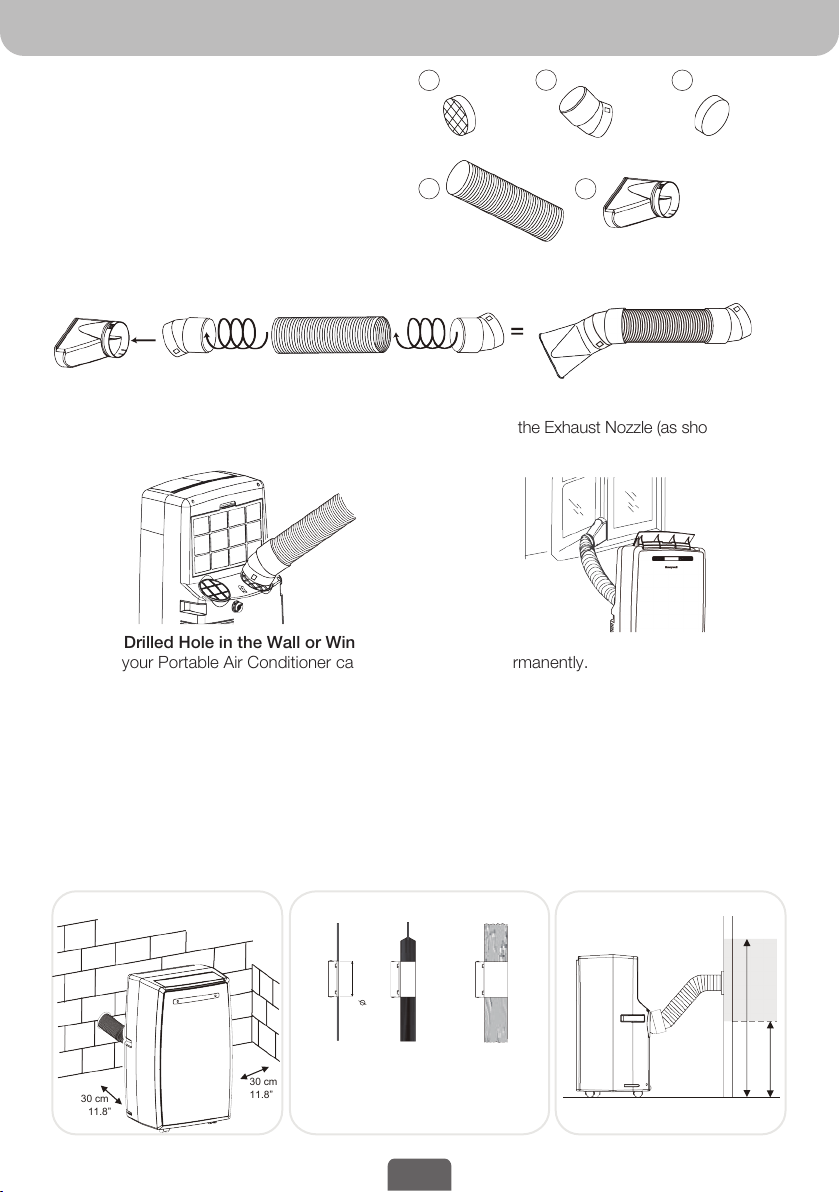

INSTALLATION

Flange Fixture......................................

Hose Connector..................................

Hole Cover..........................................

Plastic Hose........................................

Exhaust Nozzle....................................

Installation

kit:

1 Piece

2 Pieces

1 Piece

Through a Drilled Hole in the Wall or Window

If required, your Portable Air Conditioner can be installed semi-permanently.

NOTE: When the unit is not in use, remove the Plastic Hose from the Flange Fixture on the wall and use

the included Hole Cover to cover the hole on the wall.

Fig.1 Fig.2

4.9”

5 mm

In the

wooden

kickboard

of a french

window

In the wall: we

recommend you to

insulate the section

of wall using suitable

insulation materials.

the

window

panel

Fig.3

1. Install the plastic hose with exhaust nozzle and hose connector on both sides. Ensure proper ﬁt on

both ends.

Through an Open Window

Connect the plastic hose to the rear exhaust

outlet on the back of the unit. Push-in until it is

locked in place.

Extend the plastic hose through an open

window and close the window as far as possible

trapping the Exhaust Nozzle (as shown below).

2. 3.

11.8”

30 cm

x 1

x 2 x 1

x 1

MIN. 36 cm / 14”

MAX. 102 cm / 40”

30 cm

•Cooling Mode

The unit works as an air conditioner. Adjust fan speed and air temperature to suit your desired comfort

level. Temperature setting range is 16°C- 32°C (61°F- 89°F).

INSTALLATION (CONTINUED)

NOTE:

The supplied exhaust hose can be extended from 30 cm to 120 cm / 12 inches to 47 inches.

Do not bend (to the extent shown below) the exhaust hose. A bent hose will block exhaust air and

cause the unit to malfunction or shut-off.

RECOMMENDEDNOT RECOMMENDED

•

The length of the exhaust hose is determined by the product speciﬁcations. Do not replace or

lengthen it as this could cause the unit to malfunction.

Make sure the back of the unit is at least 50 cm / 20 inches away from. Do not place the unit in front

of curtains or drapes as this could obstruct the airﬂow.

USE & OPERATION

TOUCH SCREEN CONTROL PANEL

POWER CONTROL

The Power Control turns the unit on and off.

MODE CONTROL

3 settings: Cool, Dehumidify, Fan.

A light will indicate which setting is currently being used.

(1) Timer Control

(4) Mode Control

(2) Fan Speed Control

(5) Power Control

(3) Timer / Temperature Set Controls

(6) Warning Light (when ﬂashing)

50 cm / 20”

MIN. 36 cm / 14”

MAX. 102 cm / 40”

MIN 35.6 cm

(1) (2) (3) (3) (4) (5) & (6)

•Heating Mode*

When heating mode is selected the indicator light will shine. Heating is activated only when the ambient

temperature is below 25°C (77°F). In this mode, the desired temperature can be set between 16°C- 25°C

(61°F- 77°F). Note: The air exchange hoses must vent outside the room when using heating mode.

4 settings: Cool, Heater*, Dehumidify & Fan.

•

Dehumidifying Mode

Air is dehumidiﬁed as it passes through the unit, without being in full cooling mode. If room tempera-

ture is higher than 25°C (77°F) fan speed can be adjusted; otherwise fan speed is preset to LOW.

Note: If the unit will be used mainly as a dehumidiﬁer, do not connect the exhaust hose and let the

warm air return in the room. Continuous drainage is then necessary and more efﬁcient (refer to

Continuous Draining).

Fan Mode

For air circulation without air conditioner cooling.

USE & OPERATION (CONTINUED)

FAN SPEED CONTROL

3 settings: High, Medium and Low.

TIMER CONTROL

While the unit is turned on, press the timer button then press the ▼or ▲to select the number of hours

you would like the unit to continue to run. The unit will turn off automatically.

AUTO TURN OFF:

While unit is running, press the press the ▼or ▲button to select the number of hours you want the unit

to run in air conditioning mode.

AUTO TURN ON:

When unit is in a standby mode (plugged in with power light on), then press the ▼or ▲button to select

the number of hours until you want the unit to automatically start running.

TEMPERATURE / TIMER SET CONTROLS

WARNING LIGHT

Condensed water may accumulate in the unit. If the internal tank becomes full, the Power Control light

will ﬂash and the unit will not operate until the unit has been drained (refer Water Condensation

Drainage).

After switching the air conditioner off, you must wait 3 minutes before switching it back on

again.

•

Used for adjusting the timer and thermostat.

The default display is room temperature.

In cooling mode, when ▼ or ▲button is pressed, the set temperature is displayed and may be

adjusted. After 10 seconds the display will revert back to room temperature. Temperature is only

adjustable in cool mode. The time is adjustable between 1~24 hours.

Note: By pressing both ▼/ ▲set buttons at the same time, the display will toggle between Celsius

and Fahrenheit.

FUNCTION BUTTONS (CONTINUED)

*Applicable for models with Heating feature only.

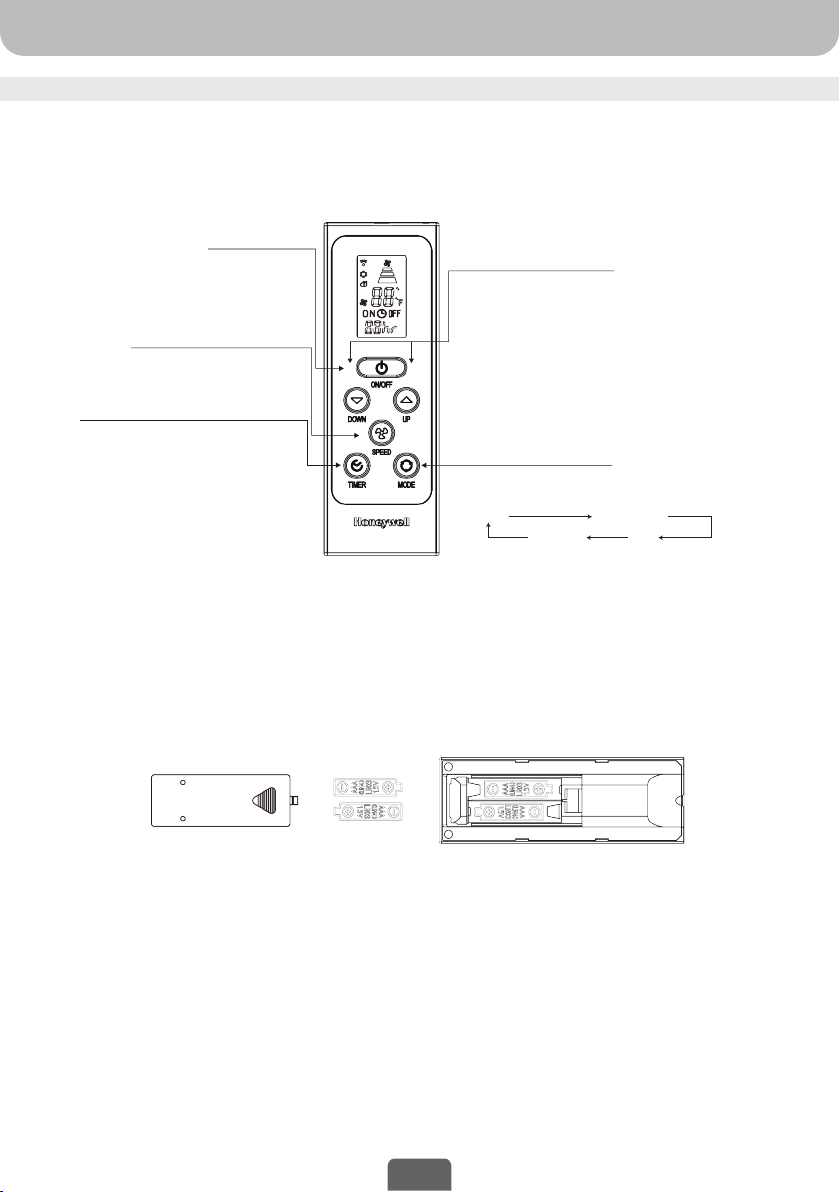

REMOTE CONTROL

The functions work the same as the portable air conditioner's Touch Screen Control Panel.

All key functions can be accessed from the remote control.

USE & OPERATION (CONTINUED)

•

Used for adjusting the timer and temperature.

When ▼or ▲key is pressed in cool mode, the

set temperature is displayed and may be

adjusted. After 10 seconds the display will

revert back to room temperature.

Timer setting is available from 1-24 hours by

pressing the key ▼or ▲

Press this button to change the operation mode

in the order of:

ON / OFF

• HIGH • MEDIUM • LOW

In running mode: Auto switch off

In stand-by mode: Auto switch on

Press ▼or ▲button to adjust the

time setting for 1 hour intervals.

Temperature / Timer Set

Mode Control

Power Control

Fan Speed Control

Timer Control

Battery Installation: Remove the cover on the back of the remote control and insert two AAA batteries

with + and - pointing in the proper direction according to the polarity markings.

Use only two AAA or IEC R03 1.5V batteries.

Remove the batteries if the remote control is not in use for a month or longer.

All batteries should be replaced at the same time, do not mix with old batteries.

Properly dispose of used batteries.

•

Note:

Caution:

Cool Dehumidify

Fan

*Applicable for models with Heating feature only.

Heater*

EN 7

CLEANING & MAINTENANCE

Appliance Maintenance:

Air Filter Maintenance:

The air ﬁlter should be cleaned every two weeks. Clean it as follows:

Turn off the appliance before disconnecting the power supply.

Always clean the appliance with a soft dry cloth.

Turn off the appliance and remove the air ﬁlter .

Rinse it in lukewarm water. After cleaning, dry in a shaded and

cool place, then reinstall.

End of Season Storage & Maintenance:

If the appliance will not be used for a long time:

CLEANING & MAINTENANCE (CONTINUED)

Be sure to drain the left-over water condensation. Remove the lower drain plug and use a

shallow pan to collect the water (make sure to replace the drain plug when ﬁnished).

To dry excess moisture, run the unit in Fan only mode for 30 minutes before storing.

Turn off and unplug the air conditioner from the power supply.

Remove the air ﬁlter and clean with water. Dry the air ﬁlter and then reinstall onto the unit.

Disconnecting the Window Installation Kit:

Cover the air conditioner with a cloth/ plastic bag before storage, to protect from dust and scratches

collecting on the surface of the unit.

It is recommended to coil the power cord and store it away from the ﬂoor to ensure the cord is

protected from bents and creases.

Remove the Plastic Hose from the unit by pulling away from the unit at the same time.

Remove the Window Bracket, Window Bracket Panel Adapter and Hose Connector.

It is recommended to store the Window Kit parts in a bag together with the Remote Control and

placing them together with the air conditioner unit.

If needed, you can clean the Window Kit with a damp cloth and water before storing. Make sure all

parts of the Window Kit are dry before storage.

•

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Honeywell Climatiseur

Honeywell

Honeywell MM14CCS Manuel utilisateur

Honeywell

Honeywell CL201AEWW Manuel utilisateur

Honeywell

Honeywell MN12CES Manuel utilisateur

Honeywell

Honeywell CO30XE Manuel utilisateur

Honeywell

Honeywell Y8150 Manuel utilisateur

Honeywell

Honeywell R-MM14CHCSCS Manuel utilisateur

Honeywell

Honeywell CL30XC Manuel utilisateur

Honeywell

Honeywell MM14CCS Manuel utilisateur

Honeywell

Honeywell CL25AE Manuel utilisateur

Honeywell

Honeywell MN14 Series Manuel utilisateur

Honeywell

Honeywell MF08CESWW Manuel utilisateur

Honeywell

Honeywell HJ Series Manuel utilisateur

Honeywell

Honeywell TC09PE Manuel utilisateur

Honeywell

Honeywell CO301PC Manuel utilisateur

Honeywell

Honeywell C060Pm Manuel utilisateur

Honeywell

Honeywell CL30XC Manuel utilisateur

Honeywell

Honeywell MM14CHCS Manuel utilisateur

Honeywell

Honeywell CO60PM Series Manuel utilisateur

Honeywell

Honeywell ES800 Manuel utilisateur

Honeywell

Honeywell MM14CHCS Manuel utilisateur

Honeywell

Honeywell MP09 Series Manuel utilisateur

Honeywell

Honeywell HW4CEDVWW0 Manuel utilisateur

Honeywell

Honeywell HWAC-1217S Manuel utilisateur

Honeywell

Honeywell HL10 Series Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur
