Honeywell CL610PM Manuel utilisateur

Portable Evaporative Air Cooler

User Manual

Read and save these instructions before use

Refroidisseur d'air par évaporation portatif

Mode d'emploi

Lire ces instructions avant l'utilisation et les conserver

Refroidisseur d'air par évaporation portatif

Manual Del Propietario

Lea y guarde estas instrucciones antes de usar la unidad

Model / Modèle / Modelo:

CL610PM / CO610PM/

CL810PM / CO810PM

Customer Support:

Assistance Au Client:

Servicio de atencion a clientes:

Web: www.jmatek.com

USA: 1-800-474-2147 | [email protected]

CANADA^: 1-888-209-0999 | [email protected]

^ Canada Customer Support service available for models sold in Canada only.

^ Le Service Client Canadien est disponible uniquement pour les modèles vendus sur le territoire Canadien.

^ Servicio de Atención A Clientes en Canadá disponible solo para modelos vendidos en Canadá.

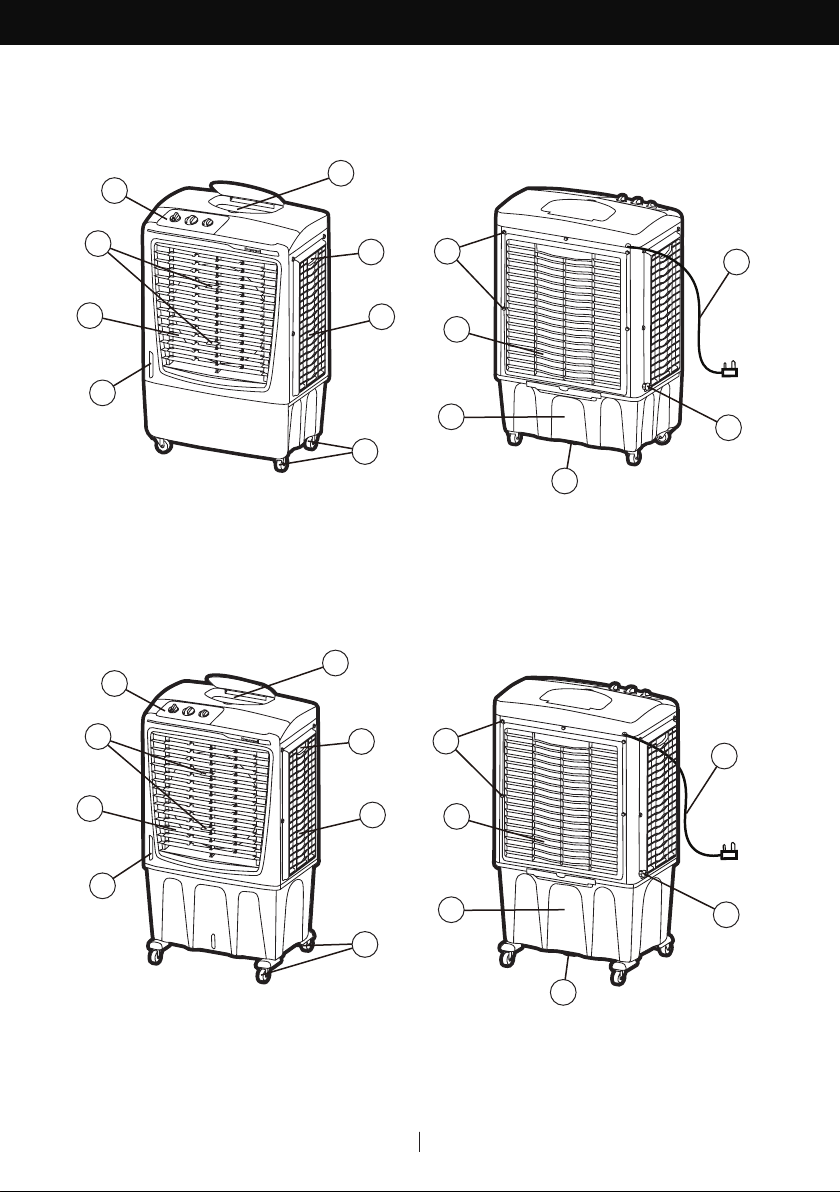

PARTS DESCRIPTION

FOR MODEL: CL610PM/ CO610PM

FOR MODEL: CL810PM/ CO810PM

PARTS DESCRIPTION (CONTINUED)

WARNING -- READ AND SAVE THE AIR COOLER SAFETY & MAINTENANCE GUIDE AND USER

MANUAL BEFORE USING THIS PRODUCT. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY

DAMAGE AND/ OR IMPAIR ITS OPERATION AND VOID THE WARRANTY. IN CASE THERE IS

ANY INCONSISTENCY OR CONFLICT BETWEEN THE ENGLISH VERSION AND ANY OTHER

LANGUAGE VERSION OF THE CONTENT OF THIS MATERIAL, THE ENGLISH VERSION SHALL

PREVAIL.

1) Control Panel 8) Casters

2) Lever for Horizontal Louvers 9) Rear Grill Screws

3) Louvers 10) Rear Grill

4) Water Level Indicator 11) Water Tank

5) Water Fill Door 12) Drain Plug

6) Handle 13) Water Inlet Valve

7) Side Grill 14) Power Cord & Plug

IMPORTANT: Honeywell Outdoor Air Cooler models are designed to IPX4 product standards and not

recommended to be placed outdoors during heavy rain or snow.

FOR OUTDOOR MODELS CO610PM/CO810PM:

WARNING: Use only on GFCI Protected outlets/ sockets (for USA only).

Press the TEST button (then RESET button) every month to ensure proper operation.

Power cords must be secured to avoid tripping.

The wiring and connections must be protected from water. The electrical plug and Air Cooler

connections must be dry at all times. When used outdoors, insert the air cooler electrical plug

into an IP44 compliant outdoor electrical outlet.

Set the unit on a solid ﬂat surface.

•

OFF

COOL SWING

SPEED

USE & OPERATION

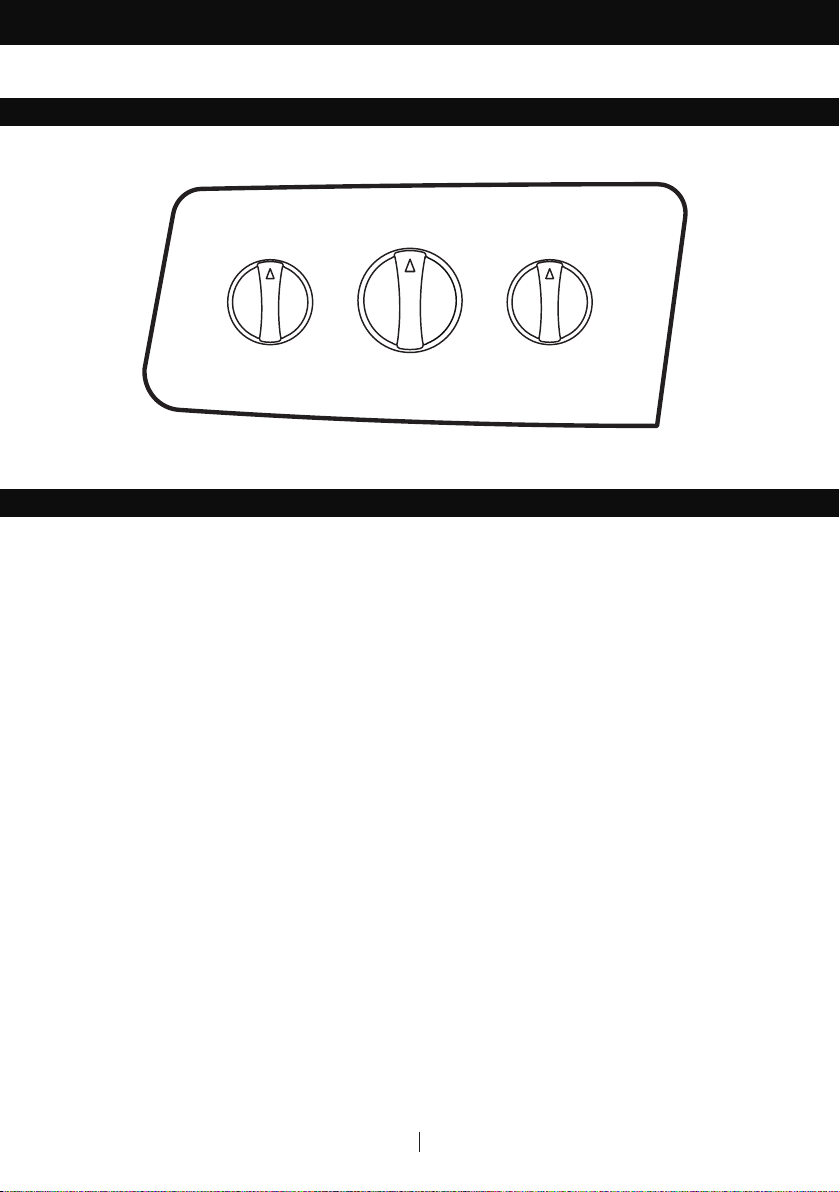

CONTROL PANEL

FUNCTION BUTTONS

SPEED / ON - OFF

Connect to the power supply and turn the SPEED knob. The fan will start. Change the speed from 3 to

1 (1 for Low, 2 for Medium and 3 for High fan speed). To switch OFF the unit, turn the SPEED knob to 0.

COOL

You must add water before operating the unit on Cool mode. Turn the COOL knob to the ON position to

activate evaporative cooling. The water pump will operate and you will feel the cooler air after the

Honeycomb Cooling Media is completely wet.

SWING

Turn the SWING knob to the ON position to activate the movement of the louvers. The louvers will begin

to move left to right automatically. Vertical Air Flow - You can manually adjust the lever located at the

front of the unit to change vertical air ﬂow.

USE & OPERATION (CONTINUED)

Make sure to position the air cooler correctly before you set up and start using the product. Please

refer to the COOLER LOCATION section of the separate Safety & Maintenance Guide.

COOLER LOCATION

Locate the male connector at one end of the garden hose.

Insert the garden hose connector into the water inlet valve of

the cooler. Screw and tighten the water inlet valve onto the

threaded part of the garden hose connector, making sure the

hose connector is secured to ensure there will be no leaks. If

there is leakage, the hose and the water inlet valve may not be

connected properly. Try to disconnect, replace and tighten the

water inlet valve again.

When the connection is secured, turn ON the water supply and

the water will ﬂow into the water tank of the cooler.

The cooler is now set so the water refills automatically when

the water tank is empty, or when the water reaches below a

minimum level.

When the water tank is full, the water inlet valve will

automatically stop the water supply from overﬂowing.

Please open the water valve for minimum ﬂow as too

much pressure could damage the inlet pressure control system.

WARNING: The maximum water inlet pressure is 0.5 MPa.

It is ideal to use the Continuous Water Supply Connection to run the unit for long periods of time

without refilling the tank. This also helps prevent pump failure in case the cooler is running with

inadequate water in the tank.

CAUTION: Unplug the unit from the electrical power outlet before ﬁlling or emptying the water tank.

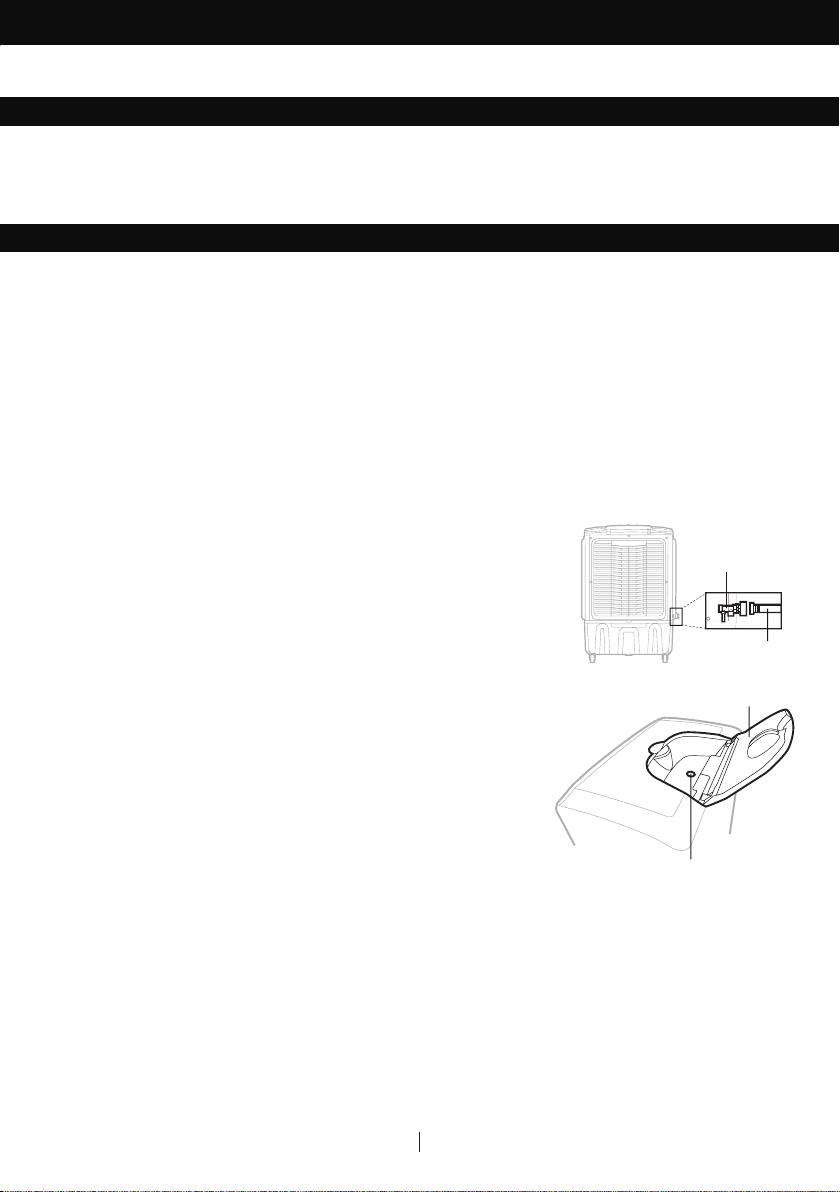

Continuous Water Supply Connection:

For a continuous water supply, you will need a garden hose that is connected to a main water supply.

Note: The garden hose is not included. Please make use of a garden hose which is compatible with

the unit connection.

FILLING WITH WATER

•

Garden Hose

Water

Inlet Value

Water Fill Door

Water Inlet Hole

WARNING: Always ensure the water in the water tank is above the minimum (Min.) water level mark

for both Continuous & Manual Water Reﬁll. Running the unit in Cool mode with inadequate water

may cause pump failure.

USE & OPERATION (CONTINUED)

LOW WATER PUMP CUTOFF*

In Cooling Mode, when water in the tank is below the minimum indicator level, the air cooler water

pump will automatically turn off. This helps to protect the water pump from running without water in

the tank. When the water pump is turned off, the air coolers stops evaporative cooling.

To reactivate the water pump and restart the unit in Cooling Mode, first switch OFF the unit and

unplug from the power outlet. Fill the water tank with fresh water above the minimum level mark.

Plug in and switch the unit ON again.

*Applicable for models with Low Water Pump Cut-off only.

NOTE: The water capacity refers to the total volume of water that can be contained within the air

cooler water tank and water distribution system. The water capacity in the tank at the “Max.” indicator

level may be lower than the actual water capacity of the air cooler.

WARNING: Do not ﬁll water tank with dirty water or salt water. This can damage the unit and Honeycomb

media.

FILLING WITH WATER (CONTINUED)

Manual Water Tank Reﬁll:

•

Using a portable container or a garden hose, you can reﬁll the water tank manually by pouring

water into the water tank through the water inlet hole located at the top of the air cooler.

Check the water level indicator to know when the water tank is full. Do not ﬁll water above the

"Max." water level mark to avoid water droplets collecting on the louvers.

USE & OPERATION (CONTINUED)

If the cooler will not be used for a long period of time, please refer to the STORAGE & MAINTENANCE

GUIDELINES located in the separate Safety & Maintenance Guide.

CLEANING & DRAINING THE WATER TANK

WARNING:

Before cleaning the unit, switch the unit OFF and disconnect from the electrical socket.

•

Move the unit to a location where the water can be drained. Remove the cap from the Drain plug

located at the bottom of the unit. Allow the tank to empty.

Reﬁll the water tank with clean water, up to the maximum level and drain it completely.

Use a damp cloth to remove the dirt and dust from the surface of the unit. Never use corrosive

elements or chemicals to clean this product.

When the product is not in use, store the unit in a dry place away from direct sunlight.

CLEANING THE HONEYCOMB COOLING MEDIA

The appliance is supplied with three Honeycomb Cooling Media pads.

The Honeycomb Cooling Media are located inside the Rear and Side Grills. Follow Steps 1 to 5 for

instructions on how to remove them from the unit for cleaning and maintenance.

Do not run the unit in COOL mode with stale water in the tank. You must empty the water tank

and reﬁll with fresh water, especially if the tank has not been cleaned in a long time.

The cleaning frequency for the Honeycomb media depends on local air and water conditions.

In areas where the mineral content of water is high, mineral deposits may build up on the

Honeycomb Cooling Media and restrict air ﬂow. Draining the water tank and reﬁlling with fresh

water at least once a week will help reduce mineral deposits. If mineral deposits remain on the

Honeycomb Cooling Media, the media should be removed and washed under fresh water. The

media should be cleaned every two months or sooner, depending on your needs.

For best results allow the Honeycomb Cooling Media to dry after each use by turning off the cool

function 15 minutes before turning the unit off.

•

USE & OPERATION (CONTINUED)

Remove the screws from the Rear Grill of the Air Cooler.

Carefully pull out the Rear Grill from the Air Cooler.

The Honeycomb Cooling Pad is secured on the Rear Grill by two Horizontal Bars that are ﬁxed in

place by two screws on the Left and Right Sides of these Horizontal Bars. Remove these screws

to release the Horizontal Bars.

Pull out the Honeycomb Cooling Pad by sliding it out from the Rear Grill. Replace with the new

Honeycomb Cooling Pad by sliding into the grooves of the Rear Grill until it ﬁts comfortably and

securely in place on the grill. Replace the Horizontal Bars back onto the Rear Grill by replacing the

Left and Right Side screws and tightening them in place. This secures the Honeycomb Cooling

Pad in place on the Rear Grill.

Repeat steps 1 to 4 to remove the Honeycomb Cooling Pad on the Left and Right Side Grills.

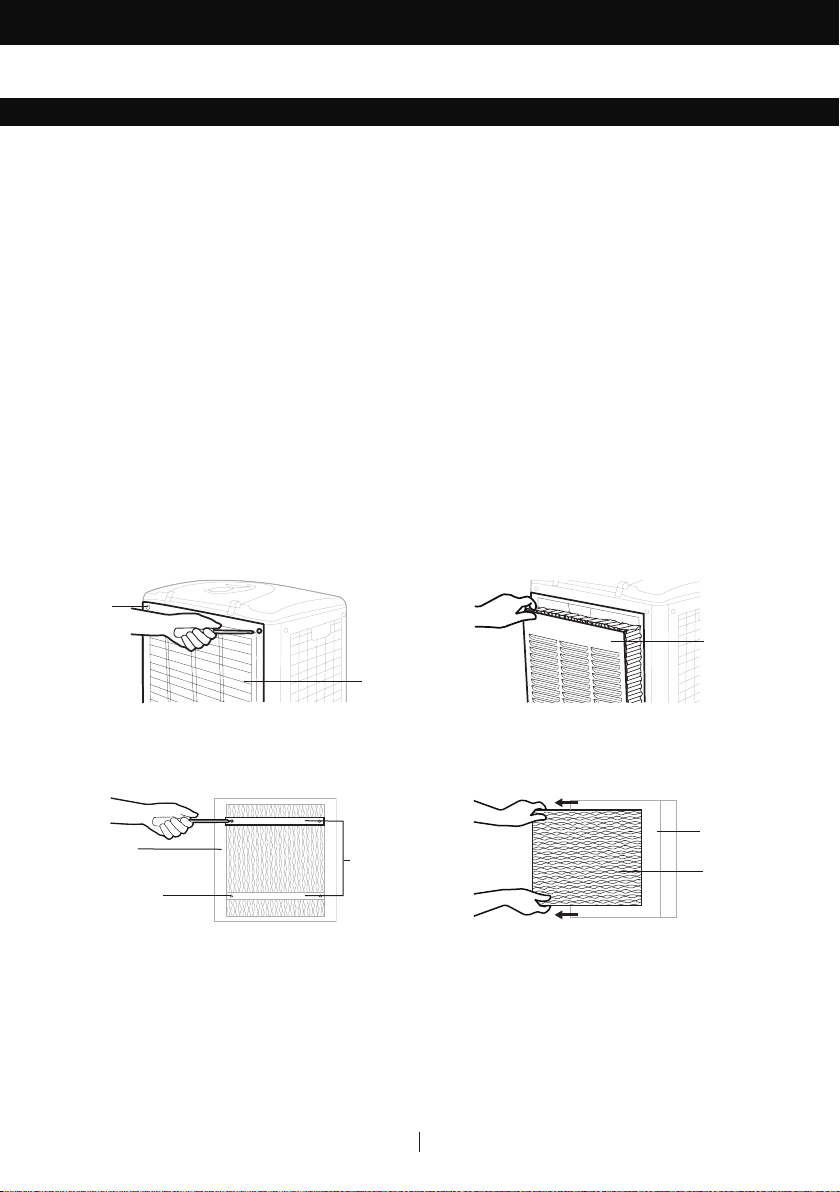

Removing the Honeycomb Cooling Media:

WARNING: DO NOT operate the Air Cooler when any or all of the Rear or Side Grills are removed

from the Air Cooler, or if there is a loose-ﬁtting Rear or Side Grill. Doing so can cause serious injury or

dangerous electrical shock.

CLEANING THE HONEYCOMB COOLING MEDIA (CONTINUED)

Step 2:

Rear Grill

Step 1:

Rear Grill

Screws

Step 3:

Rear

Honeycomb

Pad

Screws

Horizontal

Bars

Step 4:

Rear

Honeycomb

Pad

Rear Grill

DESCRIPTION DES PIÈCES

POUR MODÈLE: CL610PM/ CO610PM

POUR MODÈLE: CL810PM/ CO810PM

DESCRIPTION DES PIÈCES (SUITE)

1) Panneau de commande 8) Roulettes

2) Levier pour les grilles

d’aération verticales 9) Vis de la grille arrière

3) Grille d’aération 10) Grille arrière

4) Indicateur de niveau d’eau 11) Réservoir d’eau

5) Porte pour le remplissage 12) Bouchon de vidange

6) Poignée 13) Vanne de l’entrée d’eau

7) Grille latérale 14) Cordon électrique et prise

AVERTISSEMENT -- LIRE ET CONSERVER LE GUIDE DE SÉCURITÉ ET D’ENTRETIEN ET LE

MANUEL DE L’UTILISATEUR DU REFROIDISSEUR D’AIR AVANT D’UTILISER LE PRODUIT.

NE PAS SUIVRE CES CONSIGNES POURRAIT ENDOMMAGER ET/OU PERTURBER SON

FONCTIONNEMENT ET ANNULER LA GARANTIE. EN CAS D'INCOHERENCE OU DE CONFLIT

ENTRE LA VERSION ANGLAISE ET TOUT AUTRE VERSION LINGUISTIQUE DU CONTENU DE CE

MATERIEL, LA VERSION ANGLAISE PRÉVAUDRA.

IMPORTANTE: Les modèles de refroidisseur d’air par évaporation de Honeywell sont conformes à la

norme IPX4, et il n’est pas recommandé de les laisser à l’extérieur en cas de fortes pluies ou de neige.

UNIQUEMENT POUR LES MODÈLES D’EXTÉRIEUR CO610PM/CO810PM

AVERTISSEMENT: Utiliser uniquement avec des prises protégées par des disjoncteurs de fuite de

terre. Appuyez sur le bouton TEST, puis sur le bouton RESET une fois par mois pour assurer un bon

fonctionnement.

Pour éviter qu’ils provoquent une chute, les cordons d’alimentation doivent être disposés de

manière sécuritaire.

Les ﬁls et les connexions doivent être protégés de l’eau. La prise électrique et les connexions du

refroidisseur d’air doivent être sèches tout le temps. Lorsqu'il est utilisé à l'extérieur, branchez la

ﬁche électrique dans une prise extérieur conforme à la norme IP44.

Placer l’appareil sur une surface plane et solide.

•

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Honeywell Climatiseur

Honeywell

Honeywell CL48PM Manuel utilisateur

Honeywell

Honeywell CL201AE Manuel utilisateur

Honeywell

Honeywell CO70PE Manuel utilisateur

Honeywell

Honeywell TC09PCE Manuel utilisateur

Honeywell

Honeywell Y8150 Manuel utilisateur

Honeywell

Honeywell HL10 Series Manuel utilisateur

Honeywell

Honeywell HC09CESAWK Manuel utilisateur

Honeywell

Honeywell CS10XE Series Manuel utilisateur

Honeywell

Honeywell CL25AE Manuel utilisateur

Honeywell

Honeywell CS071AE Manuel utilisateur

Honeywell

Honeywell HJ Series Manuel utilisateur

Honeywell

Honeywell DCS2AE Manuel utilisateur

Honeywell

Honeywell CL202PEUI Manuel utilisateur

Honeywell

Honeywell CO301PC Manuel utilisateur

Honeywell

Honeywell HM12CESWK Manuel utilisateur

Honeywell

Honeywell CL802PE Manuel utilisateur

Honeywell

Honeywell HT09CESAWK Manuel utilisateur

Honeywell

Honeywell CL70PE Manuel utilisateur

Honeywell

Honeywell CL25AE Manuel utilisateur

Honeywell

Honeywell CS10XE Series Manuel utilisateur

Honeywell

Honeywell MN Series Manuel utilisateur

Honeywell

Honeywell ES800I Manuel utilisateur

Honeywell

Honeywell CO60PM Series Manuel utilisateur

Honeywell

Honeywell MN4HFS0 Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur
