Portable Evaporative Air Cooler

INSTRUCTION MANUAL

Read and save these instructions before use

Model: CL48PM

www.ushainternational.com

Fill with water and plug into standard

power outlet.

Place near open door or window.

Note : Please make sure that the power outlet is set to

correct settings as per product specifications.

Note : Evaporative Air Coolers work on evaporative

cooling mechanism which requires cross ventillation.

Turn ON and enjoy the cooling breeze.

Note: Start with LOW speed and gradually increase

to higher speed for optimum cooling performance.

Quick Start Guide

SECTION PAGE

1. THANK YOU .........................................................................................................

2. USER TIPS ...........................................................................................................

3. SAFETY RULES ...................................................................................................

4. PARTS DESCRIPTION .........................................................................................

5. USE & OPERATION .............................................................................................

Installing Hose Adapter And Float Valve ..............................................................

Filling Water .......................................................................................................

6. CLEANING & MAINTENANCE .............................................................................

7. TROUBLESHOOTING GUIDE .............................................................................

8. TECHNICAL SPECIFICATIONS ...........................................................................

9. ELECTRICAL WIRING DIAGRAM ........................................................................

Control Panel ........................ ........................................................................... 9

Control Knobs ................................................................................................... 10

INDEX

Read all instructions carefully before setting up and operating the unit, and please keep

this instruction manual for future reference. This manual is designed to provide you with

important information needed to setup, operate, maintain, and troubleshoot your cooler.

Failure to follow these instructions may damage and/or impair its operation and void the

warranty.

THANKYOU

COOLER LOCATION (IMPORTANT TO READ)

Place the cooler in front of an open door or window. Ensure thatthere is adequate cross -

ventillation in the room by leaving adoor or window open opposite from the cooler.

Following these rules will ensure your cooler will work aseectively as possible.

Dear Customer,

Congratulations!

You are now the proud owner of an Usha Honeywell Evaporative Air Cooler.

Innovatively designed, using only the highest quality material and components, your

Usha Honeywell Air Cooler is designed for years of trouble free performance.

Please read this Instruction Manual carefully before using the product and keep it

carefully after reading for future reference.

For optimum cooling performance from your unit, please ll the tank with water & ice,

if available, to increase the cooling power.

Best Wishes

USER TIPS

NATURAL ENERGY EFFICIENT COOLING

Pump

Water

Honeycomb Cooling Media

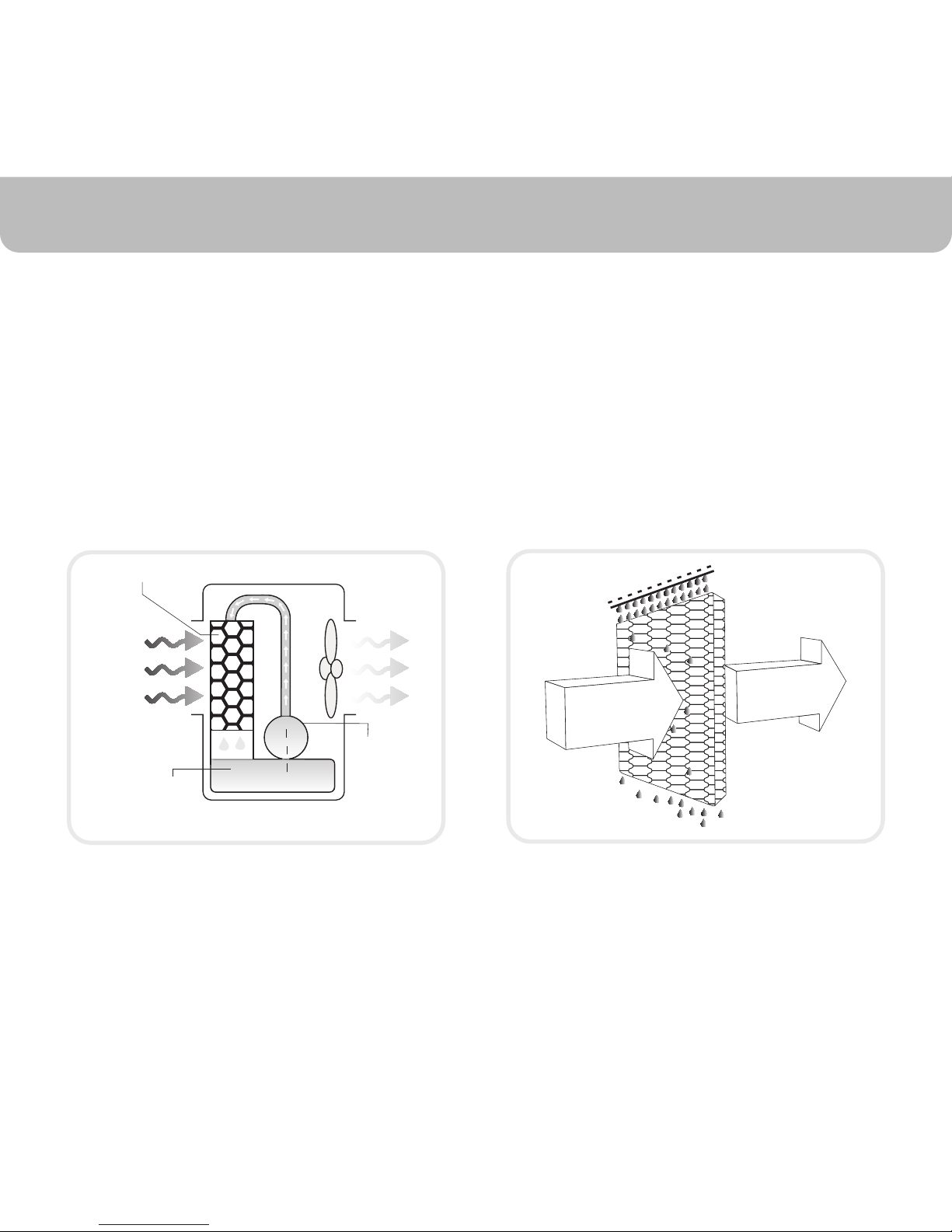

Evaporative Air Cooling Mechanism

Warm and

dry air

Cold and

humid air

Evaporative air cooling is the natural way of cooling, similar to a breeze blowing across a lake. This

breeze drops the temperature and has a relaxing cooling eect.

The evaporative air cooler cools the air by means of the evaporation of water. When water

evaporates into the air, the result is a mixture of air and water molecules. This chemical change

requires heat which is taken from the water molecules, resulting in cooler air propelled from the

unit.

NOTE

USER TIPS

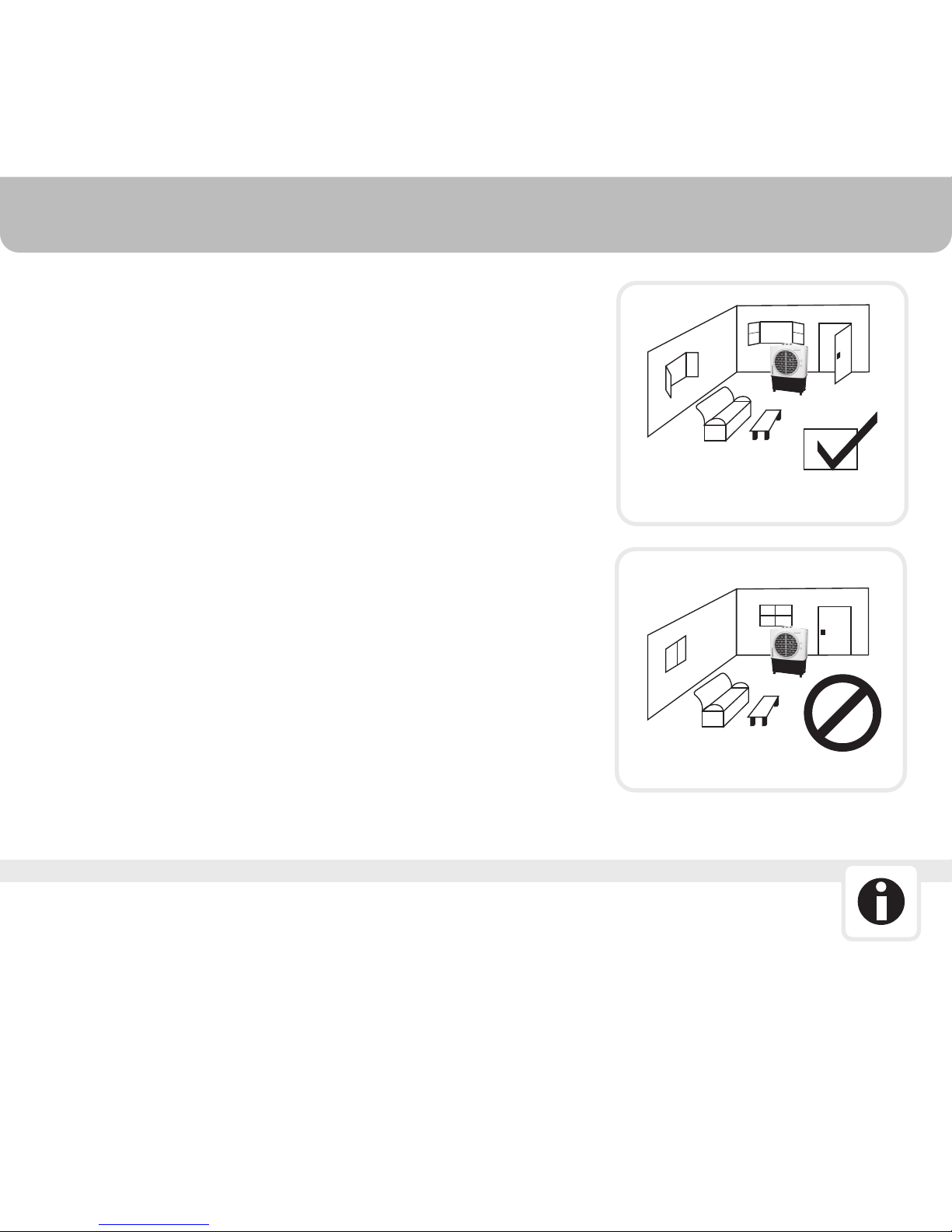

The recommended maximum relative humidity level is 60% or

less, which allows a noticeable temperature decrease. The

temperature decrease will be greater in drier climates because

higher evaporation occurs when humidity is low.

The evaporative air cooler should not be used in enclosed

spaces. It must be kept level and there must be water in the

water tank. The room should have doors and windows opened to

allow free air ow. The evaporative air cooler works best when

placed near an open window, so that outside air is drawn into the

evaporative air cooler, the air circulates in the room, then exits via

the door. The maximum cooling eect is felt when a person is in

the ow of air coming out of the evaporative air cooler.

The evaporative air cooler can also be used to humidify dry air

during cool weather. To be used for humidication the windows

and doors should be closed to allow the humidied air to accumu-

late. The evaporative air cooler is not an air conditioner as it does

not use a compressor or refrigerant gas.

When the product is used for the rst time the Honeycomb

cooling media will have an odour which will dissipate within a week

of initial use.

Room with open windows & door

Room with closed windows & door

READ AND SAVE THESE INSTRUCTIONS:

SAFETY RULES

230 Volt AC 50Hz

SHOCK HAZARD

WATER LEVEL INDICATOR

When using electrical appliances, basic safety precautions should always be followed:

Always unplug the product before relling the water tank.

Always unplug the appliance from the power source before

cleaning, servicing or relocating the unit.

Remove the power cord from the electrical receptacle by

grasping and pulling on the power cord plug-end only, never

pull the cord.

DO NOT use the product in areas where gasoline, paint or

other ammable goods and objects are stored.

When using the ''COOL'' setting, please check the water tank

to ensure it is full. Operation of this unit on the ''COOL'' setting

with an empty tank may result in damage to the water pump.

•

DO NOT run power cord under carpeting, or cover it with

rugs or runners. Keep the cord away from areas where it

may be tripped over.

•

Your cooler runs on 230V AC, 50 Hz current. Check the house-

hold voltage to ensure it matches the appliance's rate specica-

tion.

Before operating the product remove it from its packaging and

check it is in good condition.

DO NOT operate any product with a damaged cord or plug.

We recommend not to use an extension cord with this

appliance.

SAFETY RULES

FLOOR LEVEL

may cause motor damage.

This appliance is not intended for use by persons (including

children or elderly) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless they

have been given supervision or instruction concerning use of

the appliance by a person responsible for their safety.

•

When the unit is not in use always store in a dry area.

•

This product is not intended for use in wet or damp locations.

•

DO NOT let children play with this appliance, packaging or

plastic bags.

•

DO NOT leave the appliance operating unattended for any

extended period of time.

•

DO NOT operate with the Honeycomb media removed as this

will overload and damage the motor.

•

DO NOT insert or allow objects to enter any ventilation or

exhaust opening as this may damage the product and could

cause an electrical shock or fire.

•

DO NOT attempt to repair or adjust any electrical or mechanical

functions of the cooler, as this may void the warranty.

•

DO NOT cover the air inlet or outlet on the appliance as this

•

If the unit is damaged or it malfunctions, do not continue to

operate it. Refer to the troubleshooting section and /or please

seek professional advice.

•

Place the unit on a level floor.

•

Never locate the product where it may fall into a bathtub or

other water container. DO NOT use in bathrooms or outdoors.

•

Always grip the side handles to move the unit.

•

PARTS DESCRIPTION

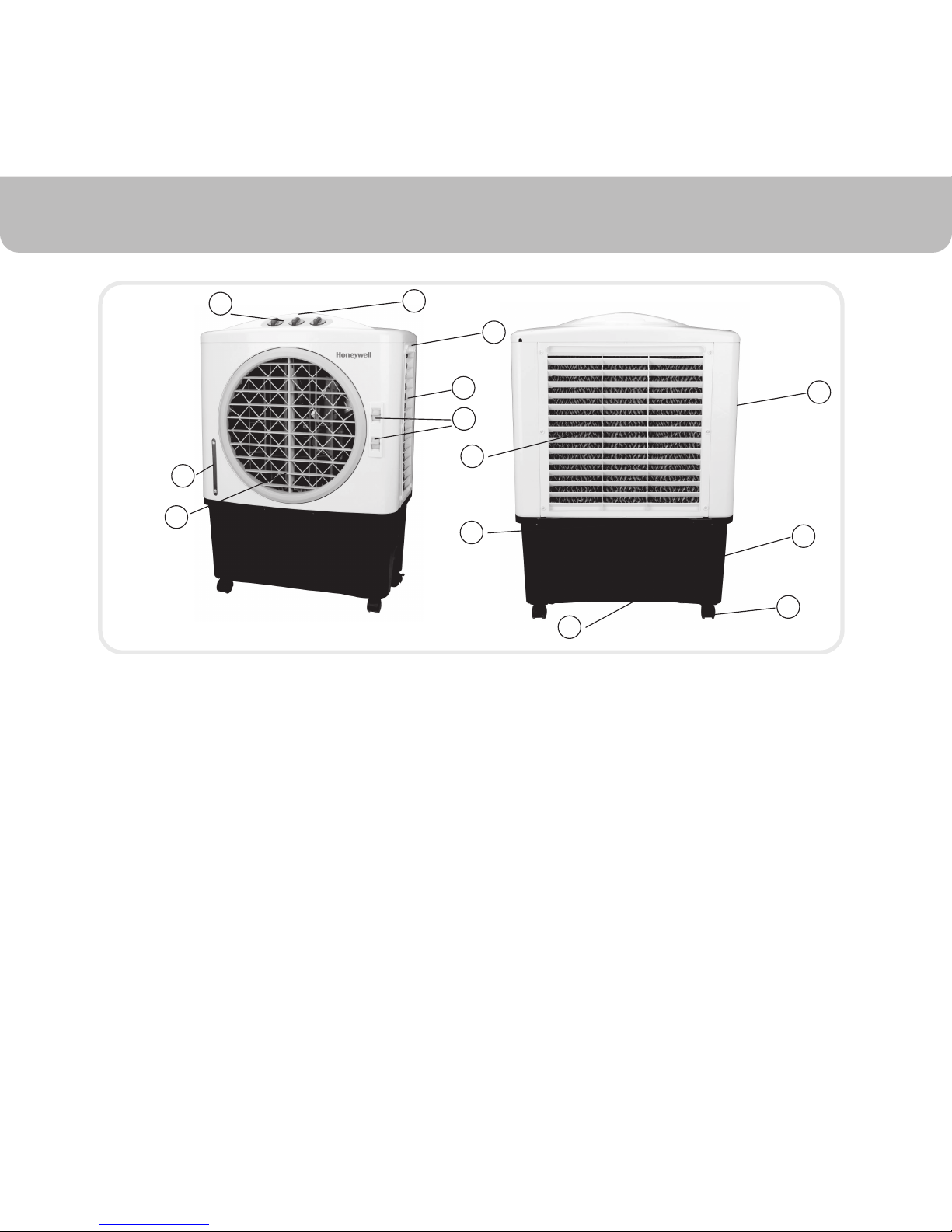

1 Water / Ice Inlet

2 Handle

3 Right Panel

4 Lever for Horizontal Louvers

5 Water Tank

6 Castors

7 Horizontal Louvers

8 Water Level Indicator

9 Control Panel

10 Left Panel

11 Drain Plug

12 Water Fill Door (Manual Water Inlet)

13 Back Panel

USE & OPERATION

Open (Slide-out) the water fill door located on the back-

side of the unit and fill water inside the tank.

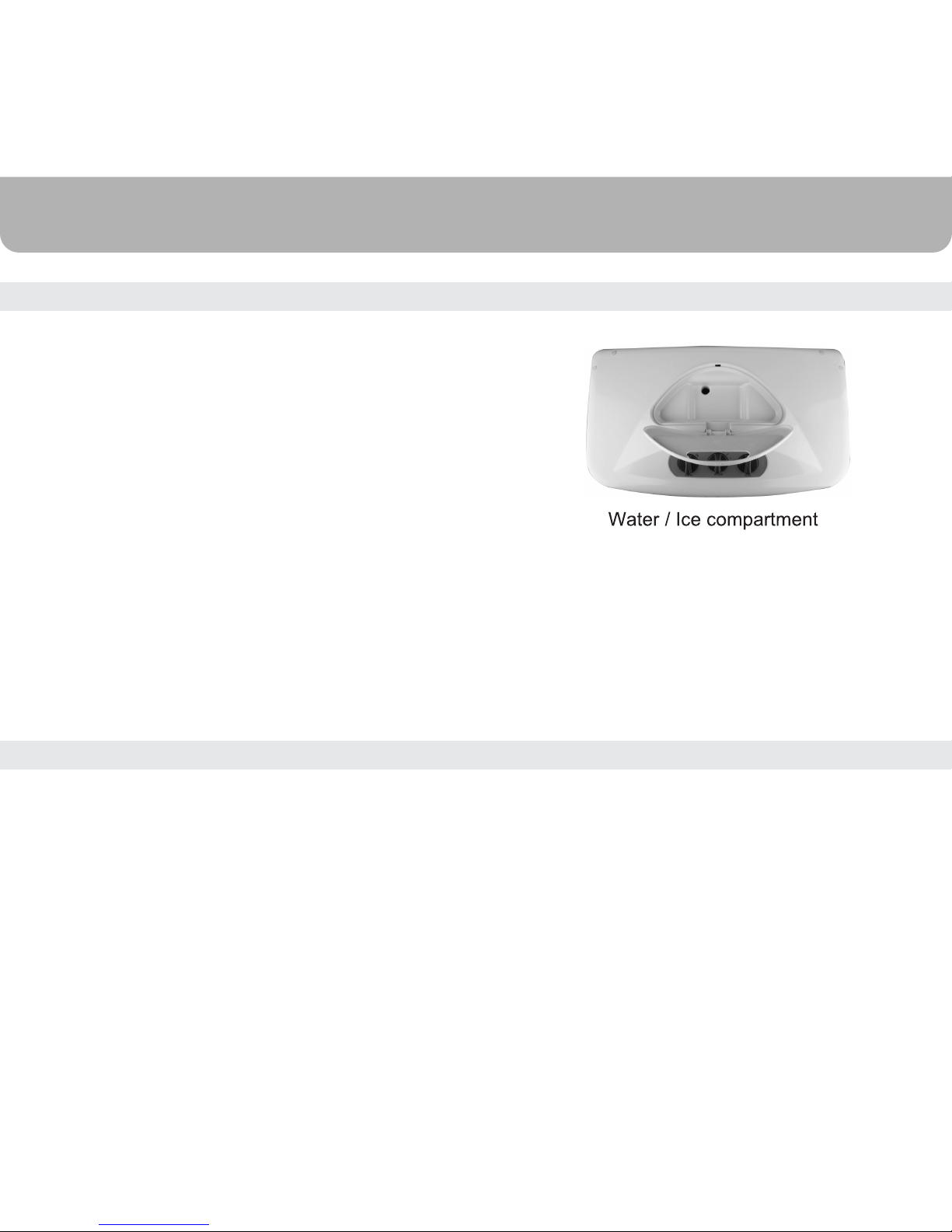

Optionally, you may also fill water or load ice from the

water/ice inlet located on the top besides the control

panel. Loading the ice in the ice inlet compartment, will

help to improve the cooling efficieny.

Check Max. Level of water on the Water Level Indicator.

Always check water level in the tank before running the

"COOL" function.

Always make sure water in the tank is above the Min.

Water level mark.

Running the unit with inadequate water may cause pump

failure.

FILL WATER ( Manually )

Unplug from power when refilling.

CAUTION
