Honeywell CO48PM Manuel utilisateur
Portable Evaporative Air Cooler
for Outdoor, Indoor & Commercial Use
OWNER’S MANUAL
Read and save these instructions before use
Model: CO48PM
Power rating: 140 Watts
Voltage rating: 120 Volt AC, 60Hz
For product inquiries or support, visit www.honeywellaircoolers.com
Made in P.R.C.Customer Support : 1-800-474-2147
OFF
COOL
ON
OFF
ON
0
3
2
1
SPEED SWING
MAX
MIN
SECTION PAGE
1. THANK YOU .........................................................................................................
2. USER TIPS ...........................................................................................................
3. SAFETY ................................................................................................................
4. PARTS DESCRIPTION .........................................................................................
5. USE & OPERATION .............................................................................................
Control Panel ....................................................................................................
Control Knobs ....................................................................................................
6. CLEANING & MAINTENANCE .............................................................................
7. TROUBLESHOOTING GUIDE .............................................................................
8. TECHNICAL SPECIFICATIONS ...........................................................................
9. ELECTRICAL WIRING DIAGRAM ........................................................................
2
3
5
8
9
9
10
Fill Water .......................................................................................................... 11
13
15
16
17
10. SERVICE AND WARRANTY ................................................................................ 18
Read all instructions carefully before setting up and operating the cooler, and
please keep this instruction manual for future reference. This manual is designed to
provide you with important information needed to setup, operate, maintain, and
troubleshoot your cooler. Failure to follow these instructions may damage and/or
impair its operation and void the warranty.
1
INDEX
2
THANK YOU
Congratulations on your purchase of this versatile Honeywell Evaporative Air Cooler. For
optimum cooling from your cooler, fill the water tank to maximum level and load ice inside
the ice compartment before you turn on your air cooler.
Cooler Location (Important - Please Read!)
Place the cooler in front of an open door or window. Ensure that there is adequate cross -
ventilation in the room by leaving a door or window open opposite the cooler.
Following these guideline will ensure your cooler will work as effectively as possible.
Not an Air Conditioner (Important - Please Read!)
The evaporative air cooler is not an air conditioner as it does not use a compressor or refrig-
erant gas. It should not be expected to cool as efficiently as a refrigerated air conditioner.
Pump
Water
Honeycomb Cooling Media
Evaporative Air Cooling Mechanism
Warm and
dry air
Cool and
humid air
Energy Efficient, No Compressor
3
USER TIPS
Honeywell Evaporative Air Coolers are built to maximize energy efficiency and keep costs low.
Warm air is drawn into the cooler and enters the Honeycomb Cooling Media. Water pumped
from the tank pours over the honeycomb media. As the warm air passes through the media,
the water absorbs the heat, naturally cooling and humidifying the air. A fan propels the cooled
air out into the room. This no-compressor system cools naturally, efficiently and inexpensively.
4
USER TIPS
NOTE (Important - Please Read!)
When the product is used for the first time the Honeycomb Cooling Media will have an odor
which will dissipate in a few hours or so of initial use.
The recommended maximum relative humidity level is 60% or
less, which allows a noticeable temperature decrease. The
temperature decrease will be greater in drier climates
because higher evaporation occurs when the humidity is low.
The evaporative air cooler should not be used in enclosed
spaces. It must be kept level and there must be water in the
water tank. The room should have doors and windows
opened to allow free air flow. The evaporative air cooler works
best when placed near an open window, so that outside air is
drawn into the evaporative air cooler, the air circulates in the
room, then exits via the door. The maximum cooling effect is
felt when a person is in the flow of air coming out of the
evaporative air cooler.
The evaporative air cooler can also be used to humidify dry
air during cool weather. To be used for humidification the
windows and doors should be closed to allow the humidified
air to accumulate.
Indoor Use
Room with open windows & door
(RECOMMENDED)
Room with closed windows & door
(NOT-RECOMMENDED)
OFF
COOL
ON
OFF
ON
0
3
2
1
SPEED SWING
MAX
MIN
120V - 60 Hz
Shock Hazard
Water Level Indicator
Your cooler runs on 120 Volt AC, 60 Hz current. Check the
household voltage to ensure it matches the appliance's rate
specification.
Before operating the product remove it from its packaging
and check that it is in good condition.
DO NOT operate any product with a damaged cord or plug.
DO NOT run power cord under carpeting, or cover it with
rugs or runners. Keep the cord away from areas where it may
be tripped over.
Always unplug the product before refilling the water tank.
Always unplug the appliance from the power source before
cleaning, servicing or relocating the unit.
Remove the power cord from the electrical receptacle by
grasping and pulling on the power cord plug-end only, never
pull the cord.
DO NOT use the product in areas where gasoline, paint or
other flammable goods and objects are stored.
When using the ''COOL'' setting, check the water tank to
ensure that it is full. Operation of this cooler on the ''COOL''
setting with an empty tank may result in damage to the water
pump.
Read And Save These Instructions:
When using electrical appliances, basic safety precautions should always be followed:
•
•
•
•
•
•
•
•
•
5
SAFETY
Water / Ice Compartment
Floor Level
•
•
•
•
•
•
•
•
•
•
•
•
•
DO NOT attempt to repair or adjust any electrical or mechan-
ical functions of the cooler, as this may void the warranty.
DO NOT cover the air inlet or outlet on the appliance as this
may cause motor damage.
DO NOT insert or allow objects to enter any ventilation or
exhaust opening as this may damage the product and could
cause an electrical shock or fire.
DO NOT operate with the Honeycomb media removed as this
will overload and damage the motor.
DO NOT leave the operating appliance unattended for any
extended period of time.
DO NOT let children play with this appliance, packaging or
plastic bags.
If the unit is damaged or if it malfunctions, do not continue to
use it. Refer to the Troubleshooting Guide (page 15) and
contact the service center.
Place the unit on a level floor.
This product is not intended for use in wet or damp locations.
DO NOT use in bathrooms. Never locate the product where
it may fall into a bathtub or other water container.
Store in a dry area when not in use.
This appliance is not intended for use by persons (including
children or elderly) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Always grip the side handles to move the cooler.
6
SAFETY
SAFETY
7
Don't use indoor extension cords outside. Look for extension cords specifically marked for
outdoor use. Look for extension cords that have a GFCI (Ground Fault Circuit Interrupter)
built in.
Make sure the amperage rating for the extension cord is higher than the amperage rating
for the appliance. Check labels and owner's manuals on the appliance and the extension
cord for amperage ratings.
Power cords have to be contained. If they must run along the ground, make sure every inch
of them is secured so they will not be tripped over.
The wiring and connections must be waterproof. Be sure the connections (to the air cooler)
never get wet. Your unit is waterproof, but everything attached to it must be waterproof, too.
Set up your unit so it cannot be tripped over or wobble loose. It must rest on a solid
support.
•
•
•
•
•
OFF
COOL
ON
OFF
ON
0
3
2
1
SPEED SWING
MAX
MIN
8

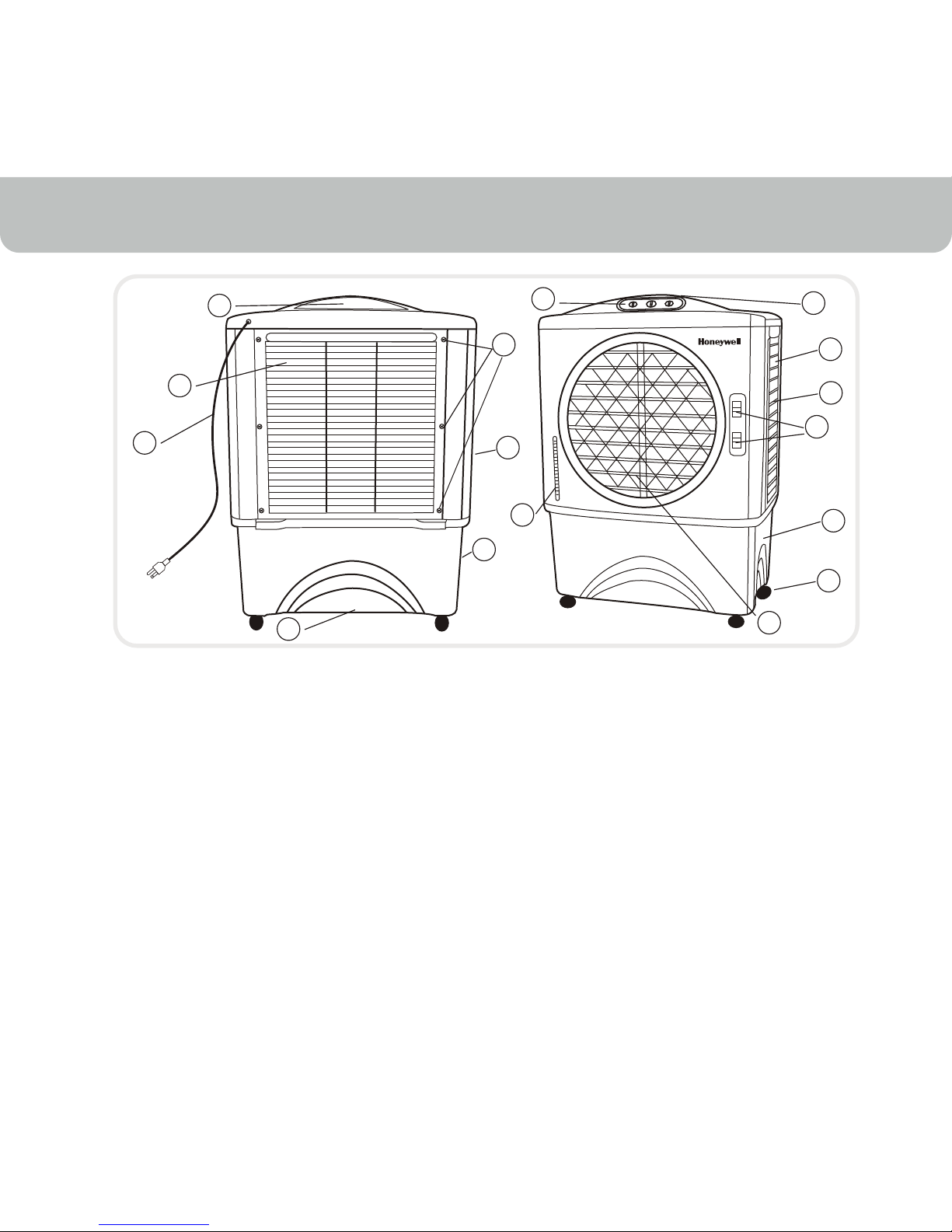

PARTS DESCRIPTION
10
1 Water Inlet and Ice
Loading Compartment
2 Handle
3 Left Honeycomb Panel
4 Lever for Horizontal Louvers
5 Water Tank
6 Casters
7 Horizontal Louvers
8 Water Level Indicator
9 Control Panel
10 Right Honeycomb Panel
11 Continuous Water Supply Connection
12 Drain Plug
13 Backside Honeycomb Panel
14 Power Cord & Plug
15 Rear Grill Removal Screws
16 Water Fill Door
1
2
9
8
3
4
5
6
7
11
16
15
12
13
14
