Honeywell CL25AE Manuel utilisateur

Portable Evaporative Air Cooler

OWNER’S MANUAL

Read and save these instructions before use

Model: CL25AE

Power rating: 235 Watts

Voltage rating: 220-240 Volt AC, 50Hz

For product enquiry or support contact:

E-mail: [email protected]

Customer Service Hotline: 1300 8000 32

www.honeywellaircoolers.com

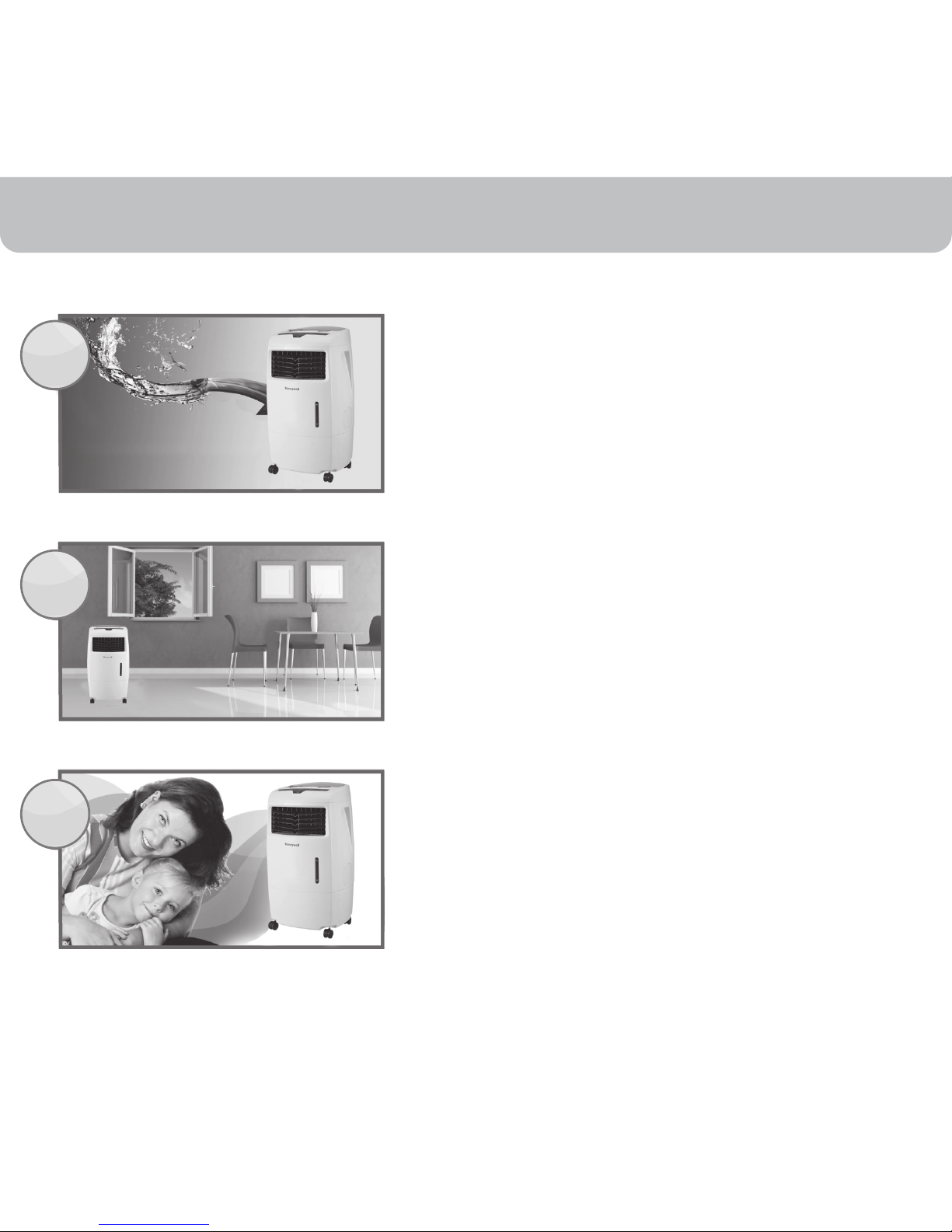

QUICK START GUIDE

Fill with water and plug into a standard

power outlet.

Place near an open door or window.

Note : Evaporative air cooler requires cross ventilation.

Turn ON and enjoy the cooling breeze.

Note: Start with LOW speed and gradually increase

to higher speed for optimum cooling performance.

Note: Please make sure the household power voltage

matches the product specifications.

SECTION PAGE

THANK YOU ..................................................................................................................

USER TIPS ....................................................................................................................

SAFETY .........................................................................................................................

PARTS DESCRIPTION ..................................................................................................

USE & OPERATION ......................................................................................................

Control Panel .........................................................................................................

Function Buttons ....................................................................................................

CLEANING & MAINTENANCE .....................................................................................

TROUBLESHOOTING GUIDE .....................................................................................

TECHNICAL SPECIFICATIONS ...................................................................................

ELECTRICAL WIRING DIAGRAM ................................................................................

Remote Control ......................................................................................................

Room cooling and humidifying ...............................................................................11

Filling Water ...........................................................................................................13

Read all instructions carefully before setting up and operating the cooler, and keep this

instruction manual for future reference. This manual is designed to provide you with impor-

tant information needed to setup, operate, maintain, and troubleshoot your cooler. Failure to

follow these instructions may damage and/or impair its operation and void the warranty.

INDEX

THANK YOU!

Congratulations on your purchase of this versatile Honeywell Evaporative Air Cooler. For

optimum cooling from your cooler, fill the water tank to maximum level and load ice inside

the ice compartment before you turn on your air cooler.

Cooler Location - Indoors (Important - Please Read!)

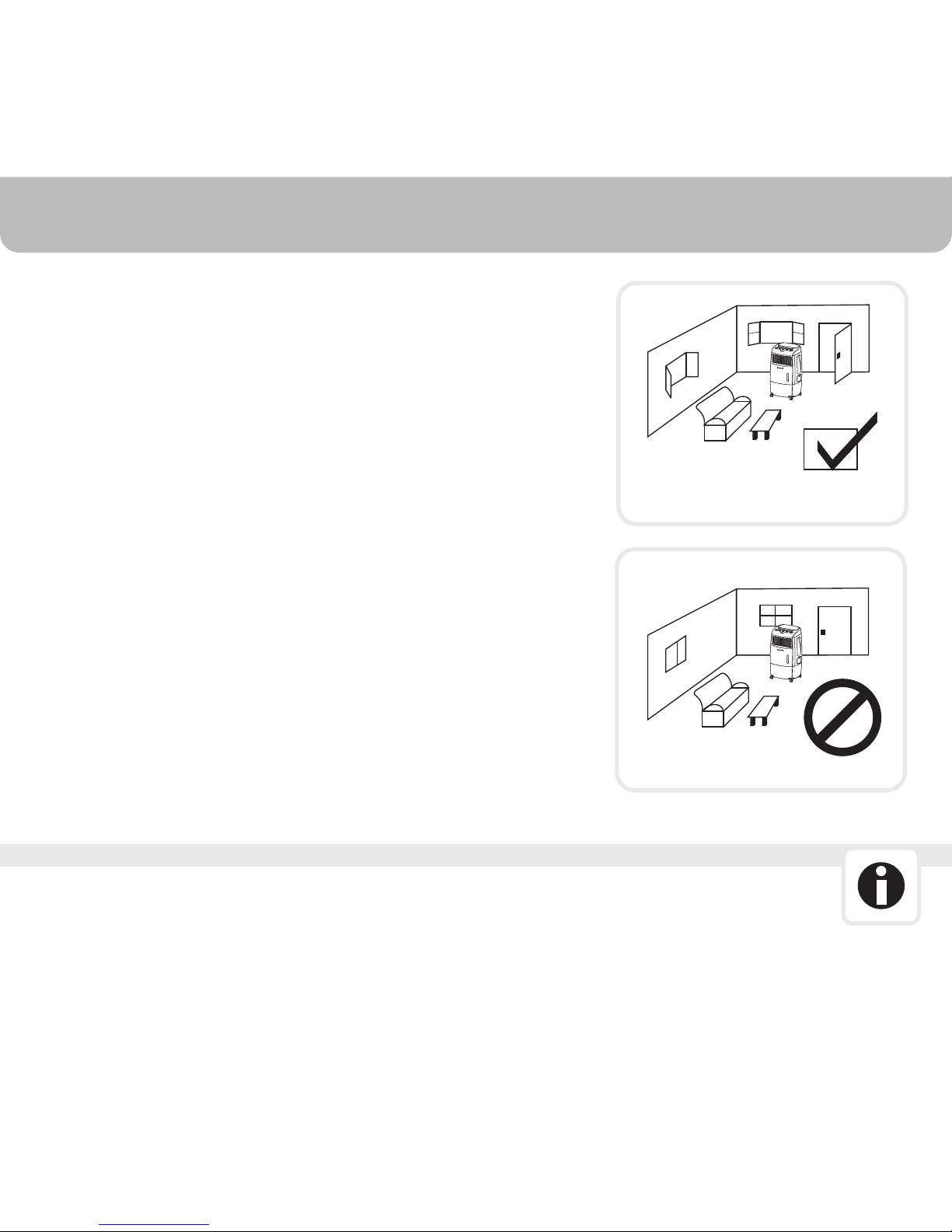

Place the cooler in front of an open door or window. Ensure that there is adequate cross -

ventilation in the room by leaving a door or window open opposite the cooler.

Following these guidelines will ensure your cooler will work as effectively as possible.

Not an Air Conditioner (Important - Please Read!)

The evaporative air cooler is not an air conditioner as it does not use a compressor or refrig-

erant gas. It should not be expected to cool as efficiently as a refrigerated air conditioner.

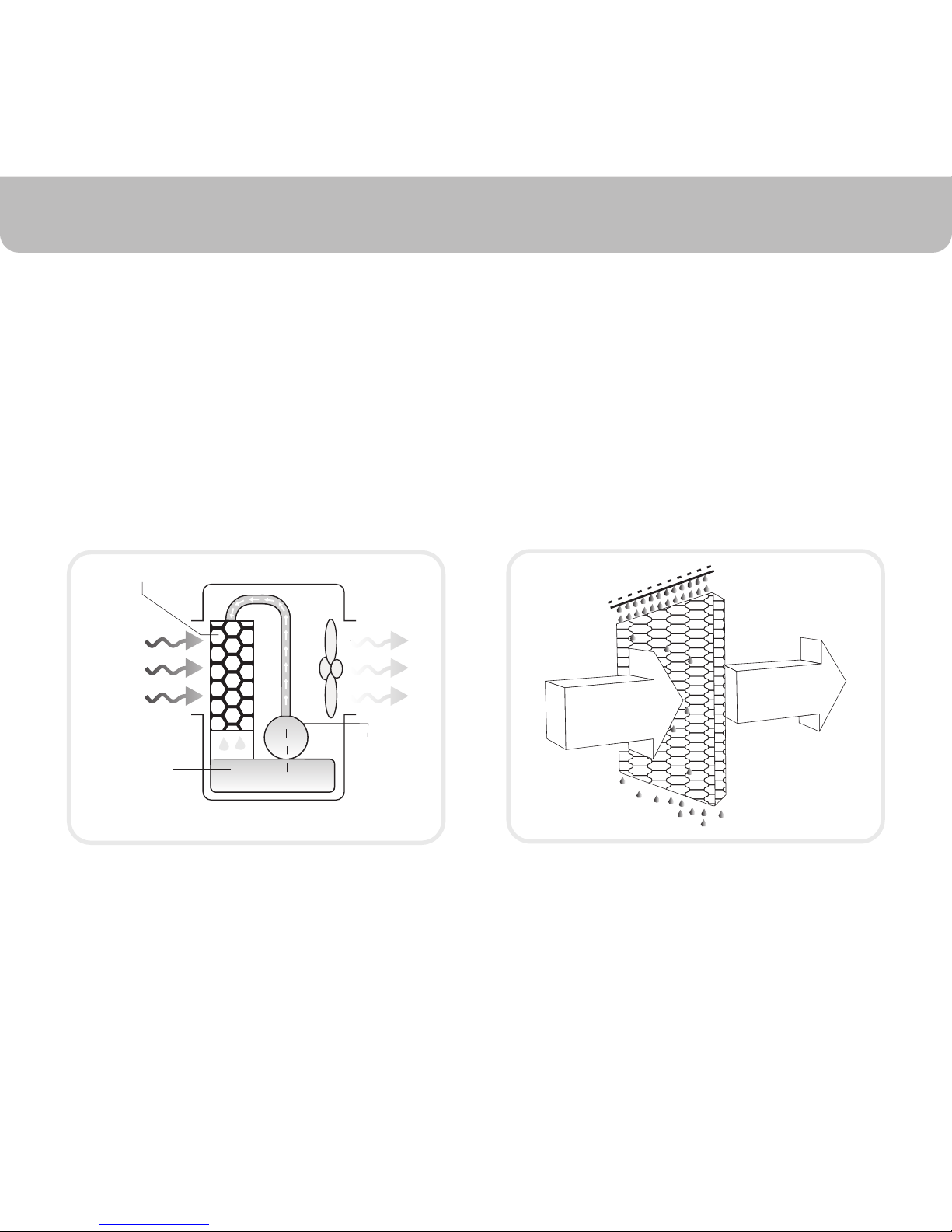

Pump

Water

Honeycomb Cooling Media

Evaporative Air Cooling Mechanism

Warm and

dry air

Cold and

humid air

USER TIPS

Energy efficient, No compressor

Honeywell Evaporative Air Coolers are built to maximize energy efficiency and keep costs low. Warm

air is drawn into the cooler through a dust and odor-reducing carbon filter and enters the Honeycomb

Cooling Media. Water pumped from the tank pours over the honeycomb media. As the warm air

passes through the media, the water absorbs the heat, naturally cooling and humidifying the air. A

fan propels the cooled air out into the room. This no-compressor system cools naturally, efficiently

and inexpensively.

NOTE

USER TIPS

When the product is used for the first time the Honeycomb Cooling Media will have an odor

which will dissipate in a week or so of initial use.

The recommended maximum relative humidity level is 60% or

less, which allows a noticeable temperature decrease. The

temperature decrease will be greater in drier climates because

higher evaporation occurs when the humidity is low.

The evaporative air cooler should not be used in enclosed

spaces. It must be kept level and there must be water in the

water tank. The room should have doors and windows opened

to allow free air flow. The evaporative air cooler works best

when placed near an open window, so that outside air is drawn

into the evaporative air cooler, circulates in the room, then

exits via the door. The maximum cooling effect is felt when

a person is in the flow of air coming out of the

evaporative air cooler.

The evaporative air cooler can also be used to humidify dry air

during cool weather. To be used for humidification the windows

and doors should be closed to allow the humidified air to

accumulate. The evaporative air cooler is not an air conditioner

as it does not use a compressor or refrigerant gas. It should not

be expected to cool as efficiently as a refrigerated air

conditioner.

READ AND SAVE THESE INSTRUCTIONS:

SAFETY

220~240 Volt AC 50Hz

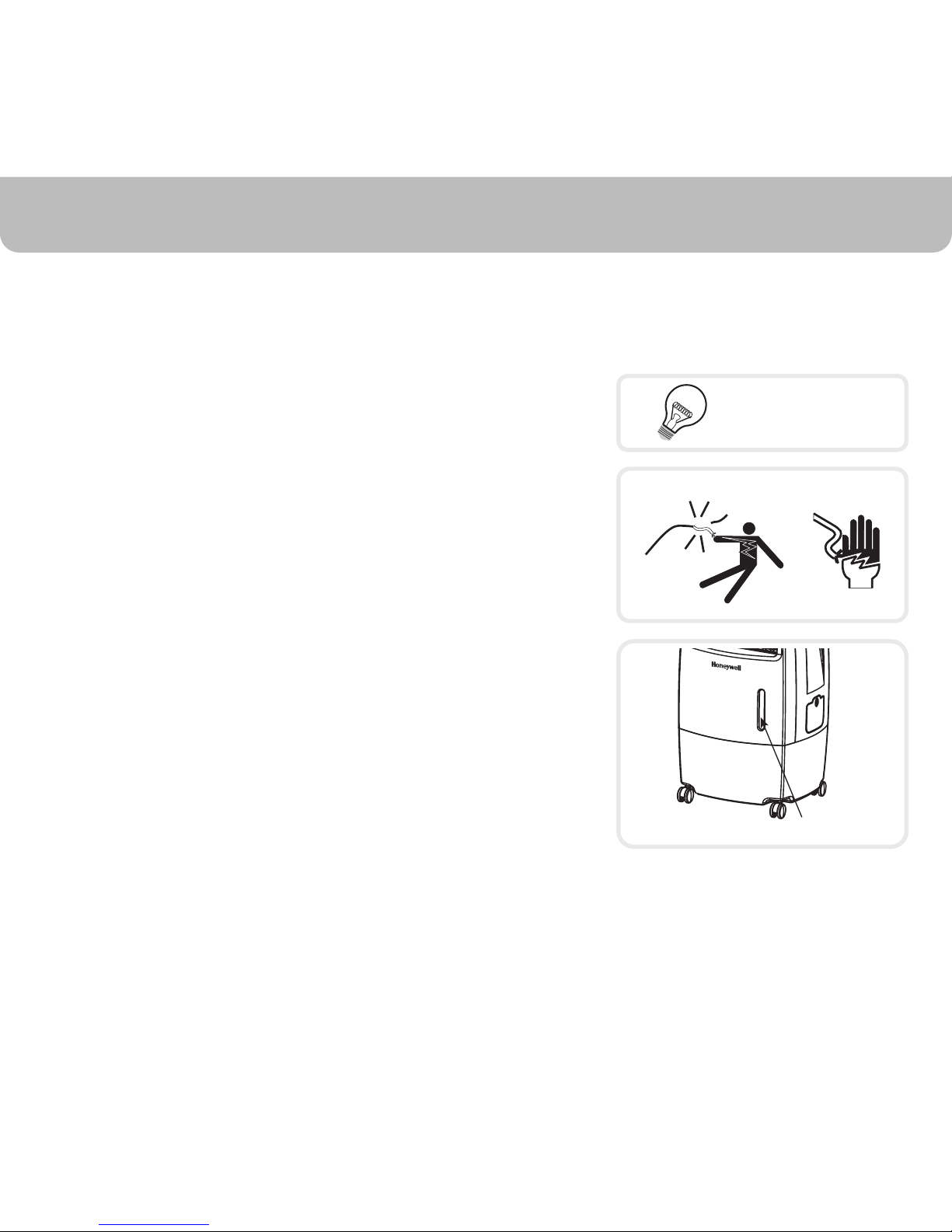

SHOCK HAZARD

WATER LEVEL INDICATOR

When using electrical appliances, basic safety precautions should always be followed:

•

Before operating the product remove it from its packaging and

check that it is in good condition.

DO NOT operate any product with a damaged cord or plug.

We recommend not using an extension cord with this

appliance.

DO NOT run power cord under carpeting, or cover it with rugs

or runners. Keep the cord away from areas where it may be

tripped over.

Always unplug the product before refilling the water tank.

Always unplug the appliance from the power source before

cleaning, servicing or relocating the unit.

Remove the power cord from the electrical receptacle by

grasping and pulling on the power cord plug-end only, never

pull the cord.

DO NOT use the product in areas where gasoline, paint or

other flammable goods and objects are stored.

When using the ''COOL'' setting, check the water tank to

ensure that it is full. Operation of this cooler on the ''COOL''

setting with an empty tank may result in damage to the water

pump.

Warning:

a. Children should be supervised to ensure that they do not play with the appliance.

b. If the supply cord is damaged, it must be replaced by the manufacture or its service agent or a

similarity qualified person in order to avoid a hazard.

Your cooler runs on 220~240 Volts, 50 Hz current. Check the

household voltage to ensure it matches the appliance's rate speci-

fication.

SAFETY

FLOOR LEVEL

•

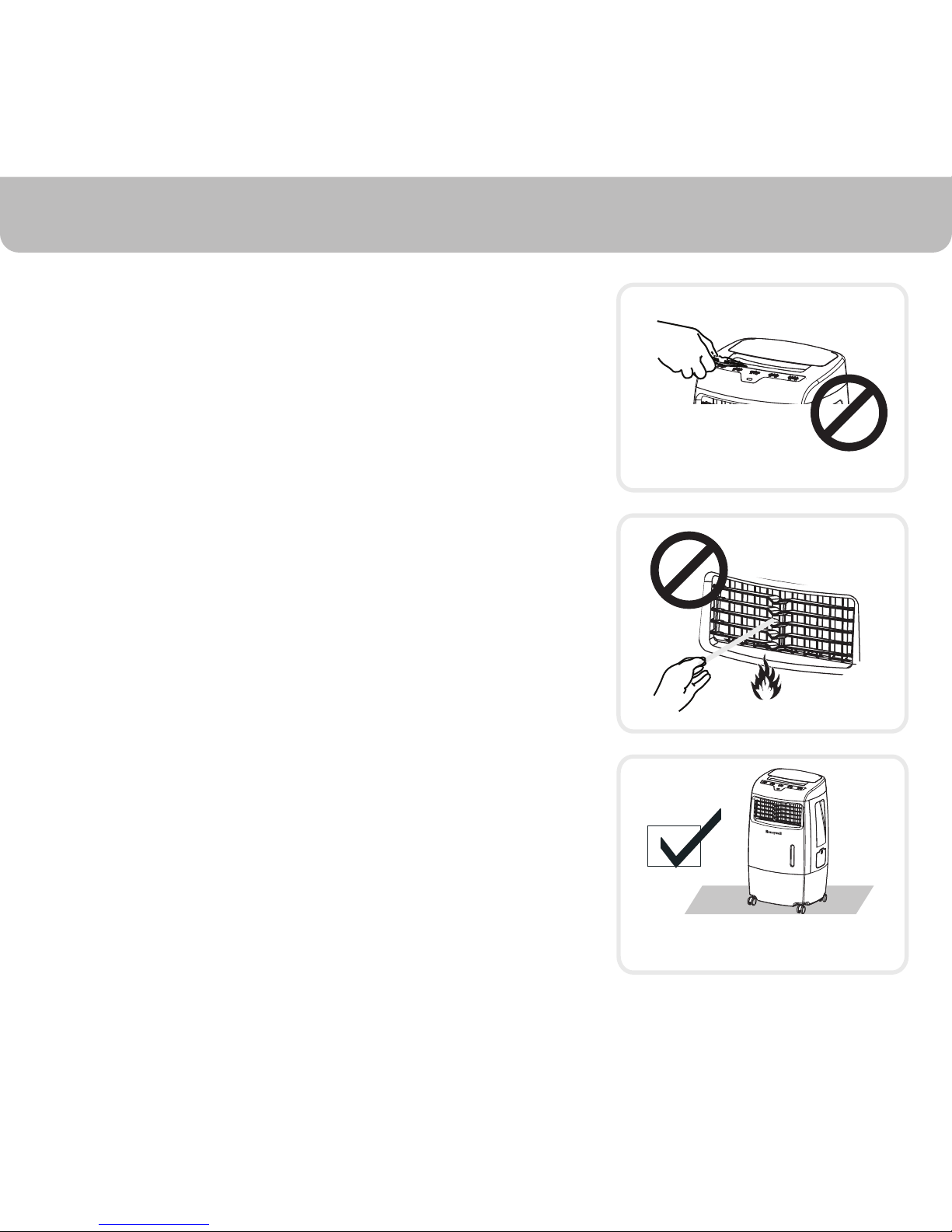

DO NOT attempt to repair or adjust any electrical or

mechanical functions of the cooler, as this may void the

warranty.

DO NOT cover the air inlet or outlet on the appliance as this

may cause motor damage.

DO NOT insert or allow objects to enter any ventilation or

exhaust opening as this may damage the product and could

cause electrical shock or fire.

DO NOT operate with the Honeycomb Cooling Media removed

as this will overload and damage the motor.

DO NOT leave the operating appliance unattended for any

extended period of time.

DO NOT let children play with this appliance, packaging or

plastic bags.

Place the unit on a level floor.

This product is not intended for use in wet or damp locations.

Never locate the product where it may fall into a bathtub or

other water container. DO NOT use in bathrooms or outdoors.

When the unit is not in use always store in a dry area.

This appliance is not intended for use by persons (including

children or elderly) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless they

have been given supervision or instructions concerning the

use of the appliance by a person responsible for their safety.

Always grip the side handles to move the cooler.

If the unit is damaged or it malfunctions, do not continue to

operate it. Refer to the troubleshooting section and seek

professional advice.

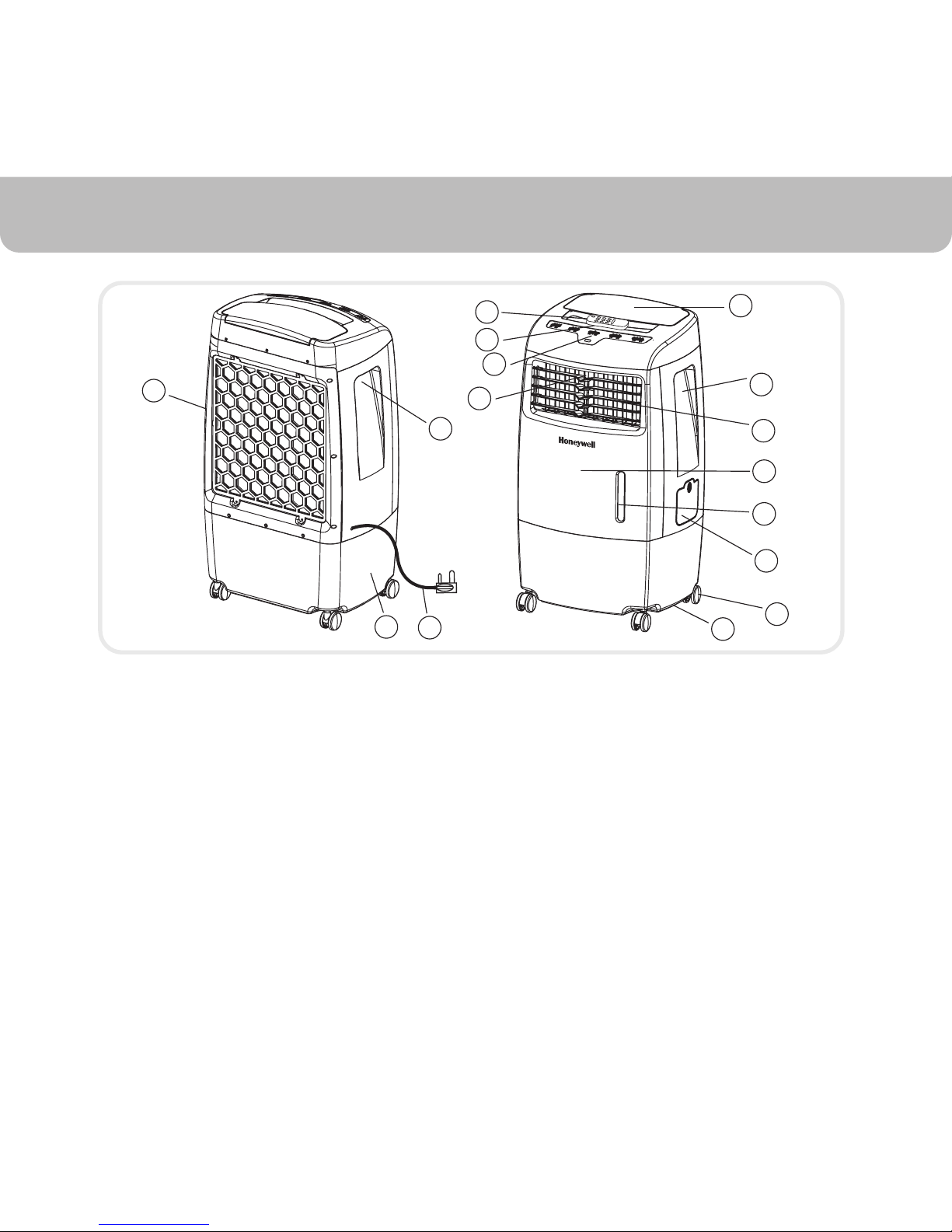

1 Control Panel

2 Side Handle

3 Horizontal Louvers

(Manual Adjustment)

4 Left Side Panel

5 Power Cord & Plug

6 Castors

7 Ice Compartment Lid

8 Vertical Louvers

(Automatic Movement with SWING)

9 Front Panel

10 Water Level Indicator

11 Remote Control

12 Remote Control Holder

13 Water Tank

14 Water Fill Door

15 Drainage Tube / Cap

16 Right Side Panel

PARTS DESCRIPTION

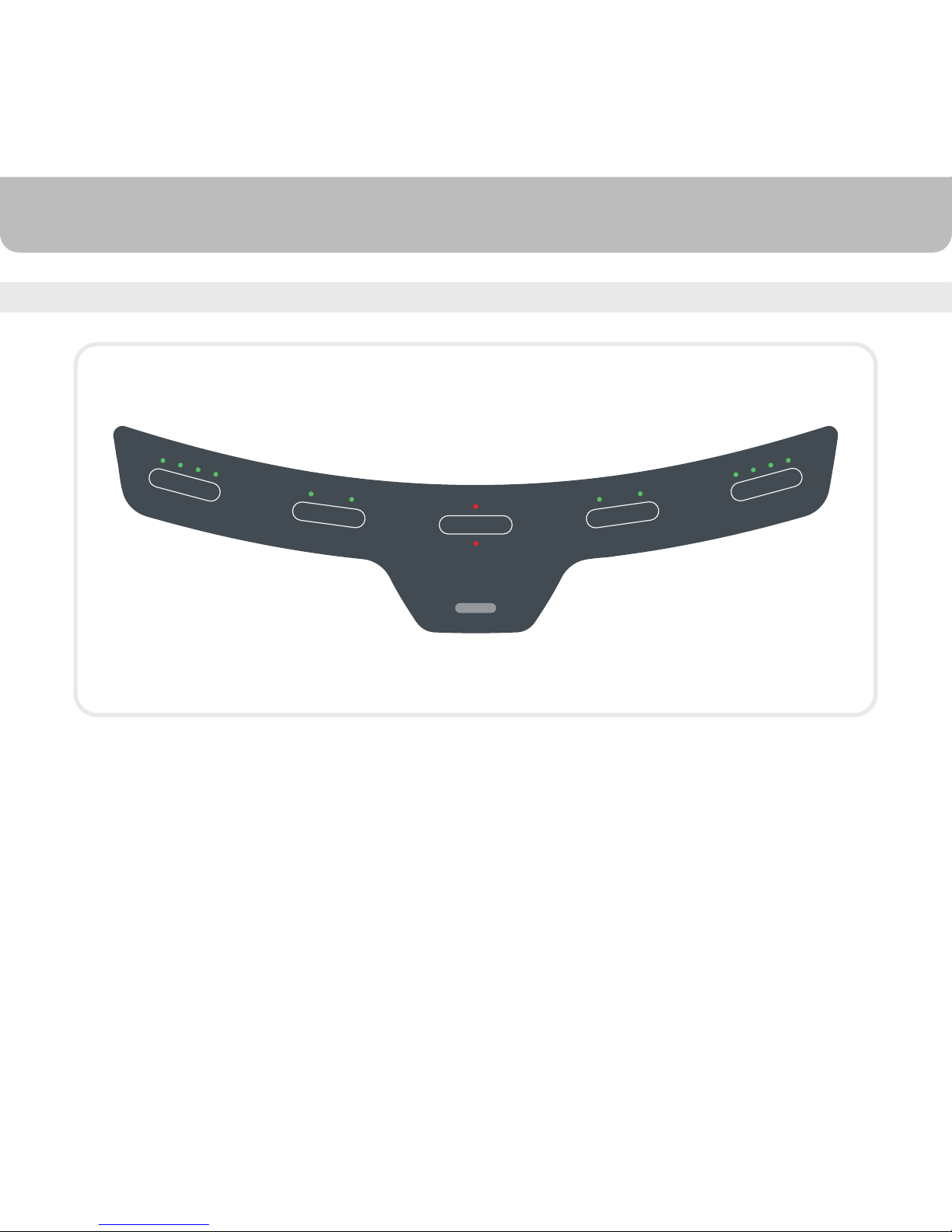

CONTROL PANEL

USE & OPERATION

POWER

Tank Empty

MODE

Fan Cool

TIMER

0.5hr 1hr 2hr 4hr

SPEED

Sleep Lo Med Hi

SWING /ION
