HighPoint SSD7749M Manuel utilisateur

1

SSD7749M

8x M.2 Port to PCIe 4.0x16 NVMe RAID Controller

Quick Installation Guide

2

V1.00

System Requirements

PC Requirements

•System with a free PCIe4.0 (or 3.0) x16 slot

•Windows 11, 10 / Server 2022, 2019, 2016 / Microsoft Hyper-V

•RHEL/Debian/Ubuntu/Fedora/Proxmox/ Rocky Linux

(Linux kernel 3.10 and later)

•Arch Linux (Kernel 5.17.5 and above)

•macOS 10.13.6 ~ macOS 13.x

•ARM Platform (NVIDIA model, Support Linux)

Kit Content

•SSD7749M Controller Card

•Quick Installation Guide

3

SSD7540M Hardware

Front View

Full-Length anodized aluminum heat sink

PCIe 4.0 x16 Host Interface

Full Height form factor

Low-Noise Cooling Fan

External power port

4

Disk LED：

Green, flashing：Disk I/O.

Solid Red：The disk has failed.

PORT1 SSD LED

POTR3 SSD LED

PORT5 SSD LED

PORT7 SSD LED

PORT2 SSD LED

PORT4 SSD LED

PORT6 SSD LED

PORT8 SSD LED

5

Hardware Installation

Step 1. Apply pressure to release the lock, turn it counter-clockwise

then take out the tray.

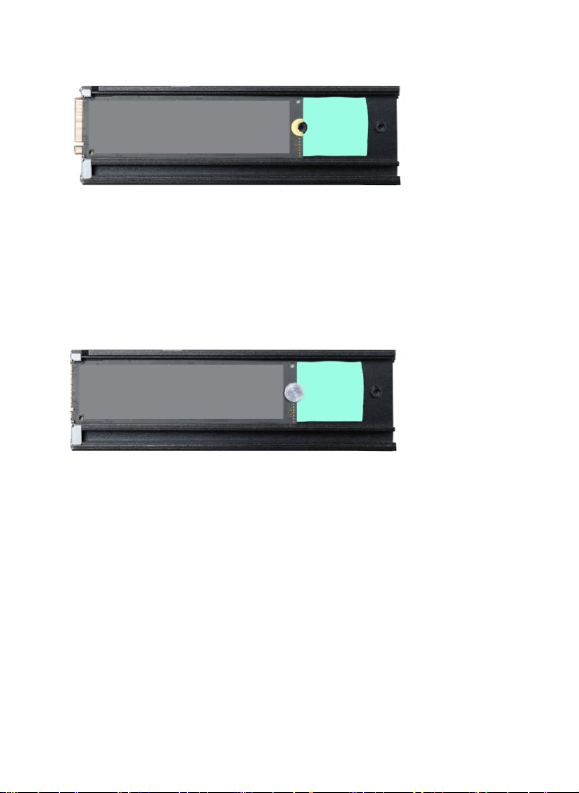

Step 2. Loose the screw and remove the film

Step 3. Gently insert the SSD into the Tray.

6

Note: Make sure the SSD contacts (“golden fingers”) are clean

priors to installation.

Step 4. Refasten the screw to secure the SSD.

Step 5. After installing all SSDs, carefully insert the Trays into the

slots.

7

Repeat Steps 1 to 5 to install the remaining SSDs.

The following example shows eight Gen4 SSDs installed into Ports 1-8:

8

Step 6. Align the fan module and press down to secure.

Note: Make sure the SSDs are carefully, but securely installed into

each M.2 port. Loose connections can cause a variety of stability

and performance issues, and may ultimately result in data loss.

Step 7. Power up the SSD external power supply

Note: If the external power supply is not powered on, the SSDs

may drop offline or remain undetected, which could lead to data

loss.

SSD7749M relies on two power sources to support eight SSDs;

9

power supplied through the PCIe bus, and power from the

system’s PSU via an external 6 pin PCIe power cable. If the

external cable is not connected, there will be insufficient power to

support all 8 SSD’s; this may cause the SSDs to drop offline.

Note

：

The SSD7749M does not require the external power cord

when used with a Mac Pro 2019

.

Note: Please make sure to install the driver before physically installing

the SSD7749M.

Note: Install the driver in the system first and then install the board

!

Resources

A variety of manuals, guides and FAQ’s are available for the SSD7749M

RAID controller.

Connect 6 pin PCIe power cable

10

In addition, we recommend visiting the Software Downloads webpage

for the latest drivers, management interfaces, and installation guides.

For Software Downloads, Documentation and more information

about this product, please visit the following website:

https://www.highpoint-tech.com/ssd7749m-overview

FAQ & Troubleshooting:

FAQ - HighPoint Technologies, Inc. (helpjuice.com)

Customer Support

If you encounter any problems while utilizing the SSD7749M, or have

any questions about this or any other HighPoint Technologies, Inc.

product, feel free to contact our Customer Support Department.

Web Support:

https://www.highpoint-tech.com/support-and-services

HighPoint Technologies, Inc. websites:

https://www.highpoint-tech.com
