HighPoint SSD7180 Manuel utilisateur

1

SSD7180/SSD7184

NVMe U.2 RAID Controller

Quick Installation Guide

V1.01

2

SSD7180/SSD7184 Quick Installation Guide (QIG)

This guide includes hardware descriptions of the SSD7180 and

SSD7184 NVMe RAID controllers, explains how to safely install

NVMe SSD’s into each card, and provides a list of certified cable

accessories available for this product series.

The Resource section includes links for additional installation

guides, compatibility lists and software updates.

3

SSD7180 Kit Content

SSD7180 Controller Card

Quick Installation Guide

SSD7184 Kit Content

SSD7184 Controller Card

Quick Installation Guide

Data RAID Prerequisites

Data arrays are used exclusively for storage –they cannot be used to

boot a system.

1. SSD7180 requires 8x SFF-8643 to U.2 SFF-8639 cables to

connect to NVMe U.2.

SFF-8643 to U.2 SFF-8639 purchase link:

https://estore-highpoint-tech.com/collections/cable-acc

essories/products/usb-c31-1ma

2. SSD7184 requires 4x SFF-8643 to U.2 SFF-8639 cables and

4

1x RS6540S and 2x SFF-8644 connect to NVMe U.2.

SFF-8643 to U.2 SFF-8639 purchase link:

https://estore-highpoint-tech.com/collections/cable-acc

essories/products/usb-c31-1ma

RS6540S purchase link:

https://estore-highpoint-tech.com/collections/nvme-rai

d-enclosures/products/RS6540S-4-bay-u-2-nvme-raid-

storage-enclosure

SFF-8644 purchase link:

https://estore-highpoint-tech.com/products/8644-8644-

210?variant=31476574388270

3. You must have at least one NVMe SSD installed into the

SSD7180/SSD7184 controller.

4. The SSD7180/SSD7184 must be installed into a PCIe 3.0 or

4.0 x16 lanes.

5. Operating system:

Windows 10 / Windows 2016 / Windows 2019

A Linux Distribution with Kernel 3.10 and later

macOS 10.13 and later

5

SSD7180 Hardware

Front View

SSD7184 Hardware

Front View

6

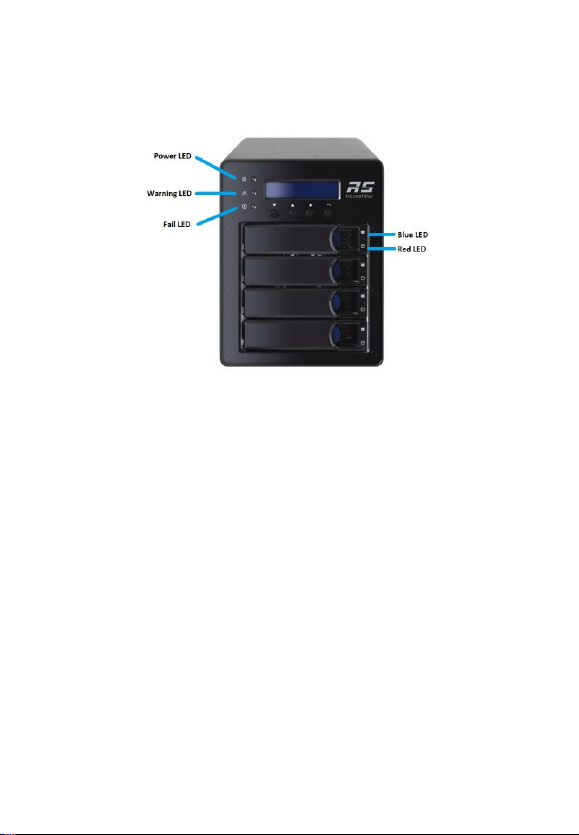

RS6540S Panel Layout-Front View

Disk Present LED: Solid Blue

DiskActive LED: Flash Blue

Disk Fail LED: Solid Red

Enclosure Power LED: Solid Blue

Temperature Warning LED: Solid Yellow

Fan/Temperature Fail LED: Solid Red

7

RS6540S Panel Layout-Rear View

U.2 Disk Tray

8

SSD7180 Hardware Installation

1. The SSD7180 was designed for use with SFF-8643 to U.2

SFF-8639 cables that have 15-pin SATApower connectors. Each

of the SSD7180’s eight device ports accepts an SFF-8643 cable

connection.

2. Shown above is a SFF-8643 to U.2 SFF-8639 cable with a 15-pin

SATA power connector. The SFF-8639 port should be connected to

9

the NVMe SSD’s U.2 port. The 15 pin SATA power connector

should be connected to the system’s power supply.

3. Insert the SSD7180 card into one of the motherboard’s open PCI-E

3.0 x16 or PCI-E 4.0x16 slots.

4. The SSD7180’s eight device ports are ordered sequentially; from

left to right, and bottom to top:

10

SSD7184 Hardware Installation

1. The SSD7184 provides 4 SFF-8643 connectors on the right-side of

the PCB. Each of these ports was designed for use with SFF-8643

to U.2 SFF-8639 cables that have 15-pin SATA power connectors.

2. Each cable’s SFF-8639 port should be connected to the NVMe

SSD’s U.2 port. The 15 pin SATA power connector should be

connected to the system’s power supply.
