HighPoint RocketRAID 644L Manuel utilisateur

RocketRAID 644L / 644LS / 642L

6Gb/s eSATA PCI-Express 2.0 RAID HBA

For Mac Quick Installation Guide

v1.1

Jan. 23, 2013

Table of Contents

HighPoint RocketRAID 644L / 644LS / 642L HBA .......................... 3

Kit Contents.................................................................................. 3

Board Layout ................................................................................ 4

Hardware Installation ................................................................... 5

Using the RocketRAID 642L HBA .................................................. 6

Customer Support ........................................................................ 7

FCC Part 15 Class B Radio Frequency Interference Statement ..... 8

HighPoint RocketRAID 644L / 644LS / 642L HBA

HighPoint’s RocketRAID 600L Series HBA’s are the Industry’s most

affordable, high-performance, SATA 6Gb/s RAID HBA’s, and are

ideal for Mac Pro workstations. These 2nd Generation SATA 6Gb/s

host controllers utilize the PCI-Express 2.0 host bus interface,

HighPoint's Industry-proven RAID engine, and support a

wide-range of single-disk and RAID configurations including 0, 1, 5,

10 and JBOD.

Each RocketRAID 600L Series HBA directly supports up to 4 SATA

devices, and up to 20 when used in conjunction with port

multiplier storage devices. For maximum performance, attach SATA

hard drives and SSD’s directly to the RocketRAID 600’s SATA, eSATA

and Mini-SAS ports. To maximize storage capacity, use the

RocketRAID 600 with port multiplier storage chassis and external

disk enclosures.

RocketRAID 640L Series HBA Family:

RocketRAID 642L - 2 SATA Ports and 2 eSATA Ports

RocketRAID 644L - 4 eSATA Ports

RocketRAID 644LS - 1 Mini-SAS Port

Kit Contents

RocketRAID 64xL / 64xLS HBA

Quick Installation Guide

HighPoint Software CD

Low Profile Bracket (RocketRAID 644LS and RocketRAID 642L)



Two SATA 6Gb/s cables (RocketRAID 642L only)

Board Layout

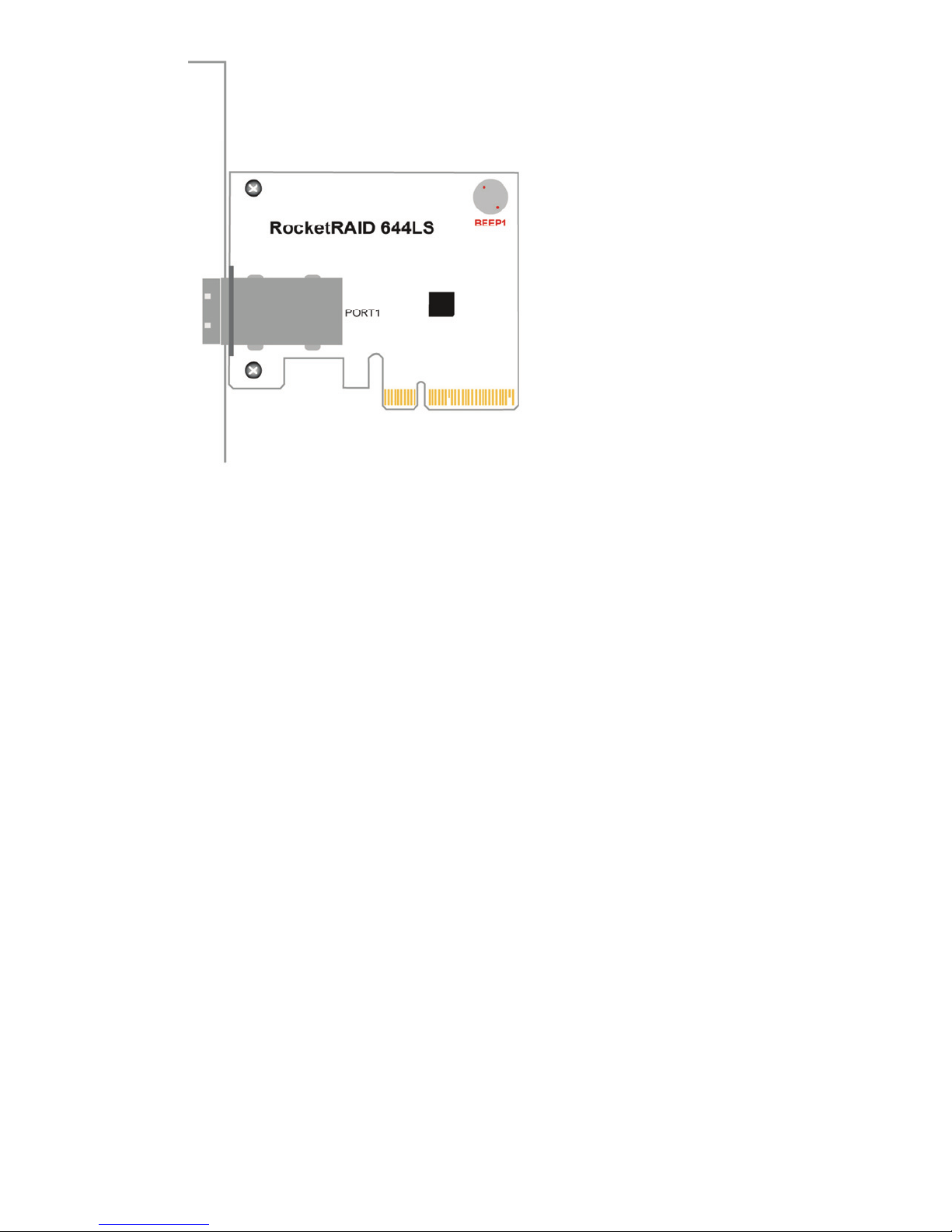

RocketRAID 644L / 644LS / 642L PCB Board Layout

Hardware Installation

Installing the RocketRAID 644L / 644LS / 642L HBA

Note: Make sure the system is powered-off before installing the

RocketRAID 644L / 644LS / 642L HBA.

1. Open the system chassis and locate an unused PCI-E x16 slot.

2. Remove the PCI-E slot cover.

3. Gently insert the RocketRAID 644L / 644LS / 642L HBA into the

PCI-E slot, and secure the bracket to the system chassis.

4. After installing the adapter, attach the hard disks or disk

enclosure to the RocketRAID 644L / 644LS / 642L HBA using the

SATA, eSATA or Mini-SAS cables.

5. Close and secure the system chassis.

Using the RocketRAID 644L / 644LS / 642L HBA

Driver and Web RAID Management Software Installation

1. After installing the RocketRAID 644L / 644LS / 642L host

adapter, boot to the Mac operating system.

2. Click the “System Information” icon.

3. Click “PCI Cards”. “Driver Installed” should be reported as “No”

for this entry.

4. Insert the HighPoint Software CD into your Mac DVD drive and

navigate to the Mac Software package folder:

/Driver/RR64xL/Mac.

5. Double-click on the “*.dmg” file to mount the disc image.

6. Double-click on the installer package labeled to start

the installation process. The Web RAID Management Software

(Web GUI) for the RocketRAID 644L / 644LS / 642L will be

automatically installed alongside the driver.

7. Follow the onscreen prompts to install the RocketRAID 644L /

644LS / 642L HBA driver and Web RAID Management software.

After the install has completed, you will be prompted to restart

your Mac.

Please refer to the RocketRAID 64xL User’s Guide for Mac for

more information about the Web RAID Management Utility:

http://www.hptmac.com

Booting MacOS X from RocketRAID 642L Adapter via EFI

Currently, MacOS X cannot be directly installed to Legacy disks or

arrays hosted by RocketRAID 642L HBA’s. To boot the system, you

need to clone an installed system to the Legacy disk or arrays.

1. Run Disk Utility and create a new volume on the selected

Legacy Disk or array.

2. Clone the Mac OS X system volume to this new volume, using a

disk cloning utility (such as Carbon Copy Cloner).

3. Shutdown and remove the original boot volume -- OS X will

now automatically boot from the Legacy Disk/array.

Customer Support

If you encounter any problems while utilizing the RocketRAID

series HBA, or have any questions about this or any other

HighPoint Technologies, Inc. product, feel free to contact our

Customer Support Department.

Web Support: http://www.highpoint-tech.com/websupport/

HighPoint Technologies, Inc. websites:

http://www.highpoint-tech.com

http://www.hptmac.com

FCC Part 15 Class B Radio Frequency Interference

Statement

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates uses and can radiate

radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Modifications not expressly approved by the manufacturer could void the

user’s authority to operate the equipment under FCC rules.

This device complies with part 15 of the FCC Rules. Operation is subject to

the following two conditions: (1) this device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

European Union Compliance Statement

This Information Technologies Equipment has been tested and found to

comply with the following European directives:

European Standard EN55022 (1998) Class B

European Standard EN55024 (1998)
