1

SSD7580A

SSD7580A PCIe Gen4 x16 8-Port U.2 NVMe RAID

Controller

Quick Installation Guide

V1.00

2

System Requirements

PC Requirements

•System with a free PCIe4.0 (or 3.0) x16 slot

•Windows 10, Windows Server 2016 and Windows Server 2019

•Linux kernel 3.10 and later

SSD7580A Kit Content

•SSD7580A Controller Card

•Quick Installation Guide

SSD7580A Hardware

Front View

3

Hardware Installation:

1. The SSD7580A provides 4 SFF-8654 to U.2 SFF-8639 connectors

on the right side and top of the controller PCB. Each of these ports

was designed for use with HighPoint TS8i-8639-060 NVMe cables

that have 15-pin SATA power connectors.

SFF-8654 ports

4

2. Shown above is a SFF-8654 to U.2 SFF-8639 cable with a 15-pin

SATA power connector. The SFF-8639 port should be connected to

the NVMe SSD’s U.2 port. The 15 pin SATA power connector

should be connected to the system’s power supply.

SFF-8654

SFF-8639

SATA-15pin

TS8i-8639-060

NVMe cable

5

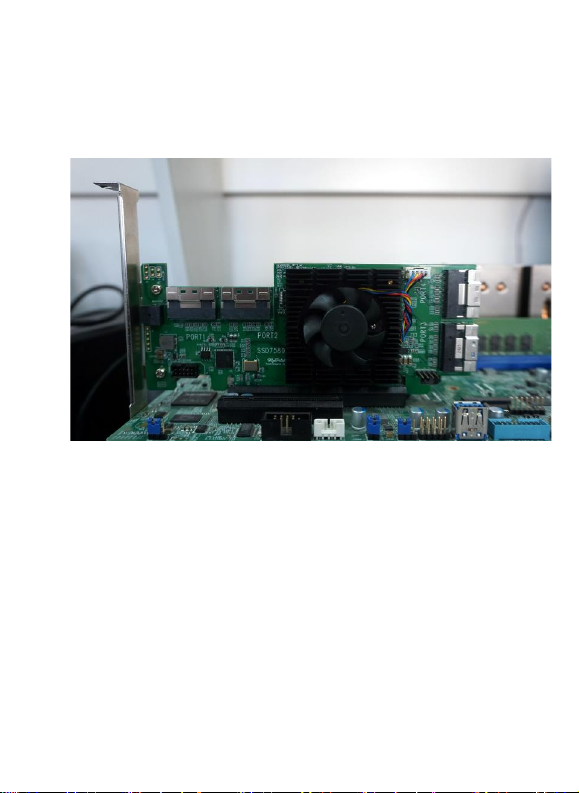

3. Insert the SSD7580A controller into one of the motherboard’s open

PCI-E 4.0x16 slots.

6

4. Connect two pieces of NVMe with SFF-8639 port, and connect

SFF-8654 port to SSD7580A. Connect the 15-pin SATA power

connector to the system's power supply.

SFF-8639

15-pin SATA power connector

7

5. Connect the remaining NVMe SSD’s to the SSD7580A

controller as described above. Once complete, Power on

the system

Note: Make sure SSD’s are connected to the SSD7580A

before powering on the system

8

Resources

A variety of manuals, guides and FAQ’s are available for the SSD7580A

RAID controller.

In addition, we recommend visiting the Software Downloads webpage

for the latest drivers, management interfaces, and installation guides.

Software Download:

SSD7580A Driver, WebGUI, Installation Guides:

https://highpoint-tech.com/USA_new/series-ssd7580-download.htm

Other Reference Information:

Motherboard & NVMe SSD Compatibility List

SSD7580A User Guides

https://highpoint-tech.com/USA_new/series-ssd7580-resource.htm

9

Customer Support

If you encounter any problems while utilizing the SSD7580A, or have

any questions about this or any other HighPoint Technologies, Inc.

product, feel free to contact our Customer Support Department.

Web Support:

https://www.highpoint-tech.com/websupport/main.php

HighPoint Technologies, Inc. websites:

https://www.highpoint-tech.com

© Copyright 2021 HighPoint Technologies, Inc. All rights reserved.
