1

SSD7101A

Ultimate Acceleration Drive

Quick Installation Guide

V1.00

2

System Requirements

PC Requirements

System with an empty x16 PCIe 3.0 slot

(Please refer to the SSD7101A compatibility list.)

Windows 10 or later

Linux Kernel 3.19 or later

SSD7101A Hardware

Front View

3

NVMe Drive Installation:

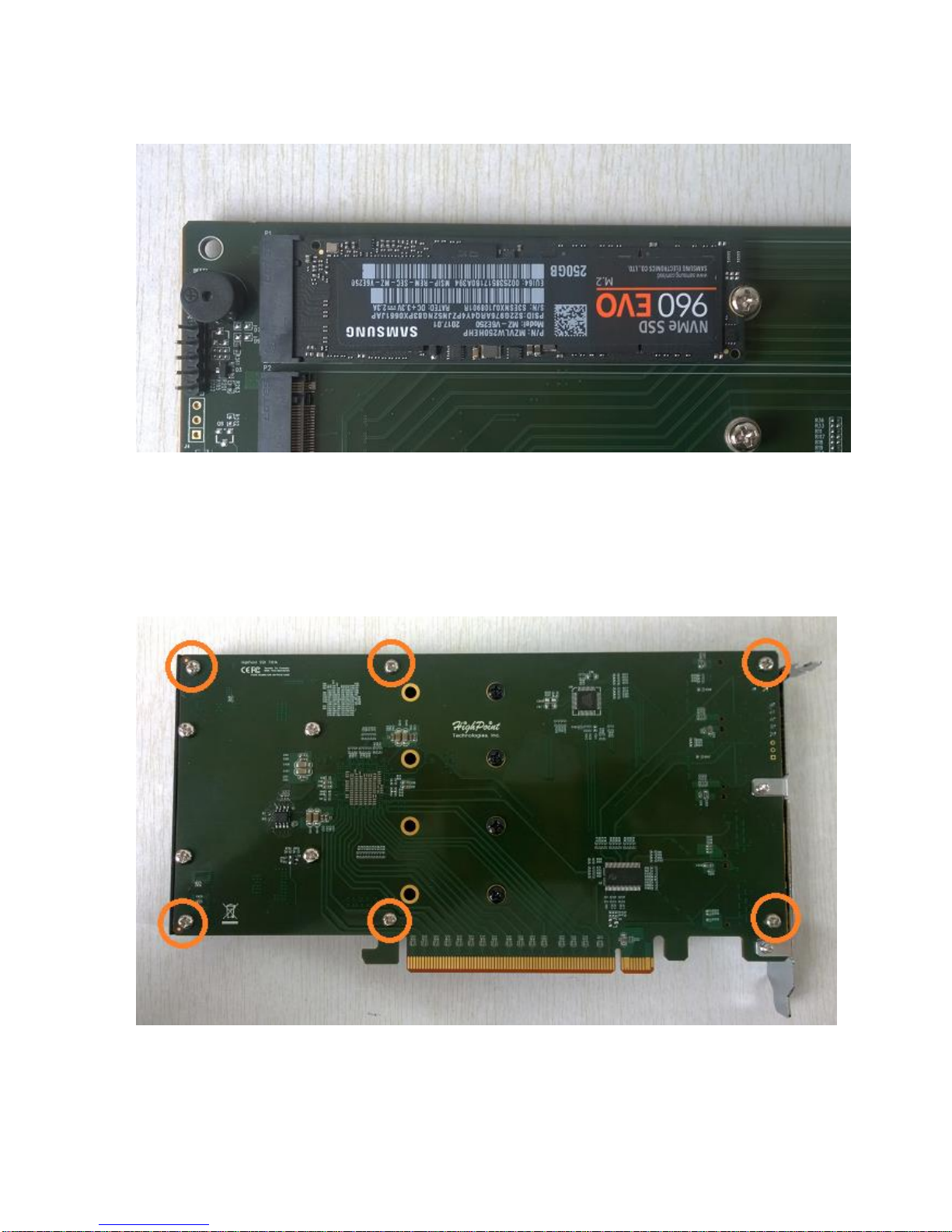

Step 1. On the rear of the SSD7101A-1, remove the six screws that secure the

unit’s front panel to the PCB.

After removing the screws, carefully remove the front panel from the

SSD7101A-1.

Step 2. These 4 screws are used to install the NVMe SSD’s.

4

Step 3. The SSDs should be installed from top to bottom. Remove the

top screw.

Step 4. Gently insert the SSD into the slot.

5

Step 5. Refasten the screw to secure the SSD.

Repeat Steps 3 to 5 to install the remaining SSDs.

Step 6. Replace the front panel after installing all SSDs

Step 7. On the rear of the SSD7101A-1, refasten the 6 screws that were

removed in step 1.

6

Setting up the SSD7100 for a Windows operating system

1. Verifying Installation

After booting Windows, open Device Manager, and expand Disk drives.

The installed NVMe Samsung SSD 960 should be displayed:

2. Driver Installation

1) Download the Windows driver package from the HighPoint website:

http://www.highpoint-tech.com/USA_new/series-SSD7100-download.

htm

2) Once downloaded, locate the folder you downloaded the driver to.

Extract the driver package and double click the setup.exe file to start

the driver installation.

3) Follow the wizard and reboot system to complete the driver

installation.

4) Rebooting. ARocketNVME RAID Controller entry should be

displayed under Storage Controllers.:

7

3. Installing the HighPoint SSD Manager

The HighPoint NVMe Manager is used to configure and monitor the

SSD7100 drive. Download the HighPoint SSD Manager software package

from the HighPoint website:

http://www.highpoint-tech.com/USA_new/series-SSD7100-download.htm

1) Extract the package and double-click the setup.exe program to install

the software.

2) The HighPoint SSD RAID Manager will configure the SSD7100

NVMe drive automatically after installation is completed.

3) Open Windows Disk Management and check to make sure the SSD

drive is configured:

4) Create and format the partition using Disk Management and start using

the SSD7100 drive.

Setting up the SSD7100 for a Linux Distribution

Please download the Linux Software Package from the HighPoint

Website:

http://www.highpoint-tech.com/USA_new/series-SSD7100-download.htm

Please follow the Linux Installation guide included with the software

package the software package to install and setup the SSD7100 drive.

8

Customer Support

If you encounter any problems while utilizing the SSD7100 drive, or

have any questions about this or any other HighPoint Technologies, Inc.

product, feel free to contact our Customer Support Department.

Web Support: http://www.highpoint-tech.com/websupport/

HighPoint Technologies, Inc. websites:

http://www.highpoint-tech.com

© Copyright 2017 HighPoint Technologies, Inc. All rights reserved.
