Health O Meter 2600KL Manuel utilisateur

PRO PLUSTM ELECTRONIC FOLDING WHEELCHAIR SCALE

MODEL 2600KL

BALANCE ELECTRONIQUE PLIANTE PRO PLUSTM

POUR FAUTEUIL ROULANT

MODELE 2600KL

BALANZA ELECTRONICA PLEGABLE PRO PLUSTM

PARA SILLA DE RUEDAS

MODELO 2600KL

OPERATION MANUAL

MODE D'EMPLOI

MANUAL DE OPERACIÓN

PRO PLUSTM ELECTRONIC FOLDING WHEELCHAIR SCALE

MODEL 2600KL

Thank you for your purchase of this product.

Please read this manual carefully and keep it handy for ready reference.

Merci d'avoir acheté ce produit.

Veuillez lire attentivement ce manuel et le garder à portée de main pour pouvoir le consulter à

tout moment

Gracias por la adquisición de este producto.

Lea por favor este manual cuidadosamente y manténgalo a su alcance para una pronta

referencia.

ENGLISH............................................................................................ 1

FRANÇAIS ......................................................................................... 25

ESPAÑOL .......................................................................................... 49

TABLE OF CONTENTS

CAUTION AND WARNING....................................................................................................2

SPECIFICATIONS.................................................................................................................2

ASSEMBLY INSTRUCTIONS ...............................................................................................3

SET UP..................................................................................................................................6

OPERATION INSTRUCTIONS..............................................................................................8

MAINTENANCE.....................................................................................................................19

TROUBLESHOOTING...........................................................................................................20

CALIBRATION PATH ............................................................................................................21

EXPLODED VIEW OF SCALE ..............................................................................................21

PARTS LIST ..........................................................................................................................23

WARRANTY ..........................................................................................................................24

CAUTION AND WARNING

To prevent injury and damage to your scale, please follow these instructions very carefully.

• Do not transport the scale while the platform is loaded.

• For accurate weighing the scale must be placed on a flat, stable surface.

• For accurate weighing, verify proper operation according to the procedure described in this

manual before each use.

• Do not use in the presence of flammable materials.

• Operating at other voltages and frequencies than specified could damage the equipment.

• If the “LOW BAT” indicator activates, for accurate weighing, replace the batteries or connect

the scale to an AC power source as soon as possible.

SPECIFICATIONS

GENERAL

Health o meter’s Pro PlusTM Electronic Folding Wheelchair Scale Model 2600KL uses highly

sophisticated microprocessor technology. Each precision instrument is designed to provide

accurate, reliable and repeatable weight measurements and features that make the weighing

process simple, fast and convenient.

The scale is set up to use motion-sensing weighing technology, to determine the actual weight

of a moving patient. The scale may be changed to measure live weight; see page 15 for

instructions on changing the scale setting.

The weight can be display in pounds (decimals, fractions of a lb or lb/oz) or in kilograms. The

scale features a platform-independent ramp for easy wheelchair access, folding mechanism, a

handrail and two wheels for easy mobility.

The unit can be operated using its AC adapter or by 6-D cell batteries (not included).

SCALE SPECIFICATIONS

Capacity and Resolution 800 Lb x 0.2 Lb / ¼ lb / 4 oz (360 Kg x 0.1 Kg)

Power Requirements Adapter 120VAC - 6VDC - 60Hz or 6 x D size batteries

Environmental Operating temperatures: 50°F to 95°F (10°C to 35°C)

Storage temperatures: 30°F to 125°F (0°C to 50°C)

Humidity: 85%

Physical Dimensions Platform

Length: 32” (81 cm)

Width: 37” (94 cm)

Height: 2” (5 cm)

Platform with Handrail and Ramp

Length: 41¼” (103 cm)

Width: 48” (120 cm)

Height: 47¼” (120 cm)

Weight: 100.7 Lb (45.7 Kg)

ASSEMBLY INSTRUCTIONS

Parts List:

(1) Platform Assembly (includes ramp and handrail) (1) Small Back Cover

(1) Display Assembly (1) Front Cover

(4) Plastic Feet Assemblies (1) Rear Cover

(1) AC Adapter Holder (6) Screws for Display

(3) Cable Holder Clips (2) Screws for AC Holder

Tools required: Phillips head screwdriver, Allen wrenches (included).

Remove each assembly from the carton and unwrap packing material carefully to prevent

scratching the unit’s parts. It is recommended to perform the assembly by two persons.

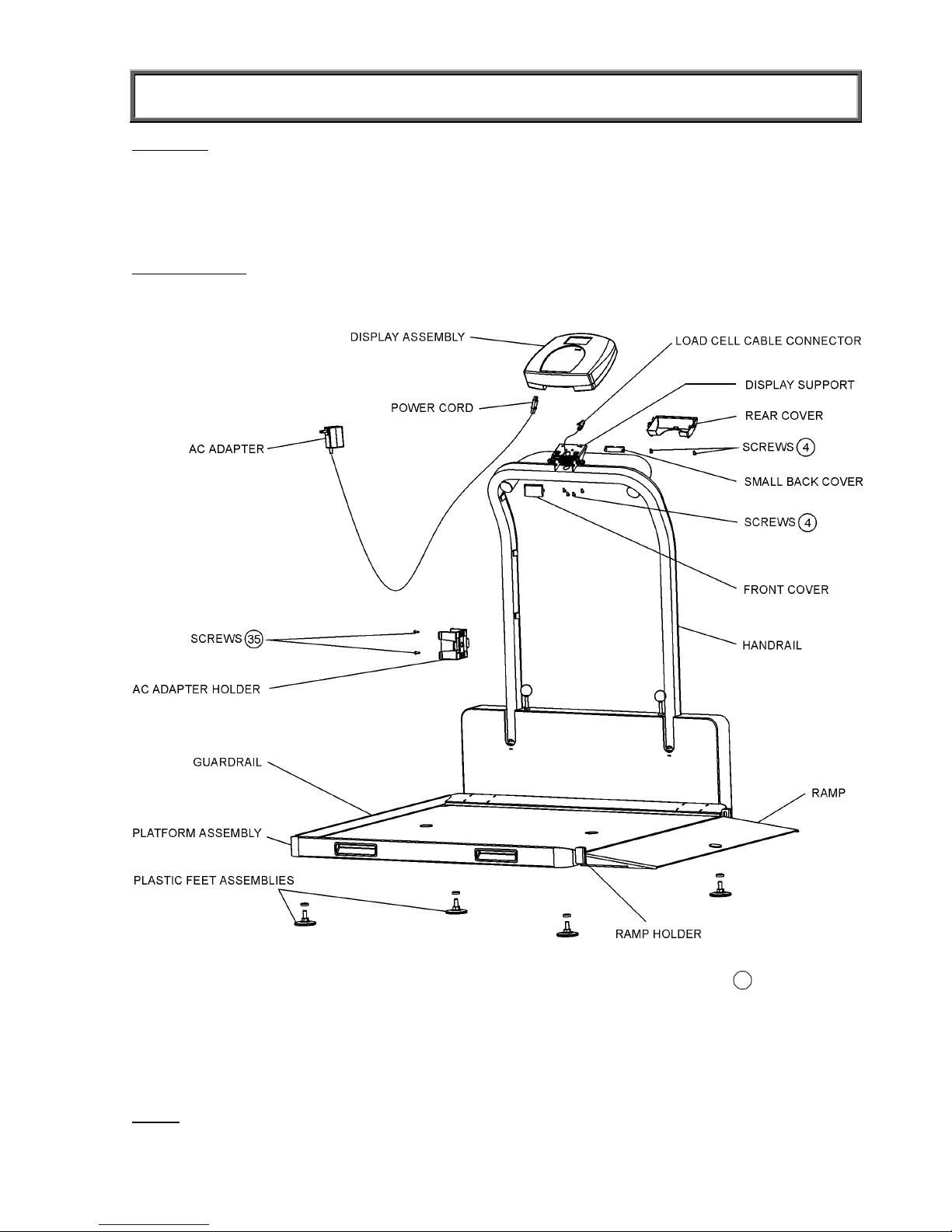

Figure 1. Assembly After Shipment

(refer to the Parts List on page 23 for details on parts followed by

)

1. Open the scale to operational position (see Scale Opening instructions on page 6).

2. Rotate the display support so that it is perpendicular to the handrail.

3. Position the display assembly close to the display support on the handrail. Connect the

load cell cable connector to the load cell port on the rear of the display assembly and

insert and secure the cable into the center channel in the display.

NOTE:Do not attach the Power Cord at this point.

ASSEMBLY INSTRUCTIONS

4. Slide the display assembly onto the display support by inserting the two metal supports

into the two slots in the rear display assembly. Tuck the excess load cell cable into the

handrail tube.

NOTE:The load cell cable should now be secured in the channel between the display

assembly and the display support.

5. Insert 4 screws into the display support and tighten.

6. Connect power cord to the power port in the display assembly and insert and secure the

cable into the exposed portion of the 2nd channel from the left in the display.

7. Insert the power cord into the retaining slot on the rear cover. Align the rear cover tabs

with the slots on the rear of the display assembly. Apply pressure to snap the rear cover

into place and secure with 2 screws.

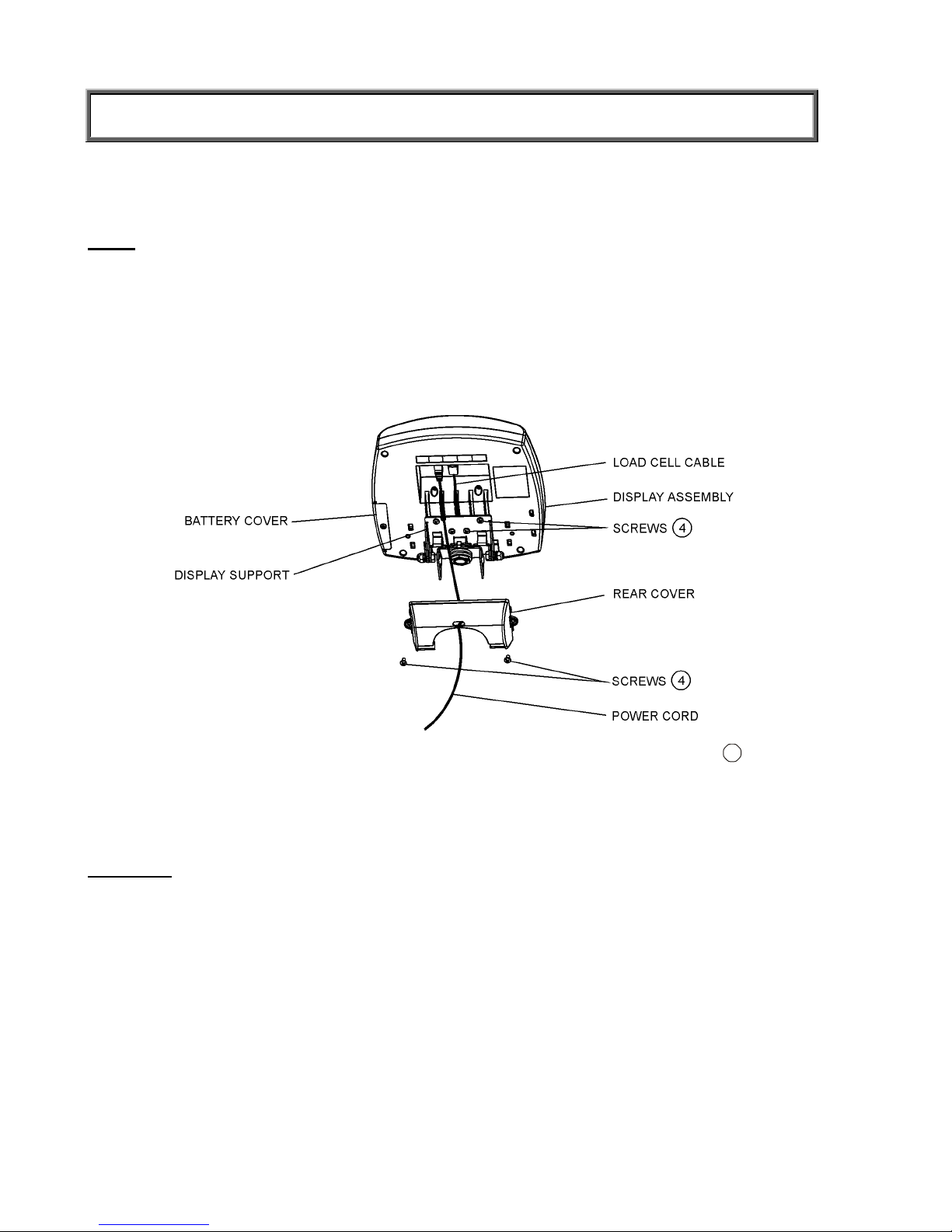

Figure 2 (refer to the Parts List on page 23 for details on parts followed by

)

8. Attach the front and small back covers to the display support by applying light pressure.

9. Gently tip the scale and lie it with handrail on the floor. Screw in 4 plastic feet assemblies.

Do not tighten.

10. Gently return the scale to the upright position.

WARNING:Do not drop the scale on its feet. This could result in load cell damage.

11. Install the AC adapter holder on the outer left side of the handrail using the 2 screws

attached to the adapter holder assembly.

12. Attach 2 cable holder clips to the inner left handrail and one underneath the handrail by

peeling off the paper covers from both sides of the adhesive pad and applying to the

handrail. Firmly press the clips on top of the adhesive to secure.

13. Insert AC adapter into the adapter holder and insert the power cable into the 3 clips on the

left side of the handrail

14. Screw/unscrew the plastic feet to level the scale.

ASSEMBLY INSTRUCTIONS

Ramp - Moving Instructions

1. Remove the guardrail at the end of the platform by unscrewing 4 screws. (see Figure 3)

2. Fold the ramp on the platform surface.

3. Gently tip the scale over and place with handrail on the floor.

4. Remove the screws attaching 2 rubber bumpers on the side of the platform under the

ramp attachment. Remove the bumpers. Install the rubber bumpers on the opposite

platform side in the appropriate holes.

5. Release 4 screws at each ramp holder (2 screws at ramp side and 2 screws at the bottom

of the ramp, close to wheel).

6. Remove the ramp from the ramp holders, then release all the screws to the end and

remove ramp holders by pulling out slightly.

7. Install ramp holders in the same way at the opposite side of the platform, do not tighten

screws.

8. Insert the ramp between ramp holders and tighten screws.

9. Install the guardrail by screwing 4 screws. Note: It is necessary to bore a hole in the mat to

insert the screw in appropriate hole beneath the mat.

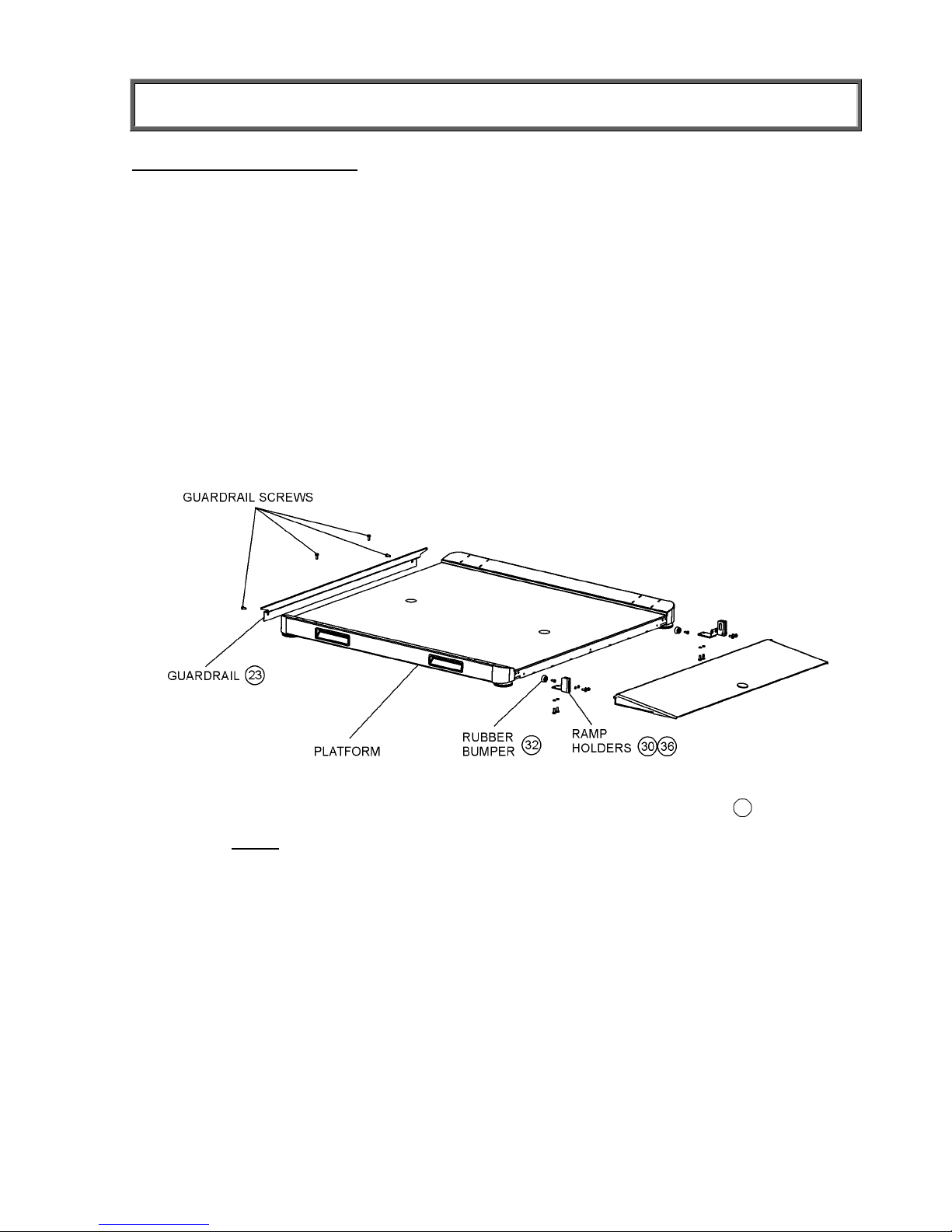

Figure 3. Ramp Moving

(refer to the Parts List on page 23 for details on parts followed by

)

NOTE:A second Ramp is available separately as 2600RAMP.

SET UP

You can fold the scale for moving and storage purposes and then open the scale to operational

position.

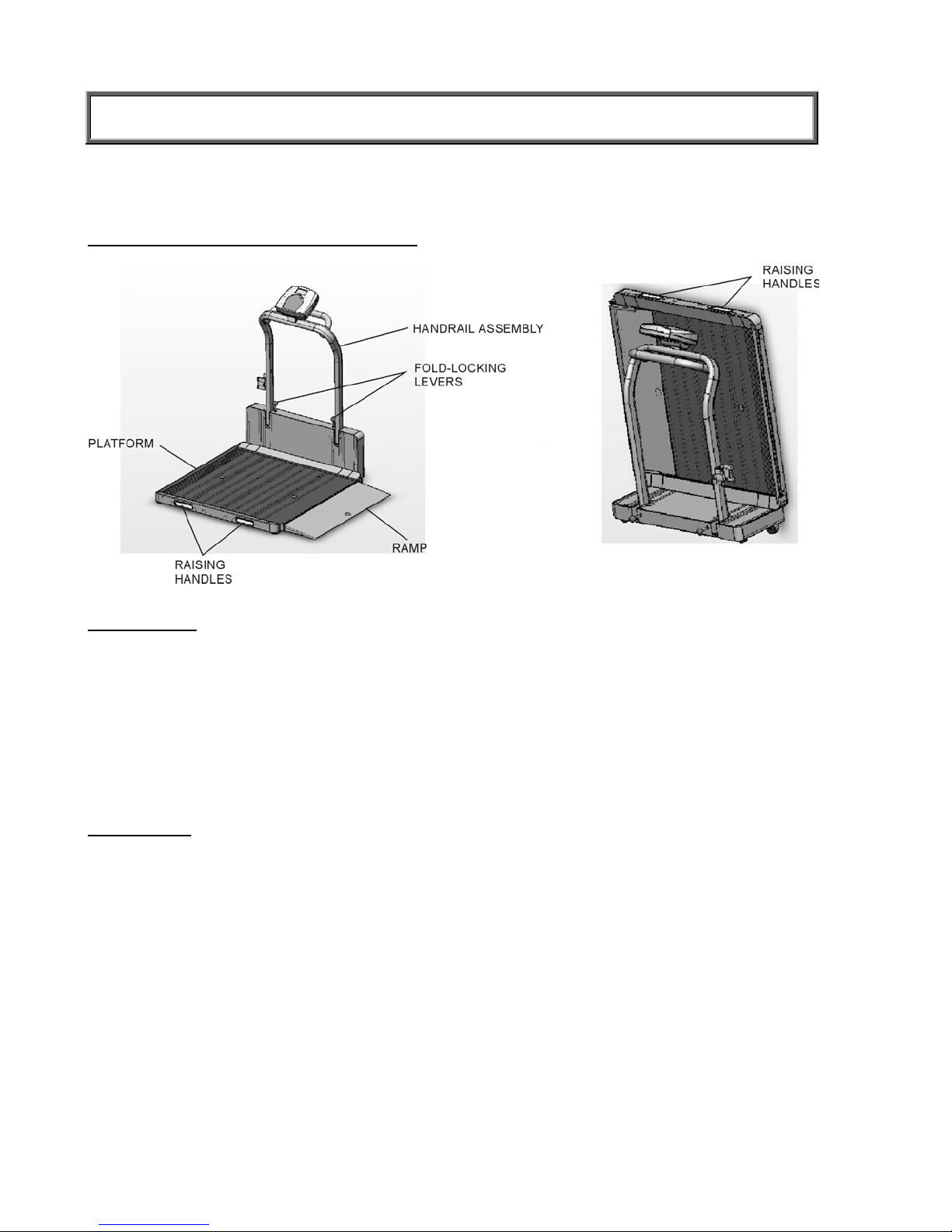

Scale - Opening and Folding Procedures

Figure 4a Figure 4b

Scale opening:

1. Begin with the scale in the folded upright position resting on its wheels, as in Figure 4b.

2. Holding the raising handles and the top of the handrail, place the platform flat on the floor.

The scale should remain in the folded position.

3. Turn fold-locking levers until they are released and pop up to the open position.

4. Raise the handrail to the standing position.

5. Press down on the fold locking levers and screw them in completely. If necessary, lightly

push down on the handrail legs to insert fold-locking levers.

6. Open the ramp.

Scale folding:

1. Pivot the display assembly back so that it is lying as flat along the handle as possible.

2. Fold the ramp up onto the platform surface.

3. Turn fold-locking levers until they are released and pop up to the open position.

4. Gently fold the handrail assembly down onto the platform surface.

5. Press down on the fold locking levers and screw them in completely. If necessary, lightly

push down on the handrail legs to insert fold-locking levers.

6. Holding the raising handles and the top of the handrail, raise the scale to rest on its four

wheels. (It is recommended to perform this action by two persons).

SET UP

Preparing the Scale for Use

1. Remove protective plastic film from keypad and display.

2. Place batteries in the battery holder (see “Replacing Batteries”).

3. Plug the scale’s AC adapter into the power source.

4. Press the ON/OFF button to turn the scale on. The display will show “Health o Meter

Pro Plus” and then ”000Lb00oz”.(a)

5. Place a weight [not to exceed 800 Lb (360 Kg)] on the scale. The display should read

“WEIGHING“ until the weight calculation is complete and the weight is displayed.

6. Press the KG/LB button to select the weight mode (Lb/Kg).(b) *

7. Press the REWEIGH button; the scale should perform the weighing process again.

8. Remove the weight from the scale, the scale will return to zero and the display will read

“ZERO” on the left upper side of the screen along with ”000Lb00oz”.

9. Disconnect the scale’s AC adapter from the power source. The scale will shut off. Press

On/Off and the scale will switch to battery power.

NOTE: If the set up procedure failed, refer to the troubleshooting instructions. If the problem is

not corrected, refer to qualified service personnel.

(a) To adjust the display backlight and/or contrast, please refer to page 15.

(b) To change the display mode in pounds to fractions or decimals, please refer to page 10.

Replacing Batteries

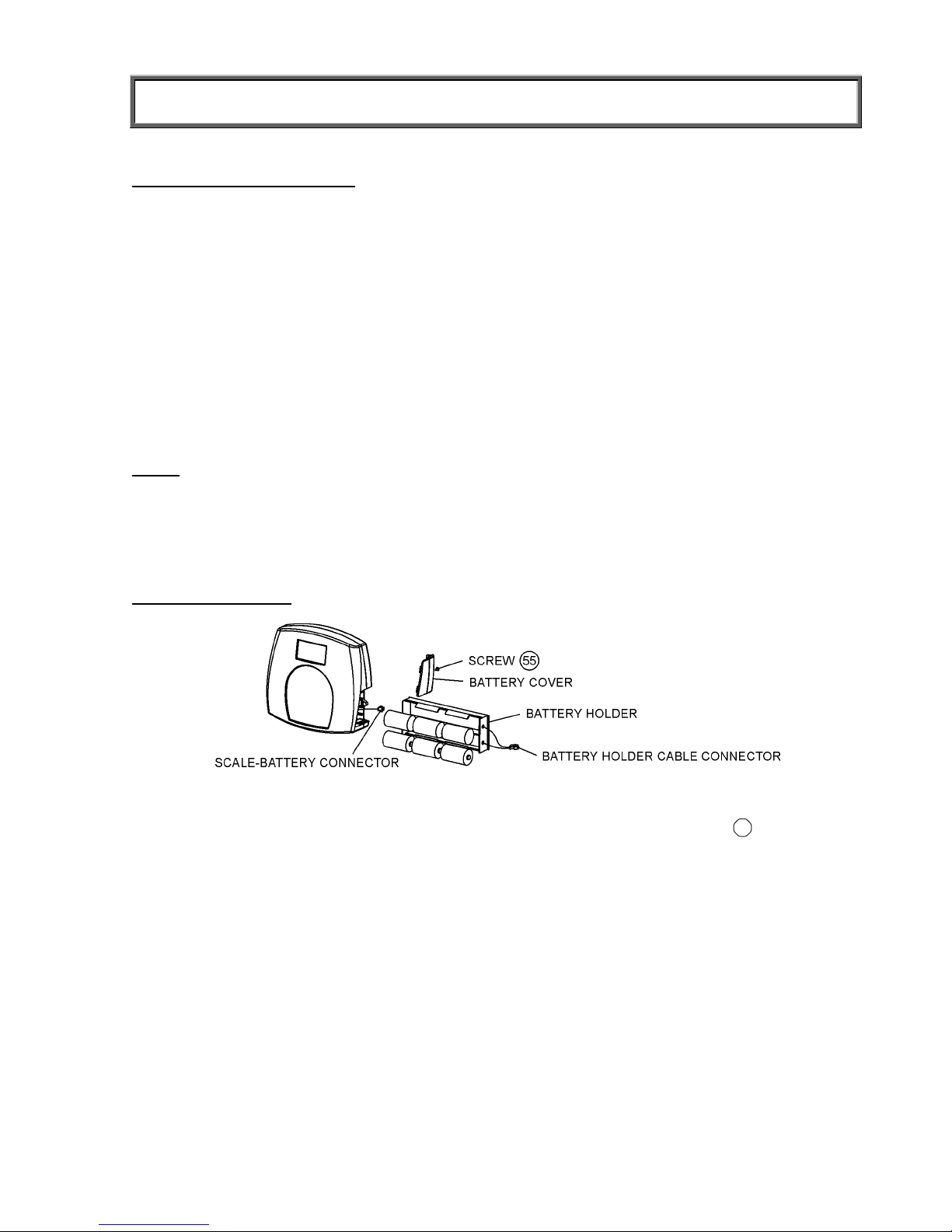

Figure 5. Replacing Batteries

(refer to the Parts List on page 23 for details on parts followed by

)

1. Unplug the scale.

2. Remove the battery cover from the display assembly.

3. Disconnect battery holder cable connector from the scale-battery connector.

4. Carefully remove the battery holder by sliding it out the display assembly.

5. Replace the batteries with new ones.**

6. Carefully position the battery holder into the display assembly.

7. Plug the battery holder cable connector to the display cable connector.

8. Attach the cover to the display assembly and install the screw.

* To change the scale default units to kilograms, or to deactivate the LB/KG button,

please contact Technical Support at 1 800 638-3722 or +1 708 598-9100.

** We recommend the use of EVEREADY Energizer®e2TM batteries.

OPERATION INSTRUCTIONS

1. Press the ON/OFF button to turn the scale on.

2. Wait until ”000Lb00oz” and “ZERO” on the left side of the display will appear.

3. If the wheelchair weight is known, enter the TARE value according to instructions in the

“Menu”, para 02. If the wheelchair weight is unknown, place the wheelchair only on the

platform; press REWEIGH. Enter the Automatic TARE by pressing the TARE button.

4. Move the wheelchair and patient onto the platform over the ramp until the front wheelchair

wheels are stopped by the platform guardrail. The display should read “WEIGHING“ until

the weight of the patient is displayed.

5. We recommend reweighing after the patient is sitting still on the wheelchair on the platform

by pressing the REWEIGH button.

6. Remove the wheelchair and patient from the scale by moving straight back off the ramp.

NOTE:The scale will always default to the settings and units last used.

OPERATION INSTRUCTIONS

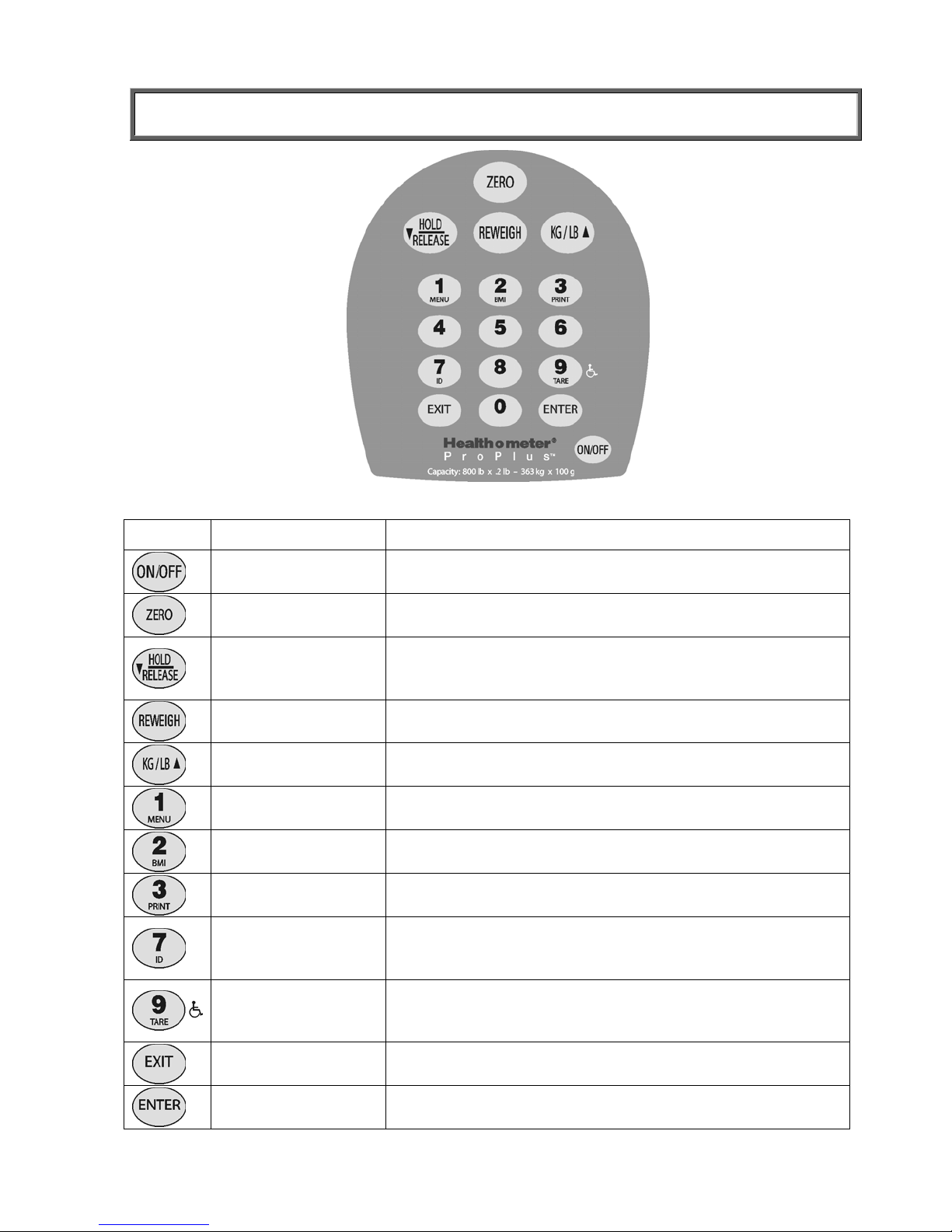

Figure 6. Keypad

ITEM DESCRIPTION FUNCTION

POWER Turns scale ON and OFF.

ZERO Zeros the scale prior to weighing.

HOLD/RELEASE

Holds the value of the weighed object on the display until

the button is pressed again to clear the value. Also used to

scroll down in the menu.

REWEIGH Allows repeated weighing of the patient without stepping

off the scale.

KG/LB button Toggles between kilograms or pounds. Also used to scroll

up in the menu.

MENU Enters the menu of the scale.

BMI Prompts entry of data to calculate the patient’s Body Mass

Index (BMI).

PRINT Prints patient’s data (if printer is connected to the scale).

Prompts entry of patient’s identification number (ID). This

ID will be stored with all the weighing made until is cleared

or a different ID is stored.

TARE

Prompts entry of TARE value that will be deducted from

the weight on the platform. Also releases tare weight

(returns display to zero).

EXIT Reverts back one step when in the menu and data entry

modes.

ENTER Used to enter commands and values into the scale.

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Health O Meter Échelle

Health O Meter

Health O Meter 499KL Manuel utilisateur

Health O Meter

Health O Meter HAB979 Manuel utilisateur

Health O Meter

Health O Meter 845KL Manuel utilisateur

Health O Meter

Health O Meter HDM173-99 Manuel utilisateur

Health O Meter

Health O Meter 3001KL-AM Manuel utilisateur

Health O Meter

Health O Meter 142KL Manuel utilisateur

Health O Meter

Health O Meter BFM920 Manuel utilisateur

Health O Meter

Health O Meter 2210KL-AM Manuel utilisateur

Health O Meter

Health O Meter PROPLUS 2000KL Manuel utilisateur

Health O Meter

Health O Meter HAB020 Manuel utilisateur

Health O Meter

Health O Meter 844KL Manuel utilisateur

Health O Meter

Health O Meter 553KL Manuel utilisateur

Health O Meter

Health O Meter Weigheasier 2650KG Manuel utilisateur

Health O Meter

Health O Meter 2500KL Manuel d'utilisation et d'entretien

Health O Meter

Health O Meter HDM561 Manuel utilisateur

Health O Meter

Health O Meter 500KL Manuel utilisateur

Health O Meter

Health O Meter 2595KL Guide d'installation

Health O Meter

Health O Meter PROPLUS 1100KL Manuel utilisateur

Health O Meter

Health O Meter weigheasier 2600KG Manuel utilisateur

Health O Meter

Health O Meter 800KL Manuel utilisateur

Health O Meter

Health O Meter 2500KL Manuel utilisateur

Health O Meter

Health O Meter Professional 499KG Manuel utilisateur

Health O Meter

Health O Meter 524KL Manuel utilisateur

Health O Meter

Health O Meter Pro Plus 2101KL Manuel utilisateur

Manuels Échelle populaires d'autres marques

AWS

AWS ZEO-50 Manuel utilisateur

Gima

Gima Glass Body Fat Analyzer Manuel de la liste des pièces

Seca

Seca 374 Manuel utilisateur

TEC

TEC TEC SL59 SERIES Manuel utilisateur

Axis

Axis B/E Series Manuel utilisateur

Alecto

Alecto ACW-40 Manuel utilisateur

Rice Lake

Rice Lake MSI-4260 IS Manuel utilisateur

IKA

IKA RCT basic safety control Manuel utilisateur

ADE

ADE M20011 Manuel utilisateur

Duronic

Duronic KS3000 Manuel utilisateur

Digi

Digi SM-720 Manuel utilisateur

Cardinal

Cardinal CS Series Manuel utilisateur

Korona

Korona Kastella Manuel utilisateur

A&D

A&D FC-50Ki Manuel utilisateur

BDA

BDA CAMARGUE Manuel utilisateur

Tanita

Tanita HD-357 Manuel utilisateur

Leifheit

Leifheit 03173 Manuel utilisateur

Lumme

Lumme LU-1340 Manuel utilisateur
