Health O Meter 2650KL Manuel utilisateur

Model 2650KL / 2700KL

Patient Wheelchair Scales

User Instructions

P/N UM2650KL / 2700KL Rev 1-031512

Model 2650KL / 2700KL

Thank you for your purchase of this Health o meter® Professional product. Please read this

manual carefully, and keep it for easy reference or training.

TABLE OF CONTENTS

Caution and Warning.................................................................................................3

Specifications for These Scales ................................................................................4

Certifications / Connectivity / Disposal ......................................................................6

Assembly Instructions 2650KL Scale .......................................................................7

Assembly Instructions 2700KL Scale .......................................................................11

Display Assembly Wall Mounting Instructions ..........................................................15

Setup / Batteries / Transport .....................................................................................16

Quick Start Instructions.............................................................................................18

Maintenance..............................................................................................................22

Calibration.................................................................................................................23

Troubleshooting ........................................................................................................24

Warranty....................................................................................................................25

Note: These scales have been factory calibrated, and does

not require calibration prior to use.

Please register your scale for warranty coverage at:

http://www.homscales.com/customer/registration.aspx

For User Instructions updates and revisions, please go to:

http://www.homscales.com

CAUTION AND WARNING

To prevent injury and damage to your scale, please follow these instructions very

carefully.

Assemble and operate the scale per the enclosed user instructions.

Operate these scales exclusively with the AC adapter provided by Health

o meter. Use of an unspecified adapter will void the warranty, and can

pose a serious safety hazard.

Prior to using these scales, inspect theAC adapter cord for

cracking/fraying, or for broken/bent plug prongs.

Prior to using these scales, ensure that theAC adapter is plugged into an

outlet with the rated voltage appropriate for operation.

Ensure that the AC adapter outlet is wired to a circuit breaker or other

protected power source.

Unplug the AC adapter, and carefully store both the adapter and adapter

cord before moving the scale.

Ensure that the AC adapter and scale do not come in contact with liquids,

excessive temperature, or excessive humidity.

Operating these scales at voltages and frequencies other than specified

can damage the equipment and will void the warranty.

Do not transport the scale with any weight on the platform.

Do not exceed recommended weight limit of 1000 lb / 454 kg for these

scales.

For accurate weighing, these scales must be placed on a flat, stable

surface. Also verify before each use the proper operation according to

the procedure described in this manual.

Do not use in the presence of flammable or explosive materials.

For accurate weighing, if the “Lo bAtt” indicator activates, replace the

batteries or switch to the AC adapter as soon as possible.

When operating the scale with the display assembly on a flat surface,

ensure that the load cell cable is routed to prevent a tripping hazard to the

patient or user.

When operating the scale with the display assembly on the wall, ensure

that the display is securely mounted with the appropriate anchors and

screws.

To prevent scale damage, ensure that the wall-mounted display is

removed off the wall prior to scale transport.

When wall mounting the display assembly, ensure that the mounting

location is free of electrical lines, gas pipes, and other safety hazards.

When replacing / inserting batteries, be sure to use all new batteries.

CAUTION AND WARNING

To prevent patient injury, the patient must be attended throughout the

entire weighing event. Exercise caution when rolling patient onto and off

of the scale.

To prevent injury, excise care when adjusting wheelchair ramps.

To prevent injury and damage to your scale, do not drop or mishandle

scale, while handling or transporting scale. As this can permanently

damage the load cells and may also cause injury to one self.

SPECIFICATIONS FOR THESE SCALES

General

The Model 2650KL and 2700KL Patient Scales use highly sophisticated microprocessor

technology. Each precision scale is designed to provide accurate, reliable, and repeatable

weight measurements. In addition, each scale is designed to provide the user with features that

make the weighing process simple, fast, and convenient.

These scales are set up to use motion-sensing weighing technology in order to determine the

actual weight of a moving patient.

Weight can be displayed in pounds or in kilograms. For privacy and convenience in use, the

scale features a remote display head which may be held by the operator, placed on a table or

other flat surface, or mounted on a wall. Both scale models have 2 wheels built-in for easy

mobility. Each scale can be powered using an AC adapter (included), or by 6 - AA

batteries (not included).

2650KL / 2700KL Specifications

Capacity and Resolution 2650KL / 2700KL: 1000 lb x 0.2 lb (454 kg x 0.1 kg)

Power Requirements 120V - 240V AC, 50 - 60Hz-9V DC adapter or 6 - AA batteries

Environmental Operating temperatures: 50°F to 95°F (10°C to 35°C)

Storage temperatures: 30°F to 125°F (0°C to 50°C)

Maximum Humidity: 85% rH, non-condensing

Physical Dimensions Platform-2650KL

Length: 31-½” (80.0 cm)

Width: 31-¼” (79.4 cm)

Height: 2-½” (6.2 cm)

Assembled Size and Weight

Length: 34-¼” (87 cm)

Width: 33” (83.8 cm)

Height: 6” (15.2 cm)

Weight: 80.5 lb (36.5 kg)

Physical Dimensions Platform-2700KL

Length: 32-½” (82.6 cm)

Width: 36” (91.4 cm)

Height: 2-½” (6.2 cm)

Assembled Size and Weight

Length: 41-½” (105.4 cm)

Width: 56-¼” (143 cm)

Height: 3-⅛” (8 cm)

Weight: 80.5 lb (36.5 kg)

CERTIFICATIONS / CONNECTIVITY / DISPOSAL

Certification Descriptions

2650KL / 2700KL Scale Connectivity Information

To enable reliable transmission of weight, height, and Body Mass Index (BMI) data, these

scales are designed to connect to a computer, monitor, or other electronic device via a built-in

USB port. This connectivity helps minimize a source of potential medical errors caused by

incorrectly copying and then recording patient data.

These scales are EMR-EHR compatible. For more information regarding how to connect these

scales to other electronic devices, please contact Health o meter® Professional Scales

Technical Support, available during normal business hours at (+1) 800-815-6615 or (+1) 708-

377-0600.

2650KL / 2700KL Scale Disposal

These Health o meter® Professional scales must be disposed of properly as electronic waste.

Follow the national, regional or local regulations which apply to you for disposal of electronic

waste or batteries. Do not dispose of this device in the domestic waste stream.

Pelstar, LLC has been officially certified as the manufacturer

of Health o meter® Professional medical devices. The Pelstar,

LLC quality assurance system covers the development,

production, sales and service of medical scales and

measuring systems.

This product is tested to and meets the requirements of:

1. UL60601-1 First Edition: Safety for Medical Electrical

Equipment

2. CSA C22.2 No. 601-1 M90: Medical Electrical Equipment

2650KL ASSEMBLY INSTRUCTIONS

Before Assembly

Each 2650KL scale is shipped disassembled in a single carton. Carefully inspect the carton for

shipping damage before unpacking. If damage is found, contact your shipper or a Health o

meter® Professional representative immediately. Claims must be filed with the shipper as soon

as possible after receipt of the package. The following information details what you will find

inside the main carton as you unpack the parts for assembly.

To prevent scratching any components, carefully remove each assembly from the carton and

unwrap the packing materials. Set the carton aside for storage. To avoid damaging the scale

parts when unpacking, do not use a box cutter, knife, scissors, or any sharp object to open the

protective inner packaging.

Parts List

(1) Scale Platform

(1) User Instructions

(1) Box Containing:

(1) Display Assembly

(1) Load Cell Connector Cable

(1) AC Adapter

(4) Feet

Note: In order to mount the scale’s display assembly onto the wall, a set of wall anchors and

screws will be required (not included). Refer to the user instructions for secure display

assembly mounting.

Tools Required

Phillips head screwdriver (not included), Allen wrenches (included).

2650KL ASSEMBLY INSTRUCTIONS (CONTINUED)

Assembling the 2650KL Scale (Refer to Figures 1-3)

Caution: It is recommended that the assembly be performed by two persons.

1. Place scale platform on a flat, level, and dry surface, and carefully turn the platform upside

down.

Caution: Ensure that the wheelchair ramps are held in place when moving the scale -

ramps can flip open.

2. Thread the (4) feet into the underside of the platform. Each foot should be completely hand

tightened into the platform. Back feet out 1-½ full turns. This will allow for proper load cell

operation and scale accuracy.

3. Carefully flip the scale over to its upright position on the floor.

Warning: Do not drop scale, as this can permanently damage the load cells.

4. Adjust the feet to level the scale. Be certain that the feet are not completely tightened into the

platform for proper load cell operation.

5. Open the scale to its operational position by folding open the wheelchair ramps.

6. Connect the load cell cable to the scale platform by inserting the load cell cable connector

into the load cell port (see Figure 2).

7. Ensure that the other load cell cable connector is securely plugged into the display assembly

load cell jack (located on the rear panel of the display assembly). The load cell jack is labeled

“LOAD CELL” (see Figure 3).

8. If the AC adapter will be used, connect the AC adapter cord plug into the AC power jack,

located on the back of the display assembly. The AC power jack is labeled “POWER” (see

Figure 3).

9. Connect the AC adapter to the power port, located on the back of the display assembly.

Caution: Do not plug the scale into a power source until the scale is fully assembled.

10. The scale is now assembled. Plug the AC adapter into a power source and / or insert the

batteries.

11. Carefully position the display assembly on the desk, table, or other flat surface.

Caution: Ensure that the load cell cable is adequately secured to prevent a tripping

hazard to the patient or user.

Note: Refer to “Display Assembly Wall Mounting Instructions”, located in this User Instruction

Manual.

2650KL ASSEMBLY INSTRUCTIONS (CONTINUED)

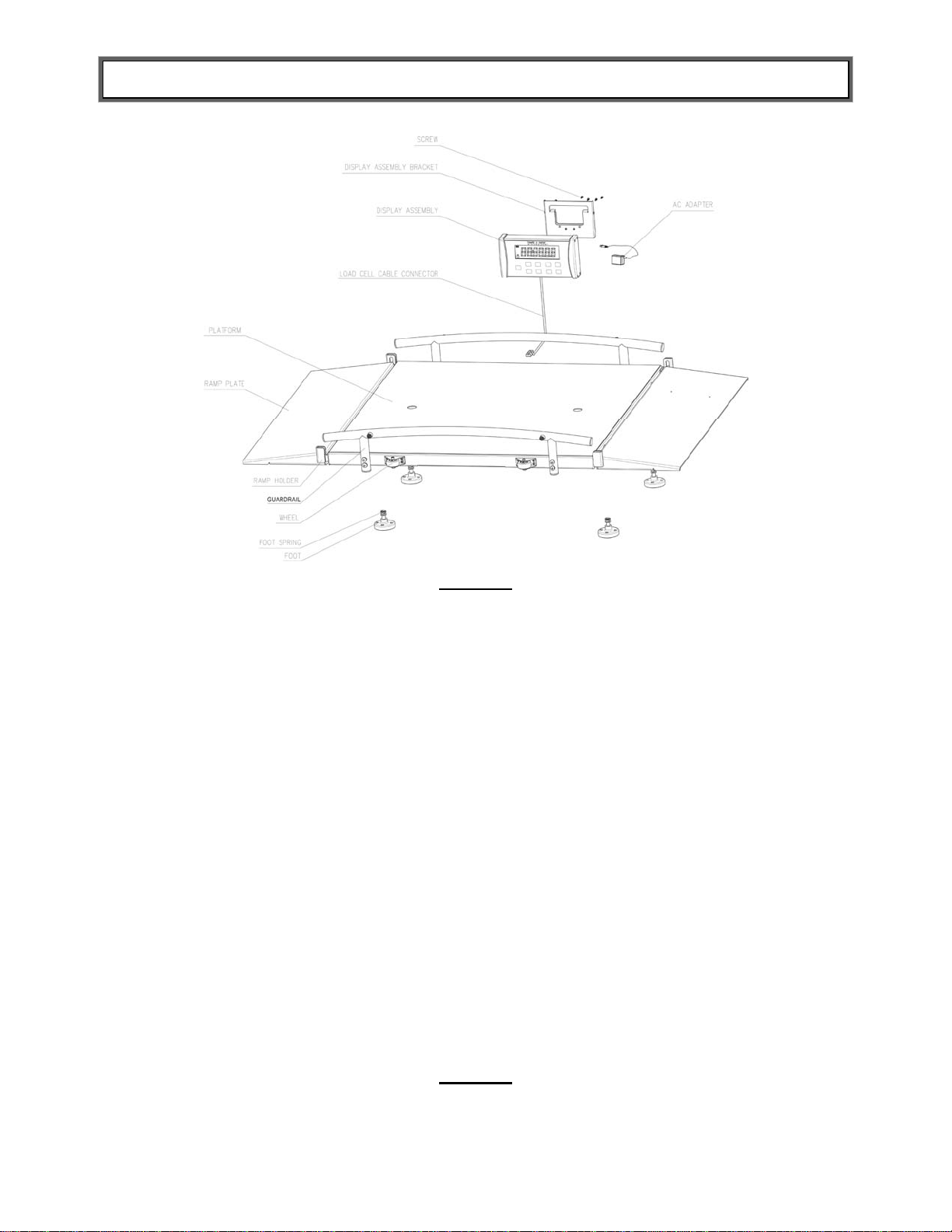

Figure 1

Figure 2

Load Cell Port

2650KL ASSEMBLY INSTRUCTIONS (CONTINUED)

Figure 3

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Health O Meter Échelle

Health O Meter

Health O Meter 2210KL Manuel utilisateur

Health O Meter

Health O Meter eBABYHR Manuel utilisateur

Health O Meter

Health O Meter HAB957 Manuel utilisateur

Health O Meter

Health O Meter 3423 Manuel utilisateur

Health O Meter

Health O Meter PROPLUS 2000KL Manuel utilisateur

Health O Meter

Health O Meter 2210CART Manuel utilisateur

Health O Meter

Health O Meter HDM560 Manuel utilisateur

Health O Meter

Health O Meter 2842KL Manuel utilisateur

Health O Meter

Health O Meter PROPLUS 2000KL Manuel utilisateur

Health O Meter

Health O Meter HNY200 Manuel utilisateur

Health O Meter

Health O Meter 2400KL Manuel utilisateur

Health O Meter

Health O Meter Pro Plus 2101KL Manuel utilisateur

Health O Meter

Health O Meter HDM575 Manuel utilisateur

Health O Meter

Health O Meter DIGITAL PEDIATRIC SCALE 549KL Manuel utilisateur

Health O Meter

Health O Meter 1101KL Manuel utilisateur

Health O Meter

Health O Meter BFM582 Guide de l'utilisateur

Health O Meter

Health O Meter 753KL Manuel utilisateur

Health O Meter

Health O Meter PROPLUS 1100KL Manuel utilisateur

Health O Meter

Health O Meter 597KL Manuel utilisateur

Health O Meter

Health O Meter 522KG Manuel utilisateur

Health O Meter

Health O Meter PROPLUS 1600KL Manuel utilisateur

Health O Meter

Health O Meter PROPLUS 2650KGWA Manuel utilisateur

Health O Meter

Health O Meter HDM560 Manuel utilisateur

Health O Meter

Health O Meter Professional 499KG Manuel utilisateur

Manuels Échelle populaires d'autres marques

AWS

AWS ZEO-50 Manuel utilisateur

Gima

Gima Glass Body Fat Analyzer Manuel de la liste des pièces

Seca

Seca 374 Manuel utilisateur

TEC

TEC TEC SL59 SERIES Manuel utilisateur

Axis

Axis B/E Series Manuel utilisateur

Alecto

Alecto ACW-40 Manuel utilisateur

Rice Lake

Rice Lake MSI-4260 IS Manuel utilisateur

IKA

IKA RCT basic safety control Manuel utilisateur

ADE

ADE M20011 Manuel utilisateur

Duronic

Duronic KS3000 Manuel utilisateur

Digi

Digi SM-720 Manuel utilisateur

Cardinal

Cardinal CS Series Manuel utilisateur

Korona

Korona Kastella Manuel utilisateur

A&D

A&D FC-50Ki Manuel utilisateur

BDA

BDA CAMARGUE Manuel utilisateur

Tanita

Tanita HD-357 Manuel utilisateur

Leifheit

Leifheit 03173 Manuel utilisateur

Lumme

Lumme LU-1340 Manuel utilisateur
