Health O Meter 2210KL Instructions d'installation

Model 2210KL / 2210KL4

High Resolution Digital Neonatal/Pediatric Tray Scale

User Instructions

PELSTAR, LLC 9500 West 55th St. McCook, IL 60525-7110 USA www.homscales.com

P/N UM2210KL 2210KL4 Rev20171218

2210KL

2210KL4

Model 2210KL / 2210KL4

Thank you for your purchase of this Health o meter® Professional product. Please read this manual

carefully, and keep it for easy reference or training.

TABLE OF CONTENTS

Cautions and Warnings.............................................................................................3

Specifications for This Scale.....................................................................................4

Certifications / Connectivity / Disposal......................................................................5

Assembly Instructions ..............................................................................................6

Operating Instructions...............................................................................................8

Calibration.................................................................................................................14

Troubleshooting........................................................................................................15

Maintenance .............................................................................................................16

Warranty...................................................................................................................17

Note: This scale has been factory calibrated, and does not

require calibration prior to use.

Please register your scale for warranty coverage at:

www.homscales.com/product-support/technical-support/product-warranty-registration

For User Instructions updates and revisions please go to:

www.homscales.com

CAUTIONS AND WARNINGS

INTENDED USE

This Health o meter®Professional neonatal/pediatric scale is intended to be used in a professional

medical environment by trained medical staff. This product was designed to weigh pediatric patients who

are safely positioned on the scale tray. Do not modify the product or use it for anything other than its

intended purpose.

To prevent patient/caregiver injury or damage to your scale, please follow the instructions in

this user manual very carefully.

Do not exceed the weight capacity specified for this scale.

For accurate weighing, this scale must be placed on a flat, stable surface.

For accurate weighing, verify before each use the proper operation according to the

procedure described in this manual.

Do not use in the presence of flammable or explosive materials.

If the scale becomes damaged, it should not be operated until properly serviced.

Do not transport the scale with a patient or object on the scale.

Ensure that the scale does not come in contact with liquids, excessive temperature, or

excessive humidity.

Do not gas sterilize or autoclave the scale.

Scales contain delicate sensors. Do not bang into doors, walls, etc., as

damage may result.

Patient Safety

This scale is designed for static weighing of patients only. No scale should be used for patient

transfer.

To prevent patient injury, the patient must be attended throughout the entire weighing event.

When operating the scale with batteries:

If the display indicates low battery, replace the batteries as soon as possible.

When replacing / inserting batteries, be sure to use all new batteries.

In no event shall Pelstar, LLC be liable for damages or injuries whatsoever arising out of or

connected with the assembly, use, or misuse of its products.

SPECIFICATIONS FOR THIS SCALE

General

Health o meter® Professional scales use the most sophisticated microprocessor technology

available. Each precision instrument is designed to provide accurate, reliable and repeatable weight

measurements, as well as other features that make the weighing process simple, fast and

convenient.

In order to achieve satisfactory results, the operator must read this manual thoroughly before using

this scale.

If any questions arise regarding this scale or its use, please contact

Health o meter®Professional Scales Customer Service at 1-800-815-6615.

2210KL / 2210KL4 Scale Specifications

Capacity and Resolution

20000 grams / 20 kg / 45 lb

Resolution: 0 –11300 g (0 –25 lb) (0 - 10 kg) +/- 1g (+/- 0.1 oz); >

11300 g (> 25 lb) (> 10 kg) +/- 5 g (+/- 0.1 oz)

Power Requirements

6 C-Cell Alkaline batteries

Environmental

Operating temperatures: 68°F to 85°F (20°C to 30°C)

Storage temperatures: 14°F to 122°F (-10°C to 50°C)

Maximum Humidity: 95% RH

Physical Dimensions

2-sided Tray:

Width: 24” (610mm)

Depth: 15 3/8” (391mm)

Height: 3” (76mm)

4-sided Tray

Width: 27” (686mm)

Depth: 15 3/8” (391mm)

Height: 3” (76mm)

2210KL Product Footprint

Width: 25 1/2” (648mm)

Depth: 17 3/8” (441mm)

Height: 5 3/8” (137mm)

Weight: 24.4 lb (11 kg)

2210KL4 Product Footprint

Width: 27” (686mm)

Depth: 17 3/8” (441mm)

Height: 5 3/8” (137mm)

Weight: 25.2 lb (11.4 kg)

CERTIFICATIONS / DISPOSAL

Certification Descriptions

Scale Disposal

This Health o meter® Professional scale must be disposed of properly as electronic waste. Follow

the national, regional or local regulations which apply to you for disposal of electronic waste or

batteries. Do not dispose of this device in the domestic waste stream.

Pelstar, LLC has been officially certified as the manufacturer

of Health o meter® Professional medical devices. The Pelstar,

LLC quality assurance system covers the development,

production, sales and service of medical scales and

measuring systems.

This product is tested to and meets the requirements of:

1. CSA C22.2 No. 601-1 M90: Medical Electrical Equipment

ASSEMBLY INSTRUCTIONS

Before Assembly

Each 2210KL / 2210KL4 neonatal/pediatric tray scale is shipped disassembled in one carton.

Carefully inspect the carton for shipping damage before unpacking. If damage is found, contact your

shipper or a Health o meter®Professional representative immediately at 1-800-815-6615. Claims

must be filed with the shipper as soon as possible after receipt of the package. The following

information details what you will find inside the main carton as you unpack the parts for assembly.

To prevent scratching any components, carefully remove each assembly from the carton and unwrap

the packing materials. Set the carton aside for storage. To avoid damaging the scale parts when

unpacking, do not use a box cutter, knife, scissors, or any sharp object to open the protective inner

packaging.

Parts List

Carton

(1) Scale platform

(1) Acrylic tray

(6) C-cell Alkaline batteries

(1) User instructions

Tools Required

Phillips head screwdriver (not included)

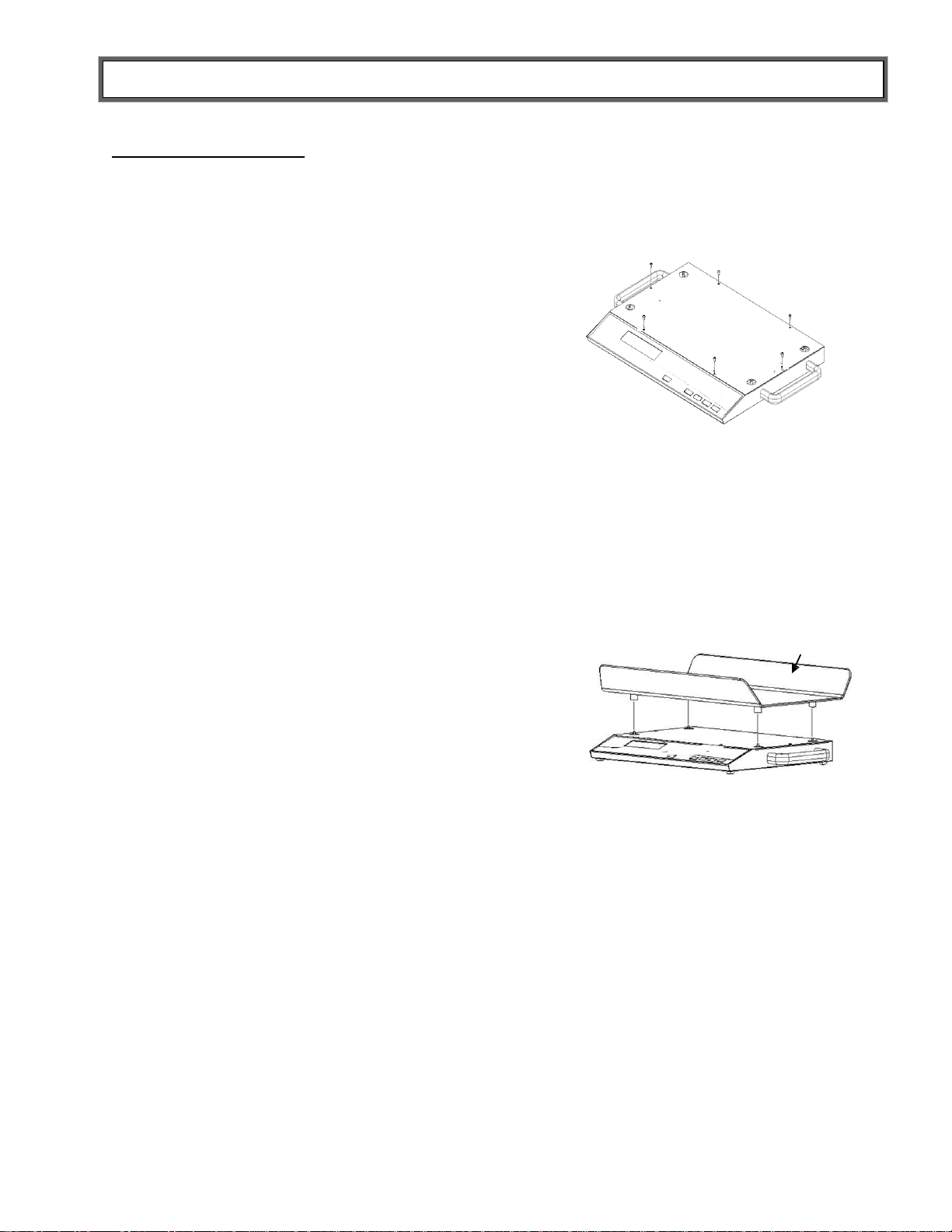

Figure 1a: Remove Scale Cover

Figure 1b: Install Tray

Measuring Tape

ASSEMBLY INSTRUCTIONS (CONTINUED)

Assembling the Scale

This scale is powered by six (6) standard disposable C-cell alkaline batteries. Use the following

procedure to install the batteries:

1. Remove the scale top cover by removing the six (6)

screws (Fig. 1a).

2. Locate the battery tray (in the rear center of the scale

platform). It has a white cover that is held down with two

screws. Remove the screws and battery cover.

3. Insert new batteries. Note the orientation that is shown

on the bottom of the battery tray.

4. Replace the battery tray cover and screws. Before

installing scale cover, press ON/ZERO to ensure scale turns

on.

5. Reinstall the scale cover. Start partially inserting the (6) screws. Once cover is centered, tighten

screws fully.

6. Place the scale platform on a table top with the display buttons facing you.

7. The acrylic tray has a built-in measuring tape. Align

the tray so that the rule is positioned over the back end

of the scale platform (Fig. 1b).

8. Carefully lower the tray onto the four mounting pins

on the scale platform. When the tray is properly aligned

with the pins, gently push down on the tray over each

pin until it snaps into its locked position. When properly

positioned, there will be about a 3/8” space between the

platform top and the bottom of the tray.

Always lift the scale by the black handles only –

never by the tray.

OPERATING INSTRUCTIONS

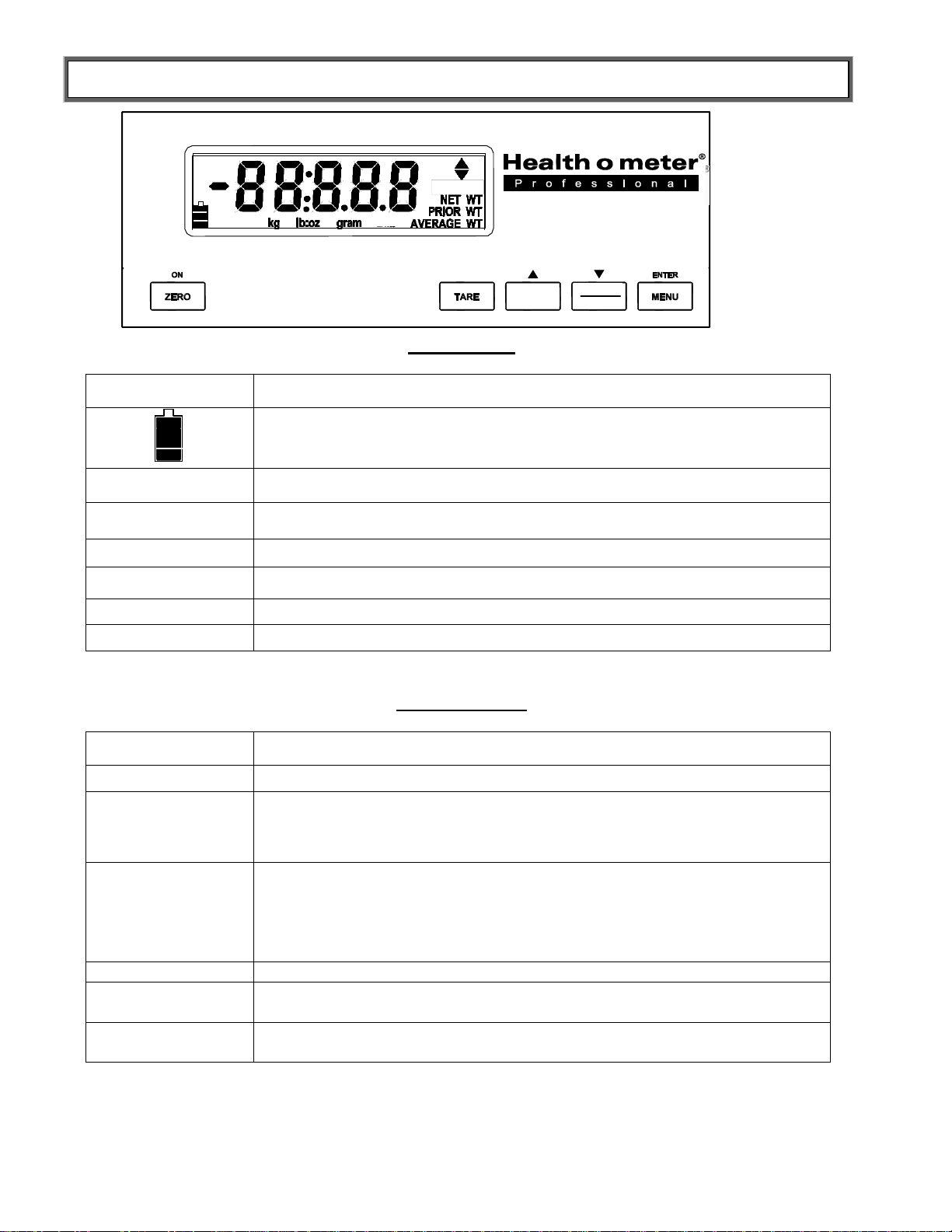

Screen Icons

Icon

Description

Indicates level of battery power remaining.

Indicates weight mode is in kilograms.

lb:oz

Indicates weight mode is in pounds/ounces.

gram

Indicates weight mode is in grams.

NET WT

Is displayed when a weight is tared.

PRIOR WT

Is displayed after a weight measurement.

AVERAGE WT

Is displayed when motion is detected during a weight measurement.

Keypad Buttons

Note that some buttons perform multiple functions.

Function

Description

ON/ZERO

Press to turn scale on or reset to zero.

TARE

Used to perform the tare function and deducts the weight of an object on

the tray.

LB/GM

Toggles the unit of measurement between Pounds and Grams in LB/GM

mode or Kilograms and Grams in KG/GM mode. See User Setting

Options on page 13 for instructions on changing unit of measurement

mode.

Secondary function is the up arrow and is used for menu selection.

REWEIGH

Allows repeating weighing of the patient without stepping off the scale.

RECALL

Recalls previous weight measurement.

Secondary function is the down arrow and is used for menu selection.

Used for advanced programming functions.

Secondary function is the ENTER button and is used for menu selection.

LB/GM

RECALL

REWEIGH

OPERATING INSTRUCTIONS (CONT)

Weighing a Patient

1. Press blue ON/ZERO button. Make sure “0” appears on display.

2. Place baby on tray.

3. Allow scale to lock onto the weight. The scale will beep and display “PRIOR WT” when the

weight is locked.

4. Remove baby from tray. Measurement value remains on the display until it is cleared.

5. To clear the displayed weight and ready the scale for the next weighing, press blue ON/ZERO

button.

The 2210KL scale comes standard with these features.

1. Auto-Zero: The scale will automatically display “0” when turned on. If the display reads between

“-20 gram” and “20 gram” at any time, regardless of what is on the tray, the scale will automatically

reset to “0” after 8 seconds.

2. English/Metric Readout: With normal operation you may switch the display units between grams

(or kilograms) and pounds at any time before or after a weighing. When turned on, the scale will

display the last used unit of measure.

3. Tare Option: An object weighing more than 30 grams can be subtracted from the total weight to

determine the net weight.

4. Weightlock: Any weight over 512 grams will lock in so that no further weighings can take place

until the weight is cleared by pressing ON/ZERO. The measurement will display even after the baby

is removed from the tray so that the caregiver can attend to the baby first before recording the

weight. The value is retained in memory and can be reacalled even after the scale turns itself off.

5. Motion Detection: In most cases the scale will display a true, accurate weight based on a series of

consistent and stable measurements. However, if a baby or object is moving on the tray, the scale

may not achieve consistent readings that are required to give a “stable” weight. This condition is

indicated by Weightlock not activating on the display. If the movement on the tray continues for

seven seconds, the scale will automatically activate the motion detection feature and the infant’s

weight and “AVERAGE WT” will be displayed.

Because of the movement on the platform, average weight indicates that the scale was not able to

achieve a true measurement in line with the listed accuracy specification. However, the average

weight deviation from the true weight of the baby will be minimal, based on the severity of the motion

during the weight reading.

6. Auto-Off: As a battery saving feature, the scale will automatically turn off when not being used.

The length of the Auto-Off timeout is programmable by the user. The factory setting is one minute.

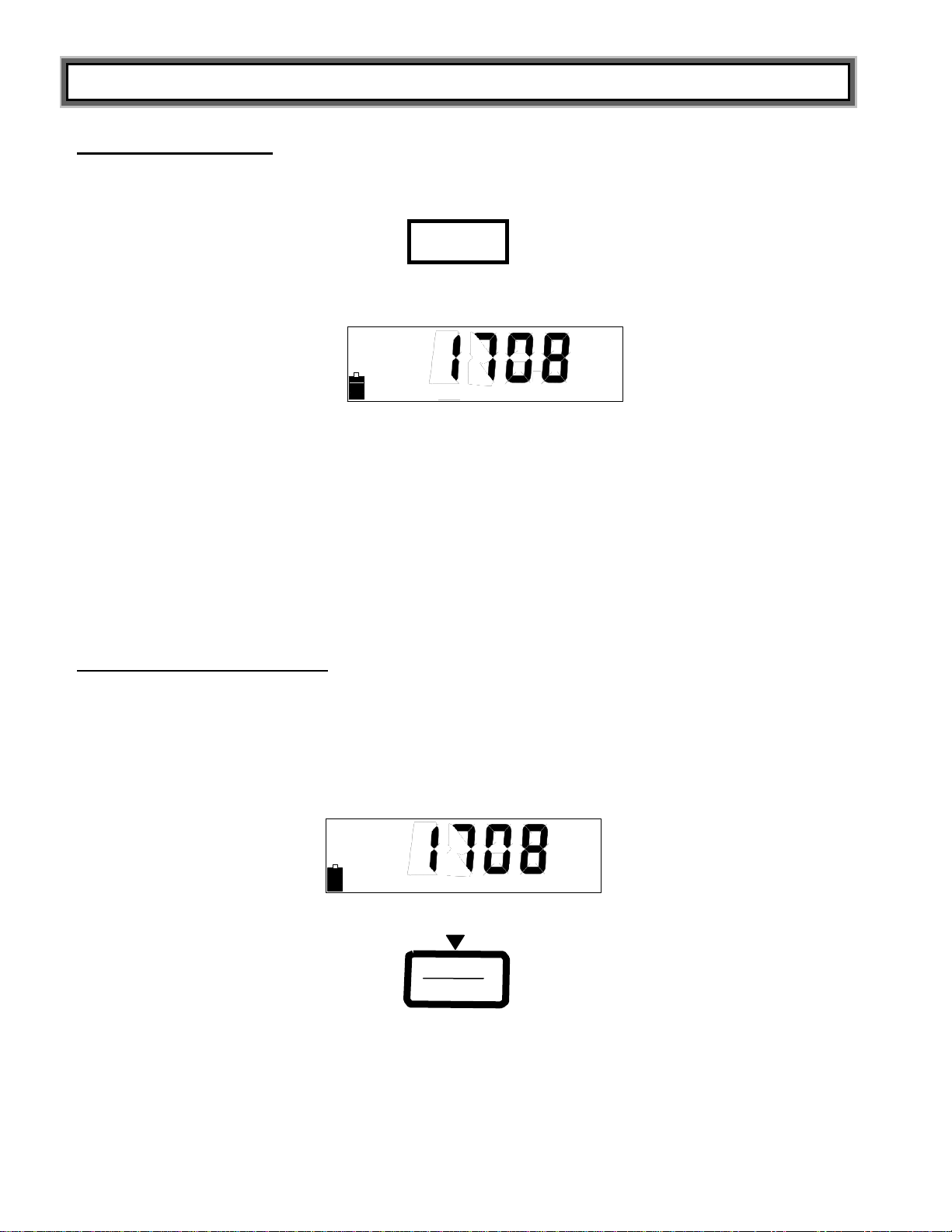

Figure 3: Tare button

NET WT

gram

Figure 4: Net weight display

gram

Figure 5: Weightlock display

REWEIGH

RECALL

Figure 6: Reweigh/Recall button

OPERATING INSTRUCTIONS (CONT)

Using the Tare Function

When using this scale, the weight of an object, such as a blanket, on the scale with the baby being

weighed can be subtracted from the total weight to determine the net weight of the baby alone. The

Tare function automatically performs this subtraction, avoiding the need for manual calculations.

1. Turn the scale on and wait for the display to read “0”.

2. Place the object (i.e. blanket) on the tray. The weight of the object will be displayed.

3. Press the TARE button. “NET WT” and “0.0” will be displayed.

If the object is removed from the platform, its weight will be displayed as a negative value.

4. Place the baby on the tray with the object. The readout will now display the baby’s net

weight.

5. Press ON/ZERO to return the scale back to normal weighing operation.

Using the Weightlock Function

When using this scale, the weight of any object over 512 grams will be locked on the display even

after the baby has been removed from the tray. This allows the caregiver to tend to the needs of the

baby first before recording the weight. This value can be recalled even after the scale has turned off.

When the baby’s weight is locked, “PRIOR WT” is displayed (Fig. 5). The weight will remain

displayed even after the baby is removed from the tray. No further weighings can take place until the

weight is cleared by pressing ON/ZERO or REWEIGH/RECALL (Fig 6).

TARE

PRIOR WT.

Autres manuels pour 2210KL

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Health O Meter Échelle

Health O Meter

Health O Meter PROPLUS 1100KL Manuel utilisateur

Health O Meter

Health O Meter DIGITAL PEDIATRIC SCALE 549KL Manuel utilisateur

Health O Meter

Health O Meter Health o meter BFM580 Manuel utilisateur

Health O Meter

Health O Meter 3423 Manuel utilisateur

Health O Meter

Health O Meter HDM169-60 Manuel utilisateur

Health O Meter

Health O Meter 8320KL Manuel utilisateur

Health O Meter

Health O Meter HDM560 Manuel utilisateur

Health O Meter

Health O Meter 402KL Guide de référence rapide

Health O Meter

Health O Meter 800KL Manuel utilisateur

Health O Meter

Health O Meter Professional Digital Scale Wireless USB... Manuel utilisateur

Health O Meter

Health O Meter 402KL Manuel utilisateur

Health O Meter

Health O Meter BCS-G6 Series Manuel utilisateur

Health O Meter

Health O Meter 450KL Manuel utilisateur

Health O Meter

Health O Meter 1522KL Guide de référence rapide

Health O Meter

Health O Meter HDM165-53 Manuel utilisateur

Health O Meter

Health O Meter 597KL Manuel utilisateur

Health O Meter

Health O Meter 142KL Manuel utilisateur

Health O Meter

Health O Meter RV-522KL Manuel utilisateur

Health O Meter

Health O Meter 500KL Manuel utilisateur

Health O Meter

Health O Meter 2210CART Manuel utilisateur

Health O Meter

Health O Meter 2500CKL Manuel utilisateur

Health O Meter

Health O Meter BFM081-63 Manuel utilisateur

Health O Meter

Health O Meter 499KL Manuel utilisateur

Health O Meter

Health O Meter weigheasier 2600KG Manuel utilisateur

Manuels Échelle populaires d'autres marques

AWS

AWS ZEO-50 Manuel utilisateur

Gima

Gima Glass Body Fat Analyzer Manuel de la liste des pièces

Seca

Seca 374 Manuel utilisateur

TEC

TEC TEC SL59 SERIES Manuel utilisateur

Axis

Axis B/E Series Manuel utilisateur

Alecto

Alecto ACW-40 Manuel utilisateur

Rice Lake

Rice Lake MSI-4260 IS Manuel utilisateur

IKA

IKA RCT basic safety control Manuel utilisateur

ADE

ADE M20011 Manuel utilisateur

Duronic

Duronic KS3000 Manuel utilisateur

Digi

Digi SM-720 Manuel utilisateur

Cardinal

Cardinal CS Series Manuel utilisateur

Korona

Korona Kastella Manuel utilisateur

A&D

A&D FC-50Ki Manuel utilisateur

BDA

BDA CAMARGUE Manuel utilisateur

Tanita

Tanita HD-357 Manuel utilisateur

Leifheit

Leifheit 03173 Manuel utilisateur

Lumme

Lumme LU-1340 Manuel utilisateur
