Model 402KL

Physician Beam Scale

User Instructions

PELSTAR, LLC 9500 West 55th St. McCook, IL 60525-7110 USA www.homscales.com

Health o meter®Professional 402KL

0459

UM402KL REV20190116_web 2

Health o meter®Professional 402KL

Thank you for your purchase of this Health o meter®Professional product. Please read this

manual carefully, and keep it for easy reference or training.

TABLE OF CONTENTS

Cautions and Warnings.............................................................................................3

Specifications / Certifications / Service .....................................................................4

Assembly Instructions ...............................................................................................5

Operating Instructions...............................................................................................7

Transportation ..........................................................................................................9

Counterweight Instructions........................................................................................10

Height Measurement Instructions..............................................................................14

Troubleshooting ........................................................................................................16

Maintenance and Cleaning........................................................................................18

Warranty....................................................................................................................19

Note: This scale has been factory calibrated, and does not

require calibration prior to use. There are no requirements for

calibration in the field; users should adhere to their

institution’s calibration policies.

Please register your scale for warranty coverage at:

www.homscales.com

For User Instructions updates and revisions please go to:

www.homscales.com

UM402KL REV20190116_web 3

CAUTIONS AND WARNINGS

This Health o meter®Professional platform scale is intended to be used in a professional

medical environment by trained medical staff. This product was designed to weigh

patients who are safely positioned and standing on the platform. The intended use of the

built-in height rod is to measure patient height. Do not modify the product or use it for

anything other than its intended purpose.

To prevent patient/caregiver injury or damage to your scale, please follow the

instructions in this user manual very carefully.

Do not exceed recommended weight limit for this scale.

Do not transport the scale with a patient or object on the scale.

Do not wheel or pull the scale down stairs, doing so may damage internal parts.

To prevent injury, as well as scale damage during assembly, exercise caution

when assembling the scale pillar.

Assemble and operate the scale per the enclosed user instructions.

For accurate weighing, this scale must be placed on a flat, stable surface.

For accurate weighing, verify before each use the proper operation according to

the procedure described in this manual.

Do not use in the presence of flammable or explosive materials.

If the scale becomes damaged, it should not be operated until properly serviced.

Patient/caregiver safety

This scale is designed for static weighing of patients only. No scale should be

used for patient transfer.

Patient should wear socks or other form of lightweight foot covering during

weighing event.

To prevent patient injury, the patient must be attended to throughout the entire

weighing event. Caregivers should ensure that the patient is stable and provide

support as needed when getting onto and off of the scale.

In no event whatsoever shall Pelstar, LLC be liable for damages or injuries arising from

or connected with the assembly, use, or misuse of its products.

UM402KL REV20190116_web 4

SPECIFICATIONS / CERTIFCATIONS / SERVICE

General

The Model 402KL physician beam scale employs a proven and rugged mechanical design to

measure patient weight and height. Each precision scale is designed to provide accurate,

reliable, and repeatable weight measurements. In addition, each scale is designed to provide

the user with features that make the weighing process simple, fast, and convenient.

Weight is displayed in pounds (lb) or in kilograms (kg). Height is displayed in inches (in) or in

centimeters (cm).

402KL Scale Specifications

Capacity:

390 lb (180 kg)

Capacity with optional

counterweights (Item #

55090):

490 lb (210 kg)

Environmental:

Operating temperatures: 50°F to 104°F (10°C to 40°C)

Storage temperatures: 50°F to 104°F (10°C to 40°C)

Maximum Humidity: 85% RH

Physical Dimensions:

Scale (Overall Dimensions)

Width: 10-½” (26.7 cm)

Depth: 20-1/4” (51.4 cm)

Height: 57-½” (146.1 cm)

Weight: 28 lb (12.7 kg)

Platform (Standing Area)

Width: 10-½” (26.7cm)

Depth: 14” (35.6 cm)

Height: 3-1/4” (8.3 cm)

Certification Descriptions

Customer Service Information

The 402KL physician beam scale is shipped disassembled in one carton. Carefully inspect the

carton for shipping damage before unpacking. If damage is found, contact Customer Service.

For further information or telephone support, please contact Customer Service at:

Telephone: 1 (800) 815-6615 Email: homprocs@homscales.com

Pelstar, LLC has been officially certified as the

manufacturer of Health o meter®Professional medical

devices. The Pelstar, LLC quality assurance system

covers the development, production, sales and service of

medical scales and measuring systems.

Products carrying this symbol meet the requirements

of: Medical Device Directive 93/42/EEC

0459

UM402KL REV20190116_web 5

ASSEMBLY INSTRUCTIONS (CONT.)

Before Assembly

Each 402KL physician beam scale is shipped disassembled in one carton. Carefully inspect the

carton for shipping damage before unpacking. If damage is found, contact your shipper or a

Health o meter®Professional representative immediately. Claims must be filed with the shipper

as soon as possible after receipt of the package. The following information details what you will

find inside the main carton as you unpack the parts for assembly.

To prevent scratching any components and avoid damaging the scale parts when unpacking, do

not use a box cutter, knife, scissors, or any sharp object to open the protective inner packaging.

Carefully remove each assembly from the carton and unwrap the packing materials. Set the

carton aside for storage.

Parts List

Carton

(1) Scale platform

(1) Pillar with height rod attached

(4) Pillar nuts

(1) User instructions

(1) Wrench

Tools Required

Wrench (included)

UM402KL REV20190116_web 6

ASSEMBLY INSTRUCTIONS (CONT.)

Caution: It is recommended that the assembly be performed by two people. Use of a

chair is also recommended for the assembly process.

1.Carefully remove the scale platform and

pillar from the carton and place on a flat,

level, and dry surface. Locate the steel rod

at the base of the pillar. Cut the tie wrap that

holds the steel rod / finger pull loop to the

pillar.

2.Obtain a sturdy chair and place the top of

the pillar with the height rod side facing

down on the seat of the chair, as shown.

Place the platform/base perpendicular to the

platform with the front of the base resting on

the floor and the top of the platform/base

facing the top of the pillar. Align the four

studs on the bottom of the pillar with the four

holes in the top of the platform/base. Insert

the studs into into the platform/base.

Note: If a chair is not available it is

recommended that one person holds the

platform/base while another person handles

the pillar.

3.Access the underside of the scale base.

Obtain the four pillar nuts in the carton and

place onto the studs on the underside of the

scale base. Using the provided wrench,

tighten the pillar nuts to secure the pillar to

the base.

4.Grasp the finger pull loop on the end of the

steel rod and pull towards the lever

extension. Push the lever extension towards

the finger pull loop. Hook the steel rod to the

hole at the end of the lever extension.

Release the finger pull loop and ensure that

the steel rod and lever extension are hooked

together. Carefully position the scale to its

upright position. The scale is now

assembled. Refer to the next page to zero

balance the scale before first use.

Tie wrap

Pillar nuts

Column B

(top)

Column B

(top)

Finger pull

loop

Steel rod

Lever

extension

Studs

Steel rod /

finger pull loop

UM402KL REV20190116_web 7

OPERATING INSTRUCTIONS

Zero Balance Adjustment

Before first use, the scale needs to be zero balanced by following the instructions below. The scale

should also be checked and balanced periodically, particularly when moved.

Note: A flat head screwdriver is required.

1. Ensure that the scale is located on a hard, flat, and level surface. Step on and off scale several

times in order to align all internal parts.

2. Place both poise weights on the “0” value on both bars. The beam pointer should float gently up

and down, and not touch the top or bottom of the trig-loop.

3. If the beam pointer is not centered in the trig-loop opening, using a flat head screwdriver, rotate

the balance ball screw to correct the beam pointer. Turn the screw about ¼ turn forwards or

backwards and let poise bar settle. Based on which direction the poise bar moved turn ¼

forwards or backwards again and let poise bar settle until the pointer is centered in the trig loop.

Weighing Instructions

1. Set the upper and lower poise weights to indicate the patient’s approximate weight.

2. Have patient step onto the scale. Ensure they are positioned directly in the center of the

platform. Continue to adjust the upper and lower poise weights until the pointer is centered.

Note: It is not necessary for you to wait for the pointer to stop moving in order to read the correct

weight. As long as the pointer is moving equally within the trig-loop opening, the patient’s weight

can be determined.

3. Observe the location of the indicator arrow built into each poise weight. Read the value on the

poise bar, closest to the indicator arrow.

Note: For easy identification, pounds (lb) have black graduations on a silver background, located on

the upper portion of each poise bar; kilograms (kg) have silver graduations on a black

background, located on the lower portion of each poise bar.

4. Add the indicated reading of the upper poise value to the indicated reading of the lower poise

value. The total amount is the patient’s weight. See the example on the next page.

Note: To transport your scale, acquire the optional wheel bracket (Item # 55000). Please refer to the

“Transportation” section on page 9 for assembly instructions.

Note: To increase your scale’s capacity, acquire the optional counterweight set (Item # 55090).

Please refer to the “Counterweight Instructions” section on page 10.

Upper poise bar

Balance ball

screw

Lower poise weight

Lower poise bar

Pillar head

Trig loop

Balance

ball

Pounds

Pointer

Upper poise weight

Kilograms

UM402KL REV20190116_web 8

OPERATING INSTRUCTIONS (CONT.)

Indicator

Value reads 29.75 lb

Value reads 100 lb

Combined value: 100 lb +

29.75 lb = 129.75 lb

- or -

Combined value: 45.4 kg

13.5 kg = 58.9 kg

Value reads 13.5 kg

Value reads 45.4 kg

UM402KL REV20190116_web 9

TRANSPORTATION

A wheel bracket is included if purchased as model 402KLWH. If purchased as model 402KL an

optional wheel bracket can be purchased separately (Item #55000). Follow these steps to install

the wheel bracket:

Tools Required (not included)

Adjustable wrench or 10 mm wrench

1.Remove the mounting screws that attach the

clamping plate to the wheel bracket.

2.Gain access to the underside of the scale

base by carefully tipping the scale forward

until the pillar is resting on the floor. Position

the clamping plate inside the base by

aligning the holes in the clamping plate and

base.

3.Position the wheel bracket onto the base by

aligning the holes in the wheel bracket with

the holes in the clamping plate.

4.Insert the mounting screws through the

wheel bracket and into the clamping plate.

Using a wrench, tighten the mounting screws

to secure the wheel bracket to the base.

Carefully tip the scale to its upright position.

To transport the scale, tip the pillar backwards until the scale is resting on the wheel bracket.

Carefully move the scale to its new location.

Base

Mount wheel bracket here

Close-up view of wheel mounting area

Clamping plate

Wheel

bracket

Mounting screws

UM402KL REV20190116_web 10

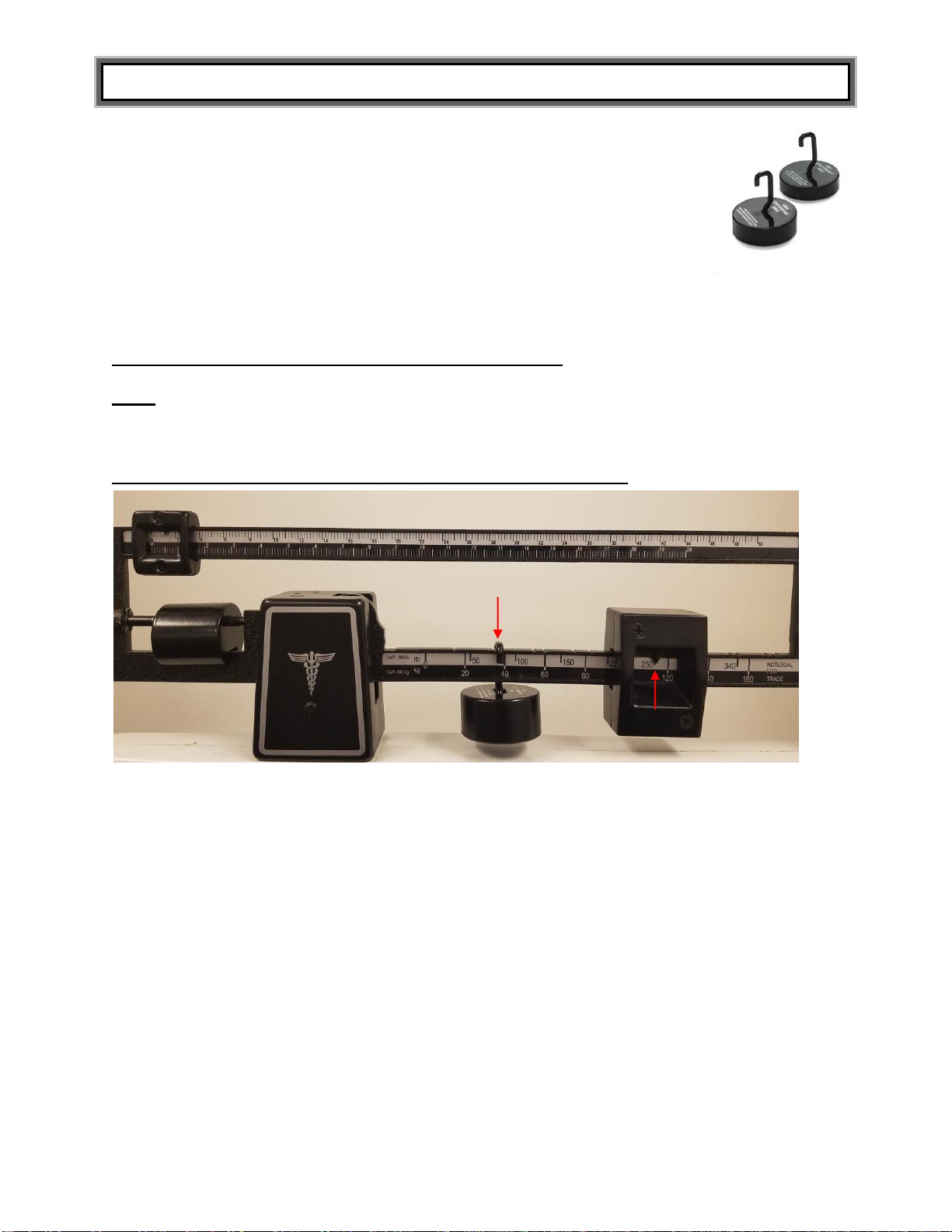

COUNTERWEIGHT INSTRUCTIONS

In order to increase the scale’s capacity to a maximum value of 490 lb / 210

kg, the counterweight set (Item # 55090), must be acquired. If purchased as

model 402KLCW the set is included with the scale.

In order to employ the counterweight set, refer to the instructions

below. Contact technical support with any questions or concerns regarding

the use of the counterweight set.

Note: These instructions are for 402KL models with non-rotating poise bars. Use counterweight

55080 for pounds and counterweight 55085 for kilograms.

Counterweight Instructions for Weighing in Pounds (lb)

Note: The 100 lb (55080) counterweight is required when weighing a patient who is over 390

lbs.

Counterweight Instructions for Weighing a Patient 391 - 400 (lb)

1. When a patient weighs between 391 - 400 lb, place the lower poise weight at 250 lb.

2. Place the 100 lb (55080) counterweight on the 3rd notch from the left, between the 50 lb and

100 lb value.

3. Adjust the upper poise weight until the pointer is centered. The poise bar will center in the

trig-loop.

4. Read and record the weight. To read the patient’s weight, add the weight value indicated on

the upper and lower poise bars, as well as an additional 100 lb. See page 13 for a

counterweight conversion chart.

Autres manuels pour 402KL

Table des matières

Langues :

Autres manuels Health O Meter Échelle

Health O Meter

Health O Meter Health o meter BFM955 Manuel utilisateur

Health O Meter

Health O Meter HAB979 Manuel utilisateur

Health O Meter

Health O Meter 142KL Manuel utilisateur

Health O Meter

Health O Meter 594KL Guide de référence rapide

Health O Meter

Health O Meter 2600KL Manuel utilisateur

Health O Meter

Health O Meter 3001KL-AM Manuel utilisateur

Health O Meter

Health O Meter Proplus 2101KGWA Manuel utilisateur

Health O Meter

Health O Meter 500KL Manuel utilisateur

Health O Meter

Health O Meter 753KL Manuel utilisateur

Health O Meter

Health O Meter 499KLHR Manuel utilisateur

Health O Meter

Health O Meter 499KL Manuel utilisateur

Health O Meter

Health O Meter HDM585 Manuel utilisateur

Health O Meter

Health O Meter 522KL Manuel utilisateur

Health O Meter

Health O Meter 2210CART Manuel utilisateur

Health O Meter

Health O Meter Healthometer BFM950 Manuel utilisateur

Health O Meter

Health O Meter 550KL Manuel utilisateur

Health O Meter

Health O Meter 844KL Manuel utilisateur

Health O Meter

Health O Meter 597KL Manuel utilisateur

Health O Meter

Health O Meter PROPLUS 1100KL Manuel utilisateur

Health O Meter

Health O Meter eBABYHR Manuel utilisateur

Health O Meter

Health O Meter HDM173-99 Manuel utilisateur

Health O Meter

Health O Meter 450KL Manuel utilisateur

Health O Meter

Health O Meter 2500CKL Manuel utilisateur

Health O Meter

Health O Meter HAP400 Manuel utilisateur

Manuels Échelle populaires d'autres marques

AWS

AWS ZEO-50 Manuel utilisateur

Gima

Gima Glass Body Fat Analyzer Manuel de la liste des pièces

Seca

Seca 374 Manuel utilisateur

TEC

TEC TEC SL59 SERIES Manuel utilisateur

Axis

Axis B/E Series Manuel utilisateur

Alecto

Alecto ACW-40 Manuel utilisateur

Rice Lake

Rice Lake MSI-4260 IS Manuel utilisateur

IKA

IKA RCT basic safety control Manuel utilisateur

ADE

ADE M20011 Manuel utilisateur

Duronic

Duronic KS3000 Manuel utilisateur

Digi

Digi SM-720 Manuel utilisateur

Cardinal

Cardinal CS Series Manuel utilisateur

Korona

Korona Kastella Manuel utilisateur

A&D

A&D FC-50Ki Manuel utilisateur

BDA

BDA CAMARGUE Manuel utilisateur

Tanita

Tanita HD-357 Manuel utilisateur

Leifheit

Leifheit 03173 Manuel utilisateur

Lumme

Lumme LU-1340 Manuel utilisateur
