Infant / Toddler Scale

User Instructions

PELSTAR, LLC 9500 West 55th St. McCook, IL 60525-7110 USA www.homscales.com

P/N UM550KL REV20180206_web

Model 550KL

Thank you for purchasing this Health o meter®Professional product. Please read this manual carefully,

and keep it for easy reference or training.

TABLE OF CONTENTS

Cautions and Warnings ............................................................................................3

Specifications............................................................................................................4

Certifications / Disposal ............................................................................................4

Powering the Scale / Set Up ....................................................................................5

Operating Instructions...............................................................................................7

Maintenance.............................................................................................................8

Calibration ................................................................................................................9

Troubleshooting........................................................................................................10

Warranty...................................................................................................................11

Note: This scale has been factory calibrated, and does not require

calibration prior to use.

Please register your scale for warranty coverage at:

www.homscales.com/product-support/technical-support/product-warranty-registration

For User Instructions updates and revisions please go to:

www.homscales.com

CAUTIONS AND WARNINGS

Intended use

The Health o meter®Professional 550KL scale is intended to be used in a professional medical environment by

trained medical staff. This product was designed to weigh infants that are laying on the tray. The scale can also

be used for weighing toddlers by removing the tray and having the patient stand on the platform. Do not modify

the product or use it for anything other than its intended purpose.

To prevent injury and damage to your scale, please follow these instructions very carefully.

Assemble and operate the scale per the enclosed user instructions.

For accurate weighing, this scale must be placed on a flat, stable surface.

For accurate weighing, verify before each use the proper operation according to the procedure

described in this manual.

Do not transport the scale with a patient or object on the tray or platform.

Do not exceed the weight capacity specified for the scale.

Do not use in the presence of flammable or explosive materials.

Ensure that the scale does not come in contact with liquids, excessive temperature, or excessive

humidity.

If the scale becomes damaged, it should not be operated until properly serviced.

Avoid stacking any materials or placing any weight on top of the scale when not in use.

Patient/caregiver safety

This scale is designed for static weighing of patients only. No scale should be used for patient

transfer.

To prevent patient injury, the patient must be attended throughout the entire weighing event.

When operating the scale with batteries:

If the scale will not be used for a long period of time, remove the batteries.

When replacing / inserting batteries, be sure to use all new batteries.

In no event whatsoever shall Pelstar, LLC be liable for damages or injuries arising out of or

connected with the assembly, use, or misuse of this product.

SPECIFICATIONS

General

Health o meter® Professional 550KL scales use highly sophisticated microprocessor technology. Each

precision scale is designed to provide accurate, reliable and repeatable weight measurements. In

addition, each scale is designed to provide the user with features that make the weighing process simple,

fast, and convenient.

Scale Specifications

Capacity and Resolution

550KL: 44 lb x 0.5 oz / 20 kg x 10 g

Power Requirements

9V battery (included)

Environmental

Operating temperatures: 50°F to 104°F (10°C to 40°C)

Storage Specifications: -22°F to 158°F/ -30°C to 70°C

Physical Dimensions

Tray Size:

Width:23 1/2” (597 mm)

Depth: 8” (203 mm)

Height: 2” (51 mm)

Platform Size:

Width: 12 1/2” (318 mm)

Depth: 8 5/8” (219 mm)

Height: 1 1/4” (32 mm)

Product Footprint with Tray:

Width: 23 1/2” (597 mm)

Depth: 13 1/4” (337 mm)

Height: 3 5/8” (92 mm)

Product Footprint Platform Only:

Width: 13 1/2” (343 mm)

Depth: 11 1/2” (292 mm)

Height: 1 3/4” (44 mm)

CERTIFICATIONS / DISPOSAL

Certification Descriptions

Scale Disposal

This Health o meter®Professional scale must be disposed of properly as electronic waste. Follow the

national, regional or local regulations that apply to you for disposal of electronic waste or batteries. Do

not dispose of this device in the domestic waste stream.

Pelstar, LLC has been officially certified as the manufacturer

of Health o meter® Professional medical devices. The Pelstar,

LLC quality assurance system covers the development,

production, sales and service of medical scales and

measuring systems.

POWERING THE SCALE / SET UP

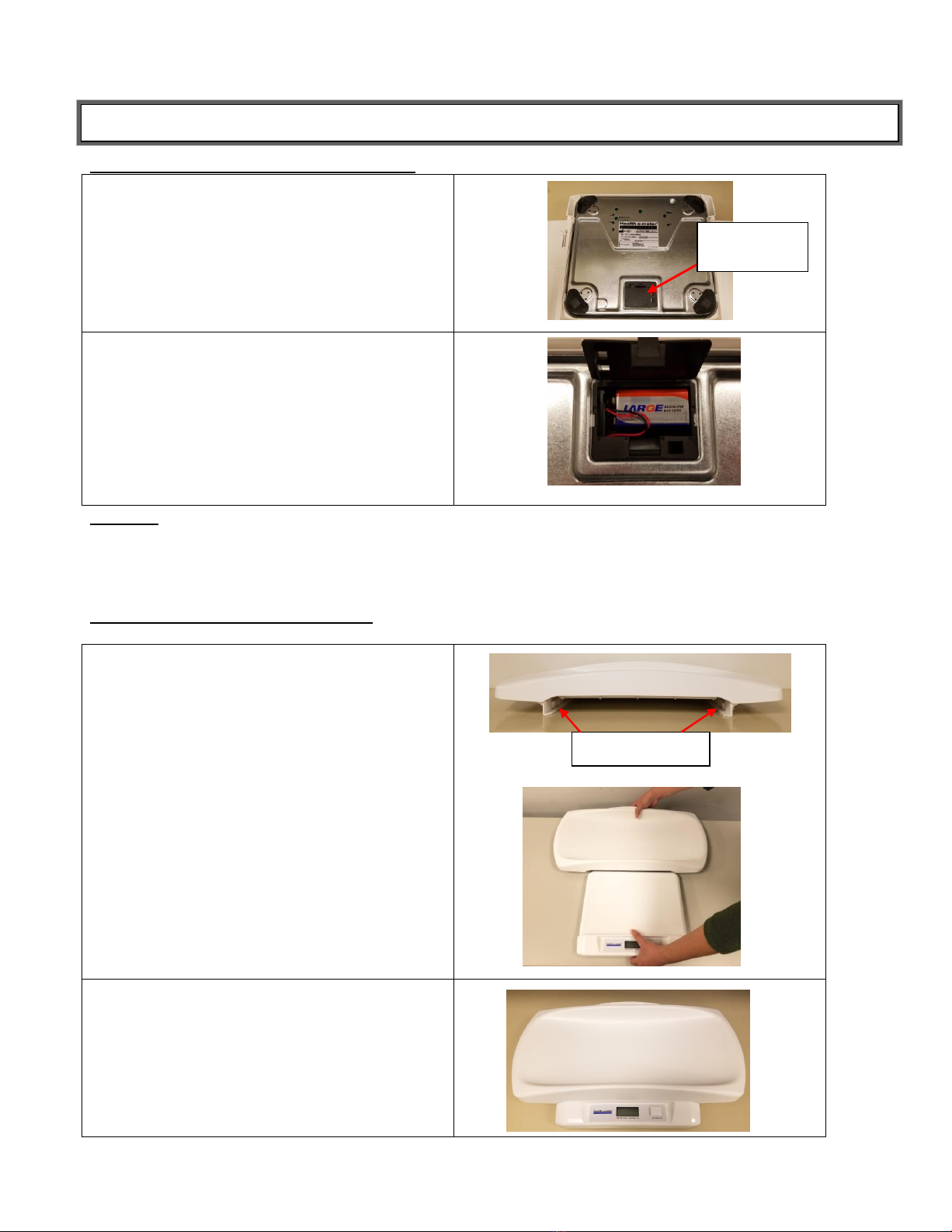

Powering the Scale –Inserting Batteries

1. Locate the battery compartment

underneath the scale base and open the

battery compartment cover.

2. Place a new 9V battery into the battery

compartment. Make sure the ‘+’ and ‘-’ are

positioned correctly. Use only zinc-/coal-

and alkaline/manganese batteries or

nickel-cadmium and nickel-metal-hydride

rechargeable batteries. Replace the

compartment cover.

Warning: If the scale will not be used for some time, remove the batteries to avoid a safety hazard.

Disposal of batteries must be performed in accordance with the prevailing national, regional or

local regulations that apply to you.

Attaching the Infant Weighing Tray

Follow these instructions to attach the tray and use as an infant scale.

1. Align the platform with the guide rails on

the underside of the tray. Slide the tray

completely onto the platform until it snaps

into place.

2. Ensure the tray is snapped into place and

does not move.

Battery

Compartment

Guide rails

SET UP (CONT.)

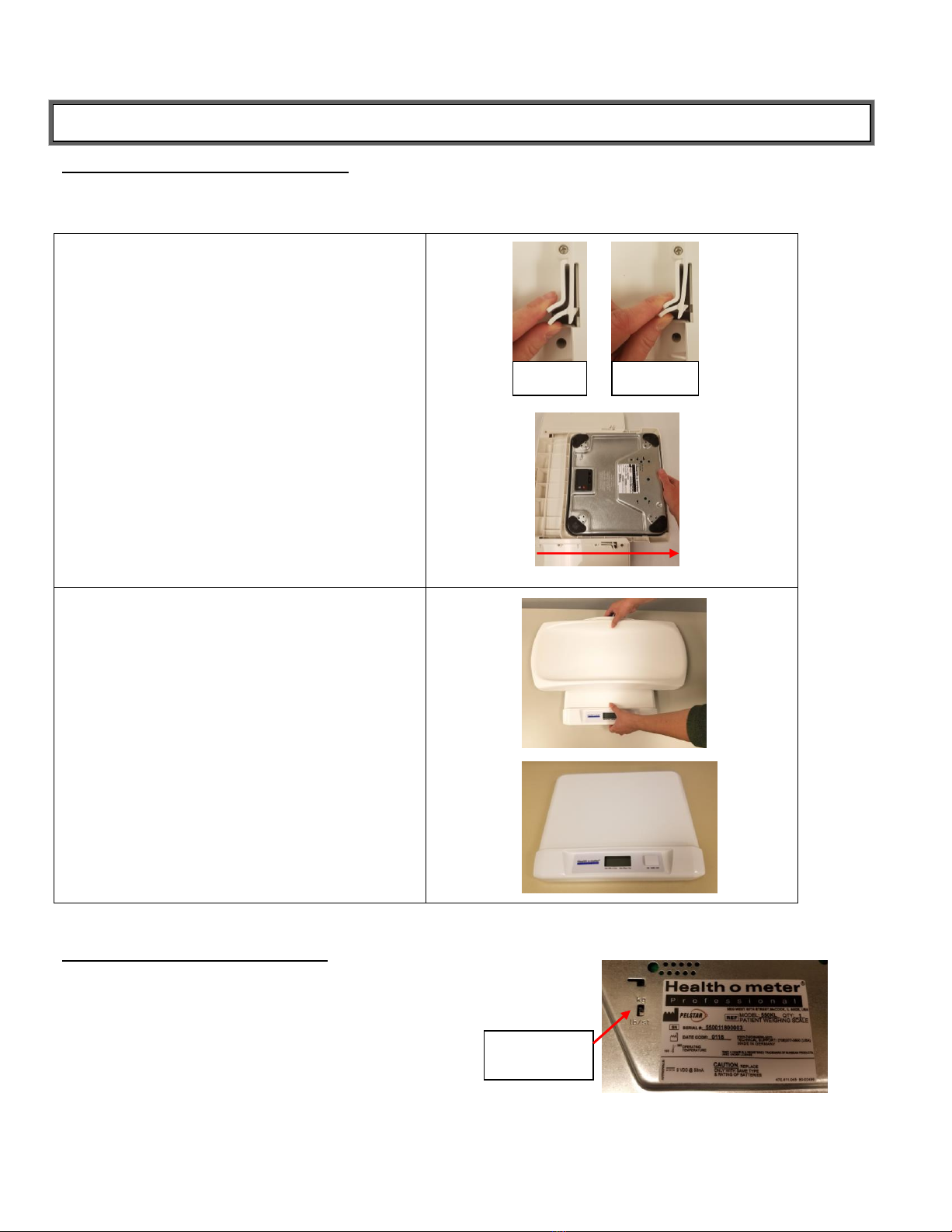

Removing the Infant Weighing Tray

Follow these instructions to remove the infant weighing tray and use the platform as a toddler step-on

scale.

1. Turn the scale over to access the locking

hooks on each side of the tray. Squeeze

both hooks to unlock the tray and start to

slide the tray out of the guiderails.

2. Turn the scale over and slide the tray

completely out of the guide rails.

Selecting Weight Measuring Unit

To select the desired weighing measuring unit, turn the scale over to

access the kg/lb/st switch. Move the tab to the desired weighing

measuring unit.

Locked

Unlocked

kg/lb/st

switch

OPERATING INSTRUCTIONS

IMPORTANT: To prevent injury when utilizing the scale with the weighing tray, place the scale in a

secure location, far from the edge of the flat surface used to hold the scale. Do not let the scale

touch the wall or any other object while it is in use.

When using the scale to weigh toddlers who will stand on the scale, place the scale on the floor.

NEVER WEIGH A STANDING CHILD ON A COUNTER OR TABLE.

Weighing a Patient

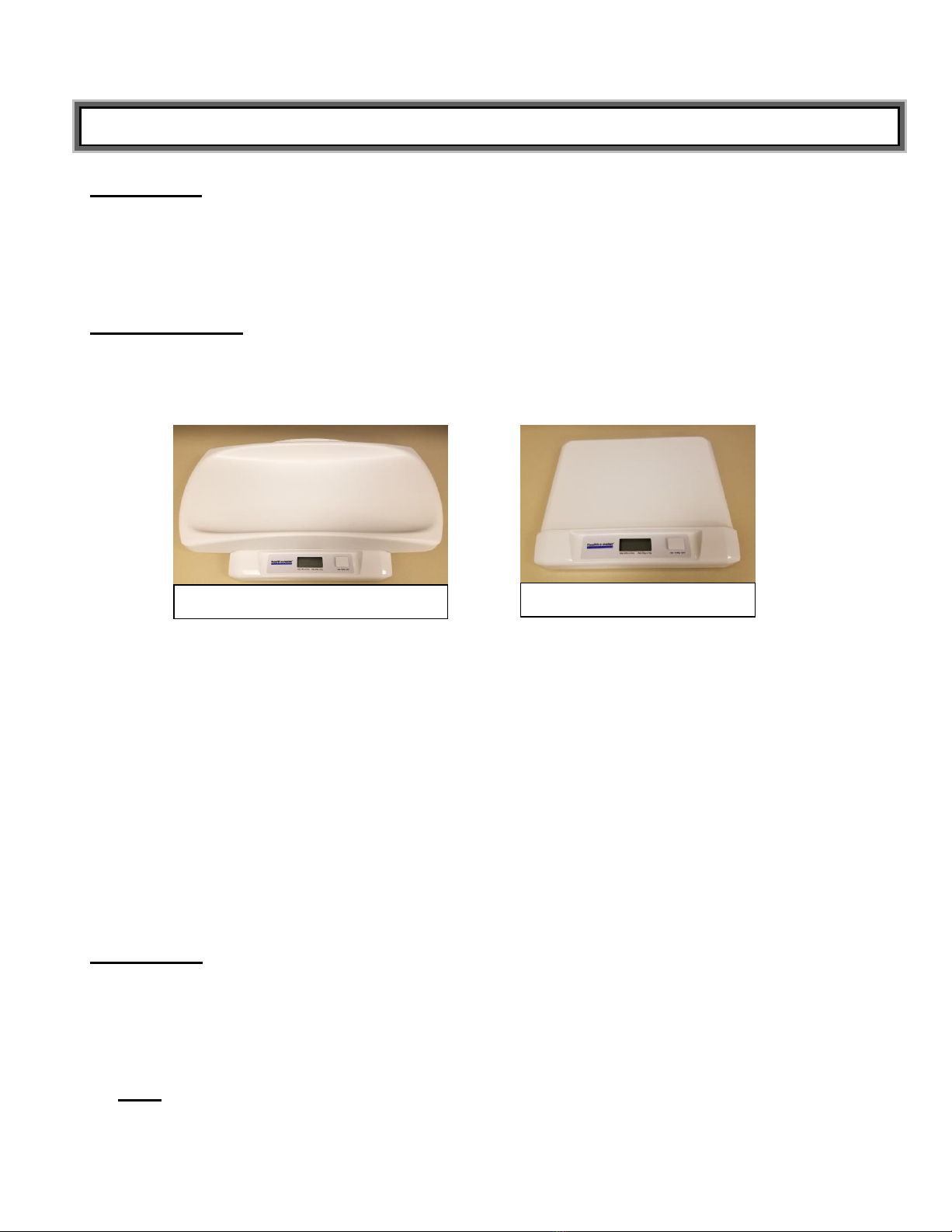

This scale is dual-purpose and can be used with the infant weighing tray or toddler step-on platform. If

using the product as an infant scale, ensure the tray is completely attached to the scale platform. If using

the product as a toddler step-on scale, follow the instructions to remove the tray and have the patient step

onto the platform.

1. Make sure there is nothing on the tray or platform.

2. Press the ON • TARE • OFF button to turn on the scale. “88:8:8.8” will appear on the display followed

by “u XX” (XX refers to the version number) then “0:00” or “0.0” depending on the weight measuring

unit selected.

3. Place the baby on the tray or have the child step onto the scale platform. Ensure that the child’s

weight is evenly distributed on the tray or platform. The scale will begin to display weight information

and will lock on the patient’s weight when the stable weight of the patient is determined. The weight is

locked when lb/oz or kg appears on the display along with the patient’s weight.

Note: If dashes “-----------”appear at the top of the display you have exceeded the capacity of the

scale. (44 lb / 20 kg)

Caution: To prevent patient injury, the patient must be attended throughout the entire

weighing event.

4. Remove the child from the scale. If the child’s weight is more than 4.4 lb / 2 kg, the scale will continue

to display the weight for approximately 10 seconds.

Tare Function

The tare function allows you to place other items on the scale while weighing a baby, without affecting the

baby’s weight reading.

1. Place the item you want to tare on the weighing tray. When the scale locks onto item’s weight, press

ON • TARE • OFF. The scale will return to zero.

2. Place the patient on the scale with the tared object. The scale will automatically deduct the tared

weight and the display will show only the patient’s weight.

Note: If you remove the tared item from the scale before weighing the patient, the display will show

the tare value as a negative value.

3. To remove the Tare, press ON • TARE • OFF. The scale will resume normal operation.

Infant Tray Scale

Toddler Step-On Scale

MAINTENANCE

Maintenance

The following pages provide instructions for maintenance, cleaning, calibrating, and troubleshooting of

your scale. Maintenance operations other than those described in this manual should be performed by

qualified service personnel.

Caution: Before first use, or after long periods of non-use, check the scale for proper operation

and function. If the scale does not operate correctly, refer to qualified service personnel.

1. Check overall appearance of the total scale for obvious damage, wear, and tear.

2. Do not store the scale on its side.

3. This scale contains electronic parts. Use it carefully. Do not drop, kick or jump on it.

4. Do not store near chemicals, heaters or radiators.

Note: This scale is an extremely sensitive weighing device. Items such as clothing or towels place or

dropped on the scale may cause it to activate. To prevent run down of the batteries, do not store or leave

anything on the scale.

Cleaning

Proper care and cleaning is essential to ensure a long life of accurate and effective operation.

1. Clean all external surfaces with a clean damp cloth. Mild antimicrobial soap and water solution may

be used. Dry with a clean soft cloth.

2. Do not immerse the scale into cleaning or other liquid solutions.

3. Do not use abrasive cleaners.

4. Do not spray the scale with liquid. Never place the scale in water.

CALIBRATION

This scale has been factory calibrated, and does not require calibration prior to use. If

required, the scale can be calibrated. Calibration of your scale is performed using kilograms

(KG). Twenty (20) kilograms are required for calibration. Calibration is performed in kilograms

even if the scale is set in weigh in pounds (LB).

Note: Only weights certified and traceable to national standards should be used for

calibration procedures.

ACTION

DISPLAY

SHOWS

Press ON • TARE • OFF to turn on the scale. “88:8:8.8” will appear on the

display, quickly tap ON • TARE • OFF twice, then hold down the button until

“CAL” appears in the display. Release the button when “CAL” appears.

“88:8:8.8”

followed by “CAL”

Press and hold ON • TARE • OFF until 5 digits appear in the display.

Release the button when the 5 digits appear.

“XXXXX”

Ensure there is no weight on the scale, then press ON • TARE • OFF again.

“20.00” will appear in the display.

“20.00”

Place 20 kg on the scale, then press ON • TARE • OFF. “PASS” will appear

in the display. Remove the 20 kg. The scale will restart and return to “0.0”

“PASS”, then the

scale will restart.

TROUBLESHOOTING

Troubleshooting

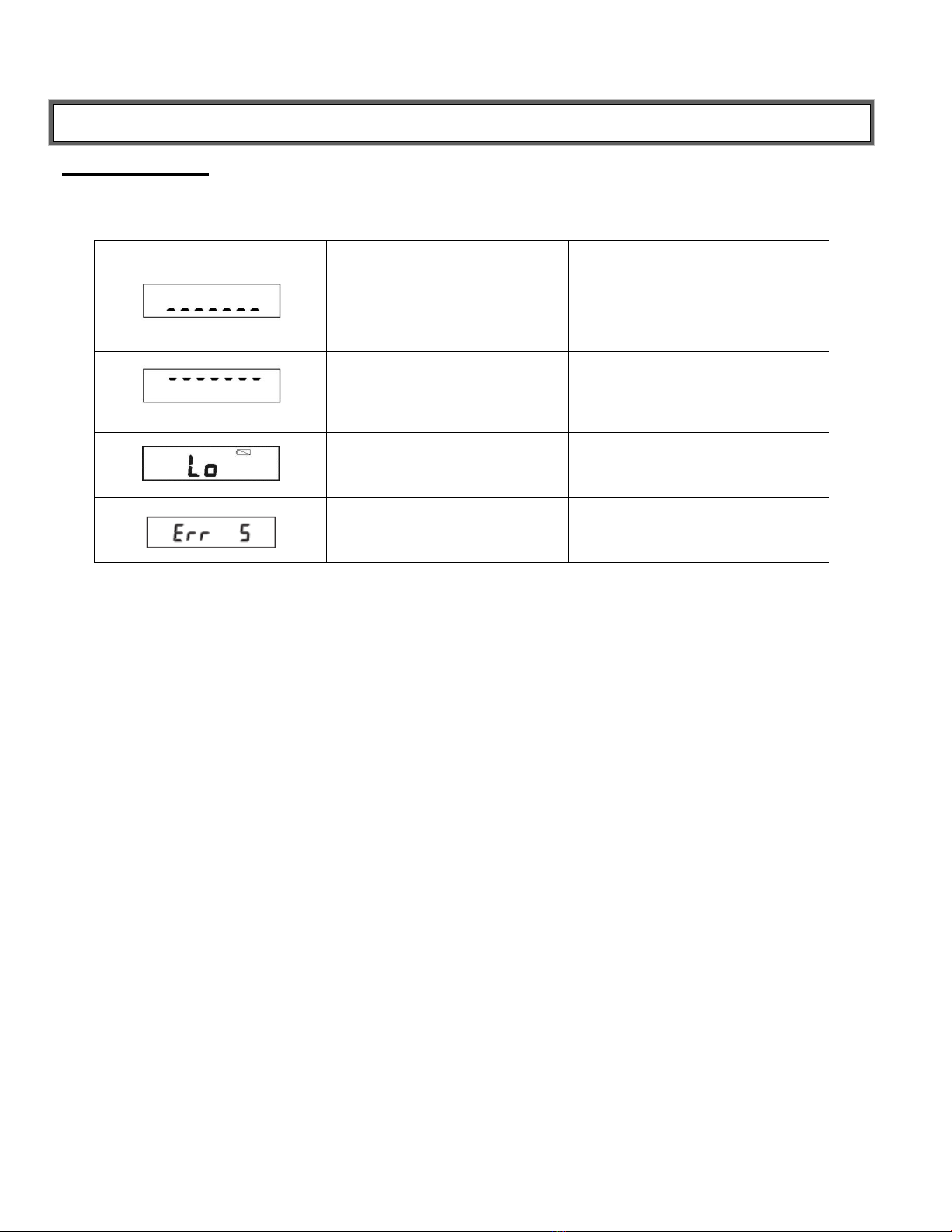

Before contacting service personnel, refer to the following instructions to check and correct any

failures.

Display

Causes

Corrective Action

Underload: The scale is not on a

level surface or a tare value was not

cleared.

Ensure the scale is on a flat surface.

Switch the scale off and on again. If

the error occurs again, please contact

Technical Support at 1-800-638-3722.

Overload: Maximum weighing range

is exceeded.

Unload the scale, or switch them off

and on again. Check the maximum

weighing range.

The batteries are depleted.

Replace the batteries.

The scale is not level.

Ensure the scale is on a flat surface. If

the error message persists after

realignment, contact your service

provider.

Table des matières

Langues :

Autres manuels Health O Meter Échelle

Health O Meter

Health O Meter 450KL Manuel utilisateur

Health O Meter

Health O Meter Pro Plus 2101KL Guide d'installation

Health O Meter

Health O Meter 600KL-BT Manuel utilisateur

Health O Meter

Health O Meter 142KL Manuel utilisateur

Health O Meter

Health O Meter Digital Scale Manuel utilisateur

Health O Meter

Health O Meter 597KL Manuel utilisateur

Health O Meter

Health O Meter HDM575 Manuel utilisateur

Health O Meter

Health O Meter HAB957 Manuel utilisateur

Health O Meter

Health O Meter Professional 498KL Manuel utilisateur

Health O Meter

Health O Meter 500KL Manuel utilisateur

Health O Meter

Health O Meter 349KLXAD Manuel utilisateur

Health O Meter

Health O Meter BFM884DQ1-60 Manuel utilisateur

Health O Meter

Health O Meter 2210KL Manuel utilisateur

Health O Meter

Health O Meter PROPLUS 2500KGWA Manuel utilisateur

Health O Meter

Health O Meter 597KL Manuel utilisateur

Health O Meter

Health O Meter 752KL Manuel utilisateur

Health O Meter

Health O Meter HAB917 Manuel utilisateur

Health O Meter

Health O Meter DIGITAL PEDIATRIC SCALE 549KL Manuel utilisateur

Health O Meter

Health O Meter HDR900 Manuel utilisateur

Health O Meter

Health O Meter 2500KL Manuel d'utilisation et d'entretien

Health O Meter

Health O Meter 553KL Manuel utilisateur

Health O Meter

Health O Meter 3001KL-AM Manuel utilisateur

Health O Meter

Health O Meter Professional 498KL Manuel utilisateur

Health O Meter

Health O Meter 3423 Manuel utilisateur

Manuels Échelle populaires d'autres marques

AWS

AWS ZEO-50 Manuel utilisateur

Gima

Gima Glass Body Fat Analyzer Manuel de la liste des pièces

Seca

Seca 374 Manuel utilisateur

TEC

TEC TEC SL59 SERIES Manuel utilisateur

Axis

Axis B/E Series Manuel utilisateur

Alecto

Alecto ACW-40 Manuel utilisateur

Rice Lake

Rice Lake MSI-4260 IS Manuel utilisateur

IKA

IKA RCT basic safety control Manuel utilisateur

ADE

ADE M20011 Manuel utilisateur

Duronic

Duronic KS3000 Manuel utilisateur

Digi

Digi SM-720 Manuel utilisateur

Cardinal

Cardinal CS Series Manuel utilisateur

Korona

Korona Kastella Manuel utilisateur

A&D

A&D FC-50Ki Manuel utilisateur

BDA

BDA CAMARGUE Manuel utilisateur

Tanita

Tanita HD-357 Manuel utilisateur

Leifheit

Leifheit 03173 Manuel utilisateur

Lumme

Lumme LU-1340 Manuel utilisateur
