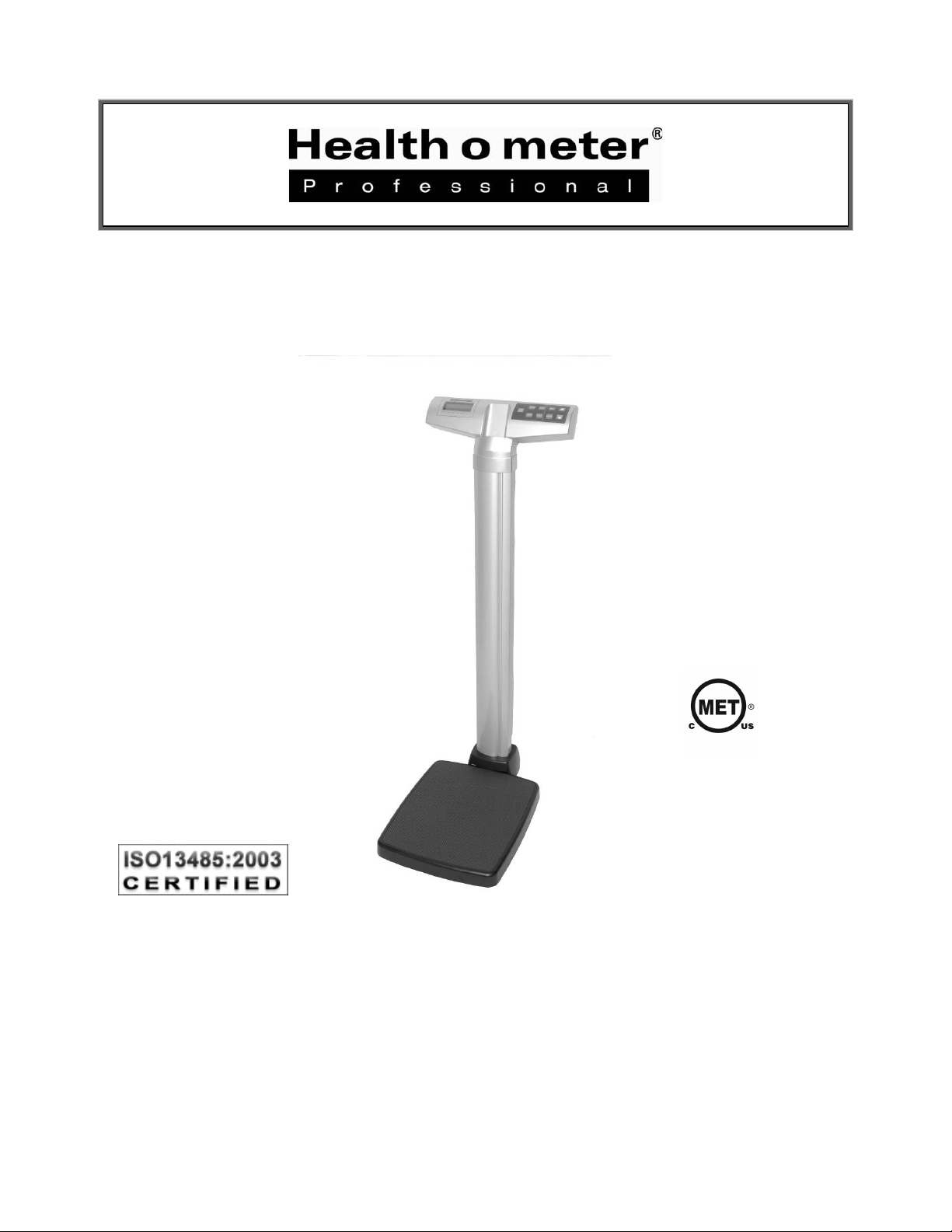

Health O Meter 499KL Manuel utilisateur

Model 499KL

Waist High Digital Beam Scale

User Instructions

P/N UM499KL Rev 20150608-web

E112697

UL 60601-1

CSA C22.2 No. 601.1-M90

Model 499KL

Thank you for your purchase of this Health o meter® Professional product. Please read this

manual carefully, and keep it for easy reference or training.

TABLE OF CONTENTS

Caution and Warning.................................................................................................3

Specifications for This Scale .....................................................................................5

Certifications / Connectivity / Disposal ......................................................................6

Assembly Instructions 499KL Scale .........................................................................7

Setup / Batteries........................................................................................................13

Quick Start / Operating Instructions...........................................................................15

Assembly Instructions for Optional Height Rod (499KLROD)…………………………19

Height Measurement Instructions..............................................................................20

Calibration.................................................................................................................22

Troubleshooting ........................................................................................................23

Maintenance..............................................................................................................24

Warranty....................................................................................................................25

Note: This scale has been factory calibrated, and does not

require calibration prior to use.

Please register your scale for warranty coverage at:

www.homscales.com

For User Instructions updates and revisions please go to:

www.homscales.com

CAUTION AND WARNING

When operating this scale:

•To prevent injury and damage to your scale, please follow these instructions very

carefully.

•To prevent injury, as well as scale damage during assembly, exercise

caution when assembling the scale column.

•Assemble and operate the scale per the enclosed user instructions.

•For accurate weighing, this scale must be placed on a flat, stable surface.

•For accurate weighing, verify before each use the proper operation

according to the procedure described in this manual.

•Operating this scale at voltages and frequencies other than specified can

damage the equipment and will void the warranty.

•Do not transport the scale with any weight on the platform.

•Do not exceed recommended weight limit of 500 lb / 220 kg for this scale.

•Do not use in the presence of flammable or explosive materials.

•For accurate weighing, if the “Lo bAtt” indicator activates, replace the

batteries or switch to the optional AC adapter as soon as possible.

•If the scale becomes damaged, it should not be operated until properly serviced. All

repairs should only be performed by authorized Health o meter® Professional

service personnel.

•When replacing / inserting batteries, be sure to use all new batteries.

•To prevent patient injury, the patient must be attended throughout the

entire weighing event.

CAUTION AND WARNING

When operating this scale with the optional AC adapter:

•Operate this scale exclusively with the AC adapter provided by Health o

meter Professional Scales. Use of an unspecified adapter will void the

warranty, and can pose a serious safety hazard.

•For use with AC adapter ADPT31 (Domestic, USA) or ADPT30

(International, plug kit).

•Prior to using this scale, inspect the AC adapter cord for cracking /

fraying, or for broken / bent plug prongs.

•Prior to using this scale, ensure that the AC adapter is plugged into an

outlet with the rated voltage appropriate for operation.

•Ensure that the AC adapter outlet is wired to a circuit breaker or other

protected power source.

•Ensure that the AC adapter and scale do not come in contact with liquids,

excessive temperature, or excessive humidity.

•Unplug the AC adapter, and carefully store both the adapter and adapter

cord before moving the scale.

•If the scale is being connected to another medical device, the power

adapter must not be used. Disconnect the power adapter from the scale

and use only the battery power.

SPECIFICATIONS FOR THIS SCALE

General

The Model 499KL waist high digital beam scale uses highly sophisticated microprocessor

technology. Each precision scale is designed to provide accurate, reliable and repeatable

weight measurements. In addition, each scale is designed to provide the user with features that

make the weighing process simple, fast, and convenient.

This scale is set up to use motion-sensing weighing technology in order to determine the actual

weight of a moving patient.

Weight can be displayed in pounds (lb) or in kilograms (kg). This scale can be powered using

an AC adapter (ADPT31 not included), or by 6 - AA batteries (included).

499KL Scale Specifications

Capacity and Resolution 500 lb x 0.2 lb (220 kg x 0.1 kg)

Power Requirements 120 - 240AC, 50 - 60Hz - 9V DC adaptor (ADPT31) or 6 - AA

batteries

Environmental Operating temperatures: 50°F to 125°F (10°C to 50°C)

Storage temperatures: 32°F to 122°F (0°C to 50°C)

Maximum Humidity: 95% RH

Physical Dimensions Scale

(Overall Dimensions)

Width: 14 1/8” (36 cm)

Depth: 21 1/8” (53.8 cm)

Height: 53 5/8” (136.2 cm)

Weight: 20 lb (9.07 kg)

Platform

(Standing Area)

Width: 13 3/4” (34.9 cm)

Depth: 16 ½” (41.9 cm)

Height: 2 3/8” (6 cm)

CERTIFICATIONS / CONNECTIVITY / DISPOSAL

Certification Descriptions

499KL Scale Connectivity Information

To enable reliable transmission of weight, height, and Body Mass Index (BMI) data, this scale is

designed to connect to a computer, monitor, or other electronic device via a built-in USB port.

This connectivity helps minimize a source of potential medical errors caused by incorrectly

copying and then recording patient data.

This scale is EMR-EHR compatible. For more information regarding how to connect this scale to

other electronic devices, please contact Health o meter® Professional Scales Technical

Support, available during normal business hours at 1-800-683-3722.

499KL Scale Disposal

This Health o meter® Professional scale must be disposed of properly as electronic waste.

Follow the national, regional or local regulations which apply to you for disposal of electronic

waste or batteries. Do not dispose of this device in the domestic waste stream.

Pelstar, LLC has been officially certified as the manufacturer

of Health o meter® Professional medical devices. The Pelstar,

LLC quality assurance system covers the development,

production, sales and service of medical scales and

measuring systems.

This product is tested to and meets the requirements of:

1. UL60601-1 First Edition: Safety for Medical Electrical

Equipment

2. CSA C22.2 No. 601-1 M90: Medical Electrical Equipment

499KL ASSEMBLY INSTRUCTIONS

Before Assembly

Each 499KL waist high digital beam scale is shipped disassembled in one carton. Carefully

inspect the carton for shipping damage before unpacking. If damage is found, contact your

shipper or a Health o meter® Professional representative immediately at 1-800-815-6615.

Claims must be filed with the shipper as soon as possible after receipt of the package. The

following information details what you will find inside the main carton as you unpack the parts for

assembly.

To prevent scratching any components, carefully remove each assembly from the carton and

unwrap the packing materials. Set the carton aside for storage. To avoid damaging the scale

parts when unpacking, do not use a box cutter, knife, scissors, or any sharp object to open the

protective inner packaging.

Parts List

Carton

(1) Scale platform (C)

(1) Upper column w/ display assembly (Column A)

(1) Lower column (Column B)

(6) AA batteries

(1) User instructions

Tools Required

Phillips head screwdriver (not included)

499KL ASSEMBLY INSTRUCTIONS (CONTINUED)

Assembling the 499KL Scale (Refer to Figures 1 - 8)

Caution: It is recommended that the assembly be performed by two persons.

1. Carefully remove the scale platform and columns Aand Bfrom the carton. Place the scale

platform and columns on a flat, level, and dry surface (see Figure 1 on page 9).

2. Remove the 4 small screws and washers from the bottom of column B(see Figures 1 & 2 on

page 9).

3. Locate cable connector inside column A(see Figures 1 & 3 on pages 9 &10).

4. While holding column A, slide the cable connector through the top of column B. The top of

column Bhas a notch (see Figures 1 & 5 on pages 9 &11).

5. Plug the cable connector into the RJ jack, located on the scale platform C

(

see Figures 1 & 4

on pages 9 &10).

Note: Ensure that the cable connector is correctly plugged into the RJ jack.

6. Align column A and column B, and ensure that the locking tabs are locked securely into place

(see Figures 1 & 5 on pages 9 & 11).

7. Position and secure the connected columns Aand B to the scale platform C.

8. Insert the 4 small screws through the bottom of the scale platform Choles and into column B.

Ensure that washers are located between the screw heads and the scale platform holes (see

Figures 1, 6, & 7 on pages 9, 11, & 12).

9. Using a Phillips head screwdriver, tighten the screws to secure column Bto the base of the

scale platform C(see Figure 1, 6, & 7 on pages 9, 11, & 12).

Note: Ensure that the screws are fully tightened to prevent damage to the scale.

10. The scale is now assembled and ready for use (see Figure 8 on page 12).

499KL ASSEMBLY INSTRUCTIONS (CONTINUED)

Figure 1

Figure 2

Column

Screws and washers

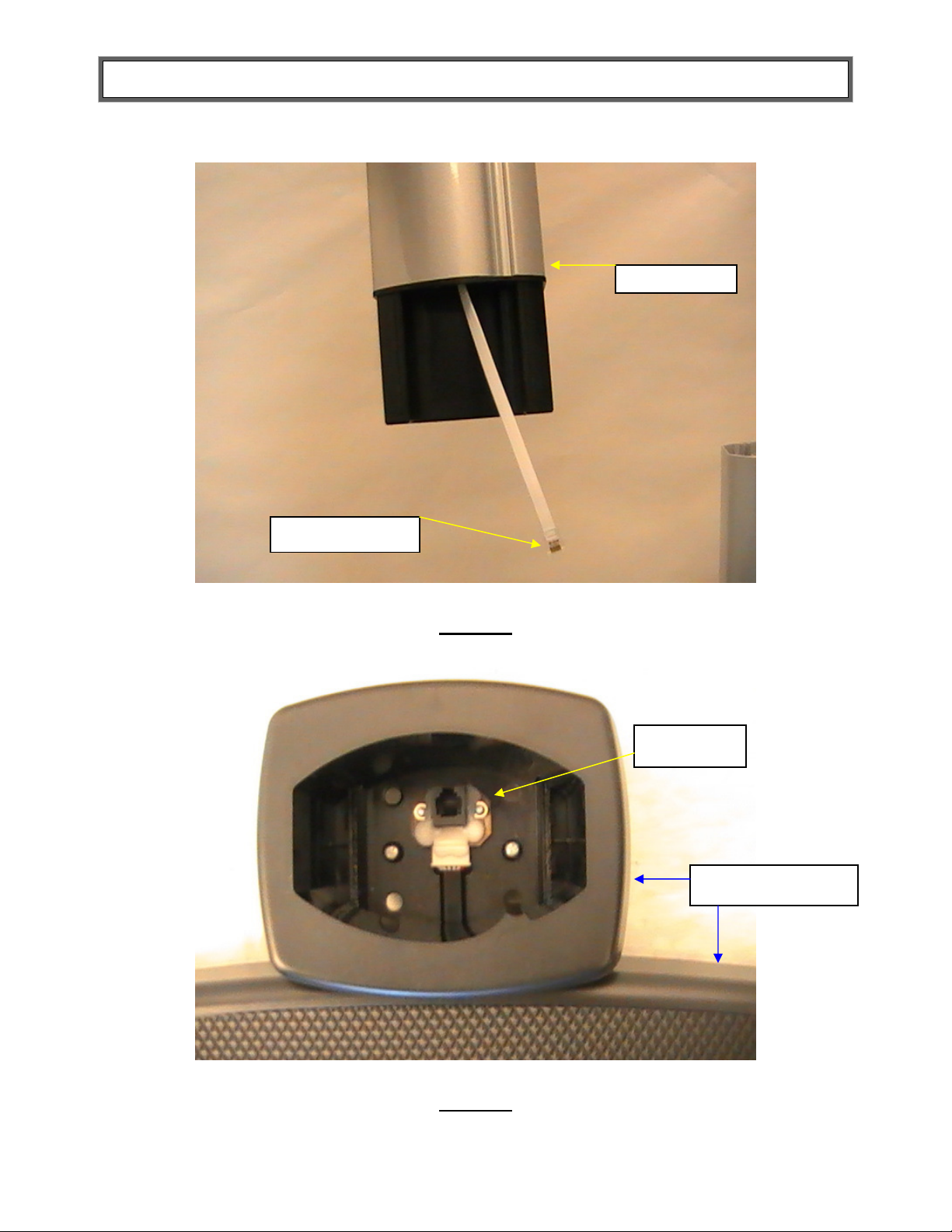

499KL ASSEMBLY INSTRUCTIONS (CONTINUED)

Figure 3

Figure 4

Column

Cable connector

RJ jack

Scale platform C
