Gram RZ Series Manuel utilisateur

INDEX

INDICE

PRECAUTIONS

BEFORE USING THE BALANCE

PRODUCT INTRODUCTION

•Features & Specifications

•Front panel

•Keyboard & functions of keys

POWER SUPPLY

SETTING PARAMETERS

CALIBRATION

OPERATION

•Weighing

•Tare

•Checking function

•Counting pieces

•Accumulation

CONNECT THE BALANCE TO A PRINTER

EXPORTING DATA TO PC IN FORM EXCEL

U.KEY CONNECTOR

GARANTIE

PRECAUCIONES

ANTES DE UTILIZAR LA BALANZA

INTRODUCCION DEL PRODUCTO

•Características y especifiaciones

•Descripción del display

•Teclado y función de las teclas

ALIMENTACION

CONFIGURACION DE PARAMETROS

CALIBRACION

OPERACION

•Pesaje

•Tara

•Límites de peso

•Cuentapiezas

•Acumulación de pesadas

CONECTAR LA BALANZA A UNA IMPRESORA

TRANSMISION DE DATOS A UN PC EN FORMATO EXCEL

CONECTOR U.KEY

GARANTIA

SOMMAIRE

PRECAUTIONS

AVANT D´UTILISER LA BALANCE

VU ECLATÉE DE LA BALANCE

•Specifications

•Description de l´écran

•Description du clavier

ALIMENTATION

CONFIGURATION DES PARAMETRES

ETALONNAGE

MODE D´UTILISATION

•Pesage

•Fonction de Tare

•Limite de poids

•Compte-pieces

•Accumulation de pesées

CONNEXION DE LA BALANCE A L´IMPRIMANTE

FORMAT EXCEL

CONNECTEUR U.KEY

GARANTIE

PRECAUTIONS

*"Place the scale on a flat and stable surface.

*"Verify that the input voltage and the plug type matches the local AC power

supply.

* Warm up the scale for 15 minutes before using it for the first time.

* Keep the scale away from EMI noise, strong wind and vibration, which might

cause incorrect reading.

*"Avoid sudden temperature changes (suitable operating temperature is

between 0℃~ 40℃.)

*"Disconnect the power supply when cleaning the scale.

* Do not immerse the scale in water or other liquids.

*"Service should be performed by authorized personnel only.

BEFORE USING THE BALANCE

Unpacking and Checking

Open the package and check the instrument for transport damage. Immediately inform your

dealer if you have complaints or if parts are missing. The package should contain:

●Scale body ●User manual

●Weighing pans ●Adaptor

Installing Components

1) Before using the scale, remove the shipping protection screw (rotate counterclockwise),

which located underneath the scale and cork the plug buckle.

Note: the RZ-30 model doesn´t include the shipping protection screw.

2) Cover the weighing pans on the scale body properly.

Leveling the Scale

To compensate for small irregularities or inclinations at the location, the scale can be leveled.

The scale is equipped with a level indicator at the front panel .Adjust the leveling feet until

the air bubble in the indicator is centered as shown.

Note: The scale should be leveled each time once its location is changed.

PRODUCT INTRODUCTION

1. Leveler

2. Keypad

3. Adjusting feet

4. Plastic weighing pan

5. Stainless Steel weighing pan

6. On/Off switch

7. Transport protection screws

8. Power socket

SPECIFICATIONS

FEATURES

·Resolution up to 1/15000

·Tare, Preset Tare, auto zero tracking

·Single point and linear calibration available

·HI/OK/LO quantity checking function

·Weighing platter easy to disassemble with dust proof PVC cover

·Low battery and charging status indication

·Accumulation of weight and quantity

·RS 232 port

Model

RZ-6

RZ-15

RZ-30

Capacity(kg)

Weighing units

Kg/g/lb

Display

LCD backlit displays (6/5/6 Digits)

Pan size

294 x 228 x 13.5mm

Scale dimensions

330 x 289 x 104mm

Power supply

DC 9v/400mA or rechargeable battery（6V/4A）

FRONT PANEL

Low battery indicator

Tare indicator

Zero indicator. The zero range is ±2﹪maximum capacity

Battery charge indicator

High limit indicator (HI)

Ok limit indicator.

Low limit indicator (LOW).

Predeterminated Tare symbol “ ”

Net weight symbol “ ” it light on when a tare is done or a

predeterminated tare value has been entered.

Stable symbol .

“M+” symbol “ ” when weighing accumulation is actived.

Unit weight symbol, it light on when an unknow unit weight has been

entered

KEYBOARD

Short press steps through activated weighing units, release on desired one.

Displays gross and net weight by turns.

1. Tares the weight of the container or accepts the keypad tare entries.

2. Preset Tare and cancel the Tare

3. Select the later parameter in the same level

4. Select the later record when checking the accumulation record

5. Shift keys rightwards

1. Zeros the display (within 2% of max. capacity

2. Exits from certain operation without save

1. Long press to enter function setting

2. Deletes accumulation records

3. Delete the present accumulation record for the sake of wrong accumulation

operation under the accumulation mode

1. Adds the indicated weight into accumulation memory

2. During editing, save and return to the higher option

1. Select the former parameter in the same level

2. Select the former record when checking the accumulation record

3. Shift keys leftwards.

1. During setting value, add 1 to the current value

2. Set the upper limit of the check weighing

3. Print

1. During setting value, deduct 1 to the current value

2. Set the lower limit of the check weighing

3. Hold function

POWER SUPPLY

Please verify the local power source before plugging into the power outlet, and use the

individual power socket and original adaptor.

Alternative power supply

1)（9V/400mA）adaptor

2) (6V/4A) internal rechargeable battery

Power Consumption

About 300mW (without backlight)

About 380 mW (with backlight)

Low battery warning

When “ ” appears in the upper left corner of the weight window, the battery power

requires recharging. The charge lamp turns green from red when the recharging is

completed (which takes about 8 hours). Disconnect the scale from power supply when it is

fully charged. A full charged battery can operate the scale for approximately 65 hrs with

backlight, 80hrs without backlight.

Note: Battery is to be replaced only by an authorized service dealer .Risk of explosion can

occur if replaced with the wrong type or connected improperly

SETTING MODE

Function Setting

1) Press key while powering on, or key in the weighing mode to enter

parameter setting. The window displays “check”

2) Press key or to shift between the functions

3) Press key to enter the selected parameter.

4) Press key or to circle the items of present parameter.

5) Press key to save after changing and return to parameters choosing.

6) Press key to return without saving.

7) Press key again to return to weighing mode.

PARAMETERS

P00 Internal code checking

P01 Backlight modes

= Backlight

= No backlight

= Auto-on after getting a stable weigh data or any key is pressed. But auto off after N

seconds (N=2s, 5s, 10s, 20s, ever) with no action.

(ever=the backlight lasts forever with more than 9d placed on the pan) when

it is stable.

P02 Current using units setting

Unit: Press the key to select the default unit when powering the balance:”pcs, lb,

oz, g. kg. final” Final= keep the final being used unit when power off

Use: Press the key to select the weighing unit

On = Enable the unit

Off = Disable the unit

P03 Zero range setting

d0 (one division) , d1 (2 divisions), d2 (3 divisions), d3 (4 divisions), d4 (5 divisions) and

d5 (6 divisions)

P04 Hold function

Hold 0 : No hold function

Hold 1 : Peak hold

Hold 2: Hold after stable

Hold 3: Hold after stable. Release after moving away the article. The hold value is base

on the current value and its range could be set in sub menu. Accumulation hold function

is available, that is you could add article after hold the first value.

Hold 4: Press the key

Sub-menu for Hold 3 mode: INF (default: infinity) / 10 / 20 / 50 / 100 / 200 / 500 / 1000 /

2000/5000/10000/20000/50000

H=current hold value, R=hold value range, d=division, W=actual weight

P05 Stable weight checking setting

On: it starts checking weight when the weight and quantity are within the checking range

and the stable symbol appears.

Off: it starts checking weight once the weight and quantity are within the checking range

P06 Check weighing function

On: Check weighing under the condition that the weight is within the limits and the stable

indication appears.

Off: Check weighing under the condition that the weight is within the limits.

P07 Check weighing buzzer beep

Hi: There will be a warning sound when the weight of articles exceeds the upper limit and

the weight is equal or more than 20d.

Lo: There will be a warning sound when the weight of articles exceeds the lower limit and

the weight is equal or more than 20d

Out: There will be a warning sound when the weight of articles is between the upper and

lower limit and the weight is equal or more than 20d

No beep: No beep

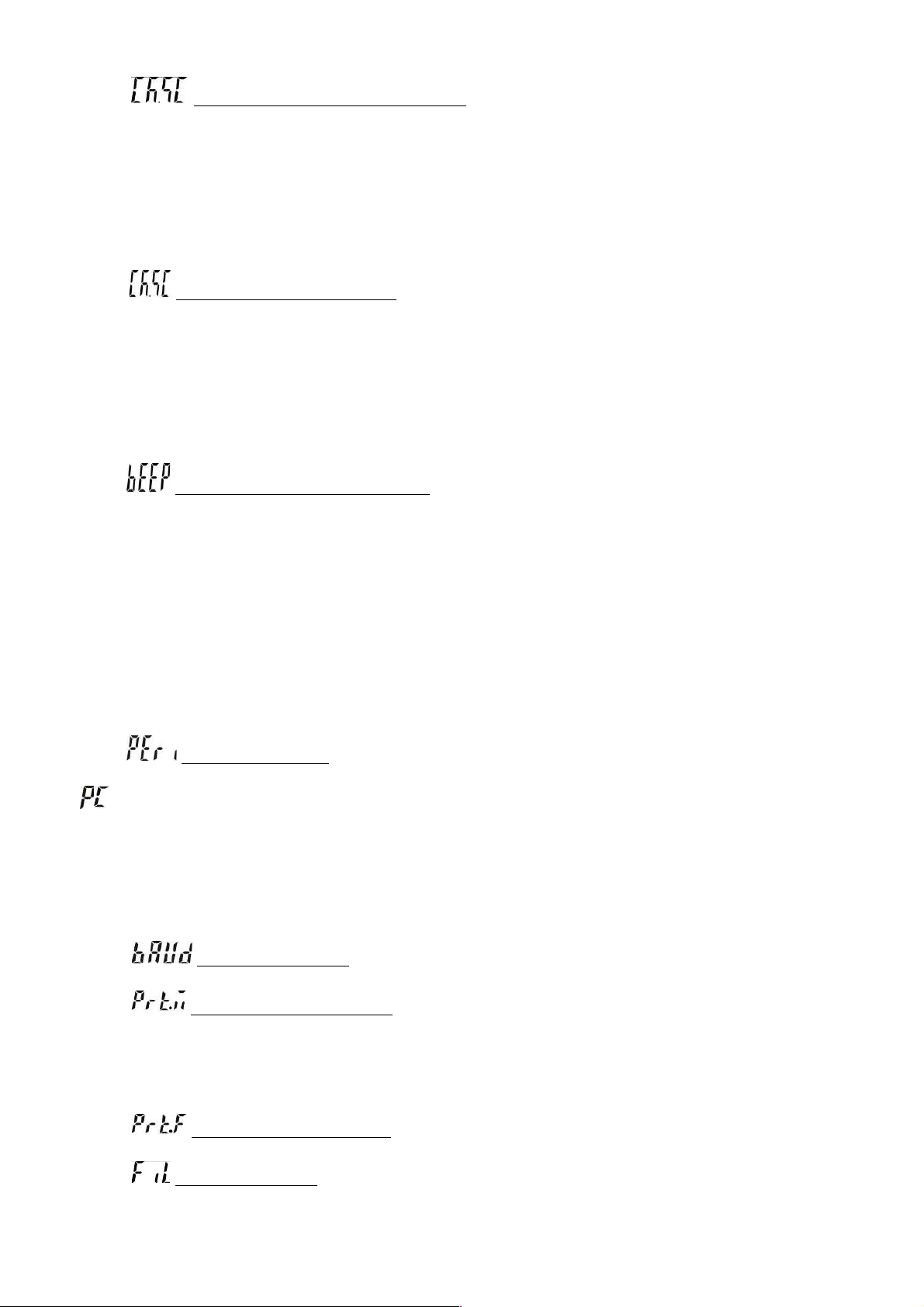

P08 External devices

= Computer

U.KEY: U.KEY connector works with PC to send the weighing data to computer

(WinXP/Win7) in form of Excel and so on.

P09 Baud rate setting:9600、4800、2400

P10 Printing modes setting

contin：Printing continually

stable：Printing automatically when get a stable weight (more than 20d)

key：Printing by pressing keys

P11 Printing format setting: prt01~prt03

P12 Filtering setting:1，2，3，4Set the filtering level in which the stable indication
