GCC Technologies Elite 21DN Manuel utilisateur

ELITE 21 SERIES INSTALLATION GUIDE

FEDERAL COMMUNICATIONS COMMISSION

WARNING: This equipment was tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions in this manual, may

cause harmful interference to radio communications. However, there is no guarantee that interference will

not occur in a particular installation. For more information about radio frequency interference, refer to

the section of the Elite 21 User’s Manual on Radio and TV interference.

CANADIAN REGULATIONS

This equipment is a Class B digital apparatus that complies with the Radio Interference Regulations, CRC

c. 1374.

IMPORTANT:Changes or modifications to this product not authorized by GCC Technologies Inc. could

void the FCC Certification and negate your authority to operate the product. This product was tested for

FCC Compliance under conditions that included the use of shielded cables and connectors between system

components. It is important that you use shielded cables and connectors to reduce the possibility of

causing interference to radios, television sets, and other electronic devices. You can obtain the proper

shielded cables from GCC Technologies or from an Authorized GCC Technologies dealer.

CLASS 1 LASER PRODUCT

LASER SAFETY: This printer is certified as a Class 1 laser product under the U.S. Department of Health

and Human Services (DHHS) Radiation Performance Standard according to the Radiation Control for

Health and Safety Act of 1968. This means that the printer does not emit hazardous radiation. Since

radiation emitted inside the printer is completely confined within protective housings and external covers,

the laser beam cannot escape from the machine during any phase of user operation. The Center for

Devices and Radiological Health (CDRH) of the U.S. Food and Drug Administration implemented regulations

for laser products on August 1, 1976. These regulations apply to laser products marketed in the United

States. The label on the printer indicates compliance with the CDRH regulations and must be attached to

the laser products marketed in the United States.

Caution - Use of controls, adjustments, or performance of procedures other than those specified

in this manual may result in hazardous radiation exposure.

CREDITS

The Elite 21 Series Installation Guide was written by David Nicholson.

It was edited by Donna Atwood, Kevin Curran, Donald Damon, Lee Doron, Laurie Freitas,

Brian Harriss and Gregg Linzey.

Illustrations courtesy Xerox International Partners,Technical Services Group. Additional

illustrations by Adam DeFanti. Layout by Adam DeFanti and David Nicholson. Cover design

and layout by Adam DeFanti.

Installation Guide printed in USA. Part number 030-16478 Rev A.

Thank you for your purchase of a GCC Technologies Elite 21 laser printer.

You now have a high-quality, versatile solution to all of your printing needs.

The purpose of this guide is to show you how to set up your printer and

install the software on the computer(s) that will be using it.

Configurations

This printer is available in three configurations, as described below:

Elite 21N

A high-resolution, networkable 1200 dpi

laser printer with USB, Parallel and

Ethernet ports. Comes with 16MB of RAM.

The Elite 21SE also includes the Duplex

Unit standard, as well as a hard drive for

font storage and 64MB of RAM.

Introduction

Elite 21DN

The Elite 21DN adds the optional Duplex

Unit for double-sided printing and ships

with 32MB of RAM standard.

Elite 21SE

Information Resources

This guide is intended to serve as a reference for installing the hardware

and software included with your printer. For more detailed information

about the configuration and usage of the printer, consult the Elite 21

User’s Manual.

The full User’s Manual for the Elite 21 printer is included in Adobe Acrobat

PDF format on the CD-ROM that shipped with the printer. See the “Using

the CD-ROM User’s Manual”section on page 86 of this manual for

instructions on accessing and using the full documentation.

For additional copies of this guide or of the Elite 21 CD-ROM, contact GCC

Direct Sales at 800 422-7777 (North America only, outside of North

America refer to the back cover) or contact your GCC authorized dealer.

Additional information is available via our web site at:

http://www.gccprinters.com/support

Installation Checklist

For proper installation, please complete each section in order:

Step 1 Check Package Contents

Step 2 Prepare Printer Location

Step 3 Locate Printer Parts

Step 4 Remove Internal Packaging

Step 5 Install Toner Cartridge

Step 6 Load Paper Tray

Step 7 Connect Printer Cables

Step 8 Attach Power Cord

Step 9 Install Printing Software

Step 10 Install Accessories

Step 11 Verify Printer Setup

Step 1. Check Package Contents

Note:

No printer cables are included with the printer. For information on ordering cables,

contact GCC Direct Sales at 800 422-7777 (North America only, outside of North

America refer to the back cover) or visit our web site at:

http://www.gccprinters.com

Elite 21 Laser Printer

550-sheet Universal Paper Cassette

Power CordToner Cartridge

Customer Kit:

Elite 21 Series CD-ROM

Elite 21 Installation Guide

Elite 21 Installation Poster

Elite 21 Users Manual (On CD-ROM)

Step 2. Prepare Printer Location

Place the printer on a flat, level surface in a well-ventilated area away from

direct sunlight or areas where the air temperature and humidity can vary

widely. Do not obstruct the fan vent on the right side of the printer.

7.87” (200mm)

23.62” (600mm)

Minimum Recommended Clearances:

23.62”(600mm)

11.81”(300mm)

Top View

19.68”(500mm)

(with all options

installed)

23.62”(600mm)

Side View

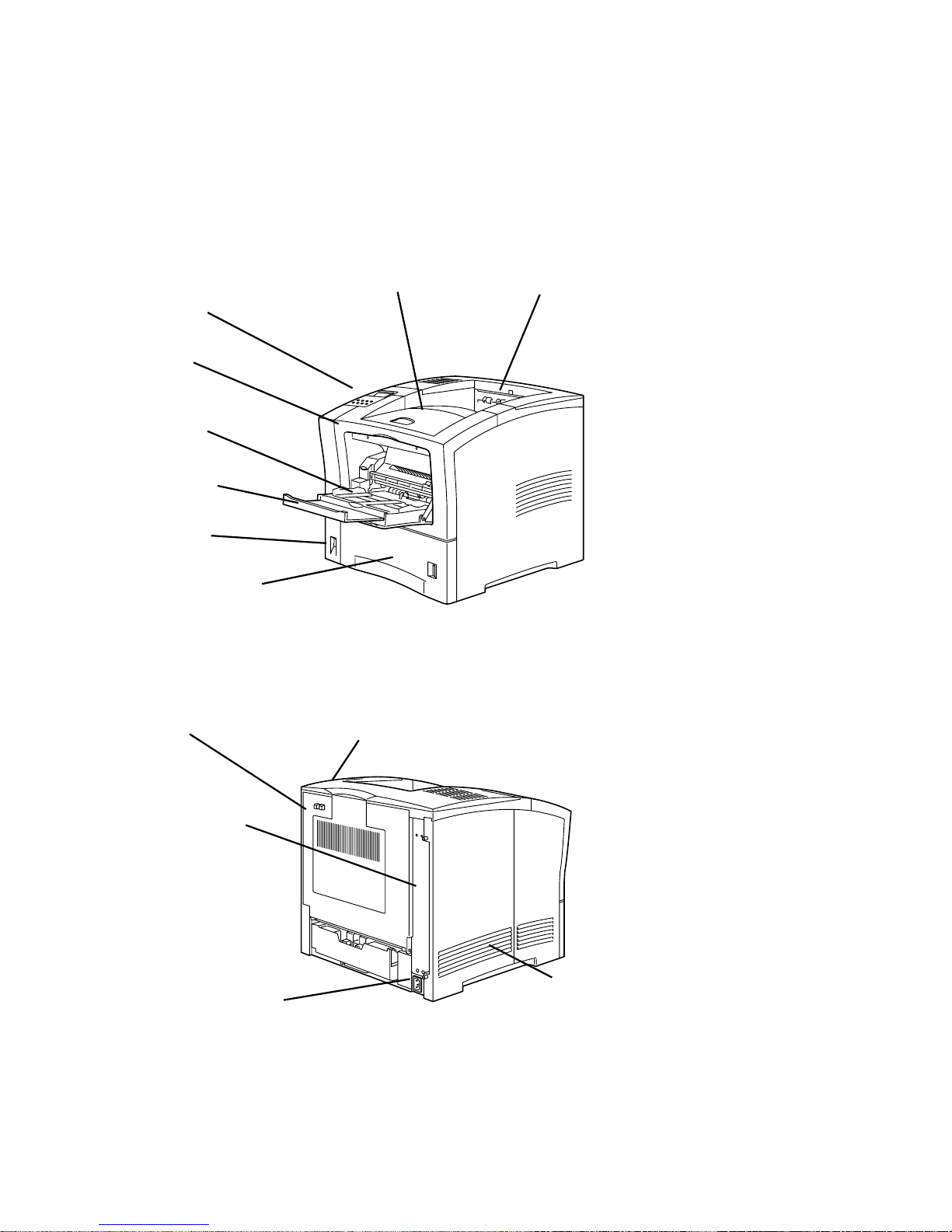

Step 3. Locate Printer Parts

Front View

Rear View

Paper Output Tray Paper Exit Slot

Top Cover

Ventilation Slots

Control Panel

Front Cover

Multi-Purpose Feeder

(Tray 1)

Tray Extension

Power Switch

550-sheet Universal

Cassette (Tray 2)

Rear Cover

Power Cord Receptacle

Connectivity Ports

(see next page for

details)

Connectivity Ports

With the printer’s all

ports active feature,

all the interfaces are

simultaneously active.

This means you can

connect more than

one interface at a

time. You don’t have

to select a port; this

feature works

automatically.

Ethernet 10/100BaseT

Bi-directional Parallel

Universal Serial Bus (USB)

RS-232 Serial
