GCC Technologies Expert Pro Series Manuel utilisateur

Expert Pro Series

User Manual

http://www.GCCworld.com

V.1.2 Oct. 26

NOTICE

GCC reserves the right to modify the information contained in this user

manual at any time without prior notice; un-authorized modification, copying

distribution or display is prohibited. All comments, queries or

suggestions concerning this manual please consult with your local dealer.

Expert Pro User Manual

ImportantInformation

PRECAUTIONS IN USE

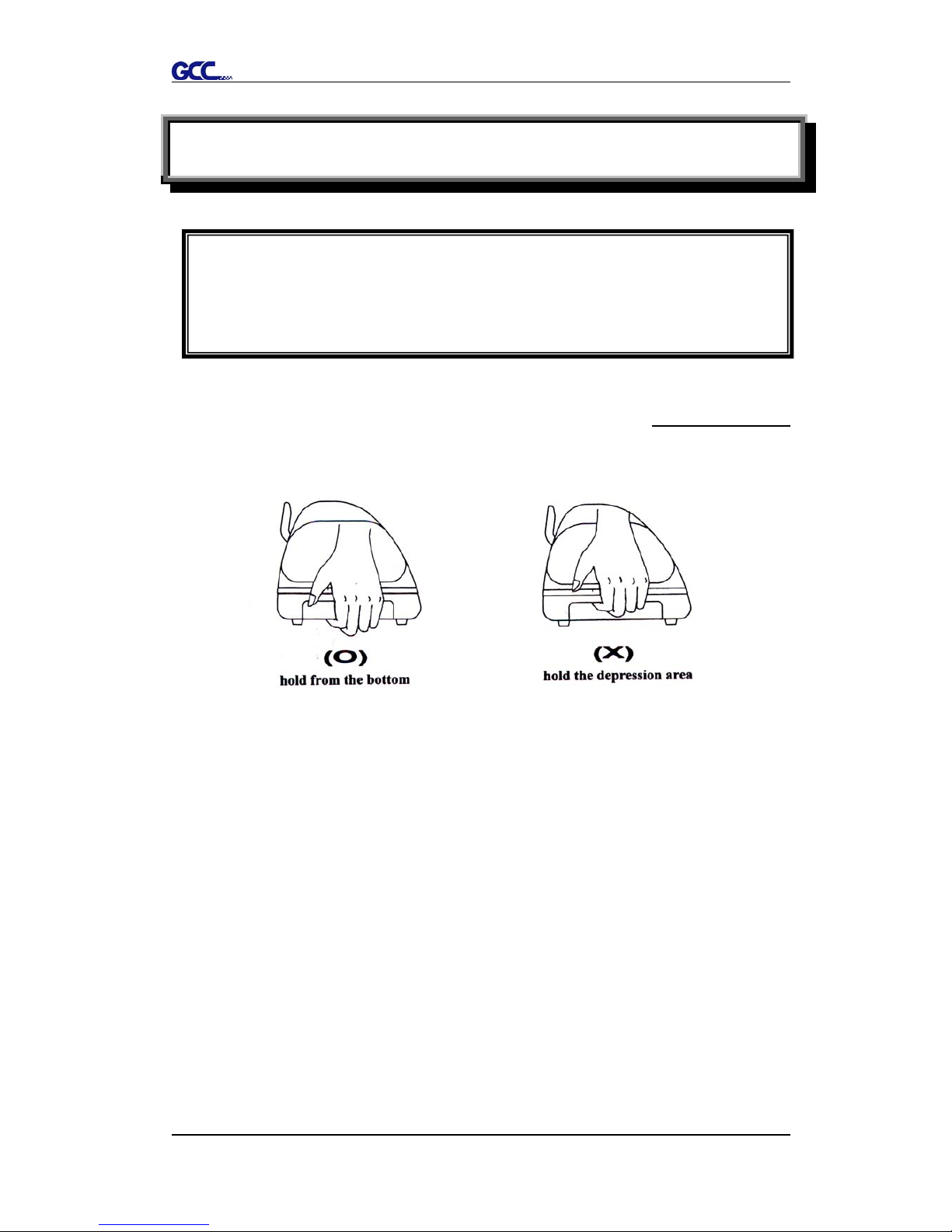

zFor safety concern, please always hold the cutter firmly from the bottom

when moving it. Do not move the cutter by clasping the depression area on

both sides.

zDo not shake or drop the blade holder, a blade tip maybe fly out.

zDuring operation, keep away from any moving parts of the cutter (such as

the carriage, drums). Also be careful that your clothing and hairs do not be

caught.

zAlways connect the power cable to a grounded outlet.

zAlways use the accessory power cable that is provided. Do not wire the

power cable so that it becomes bent or caught between objects.

zDo not connect the power cable to branching outlet to which other

machines are also connected, or use an extension cable. There is danger

of overheating and of misoperation of the machine.

zKeep the tools away from children where they can reach.

zAlways put the pinch rollers within position of the white marks.

Thanks for your purchase of GCC Expert Pro Cutting Plotter. For

your safety and to optimize the performance of the Expert Pro,

please read the user manual completely and keep it in a correct

location.

Expert Pro User Manual

Contents

Important Information

1. General Information

1.1 Introduction 1-1

1.2 PackageItems 1-1

1.3 Product Features 1-2

1.4 Appearance of Expert Pro 1-3

1.4.1 Front View of Expert Pro 1-4

1.4.2 BackViewofExpertPro 1-4

1.4.3 The Whole View of Expert Pro 1-4

1.4.4 The Left-hand Side of Expert Pro 1-5

1.4.5 The Right-hand Side of Expert Pro 1-5

2. Installation

2.1 Precaution 2-1

2.2 Stand & Flexible Media Support System 2-2

2.2.1 Stand Installation (for EP-60) 2-2

2.2.2 Stand & Flexible Media Support System (for EP-132S) 2-5

2.3 BladeInstallation 2-9

2.4 Cable Connections 2-12

2.4.1 USBInterface 2-12

2.4.2 ParallelInterface 2-16

2.4.3 RS-232 Interface 2-16

2.4.4 DataTransmitting 2-16

3. The Control Panel

3.1 The LCD Panel 3-1

3.2 Menu in On-line Mode 3-2

3.3 Menu in Off-line Mode 3-3

3.4 Menu Items 3-4

4. Operation

4.1 Media Loading 4-1

4.1.1 Loading the Sheet Media 4-1

4.1.2 Loading the Roll Media 4-3

4.2 Tracking Performance 4-6

4.3 Cutting Force and OffsetAdjustment 4-7

4.4 When Completing the Cutting Job 4-9

5. Maintenance

5.1 Cleaning the cutting Plotter 5-1

5.2 Cleaning the Grid Drum 5-2

5.3 Cleaning the Pinch Rollers 5-2

6. Trouble Shooting

6.1 Non-Operational Problems 6-1

6.2 Operational Problems 6-2

6.3 Communication Problems 6-3

6.4 SoftwareProblems 6-4

Expert Pro User Manual

Contents

6.5 Cutting Quality Problems 6-5

Appendix

A-1 Specifications of Expert Pro A-1

A-2 Blade Specification A-2

A-3 CorelDrawInstruction A-2

Expert Pro User Manual

General Information 1-1

Chapter 1 General Information

1.1 Introduction

Expert Pro series cutting plotters have been designed to produce computer-generated images

on sheets or rolls of vinyl media.

This manual covers the following models of Expert Pro series cutting plotters:

‧EP-60 for media width: 70mm(2.76”) ~ 719mm(28.3”)

‧EP-132S for media width: 70mm(2.76”) ~ 1470mm(57.87”)

1.2 Package Items

The package of the Expert Pro model contents the items listed below, please check carefully.

If you find any item missing, please consult your local dealer for further assistance.

1. Cutting Plotter 1

2. Stand Set ( for EP-60 )

z1 Left side vertical stand

z1 Right side vertical stand

z1 Support for left side

z1 Support for right side

z1 Stand Beam

z2 Bottom Stands with wheels

z2 Sliding brackets for paper takeup

z1 Hex Wrench (M5)Φ4

z28 Socket flat head screws(M6*12L)

z1 Installation Guide

2. Stand Set ( for EP-132S )

z2 piece of T-shape stand

z1 piece of stand beam

z18 pieces of M6 screws

z1 piece of M5 L-shape hexagon screw driver

z1 piece of Installation Guide for Stand Set

Expert Pro User Manual

General Information 1-2

3. Flexible Media Support System Package

Items EP-60 EP-132S

1 set of Roll Media Flange (2 pieces) V

1 set of Roll Holder (2 pieces) V

1 set of Roll Holder Guide Bushes (4 pieces) V

1 set of Roll Holder Support (2 pieces) V

32 pieces of M6 screws V

1 piece of M6 L-shape hexagon screw driver V

1 piece of Roll Base V

4. Accessories

z1 piece of User’s Compact Disk

z1 piece of AC power Cord

z1 pieces of data cable (RS-232C)

z1 pieces of data cable (Print cable)

z1 pieces of data cable (USB cable)

z1 set of Blade Holder Assembly (Installed in tool carriage of the cutting

plotter )

z1 piece of Blade (Installed in Blade Holder)

z1 piece of Safe Blade

z1 piece of Cutting Pad

z1 piece of Tweezers

z1 piece of Promise Card

1.3 Product Features

The following are the main features of the Expert Pro series cutting plotters:

‧Tri-port connectivity provides you with greater flexibility.

‧Up to 400-gram cutting force.

‧Up to 600mm/per second cutting speed.

‧Guaranty 5-meter tracking.

‧User-friendly, multi-language control panel

Expert Pro User Manual

General Information 1-3

1.4 Appearance of Expert Pro

1.4.1 The Front View (Figure 1-1)

Tool Carriage

performs the

cutting with the

installed blade or

pen.

Platen

provides the surface for

supporting media while

cutting

Slicer Groove

cuts off the extra

media easily along

this groove. Control Panel

14 buttons and 1

LED and 1 LCM

showing messages

and menus.

Grid Drums

move the media back and

forth during operation.

Cutting Pad

provides the protection of

blade when the blade is

cutting.

Alignment Rulers

media can be aligned

with the clear guide line

marks

Figure 1-1

Expert Pro User Manual

General Information 1-4

1.4.2 The Back View (Figure 1-2)

Pinch Rollers

hold the media during cutting.

Lever

raises or lowers

the pinch rollers.

Figure 1-2

1.4.3 The Whole View (Figure 1-3)

** The Expert Pro model comes with a standard stand

Roll Holder

holds and supplies the

roll media for cutting.

Figure 1-3

T-Stand –supports

the cutting plotter

Roll Holder

Support

supports roll holders

T-Stand –supports

the cutting plotter

Stand Beam

stabilizes the body.

Expert Pro User Manual

General Information 1-5

1.4.4 The Left-hand Side of Expert Pro (Figure 1-4)

Fuse – 3 Amp.

Figure 1-4

Power Switch – On when switches to [I]; Off to [O]

AC Power Connector

1.4.5 The Right-hand Side of Expert Pro (Figure 1-5)

Serial Interface Connector (RS232C)

used to connect the cutting plotter to a

computer through a serial interface cable.

Parallel Interface Connector

used to connect the cutting plotter to a

computer through a parallel interface cable

Figure 1-5 USB Connector

used to connect the cutting plotter to a

computer through a USB cable.
