Front Runner SLIMLINE II Manuel utilisateur

()

JEEP RENEGADE BU

SLIMLINE II RACK

()

1255mm x 1358mm

KRJR001T

INSTALL TIME: 45 Mins

IMPORTANT WARNING!

IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR

VEHICLE. IMPROPER ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY

INJURY OR DEATH TO YOU OR TO OTHERS. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER

PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE

PRODUCTS FOR ADJUSTMENT, WEAR, AND DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE

INSTRUCTIONS AND CAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO INSTALLATION OR USE. IF YOU DO

NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT

THOROUGHLY FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A

PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

Thank you for purchasing a Front Runner Slimline II Rack.

This Roof Rack consists of a kit that contains:

1. A Slimline II Tray

2. A mounting system specific to your vehicle

Before you start, take a moment and open all your boxes and gather the assembly instructions for the various

components.

This document will guide you through the assembly of the various mounting system components and assist you in fitting

the Slimline II Tray to your specific vehicle.

START HERE

READ ME FIRST

REV_A00

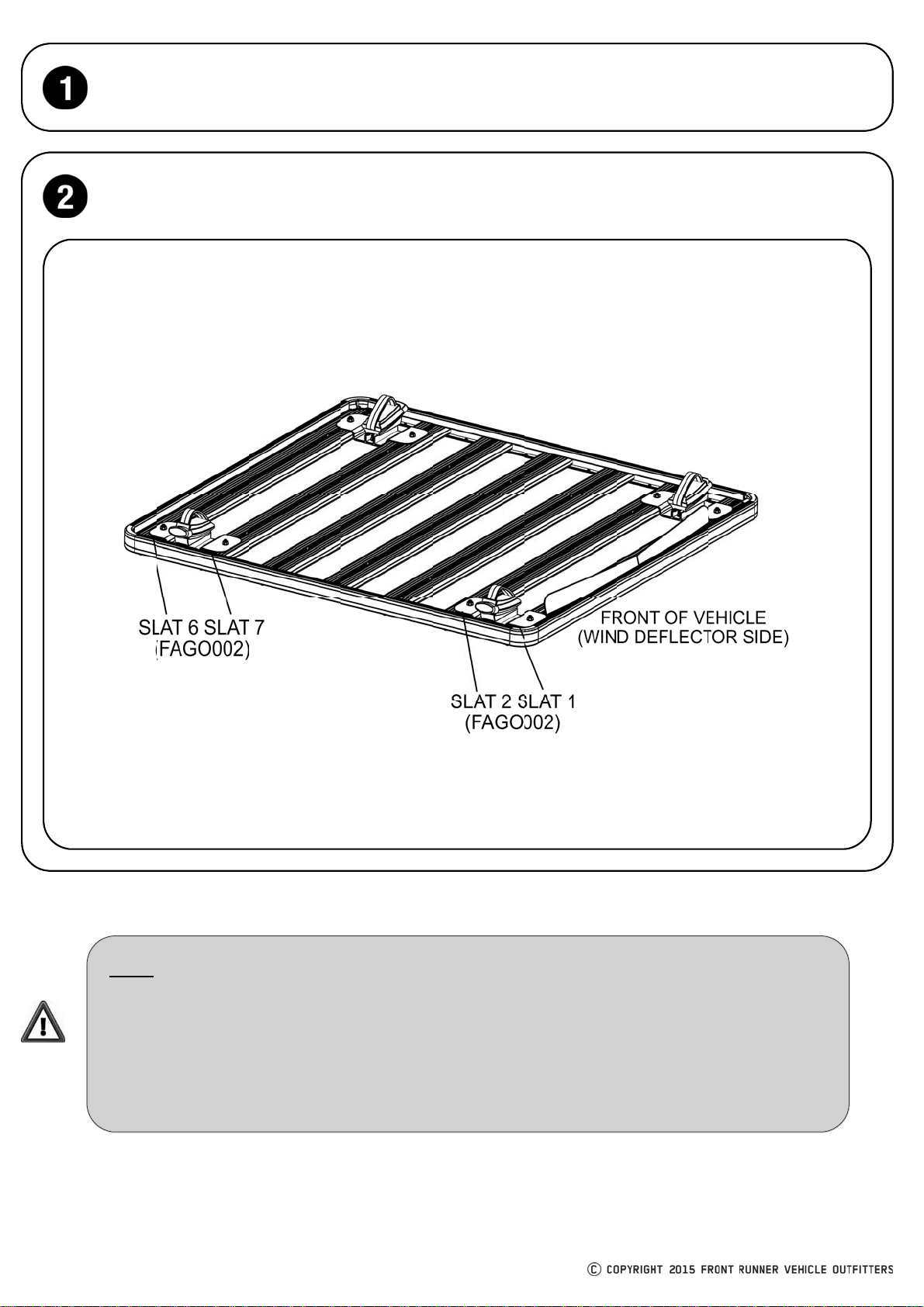

With your Rack in the upside down position (Product sticker should be upside down), fit the Strap-on Feet

to your Slimline II Tray as illustrated below.

()A

NOTE: DO NOT SLIDE THE RACK AND STRAP-ON FEET ACROSS THE ROOF! If there is a chance that you are

going to set the roof rack on to the roof, place some moving blankets and/or towels over the roof. If you

must lower the rack before it is in position, carefully set the Feet on the padded surface.

Once your Slimline II Roof Rack is fitted, ensure a 15mm clearance is maintained between the Wind

Deflector and the vehicles roof otherwise damage to the roof may occur. Bend the Wind Deflector by hand

if necessary.

Assemble your Slimline II Rack

Refer to SLIMLINE (II TRAY UNIVERSAL ASSEMBLY INSTRUCTION Document RRSTUNI)

Fit the STRAP ON FEET

-(Refer to STRAP ON FOOT ASSEMBLY INSTRUCTIONS Document FAGO002)

REV_A00

MOUNT RACK TO YOUR VEHICLE

To complete your installation, center the Rack from left to right using a tape measure. Ensure that the

Strap-on Feet are sitting all the way in on the Adapter Plates. Fasten all the M8 Nyloc Nuts securing the

Adapter Plates to the Rack and the Allen Bolts on the Strap-on Feet.

Unlock and remove the End Caps from the Strap-on

Feet. Un-hook/un-clip the Rubber Straps. Place the

Rack Assembly over the Vehicle's Roof Rails in the

desired front to back position.

Re-hook/Re-clip the Rubber Straps making sure

they run under and around the Vehicles Roof Rails

and adjust each Strap-on Foot so that Vehicle's

Roof Rail sits centered on the Strap-on Foot.

Each End Cap comes with a Hex Key attachment.

Using the Hex Key loosely fasten the Allen Bolts

indicated by the arrow.

(

)

(

)

TAKE A TRIP

After your first adventure, check that all nuts, bolts, screws and fittings are tight. Re-tighten where needed.

You'll find a small amount of settling has happened.

Go on many more adventures, periodically checking all nuts, bolts, screws and fittings.

()A

Front Runner can not recommend a maximum load carrying capacity. Please refer to your vehicle

manufacturer's recommendations.

REV_A00
