Front Runner TBRA020 Manuel utilisateur

front runner

TBRA020

ENG

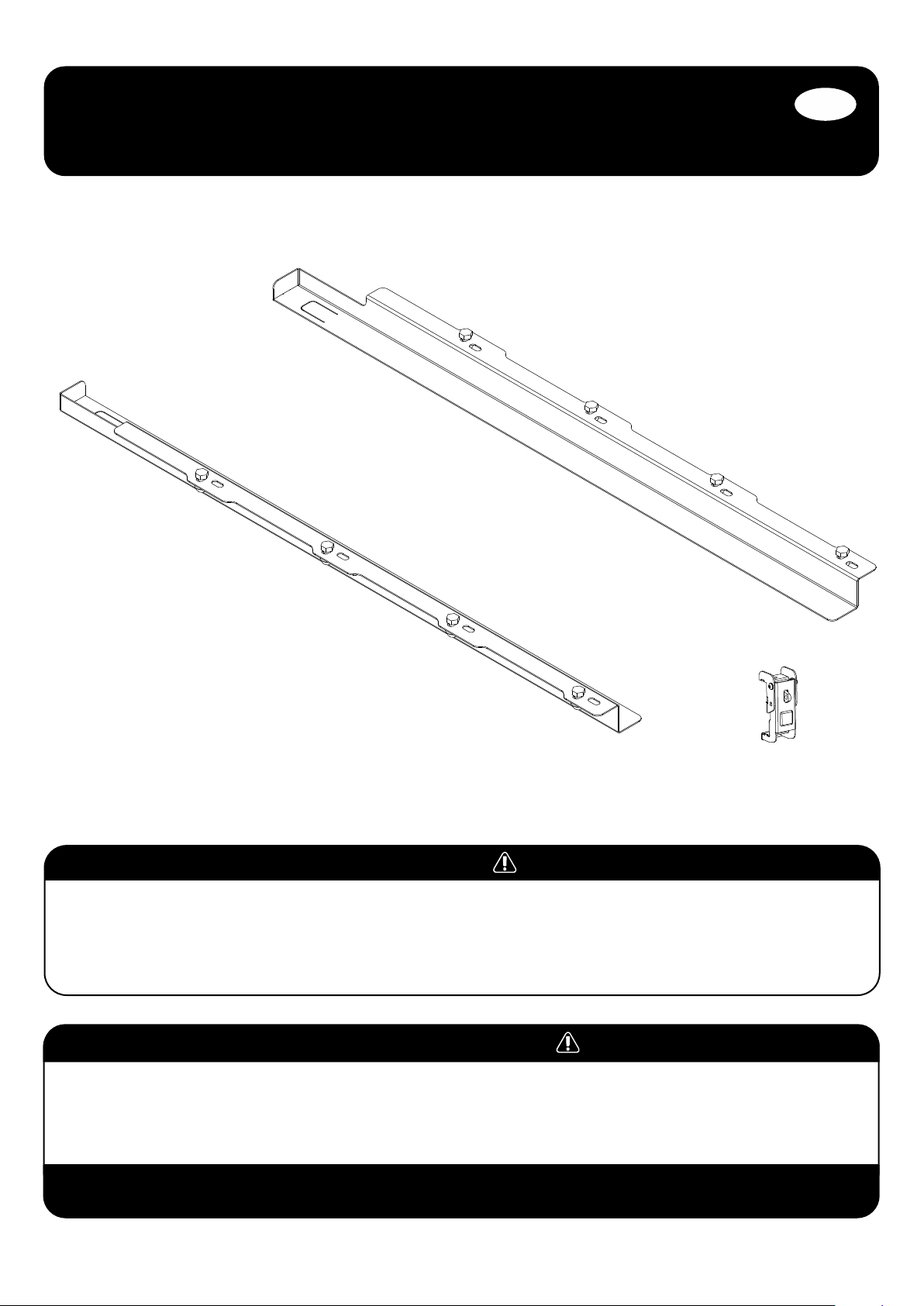

Thank you for purchasing Front Runner Under Rack Table Slides.

Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.

Refer to Page 2 for a list of all the components, quantities and tools required.

READ ME !

IMPORTANT WARNING!

IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD

RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT

RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND

DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO

INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY

FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.

Please call us if you have any questions about the installation of this product.

Under-Rack Table Slides

TOOLS NEEDED

FIGURE 1.1

GET ORGANIZED

IN THE BOX

1 1 X Table Slide LH

2 1 X Table Slde RH

3 10 X M8 x 16 Hex Bolt

4 10 X M8 x 16 x 1.6SS Flat Washer

5 10 X M8 Nyloc Nut

6 10 X M8 Nut Cap

7 1 X Table Latch

8 1 X T-Slot Rubber

9 2 X M6 Nyloc Nut

10 2 X M6 x 12 x 1SS Flat Washer

11 2 X Uni Screw Cap

12 2 X M6 x 12 Button Head Bolt

5mm

13mm

FIT AND SECURE - REAR MOUNT2

2.1

2.2

2.3

Working underneath and from the rear

of the Rack, Slide two M8 x 16 Hex Bolts

(Item 3) into the second, third, fourth

and ﬁfthSlats of the rack through the

machined slots as shown.

Loosely secure the Table Slides (Item 1

&2) to the Rack using the M8 x 16 Flat

Washers and M8 Nyloc Nuts(Items 4 &

5) as shown.

Depending on the Width of your Table,

space the two Table Slides 750mm or

550mm apartand tighten all the Nyloc

Nuts and place a M8 Nut Cap (Item 6)

over each Nyloc Nut.

With the Rack still in the upside down

position, cut the T-slot Rubber (Item 8)

to suit the width of your Rack and

insert it into the rear channel of the

ﬁrst slat by pinching / squeezing the

sides of the rubber together and

pushing / rolling the Rubber into

channel as shown.

2nd

3rd

4th

5th

Rack shown in

upside down position

Rear Of Rack

750mm or 550mm

FIT AND SECURE - REAR MOUNT2

2.4

2.5

2.6

With the Rack in the upright position,

Insert a M8 NylocNuts (Item 5) dome

side facing down into the'U" channel of

the Rack. Slide the Nyloc Nuts down the

"U" channel to the center of the Rack.

Place the Latch (Item 7) onto the Rack,

lining up the mounting hole in the Latch

with the Nyloc Nut inserted in 2.4.

Secure the Latchin position using a M8

x 20 Button Head Bolt and a M8 Flat

Washer.

Once the Rack has been mounted to the

vehicle, open the Latch by pushing on

the Latch Release and slide the Table

into position. Check that the table has

no Forward / Backward movement

when the latch is closed. If it does

loosen the Nyloc Hex Nuts (Item 5) from

2.2 and adjust so that the table has no

movement in the slides when the latch

is closed.

A small pad lock can be used through

the hole in the Latch Release should

you wish to lock the table.

Push Up To Open

FIT AND SECURE3

3.1

3.2

3.3

Decide whether you would like your

Table (Item 1) to exit on the left or right

hand side of the vehicle. There are two

Table Widths (550mm & 750mm). The

Illustrations in Steps A, B, C show the

Brackets positioned for a 750mm Wide

Table.

Insert ﬁve M8 x 16 Hex Bolts (Item 3)

into each of the two Slats as indicated

through the machined slots as shown.

Loosely secure the Table Slides (Item 1

& 2) to the Rack using the M8 Nyloc

Nuts and M8 x 19 Flat Washers (Items 4

&5) supplied.

Space the Table Slides 250 mm in

from the edge of the Rack as shown.

The Table Slides are slotted left to

right to enable adjustment. Space

the two Table Slides 750mm or

550mm apart and tighten all the

Nyloc Nuts. Place a M8 Nut Cap

(Item 6) over each Nyloc Nut.

5MM

FIT AND SECURE2

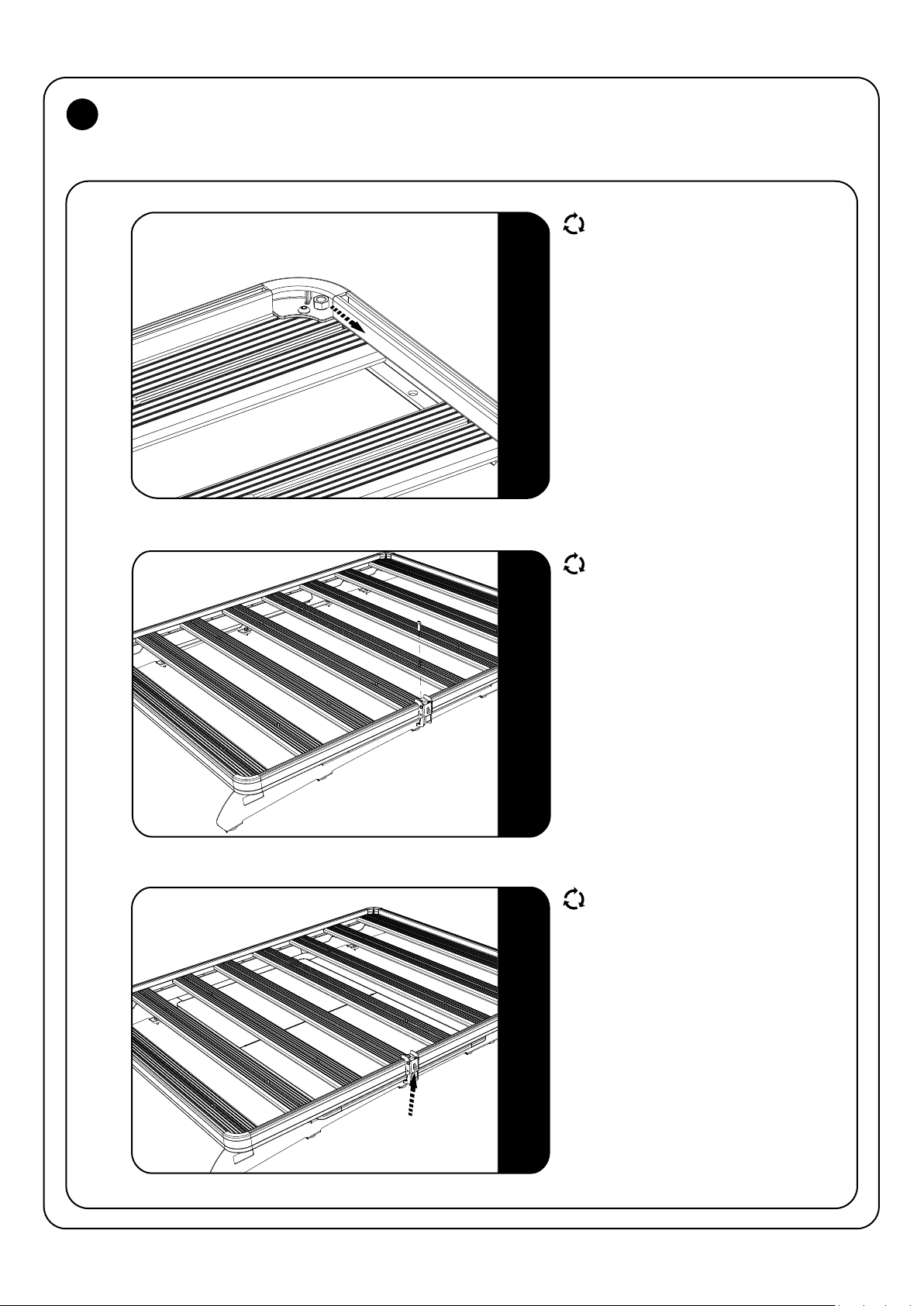

3.4

3.5

3.6

With the Rack in the upright position

and working on the side of the rack that

the Table will exit, insert a M8 Nyloc Nut

(Item5)dome side down into the "U"

channel of the Rack through the gap

in the corner as shown. Slide the Nyloc

Nut down the "U"channel and center

the Nut between the two Table Slides.

Place the Latch (Item7)onto the Rack,

lining up the mounting holes in the

Latch with the Nyloc Nut inserted in

Step 3.4. Secure the Latch in position

using two M8 x 20 Button Head Bolts

andtwo M8 Flat Washers.

Once the Rack has been mounted to

thevehicle, open the Latch by pushing

on theLatch Release and slide the Table

intoposition. Check that the table has

noForward / Backward movement

when thelatch is closed. If it does

loosen the NylocHex Nuts (Item 5) from

Step 3B andadjust so that the table has

no movementin the slides when the

latch is closed.

A small padlock can be used through

the hole in the Latch Release should

you wish to lock the table.

Push Up To Open

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

Now's the time to visit your favorite Front Runner Dealer in person or online.

Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam

Share your adventures on:

FINISH

Congratulations! You did it. Take a step back and admire your work!
