Front Runner KSVT001 Manuel utilisateur

ENG

Don’t be a hero and muscle through this installation without reading these ﬁtting instructions ﬁrst! Improper installation of this gear may void certain

aspects of your warranty.

Before you begin, take a moment and open all your Front Runner rack kit boxes and gather the assembly instructions for the various components.

A complete kit will contain:

1. A Front Runner Mounting System speciﬁc to your vehicle

2. A Front Runner Rack Tray or Load Bar Slats

This document will guide you through the assembly of the mounting system and assist you in ﬁtting the roof rack tray or load bars to your speciﬁc

vehicle.

Please refer to the next page for a list of all the components, quantities and tools required.

KSVT001

READ ME FIRST

START HERE!

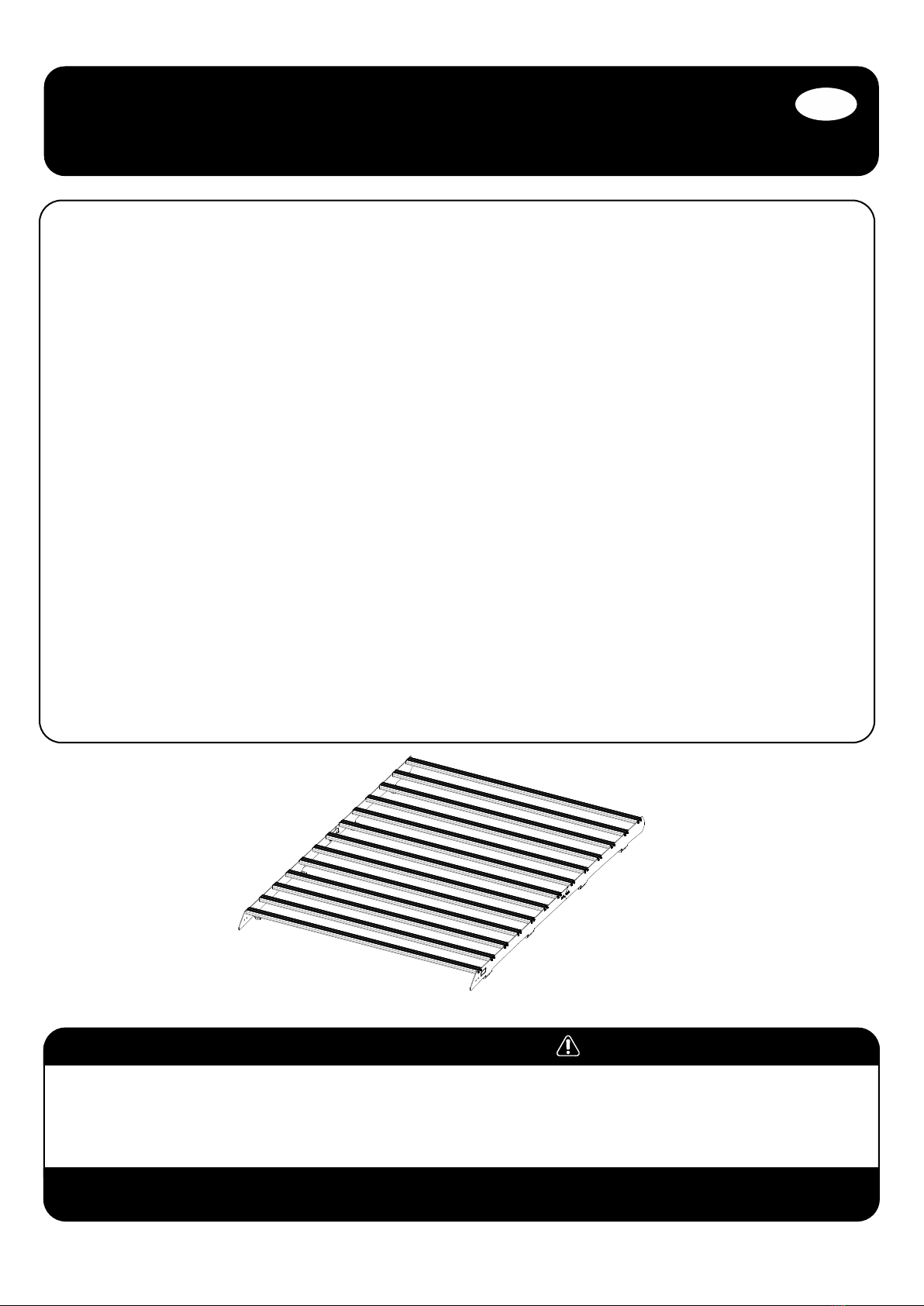

front runner Volkswagen T5 T6 SWB Slimsport Tray

IMPORTANT WARNING!

IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD

RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT

RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND

DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO

INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY

FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.

Please call us if you have any questions about the installation of this product.

TOOLS NEEDED

CHECK ONLINE FOR LATEST FITMENT GUIDE WWW.FRONTRUNNEROUTFITTERS.COM

GET ORGANIZED

IN THE BOX

1 1 X Foot Rail Rear

2 13 X Slim Sport Slat 1331mm

3 1 X Foot Rail Rear

4 8 X 10mm HDPE Spacer

5 1 X Foot Rail Front

6 7

6 1 X Foot Rail front

7 2 X Joiner Plate

8 52 X M6 x 25 Thread Forming Screw

9 8 X M6 x 16 Flange Button Head Screw

10 8 X M6 Nyloc Nut

11 8 X M6 x 20 x 2 Flat Washer

12 8 X M6 x 30 Hex Bolt

13 16 X M6 Nut Cap

10mm Sealant

Torx

T30

Oil or

Anti Seize

KSVT001_REV_A00

FIT AND SECURE

2.1

2.2

2.3

Assemble the Front and Rear Foot Rail (Items

1 & 5) with the Joiner Plate (Item 7) using M6

x 16 Flange Button Head Bolts and M6 Nyloc

Nuts (Items 9 & 10) as shown.

Place M6 Nut Caps (Item 13) on the Nyloc

Nuts.

Remove the 8 Factory Fitted Caps on the roof.

Assemble the 13 SlimSport Slats (Item 2) to

assembly 2.1 using M6 x 25 Thread Forming

Screws (Item 8).

Tightening Torque:

M6 : 8-10Nm / 5.9 ft lb - 7.38 ft lb

Torx

T30

10mm

Use a little anti seize or oil on screw

threads before inserting. Note these are

Thread Forming Screws.

Tightening Torque 8-10Nm /

5.9 ft lb - 7.38 ft lb. Take care when

using a cordless driver.

Torx

T30

Cordless

Drill

Oil or

Anti Seize

KSVT001_REV_A00

FIT AND SECURE

2.4

2.5

2.6

Place a bead of silicone around the exisiting

mounting points from 2.2.

Place the Spacers as shown over the holes.

With the Help of a friend lift the Roof Rack on

to the roof and place onto the spacers.

Using the

M6 x 30 Hex Bolt (Item 12) together

with the M6 x 20 x 2 Flat washer (Item 11).

Loosley ﬁt the M6 x 30 Hex Bolt (Item 12) on

both sides. Once all the bolts are in place fully

tighten all the M6 x 30 Hex Bolt (Item 12).

Place M6 Nut Caps (Item 13)on all the M6 x 30

Hex Bolt (Item 12).

Congratulations! You did it. Take a step back

and admire your work!

10mm

Tightening Torque:

M6 : 8-10Nm / 5.9 ft lb - 7.38 ft lb

KSVT001_REV_A00

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

Now's the time to visit your favorite Front Runner dealer in person or online.

IMPORTANT!

Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam

Share your adventures on:

FRONT RUNNER RACK KITS OFTEN HAVE A HIGHER LOAD RATING THAN THE VEHICLES THEY ARE MOUNTED TO. PLEASE REFER TO YOUR SPECIFIC VEHICLE MANUFACTURER

FOR A RECOMMENDED ROOF RATING. FRONT RUNNER CANNOT BE RESPONSIBLE FOR IMPROPER LOADING BEYOND THE VEHICLE MANUFACTURER'S STATED LOAD CAPACITY.
