Product sheet



Model HDV-WTX2

Wireless Articulating Semi-Rigid Probe

For use with the HDV600 Borescope only

Thank you for purchasing this professional camera probe. This sheet covers the warning and

specifications for the probe only. Instructions regarding the usage of the HDV600 Borescope are

provided in the Borescope User Guide.

Note: The camera LEDs become warm when set to maximum intensity

CAUTION: For the Articulating Probe, do not operate the articulation knob with the

probe in a coiled configuration. This will damage the articulation controls!

CAUTION: Always return the articulation and tension knobs to the neutral position

before removing the probe from the inspection area.

The label on the probe provides the Serial Number and Part Number in the format

shown below. Please do not remove this label; otherwise the warranty will be invalid.

Part No.TX1 F/M/R (flex/macro/rigid) Serial No: HDV110001

Warnings

•Do not bend to a smaller diameter than 10cm (4”)

•Warranty is invalid if stickers, tags, or labels are removed

Articulating Probe Description

1. Articulation knob

2. Articulation tension knob

3. Articulating camera

4. Light intensity buttons

5. Power button

6. AC Adaptor and extension cable sockets

7. Carrying strap

12 345

6

7

Articulation Setup and Orientation

The articulation direction and orientation may change if the probe is twisted and coiled during use or

when stored. To re-orient the probe:

1. Place the extended probe on a flat surface

2. Set the tension “F” knob to the left or released position.

3. Set the articulation knob to the center position with the R Δand ΔL labels

in the horizontal position.

4. Manually adjust the probe and camera to the zero degree position.

5. Rotate the articulation knob clockwise for a 90° bend.

6. If necessary, manually adjust the probe so that the camera lays flat on the

surface with a 90° articulation

7. Rotate the articulation knob counter-clockwise and confirm proper

orientation.

Charging the Battery

The AC charger port and charging status LED are located in the bottom access compartment.

Connect the charger to the probe and observe the color of the LED. Red indicates the battery is

charging. Green indicates the battery is fully charged.

Note: The rechargeable battery is not user replaceable.

Specifications

Resolution 640 x 480 pixels

Length 2m (6.6’)

Outer diameter (O.D.) 6mm (0.02”)

Battery 3.7V rechargeable Li-Polymer

Focus distance 2 to 6cm (0.79 to 2.36”)

Operating Temperature -20 to 60°C (-4 to 160°F)

Storage Temperature -40 to 80°C (-40 to 176°F)

Warranty 1 year

Copyright ©2011 Extech Instruments Corporation (a FLIR company)

All rights reserved including the right of reproduction in whole or in part in any form.

www.extech.com

Revision 2.0 10/11

RΔ ΔL

Table des matières

Autres manuels FLIR Instrument de mesure

FLIR

FLIR EXTECH SDL310 Manuel utilisateur

FLIR

FLIR MR55 Manuel utilisateur

FLIR

FLIR EM54 Manuel utilisateur

FLIR

FLIR MR55 Manuel utilisateur

FLIR

FLIR CM85 Manuel utilisateur

FLIR

FLIR MR277 Manuel utilisateur

FLIR

FLIR Extech 407760 Manuel utilisateur

FLIR

FLIR Extech Instruments RH520A-240 Manuel utilisateur

FLIR

FLIR EXTECH HDV-WTX2 Manuel utilisateur

FLIR

FLIR EXTECH HDV-TX1 Dimensions

FLIR

FLIR Si124 Manuel utilisateur

FLIR

FLIR CM83 Manuel utilisateur

FLIR

FLIR MR59 Manuel de l'opérateur

FLIR

FLIR Extech Instruments MA150 Manuel utilisateur

FLIR

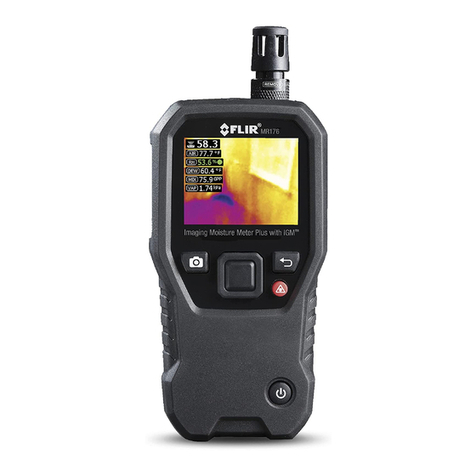

FLIR Imaging Moisture Meter Plus IGM MR176 Manuel utilisateur
