GETTING STARTED

FLIR MODEL CM55 and MODEL CM57

FLEX CLAMP METERS with Bluetooth®

FLIR CM55_CM57 - GETTING STARTED Document Identifier: CM55_CM57-QS-en-US_AC

CM55_CM57 - GETTING STARTED - EN

USER GUIDE LOCATION: The detailed User Guide is located in the product packaging and on the support.flir.com web

site (download tab). Please read the entire User Guide to gain a thorough understanding of the meter before use.

Quick Overview

Press and hold to power ON or OFF. Install or replace

batteries in rear compartment if meter does not power up.

Meter switches OFF automatically after 10 mins of inactivity.

Current Measurements are covered on the next page.

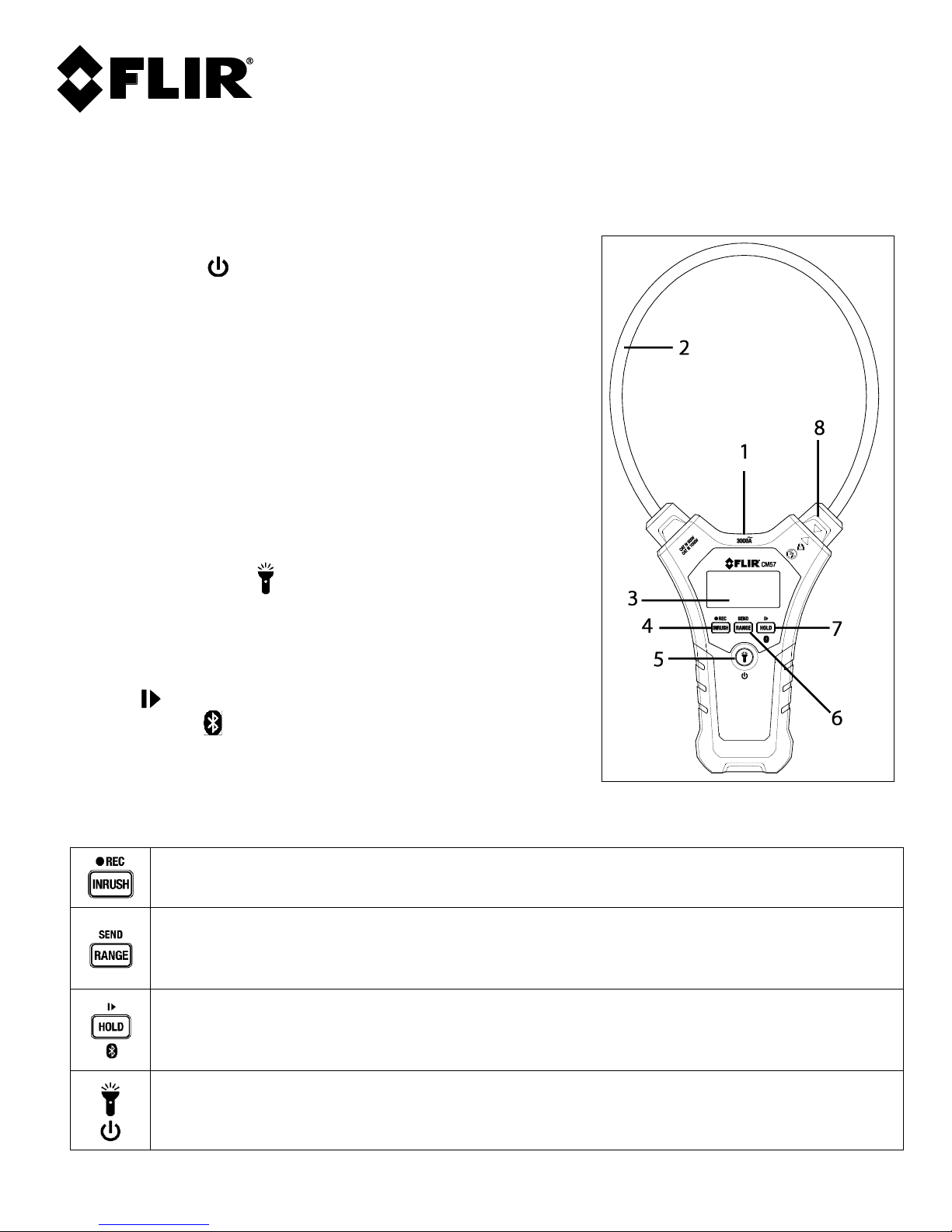

For the descriptive diagram at right, see the descriptions below:

1. Work Lights

2. Flexible Current Clamp Coil

3. Display

4. INRUSH / REC (Record) button

5. Power / Work Light button

6. RANGE / SEND button

7. HOLD / Start-Stop Record / Bluetooth® button

8. Clamp Lock mechanism

Note: Battery compartment on rear of meter

When powered, press to turn Work Lights ON or OFF.

Press HOLD to freeze displayed readings.

Press RANGE for Manual Ranging (Auto Range is default).

Press INRUSH for inrush current mode (refer to User Guide).

Press and hold REC to record readings at 1 min. intervals.

Press to Start/Stop recording (in REC mode only).

Press and hold to activate Bluetooth®(real time readings will

now be available to Bluetooth®paired devices).

Press and hold SEND to transmit bulk stored readings via

Bluetooth®(refer to User Guide for in-depth information).

Button Overview

Momentary press to access INRUSH mode

Press and hold to access the Record Memory mode (REC)

Momentary presses step through the ranges manually

Press and hold while in manual range mode to return to Auto range

Press and hold to Send data via Bluetooth® (refer to User Guide for in-depth information)

Momentary press to access the Data Hold mode

Press and hold to activate/deactivate Bluetooth® communication

While in Record mode, momentary press to Pause/Resume recording

Press and hold to switch power ON/OFF

When powered, press to activate/deactivate work lights

FLIR CM55_CM57 - GETTING STARTED Document Identifier: CM55_CM57-QS-en-US_AC

Positioning Conductor in Center of Clamp Jaw

Display Icons

Bluetooth® Communication

Display Hold

Amperes (Current)

Battery status

Inrush Current

Auto Power Off (APO)

Bulk Data Transmission

Memory (Recording) Mode

Auto Range mode

AC Current Measurements

WARNING: Ensure that power to the device under test is OFF before starting this procedure. Switch power to the device

under test ON only after the clamp has been safely attached to the device under test.

CAUTION: Do not move fingers above the LCD at any time during a test.

1. Switch the meter OFF and switch power to the device under test OFF.

2. Turn the clamp lock (1) counter-clockwise to release the flexible clamp (2).

3. Fully enclose only one conductor of the device under test with the flexible clamp

probe (see diagram below for Correct and Incorrect usage).

4. Re-secure the clamp lock (1) after clamping around a single conductor.

5. Do not attempt to measure current higher than the specified current limit.

6. Switch the meter ON and then switch power to the device under test ON. Never

move fingers above the display area when running a test.

7. Read the current value in the display; ‘OL’ will display if the measured signal

exceeds the range. The meter defaults to the Auto Range mode; the Auto Range

icon is visible on the display. The meter will automatically select the appropriate

range when in Auto Range mode.

8. To manually select the range, use the RANGE button to step through the available ranges (30.00A / 300.0A /

3000A).

www.flir.com

Unlock/Lock Clamp Jaw

FLIR CM55_CM57 - GETTING STARTED Document Identifier: CM55_CM57-QS-en-US_AC

Corporate Headquarters

FLIR Systems, Inc.

2770 SW Parkway Avenue

Wilsonville, OR 97070

USA

Telephone: +1 503-498-3547

Customer Support

Technical Support Website http://support.flir.com

Technical Support Email [email protected]m

Service and Repair Email [email protected]

Customer Support Telephone +1 855-499-3662 (toll free)

Publication Identification No.: CM55_CM57-QS-en-US

Release version: AC

Release Date: 2018 September

Language: en-US
