Flashforge THOR500T Manuel utilisateur
ZN/EN-A01
P20
Thor系列
最新版本说明书和切片软件可以在随机附带的存储卡中找到，或联系
设备销售商。
说明书/切片软件
User Guide
Slicing Software The latest version of User Guide and slicing software can be
found in the memory card, or contacting the equipment seller.
01
300T Type Unpacking
1. Put the printer box at a clean and flat place. 2. Take out the tool box.
3. Check parts of the tool box: tool kit, memory
card, screw bag, filament, ribbons, filament
fixed seat, filament support, T-type fixed seat
of Z-axis, T-type fixed seat of Z-axis+Sensor.
4. There is an unclogging pin tool, grease,
Allen wrench, stamping wrench, PTFE tube
inside the tool kit.
5. There are 4 screws of M5*25, 5 screws of M4*6,
4 screws of M4*8 and 8 set screws of M4*5
inside the screw bag.
6. Take out all the foam blocks in the middle and
filament below the foam.
02
7. Take out the filament shaft.
9. As is shown, hold the position that arrow
points, and lift the printer base out of the
carton.
11. Remove the extruder and put it on the build
plate. Be careful not to scratch the nozzle.
8. Remove foam blocks on both sides, and take
out upper holder of the printer.
10. Remove the foam block on one side that
has no extruder.
12. Remove the foam blocks left, unboxing
completed. Suggest to keep packing
materials well for further storage or
transportation.
03
400T / 500T Type Unpacking
1. Put the printer box at a clean and flat place. 2. Take out the tool box and filament.
3. Take out the upper holder of the printer and
put them at a clean place.
4. Take out the filament shaft.
5. Take out the extruder and put it on the build
plate.Be careful not to scratch the nozzle.
6. Take out the foam.
04
7. Take the build plate base out of the carton.
(Two-person operation is recommended)
9. Check parts of the tool box: tool kit, memory
card, screw bag, filament, ribbons, filament
fixed seat, filament support, T-type fixed seat
of Z-axis, T-type fixed seat of Z-axis+Sensor.
11. There are 4 screws of M5*25, 5 screws of M4*6,
4 screws of M4*8 and 8 set screws of M4*5
inside the screw bag.
8. Put build plate on the table and check all the
parts of the printer,no damage.
10. Take out the unclogging pin tool, grease, Allen
wrench, stamping wrench, PTFE tube inside
the tool kit.
Unboxing of profile machine completed.
Suggest to keep packing materials well for
further storage or transportation.
05
ZN/EN-A01
P18
Thor系列
最新版本说明书和切片软件可以在随机附带的存储卡中找到，或联系
设备销售商。
说明书/切片软件
UserGuide
SlicingSoftware Thelatest version of User Guide and slicing software can be
foundin the memory card, or contacting the equipment seller.

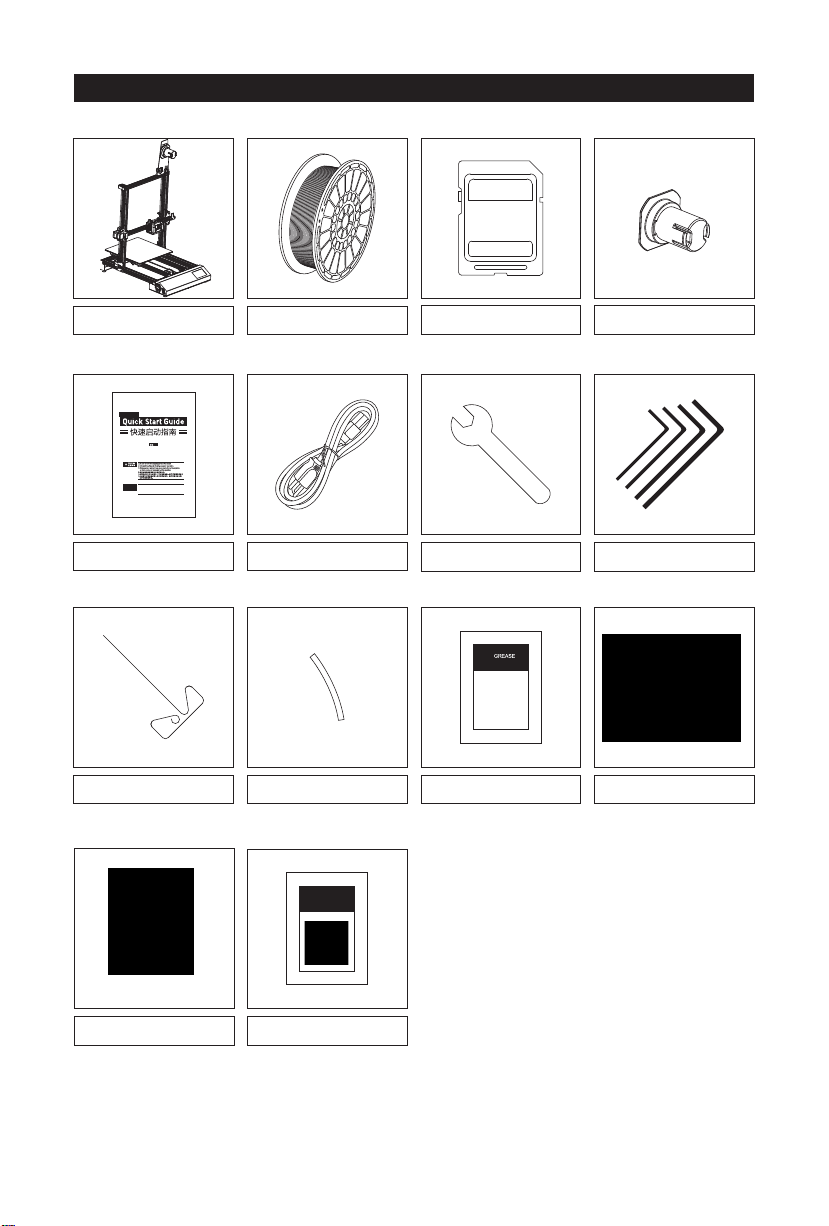

Kit Contents
3D Printer SD Card Filament Support
Quick Start Guide
Unclogging Pin Tool
Filament Fixed Seat Screw Bag
PTFE Tube Grease Ribbon
Power Cable Wrench Alen Wrench
Filament
06
1
2
3
4
5
6
7
8
9
16
15
11
10
12
18
19
13
14
17
1. Filament detector 2. Filament support 4. Extruder3. Filament Fixed Seat
16. Left Z-axis sensor 17. Left Z-axis motor 19. X-axis motor18. X-axis sensor
5. Right Z-axis motor 6. Build plate 7. Right Z-axis motor cable
8. Y-axis motor and Y-axis sensor 10. Touch screen9. Leveling sensor cable
11. Power cable interface 12. Power switch 13. Left Z-axis sensor cable
14. Left Z-axis motor cable 15. Left Z-axis motor cable and Left X-axis sensor cable
Getting to Know Your Thor
07
1. As is shown, take out the upper holder on the
table and remove protective foam.
2. As is shown, take out two T-type fixed seats,
and put one of the T-type fixed seats with
sensor on the left side.
3. Slightly unfasten the screw on the T-type
fixed seat, thus the T-type screws at the
back of the fixed seat is movable.
4. As is shown, adjust the direction of T-type
screws, and insert the T-type fixed seat with
sensor into the left side of the upper holder.
5. Slightly fasten the screw on the T-type fixed
seat that has been unfastened before.
But do not fasten with too much force.
6. Insert the T-type fixed seat into the right side
of the upper holder in the same way.
Hardware Assembly
08
7. As is shown, the upper holder should be fixed by L-type block and the printer. Adjust L-type block
positions on both sides to align the screw hole that the arrow points.
8. Insert upper holder into L-type block on both
sides.
9. Use 4 M5*25 screws to tighten the bottom,
two on each side.
10. Use 8 M4*5 set screws to fix L-type block,
four on each side.
11. As is shown, adjust 4 T-type screws (two on
each side) to screws holes of T-type fasteners
for subsequent fixing of T-type fixed seats on
both sides. (Find T-type screws in the sliding
slot on both sides).
09
12. Use 4 M4*8 screws to fix T-type fixed seats
on both sides, two on each side.
13. Tighten screws on the T-type fixed seats.
14. As is shown, clip the square clip into the groove at the bottom of extruder base, thus making the
back of extruder be close to extruder fixed seat.
15. Use 3 M4*6 screws to fix extruder. 16. Take out filament fixed seat, and get ready
for installing it on the top of the upper holder.
Attention please, make sure the side of spool
holder with the filament detector switch is
facing the front of the printer.
