Flashforge Finder Manuel utilisateur

SZ05-ZN/EN-A10

P14

4. You will see Quick Start Guide, After-sales

Service Card, Power Cable, Filament Guide

Tube and Tool Bag.

5. Use scissors to cut the four buckles that hold

the rods in place.

6. Discard the blue tape that holds the flat cable

in place. Be careful with the flat cable.

9. Remove the bottom insert. Power adapter,

USB cable and solid glue are packed inside.

10. Remove the two yellow buckles that hold the

Z-axis guide rods.

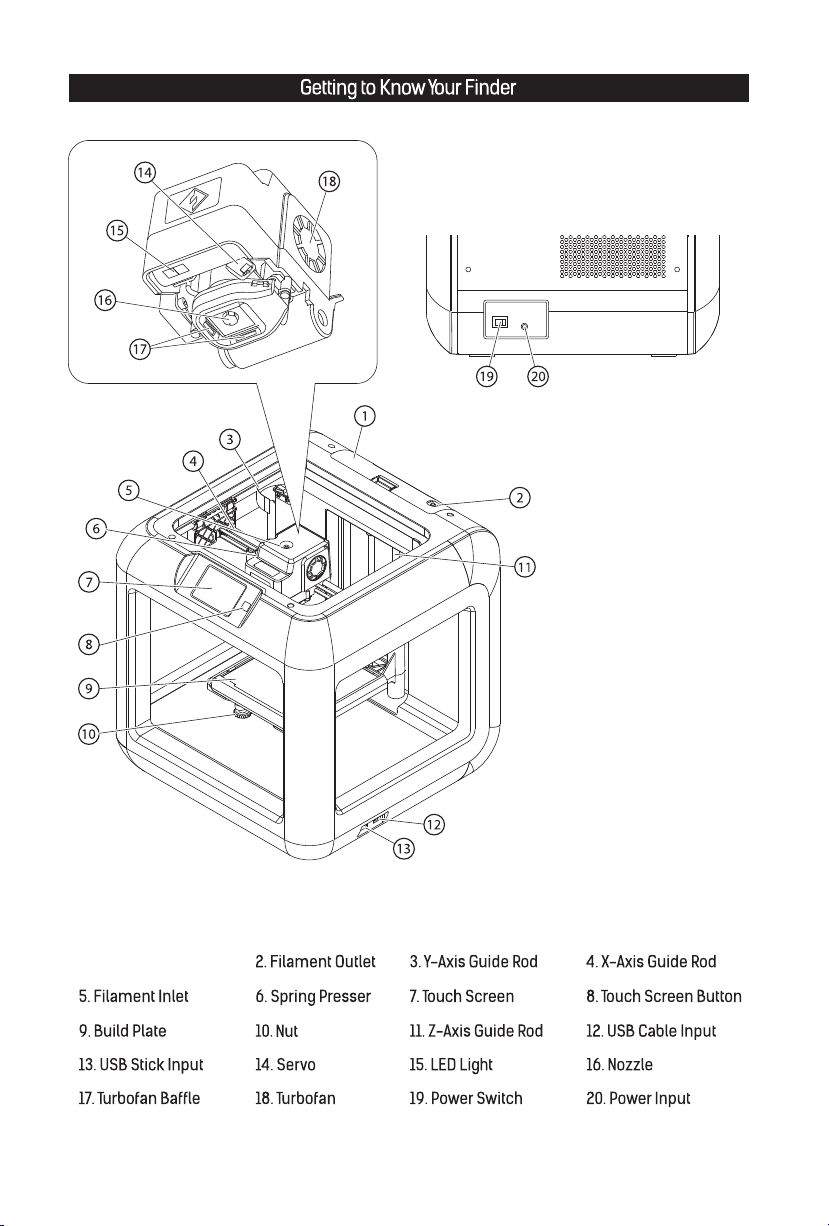

1. Filament Cartridge

Filament Outlet

Filament Guide Tube

Please pay attention to

loading direction!

4. After filament goes through guide tube, press

spring presser on the left side of extruder, and

insert filament vertically into filament intake to

the bottom.

1. Filament cartridge is at the back of printer. Before taking out filament cartridge, please hold the

clip on the top and take filament cartridge out.

2. Take out filament, tear off vacuum packing and put it into filament cartridge. Put filament through

filament outlet as the picture shown on the top left.

3. Hold clip on the top of filament cartridge, put

filament catridge back to the printer, and put

filament through filament guide tube.

Attention: filament unwinding direction should keep pace with the picture, or causing cannot

print properly.

Press here Filament intake

5. After inserting into filament intake, insert

guidetube into extruder filament intake.

6. Finally put the other end of filament guidetube

to filament outlet on the top of filament

cartridge.

7. Conmect the power adapter with the power cable. 8. Insert the power supply into the power input

on the back.

10. Press the touch screen button to turn on

the printer.

Touch Screen Button

9. Plug the other end of power cable into socket,

turn on the power switch.

How to use the nuts

Rotate the nuts clockwise

Raise the build plate to reduce the distance

between the nozzle and build plate.

Lower the build plate to increase the distance

between the nozzle and build plate.

Rotate the nuts Anticlockwise

Build plate goes up Build plate goes down

Leveling Build Plate

1. Tap [Tools].

Build

2. Tap [Level].

Berfore leveling, let's learn the funciton of nuts.

Screw the three nuts under the platform

counterclockwise until they are tight,

then tap the [OK] button.

3. Please wait while the extruder and platform finish initial movements. Screw three nuts under the

platform anticlockwise, then tap [OK] button.

Attention: three nuts may be tightened up before going out, please skip this step if you find

three nuts have been tightened up, and continue to following steps

4. After tapping [OK] button, the extruder will

move towards the first point and the plate will

move up and down to verify the distance

between nozzle and plate.

5. If the distance between the nozzle and plate

is too large, rotate the three nuts underneath

the platform clockwise for the same rounds

until you hear a steady beep.

Turn all three nuts under the platform

clockwise equally until

you hear the beep.

6. Tap the [Verify] button to check whether the

distance is appropriate.

7. If the distance is appropriate, tap [ok] to next

step. If the diastance still not appropriate,

please follow the prompts on the touch screen

to adjust till you see [ok].

Tap the [OK] button to move to

the next leveling point.

Congartulations

8. After first leveling point completed, start the other two leveling points.

Attention: when starting the second and the third leveling points, just need to adjust one

corresponding nut under extruder.

10. If the distance is appropriate, tap [ok] to next

step. If the diastance still not appropriate,

please follow the prompts on the touch

screen to adjust till you see [ok].

Tap the [OK] button to move to

the next leveling point.

Congartulations

11. Start the third leveling point according to the

method of the second leveling point.

After leveling completed, tap return arrow to

go back to home screen.

Leveling completed!

Finish

9. Follow the prompts on the touch screen to adjust the corresponding nut till you hear a steady

beep.

Turn the corresponding nut under

the platform clockwise until

you hear the beep.

Distance Too Small

Turn the corresponding nut under

the platform anticlockwise until

you hear the beep.
