FIC PAK-2102 Manuel utilisateur

PAK-2102

PRELIMINARY

MANUAL

DOC No. : NA

Rev. : NA

Date : 1, 1997

Part No. : NA

Chapter 1 Overview

Main Features ............................................................................................. 2

Chapter 2 Installation Procedures

Mainboard Layout ...................................................................................... 6

1). Set System Jumpers ............................................................................... 7

Jumpers ............................................................................................. 7

Clear Password: CPW ............................................................... 8

Flash EPROM Type Selection: EP1, EP2 ................................. 8

2). Install RAM Modules ............................................................................ 9

DRAM Memory ................................................................................ 9

RAM Module Configuration ............................................................. 10

Install SIMMs ................................................................................... 12

Remove SIMMs ................................................................................ 13

Cache Memory .................................................................................. 14

Onboard Cache RAM (256KB/512KB) ............................................ 15

Onboard Cache RAM and RAM Module Mixture (512KB/1MB) .... 16

RAM Module .................................................................................... 17

3). Install the CPUs ..................................................................................... 18

CPU External Clock (Bus) Frequency: CLK1, CLK2 ............... 20

CPU to Bus Frequency Ratio: FREQ1, FREQ2 ........................ 20

Intel Pentium CPUs ................................................................... 21

Frequency ............................................................................. 21

Voltage ................................................................................. 22

AMD-K5 CPUs ......................................................................... 23

Frequency ............................................................................. 23

Voltage ................................................................................. 24

Cyrix 6x86 CPUs ...................................................................... 25

Frequency ............................................................................. 25

Voltage ................................................................................. 26

IBM 6x86 CPUs ........................................................................ 27

Frequency ............................................................................. 27

Voltage ................................................................................. 28

Installation of Cyrix (or IBM) 6x86 CPU Fan .......................... 29

4). Install Expansion Cards ......................................................................... 30

Table of Contents

PAK-2102 Mainboard Manual

5). Connect Cables and Power Supply ........................................................ 31

Audio-In Connector: CD-IN ..................................................... 31

Serial Port Connectors: COM1, COM2 .................................... 31

CPU Fan Connectors: FAN ....................................................... 32

Hardware MPEG Card Connector: FC, LPB ............................. 32

Floppy Diskette Drive Connector: FLOPPY ............................. 33

Front Panel Block Connector: F_PNL ...................................... 34

Audio and Game Connector: AUDIO&GAME ......................... 35

Infrared Connector: IR .............................................................. 35

Power Connector: POWER ....................................................... 36

IDE HDD Device Connectors:

PRIMARY and SECONDARY ................................................. 37

Printer Connector: PRINTER .................................................... 37

PS/2 Keyboard Connector: PS2_KB ......................................... 38

PS/2 Mouse Connector: PS2_MS ............................................. 38

Remote Power Connector: RPW_CON ..................................... 39

Universal Serial Bus Connector: USB1 and USB2

(Reserved For Future Upgrade) ................................................. 39

VGA Connector: VCA .............................................................. 40

VGA Subsystem ................................................................... 40

Display ................................................................................. 41

The Connector ...................................................................... 42

Wave Table Connector: WAVE ................................................ 42

Overview

Congratulations on your decision to adopt the PAK-2102 mainboard. The

mainboard combines the advanced capabilities of the VIA Apollo 580VP®

chipset with a high-performance concurrent PCI local bus architecture to provide

the ideal platform for unleashing the unsurpassed speed and power of the Intel

Pentium processor. This highly-flexible mainboard is designed to run a full range

of Intel Pentium™, Cyrix 6x86™, IBM 6x86™, and AMD-K5™ processors;

and can be easily upgraded using its 321-pin ZIF socket. The processor's

advanced performance is complemented by a second level write back Pipeline

Burst SRAM cache of up to 1MB and main memory of up to 512MB RAM. The

main memory is installed using the board's six 72-pin SIMM sockets that accept

an unrivaled choice of high-speed EDO and standard Fast Page Mode DRAM.

The PAK-2102 integrates a full set of I/O features onboard, including two 16550

UART compatible serial ports, one EPP/ECP capable parallel port, and one

Floppy Disk Drive controller. It also comes with a built-in Enhanced IDE

controller that provides convenient, high-speed PCI Bus Master connections

with up to four IDE devices, including Hard Disk and CD-ROM drives. An

extended slot allows you to install a riser card providing ample room for further

expansion. The mainboard also features support for the state-of-the-art Universal

Serial Bus (USB) that provides ease-of-use and high-speed Plug & Play

connections to future USB compliant peripheral devices. The IrDA compliant

serial port and optional onboard SIR support further enhance system I/O

connectivity. Moreover, for advanced VGA functionality, the PAK-2102

features an onboard S3 Trio64V+™ VGA subsystem that delivers up to

1024x768x256 resolutions. The Creative Lab ViBRA 16C™ onboard audio

subsystem provides the audio environment.

This chapter gives you a brief overview of the PAK-2102 mainboard. In addition

to basic information on the board's main components and features, it also

provides advice on how to upgrade and expand it. For updated BIOS, drivers, or

product release information, please visit FIC's home page at:

http://www.fic.com.tw.

Main Features

The PAK-2102 mainboard comes with the following high-performance features:

Chapter 1

PAK-2102 Mainboard Manual

 Easy Installation

Phoenix BIOS with support for Plug and Play, auto detection of Hard Drive

and IDE features, and MS Windows 95™.

 Flexible Processor Support

The onboard 321-pin ZIF socket supports Intel Pentium (P54C) CPU speed

75/90/100/120/133/150/166/200 MHz processors / P54CS / P54CTB /

P55.P55C.

.Cyrix 6x86-P120+ (100 MHz) / 6x86-P133+ (110 MHz) / 6x86-P150+

(120 MHz) / 6x86-P166+ (133 MHz) / M2 seris processors.

IBM 6x86-P120+ (100 MHz) / 6x86-P133+ (110 MHz) / 6x86-P150+

(120 MHz) / 6x86-P166+ (133 MHz) / M2 seris processors.

A...AMD K5-PR75 (75 MHz) / K5-PR90 (90 MHz) / K5-PR100 (100 MHz) /

K5-PR120 (90 MHz) / K5-PR133 (100 MHz) / K5-PR150 (105 MHz) /

K5-PR166 (116 MHz) / K5-PR200 (133 MHz) processors.

 Leading Edge Chipset

VIA 580VP chipset, including a CPU interface controller, advanced

cache controller, integrated DRAM controller, synchronous ISA bus

controller, PCI local bus interface, integrated power management unit.

 Ultra-fast Level II Cache

Supports onboard Pipeline Burst SRAM that can be expanded to 1MB

using a cache module.

 Versatile Main Memory Support

Accepts up to 512MB RAM in threebanks using six SIMMs of 4, 8, 16, 32,

|| 32, 64, 128MB with support for FPM and EDO DRAM.

 ISA & PCI Expansion Slots

An extend slot allows a riser card for further expansion.

 USB Support (Reserved for Future Upgrade)

Two Unniversal Serial Bus plug-in connectors integrated into rear I/O

panel.

Overview

 Enhanced PCI Bus Master IDE Controller

Integrated Enhanced PCI local bus IDE controller with two connectors

supports up to four IDE devices such as Hard Disk, CD-ROM or Tape

Backup drives via two channels for high speed data throughput. This

controller supports PIO Modes 3 and 4, and DMA Mode 2 for optimized

system performance.

 Super Multi I/O

Integrated NS PC87336VLJ Multi I/O chipset features two 16550A UART

comcompatible serial ports, one EPP/ECP capable parallel port, one IR port, an

a| nand one Floppy Disk Drive connector.

 Compact Audio Onboard Subsystem

Integrated Creative Lab ViBRA 16C onboard audio system controller and

Yamaha OPL ¾ FM music synthesizer fully compatible with Sound

BlasBlaster®, Sound Blaster Pro, Microsoft Windows Sound system, and

Rol||Roland MPU401 standard.

 High-Resolution Onboard VGA Subsystem

||Onboard S3 Trio64V+ VGA subsystem offers up to 1280x1024x256

||||||||||resolution.

PAK-2102 Mainboard Manual

This Page Intentionally Left Blank

Installation Procedures

The PAK-2102 has several user-adjustable jumpers on the board that allow you

to configure your system to suit your requirements. This chapter contains

information on the various jumper settings on your mainboard.

To set up your computer, you should follow these installation steps:

 Step 1 -

Set system jumpers

 Step 2 -

Install System RAM modules

 Step 3 -

Install the CPU

 Step 4 -

Install expansion cards

 Step 5 -

Connect cables and power supply

Chapter 2

PAK-2102 Mainboard Manual

Mainboard Layout

Installation Procedures

1). Set System Jumpers

Jumpers

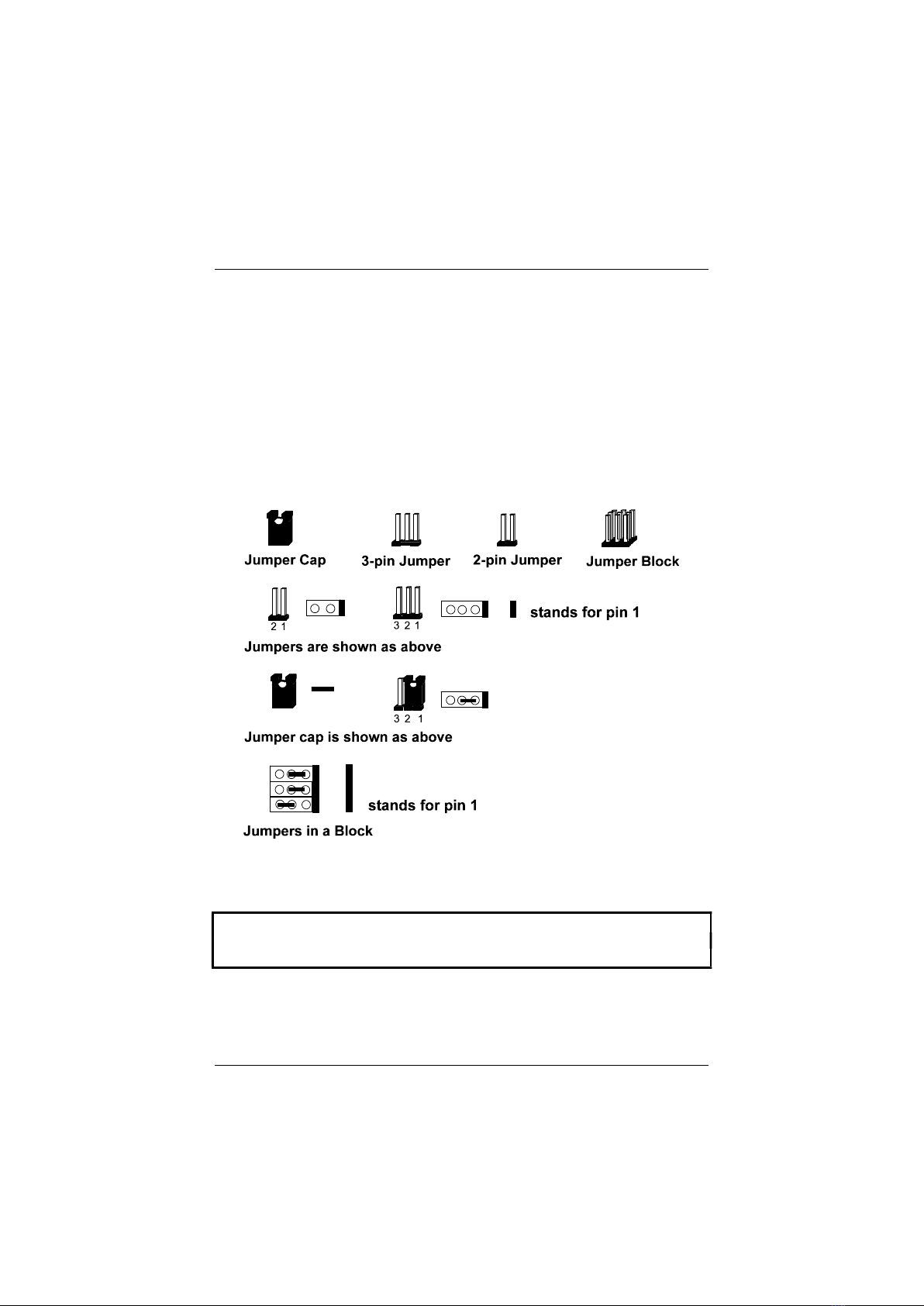

Jumpers are used to select the operation modes for your system. Some jumpers

on the board have three metal pins with each pin representing a different

function. To set a jumper, a black cap containing metal contacts is placed over

the jumper pins according to the required configuration. A jumper is said to be

shorted when the black cap has been placed on one or two of its pins. The types

of jumpers used in this manaul are shown below:

NOTE : Users are not encouraged to change the jumper settings not listed in

this manual. Changing the jumper settings improperly may adversely affect

system performance.
