Extron electronics MTP 15HD A Series Manuel utilisateur

IMPORTANT:

Go to www.extron.com for the complete

user guide, installation instructions, and

specifications before connecting the

product to the power source.

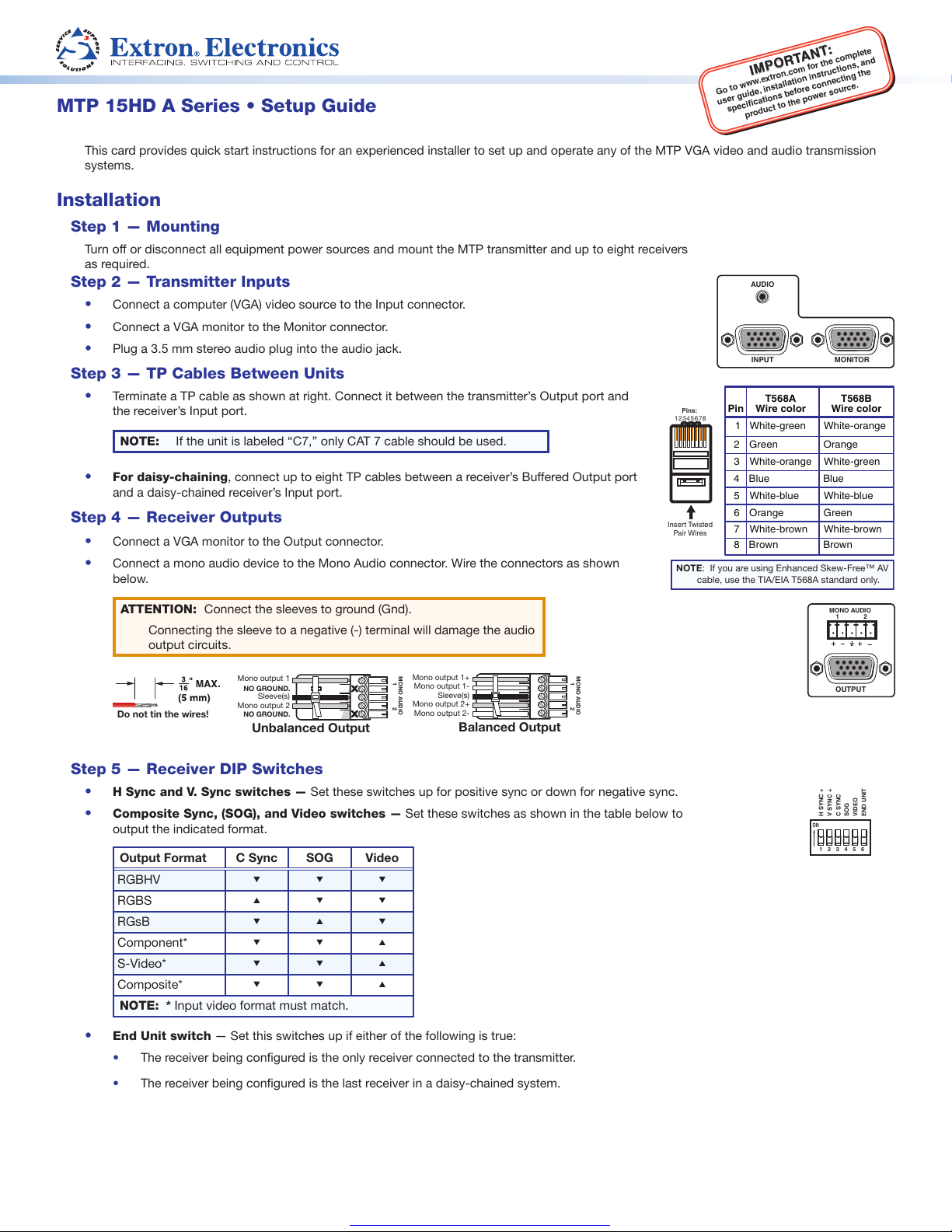

MTP 15HD A Series • Setup Guide

This card provides quick start instructions for an experienced installer to set up and operate any of the MTP VGA video and audio transmission

systems.

Installation

Step 1 — Mounting

Turn off or disconnect all equipment power sources and mount the MTP transmitter and up to eight receivers

as required.

Step 2 — Transmitter Inputs

INPUT

AUDIO

MONITOR

• Connect a computer (VGA) video source to the Input connector.

• Connect a VGA monitor to the Monitor connector.

• Plug a 3.5 mm stereo audio plug into the audio jack.

Step 3 — TP Cables Between Units

Wire color

White-green

Green

White-orange

Blue

White-blue

Orange

White-brown

Brown

Wire color

T568A T568B

White-orange

Orange

White-green

Blue

White-blue

Green

White-brown

Brown

12345678

Insert Twisted

Pair Wires

Pins:

NOTE: If you are using Enhanced Skew-Free™ AV

cable, use the TIA/EIA T568A standard only.

• Terminate a TP cable as shown at right. Connect it between the transmitter’s Output port and

the receiver’s Input port.

NOTE: If the unit is labeled “C7,” only CAT 7 cable should be used.

• For daisy-chaining, connect up to eight TP cables between a receiver’s Buffered Output port

and a daisy-chained receiver’s Input port.

Step 4 — Receiver Outputs

• Connect a VGA monitor to the Output connector.

• Connect a mono audio device to the Mono Audio connector. Wire the connectors as shown

below.

ATTENTION: Connect the sleeves to ground (Gnd).

Connecting the sleeve to a negative (-) terminal will damage the audio

output circuits.

MONO AUDIO

Unbalanced Output Balanced Output

Do not tin the wires!

Mono output 1-

Sleeve(s)

Mono output 1+

Mono output 2+

Mono output 2-

Sleeve(s)

Mono output 1

Mono output 2

NO GROUND.

Step 5 — Receiver DIP Switches

• H Sync and V. Sync switches — Set these switches up for positive sync or down for negative sync.

1 2 3 4 5 6

H SYNC +

V SYNC +

C SYNC

SOG

VIDEO

END UNIT

• Composite Sync, (SOG), and Video switches — Set these switches as shown in the table below to

output the indicated format.

Output Format C Sync SOG Video

RGBHV   

RGBS   

RGsB   

Component*   

S-Video*   

Composite*   

NOTE: *Input video format must match.

• End Unit switch — Set this switches up if either of the following is true:

• The receiver being congured is the only receiver connected to the transmitter.

• The receiver being congured is the last receiver in a daisy-chained system.

OUTPUT

MONO AUDIO

Get other manuals https://www.bkmanuals.com

68-956-50 Rev. B

01 13

MTP 15HD A Series • Setup Guide

Extron Headquarters

+800.633.9876 Inside USA/Canada Only

Extron USA - West Extron USA - East

+1.714.491.1500 +1.919.850.1000

+1.714.491.1517 FAX +1.919.850.1001

FAX

Extron Europe

+800.3987.6673

Inside Europe Only

+31.33.453.4040

+31.33.453.4050 FAX

Extron Asia

+800.7339.8766

Inside Asia Only

+65.6383.4400

+65.6383.4664 FAX

Extron Japan

+81.3.3511.7655

+81.3.3511.7656 FAX

Extron China

+4000.EXTRON

+4000.398766

Inside China Only

+86.21.3760.1568

+86.21.3760.1566

FAX

Extron

Middle East

+971.4.2991800

+971.4.2991880 FAX

Extron Korea

+82.2.3444.1571

+82.2.3444.1575 FAX

Extron India

1800.3070.3777

Inside India Only

+91-80-3055.3777

+91 80 3055 3737

FAX

Step 6 — Power

Wire the 2-pole captive screw connectors for the included external 12 VDC power supplies (see

image aon the right). Plug them into all units.

Grounding guidelines

Extron MTP 15HD A products can be adversely affected by electrostatic discharge (ESD) if they

are not grounded correctly.

To prevent malfunctions or product damage, an experienced installer can correctly ground an

Extron MTP 15HD A product in either of two ways:

• Ground the power input port — Insert one end of the grounding wire to the negative or ground

pin on the power input connector (see image aon the right). Tie the other end of the wire to an

earth ground.

• Ground the chassis — Use a connector hex nut (see image bthe right). Tie the other end of

the wire to an earth ground.

If you have any questions about how to ground a product in a specic application, contact an Extron technical

support specialist.

Step 7 — Pre-Peak, Peaking, and Level

• Transmitter Pre-Peak switch — View the image and set the Pre-Peaking switch for the best image

quality to correct for long cable runs of the entire system (including all daisy-chained receivers).

• Receiver Peaking control — View the image and adjust the Peaking control for the best image sharpness. Minimum

RGB

PEAKING

LEVEL

setting (full counterclockwise) is zero peaking.

• Receiver Level control — View the image and adjust the Level control for the best brightness level.

Step 8 — Skew Compensation (SEQ Receivers)

Pair skew can be measured with test equipment or by viewing a crosshatch test pattern. The SEQ receivers have built-in

skew compensation capabilities. Adjust the equalization as follows:

A. Zero the skew delay for red, green, and blue by using a small screwdriver to press and hold the Select button for

DELAY

RED

GREEN

BLUE

SELECT

3 seconds. When the Red, Green, and Blue LEDs all go out, release the Select button.

B. Use UTP cable test equipment or examine the displayed image to determine which video signal — red, green, or

blue — is shifted furthest to the right.

C. Select the furthest left video signal by using a small screwdriver to press and release the Select button until the LED

for the left-shifted color — Red, Green, or Blue — lights.

D. Slowly rotate the Adjust control clockwise until the selected color is properly converged.

E. If the remaining colors are left-shifted, repeat steps C and D.

INPUT

AUDIO

MONITOR

POWER

12V

.5A MAX

OUTPUT

MT P T 15H D A

PRE-PEAK

OFF

Audio

RGBHV

Audio

Rack Mounted

PC Displa

isplay

Up to Eight

Total Receivers

Extron

MTP T 15HD A

Extron

MTP RL 15HD A SEQ

Extron

MTP RL 15HD A SEQ

INPUT

BUFFERED

OUTPUT

POWER

12V

.5A MAX

MT P RL 1 5HD A S EQ

1 2 3 4 5 6

HSYNC +

VSYNC +

CSYNC

SOG

VIDEO

ENDUNIT

MONO AUDIO

INPUT

BUFFERED

OUTPUT

POWER

12V

.5A MAX

MT P RL 1 5HD A S EQ

1 2 3 4 5 6

HSYNC +

VSYNC +

CSYNC

SOG

VIDEO

ENDUNIT

MONO AUDIO

TP Cable

Figure 1. Example of a Typical MTP 15HD A Application

Power Supply

Output Cord

SECTION A–A

Ridges

Smooth

Tie

Wrap

POWER

12V

xA MAX Rear

Panel

Ridges

Earth

Ground

3/16"

(5 mm)

Max.
