HFX 100 Tx and HFX 100 Rx • User Guide

This guide describes the function, installation and operation of the HFX 100 Tx transmitter and HFX 100 Rx receiver. Unless otherwise

stated, the terms “HFX 100,” “HDMI extender,” and “extender” refer to both units. The term “transmitter” refers to the HFX 100 Tx and

the term “receiver” refers to the HFX 100 Rx.

FCC Class A Notice

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part15 of the FCC

rules. The ClassA limits provide reasonable protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance

with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area

is likely to cause interference. This interference must be corrected at the expense of the user.

NOTE: For more information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics,

see the “Extron Safety and Regulatory Compliance Guide” on the Extron website.

FDA/IEC 60825-1 Requirements

CLASS 1 LASER PRODUCT

Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 5, dated June 24,

2007.

The product is intended to be used with the ﬁber optic cables fully installed.

This product meets the applicable requirements of IEC 60825-1, Edition 1 (2007).

Any service to this product must be carried out by Extron Electronics and its qualiﬁed service personnel.

About the HFX 100 Tx and HFX 100 Rx

The Extron HFX 100 HDMI extender comprises of a transmitter (Tx) and receiver (Rx) pair, which use one multimode ﬁber optic cable to

transmit a signal up to 300meters (984 feet). The transmitter accepts a single HDMI input and converts it to a proprietary signal that is

sent over the ﬁber optic cable to the receiver. The receiver converts the signal back to an HDMI output.

The extender supports DDC and HDCP pass-through.

Features

Signal extender — converts the HDMI signal to a proprietary format that can be carried up to 300 meters (984 feet) without loss of

signal integrity.

Power supply — Both the transmitter and receiver are powered by a 12 VDC, 1A power supply (provided).

Display Data Channel (DDC) pass-through — ensures that the resolution and refresh rate of the video input signal matches the

capabilities of the display device.

High-bandwidth Digital Content Protection (HDCP) pass-through — ensures that HDCP-compliant outputs are able to display

HDCP-encrypted content.

HFX 100 Tx and HFX 100 Rx • User Guide

Application Diagram

POWER

12V

- - A MAX

OUTPUT

INPUT

HFX 100 Tx

POWER

12V

- - A MAX

HFX 100 Rx

INPUT

OUTPUT

STANDBY/ON

PQLS HDMI OPEN/CLOSE FLOFF

USB

Extron

HFX 100 Tx

Transmitter

Extron

HFX 100 Rx

Receiver

Blu-ray Player

HDMI

Flat Panel Display

Up to 300m ( 984 ft )

on Multimode Fiber

Figure 1. Typical HFX 100 Application

Product Label

DFX/HFX 100 Series

33-2458-02

Rev. A

www.extron.com

About

Extron Electronics

1025 East Ball Road

Anaheim, CA 92805

Class 1 Laser Product

21.CFR 1040.10

This label is afﬁxed to the bottom of the unit.

HFX 100 Tx and HFX 100 Rx • User Guide

Panels and Cables

Front Panel

Both the transmitter and receiver have identical front panels.

Extron

Figure 2. HFX 100 Tx and HFX 100 Rx Front Panel

HFX 100 Tx Rear Panel

POWER

12V

1.0 A MAX

OUTPUT

INPUT

HFX 100 Tx

POWER

12V

1.0 A MAX

OUTPUT

INPUT

HFX 100 Tx

3 feet (0.91 m) HDMI cable

Figure 3. HFX 100 Tx Rear Panel

POWER

12V

1.0 A MAX

Extron

Ground

all devices.

External

Power Supply

(12 VDC, 1 A max.)

– Return

+12 VDC input

1AMAX

100-240V 50-60Hz

Ridged, –

Smooth, +

3/16"

(5 mm)

Max.

Rear Panel

Front Panel

NOTE:Check the polarity

of the power supply

before connecting it

to the unit.

Power Input

Connect to an

Extron 12 VDC,

1 A power

supply.

The front panel LED lights:

• Amber when receiving

power only

• Green when receiving

power and an active

HDMI signal

Figure 4. 12 VDC, 1A Power Input

a12 VDC power input — Connect the provided 12VDC, 1A power supply to the rear panel captive screw connector (see ﬁgure 4).

When power is provided to the unit but there is no HDMI input, the front panel lights amber.

ATTENTION:

• Always use a power supply provided by or speciﬁed by Extron. Use of an unauthorized power supply voids all

regulatory compliance certiﬁcation and may cause damage to the supply and the end product.

• Unless otherwise stated, the AC/DC adapters are not suitable for use in air handling spaces or in wall cavities. The

power supply is to be located within the same vicinity as the Extron AV processing equipment in an ordinary location,

Pollution Degree 2, secured to the equipment rack within the dedicated closet, podium, or desk.

• The installation must always be in accordance with the applicable provisions of National Electrical Code ANSI/NFPA 70,

article 725 and the Canadian Electrical Code part 1, section 16. The power supply shall not be permanently ﬁxed to

building structure or similar structure.

NOTES:

• The length of the exposed wires in the stripping process is critical. The ideal length is 3/16 inch (5 mm). If it is any

longer, the exposed wires may touch, causing a short circuit between them. If it is any shorter, the wires can be easily

pulled out even if tightly fastened by the captive screws.

• Do not tin the wires. Tinned wire does not hold its shape and can become loose over time.

bHDMI input connector — Connect a HDMI output to this male connector.

NOTE: With appropriate DVI-D to HDMI cables or adapters, the unit will accept DVI-D input.

When the transmitter is receiving an HDMI input signal, the front panel LED lights green.

aFront Panel LED — lights amber if the unit (transmitter or receiver) is

receiving power from the 12 VDC, 1A power supply. The transmitter

LED lights green if the unit is receiving a TMDS clock signal. The

receiver LED lights green if the unit is receiving an optical signal.

NOTE: During initialization, the LED may need a few seconds to

stabilize to the correct state.

HFX 100 Tx and HFX 100 Rx • User Guide

cOptical output connector — Connect one end of one multimode ﬁber optic cable (not provided) into this LC connector. The

other end connects into the LC input connector on the HFX 100 Rx. The cable can be up to 300 meters (984 feet) in length.

CAUTION:

• Possible damage to eyesight. The HFX 100 Tx outputs continuous laser (Class 1 rated), which may be harmful

and dangerous to the eyes; use with caution. Do not look into the rear panel ﬁber optic cable connector or into the ﬁber

optic cable itself. Plug the attached dust cap into the optical transceiver when the ﬁber optic cable is unplugged.

• Possible radiation exposure. Use of controls or adjustments or performance of procedures other than those

speciﬁed herein may result in hazardous radiation exposure.

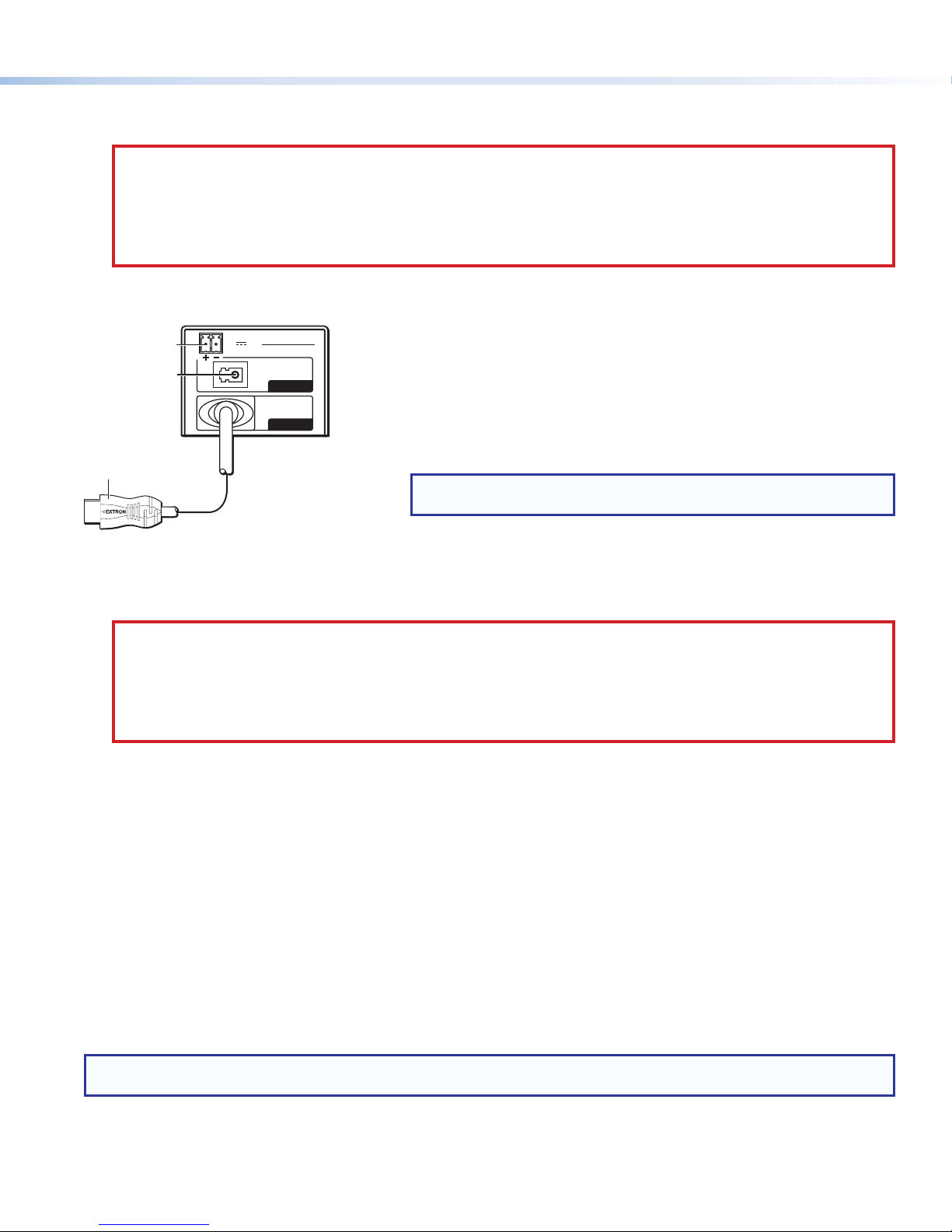

HFX 100 Rx Rear Panel

POWER

12V

- - A MAX

INPUT

OUTPUT

HFX 100 Rx

POWER

12V

- - A MAX

INPUT

OUTPUT

HFX 100 Rx

3 feet (0.91 m) HDMI cable

Figure 5. HFX 100 Rx Rear Panel

cOptical input connector — Connect one end of the multimode ﬁber optic cable (not provided) into this LC connector. The other

end connects into the LC output connector on the HFX 100 Tx.

CAUTION:

• Possible damage to eyesight. The HFX 100 Tx outputs continuous laser (Class 1 rated), which may be harmful

and dangerous to the eyes; use with caution. Do not look into the rear panel ﬁber optic cable connector or into the ﬁber

optic cable itself. Plug the attached dust cap into the optical transceiver when the ﬁber optic cable is unplugged.

• Possible radiation exposure. Use of controls or adjustments or performance of procedures other than those

speciﬁed herein may result in hazardous radiation exposure.

When the HFX 100 Rx is receiving optical input, the front panel LED lights green.

Installation

To install the HFX 100 extender, follow these instructions:

1. Mount the HFX 100 Tx and HFX 100 Rx in suitable locations (see page 5).

2. Connect the provided power supply to the HFX 100 Tx (see page 3). The front panel LED lights amber.

3. Connect the provided power supply to the HFX 100 Rx. The front panel LED lights amber.

4. Connect the transmitter and receiver using a multimode ﬁber optic cable.

5. Connect the HDMI display device to the HFX 100 Rx. Do not power on the display at this time.

6. Connect the HDMI source device to the HFX 100 Tx (see page 3). Do not power on the source at this time.

7. Power on the display device.

8. Power on the source device.

NOTE: The display device must be powered on before the source device to allow correct DDC communication between the

display and the source while the source device is booting up.

When the HFX 100 Tx is receiving HDMI input, the front panel lights green.

When the HFX 100 Rx is receiving an optical input, the front panel lights green.

a12 VDC power input — Connect the provided 12VDC power supply to the

back panel captive screw connectors. When power is provided to the unit but

there is no HDMI input, the front panel lights amber.

See gure 5 and the attention points and the notes on page 3 before

connecting the power supply.

bHDMI output connector — Connect a HDMI display device to this male

connector.

NOTE: With appropriate HDMI to DVI-D cables or adapters, the unit will

output an DVI signal.

68-2260-01 Rev. C

1213

Extron Headquarters

+800.633.9876 Inside USA/Canada Only

Extron USA - West Extron USA - East

+1.714.491.1500 +1.919.850.1000

+1.714.491.1517 FAX +1.919.850.1001 FAX

Extron Europe

+800.3987.6673

Inside Europe Only

+31.33.453.4040

+31.33.453.4050 FAX

Extron Asia

+65.6383.4400

+65.6383.4664 FAX

Extron Japan

+81.3.3511.7655

+81.3.3511.7656 FAX

Extron China

+86.21.3760.1568

+86.21.3760.1566 FAX

Extron Middle East

+971.4.299.1800

+971.4.299.1880 FAX

Extron Korea

+82.2.3444.1571

+82.2.3444.1575 FAX

Extron India

1800.3070.3777

(Inside India Only)

+91.80.3055.3777

+91.80.3055.3737 FAX

HFX 100 Tx and HFX 100 Rx • User Guide

Mounting

Desktop Placement

Attach the four provided rubber feet to the bottom of the HFX 100 transmitter or receiver and place it in any convenient location.

Rack Mounting

UL guidelines for rack mounting

The following Underwriters Laboratories (UL) guidelines are relevant to the safe installation of these products in a rack:

Elevated operating ambient temperature — If the units are installed in a closed or multi-unit rack assembly, the operating

ambient temperature of the rack environment may be greater than room ambient temperature. Therefore, install the equipment in an

environment compatible with the maximum ambient temperature (Tma: +122 °F, +50°C) speciﬁed by Extron.

Reduced air flow — Install the equipment in the rack so that the equipment gets adequate air ﬂow for safe operation.

Mechanical loading — Mount the equipment in the rack so that uneven mechanical loading does not create a hazardous condition.

Circuit overloading — Connect the equipment to the supply circuit and consider the effect that circuit overloading might have on

overcurrent protection and supply wiring. Consider the equipment nameplate ratings when addressing this concern.

Reliable earthing (grounding) — Maintain reliable grounding of rack-mounted equipment. Pay particular attention to supply

connections other than direct connections to the branch circuit (such as the use of power strips).

Rack mounting procedure

To mount the unit on a rack shelf, follow the instructions provided with the shelf accessories.

Autres manuels pour HFX 100 Tx

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Extron electronics Émetteur

Extron electronics

Extron electronics TP Series Manuel utilisateur

Extron electronics

Extron electronics A/V Receiver MTP 4T 15HD RS Manuel utilisateur

Extron electronics

Extron electronics DTP2 T 203 Manuel utilisateur

Extron electronics

Extron electronics FOX3 T 301 Manuel utilisateur

Extron electronics

Extron electronics UCS FT 901 Manuel utilisateur

Extron electronics

Extron electronics DTP T FB 332 Manuel utilisateur

Extron electronics

Extron electronics A/V Receiver MTP 4T 15HD RS Manuel utilisateur

Extron electronics

Extron electronics MTP T 15HD A Manuel utilisateur

Extron electronics

Extron electronics DTP3 T 202 Manuel utilisateur

Extron electronics

Extron electronics XTP T FB 202 4K Manuel utilisateur

Extron electronics

Extron electronics MTP T 15HD A Manuel utilisateur

Extron electronics

Extron electronics MTP T 15HD A Manuel utilisateur

Extron electronics

Extron electronics XTP T HWP 101 Manuel utilisateur

Extron electronics

Extron electronics MTP 15HD A Series Manuel utilisateur

Extron electronics

Extron electronics A/V Receiver MTP 4T 15HD RS Manuel utilisateur

Extron electronics

Extron electronics PVT CV D Manuel utilisateur

Extron electronics

Extron electronics MTP U T A D Manuel utilisateur

Extron electronics

Extron electronics DTP2 T 201 D Series Manuel utilisateur

Extron electronics

Extron electronics PVT CV Manuel utilisateur

Extron electronics

Extron electronics MTP T 15HD A D Manuel utilisateur

Extron electronics

Extron electronics DTP T HWP 232 D Manuel utilisateur

Extron electronics

Extron electronics DTP T USW 233 Manuel utilisateur

Extron electronics

Extron electronics DTP2 T 201 D Manuel utilisateur

Extron electronics

Extron electronics PowerCage FOX 4G Tx VGA Manuel utilisateur

Manuels Émetteur populaires d'autres marques

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuel du propriétaire

Honeywell

Honeywell 5816WMBR Manuel utilisateur

Kamstrup

Kamstrup READy MTU Mode d'emploi

Omega

Omega ZW Series Manuel utilisateur

ABB

ABB Field 264H Mode d’emploi

Alinco

Alinco DJ-V17T Manuel utilisateur

Dejero

Dejero EnGo 3x Manuel utilisateur

Rosemount

Rosemount 4600 Manuel utilisateur

Speaka Professional

Speaka Professional 2342740 Manuel utilisateur

trubomat

trubomat GAB 1000 Manuel utilisateur

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuel utilisateur

Rondish

Rondish UT-11 Manuel utilisateur

MG 10JRE Manuel utilisateur

Burkert

Burkert 8177 Manuel utilisateur

Firetide

Firetide HotPort 3203 Manuel

Tele Radio

Tele Radio T9-02 Manuel utilisateur

Rotronic

Rotronic HygroFlex HF3 Series Manuel utilisateur

Jamara

Jamara FCX6 Pro Tel Manuel utilisateur
