User’s Manual

High Temperature InfraRed Thermometer

with Laser Pointer

MODEL 42530

Introduction

Congratulations on your purchase of the Model 42530 IR Thermometer. This thermometer

makes non-contact (infrared) temperature measurements at the touch of a button. The

built-in laser pointer increases target accuracy while the backlit LCD and handy push-

buttons combine for convenient, ergonomic operation. Proper use and care of this meter

will provide years of reliable service.

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176

FAX 781.665.0780 - TestEquipmentDepot.com

Model 42530 Version 2.4 11/052

Warranty

EXTECH INSTRUMENTS CORPORATION warrants this instrument to be free of defects in parts and

workmanship for three (3) years from date of shipment (a six month limited warranty applies on sensors and

cables). If it should become necessary to return the instrument for service during or beyond the warranty

period, contact the Customer Service Department at (781) 890-7440 ext. 210 for authorization or visit our

website at www.extech.com (click on ‘Contact Extech’ and go to ‘Service Department’ to request an RA

number). A Return Authorization (RA) number must be issued before any product is returned to Extech. The

sender is responsible for shipping charges, freight, insurance and proper packaging to prevent damage in

transit. This warranty does not apply to defects resulting from action of the user such as misuse, improper

wiring, operation outside of specification, improper maintenance or repair, or unauthorized modification. Extech

specifically disclaims any implied warranties or merchantability or fitness for a specific purpose and will not be

liable for any direct, indirect, incidental or consequential damages. Extech's total liability is limited to repair or

replacement of the product. The warranty set forth above is inclusive and no other warranty, whether written or

oral, is expressed or implied.

Safety

•Use extreme caution when the laser pointer beam is on

•Do not point the beam toward anyone's eye or allow

the beam to strike the eye from a reflective surface

•Do not use the laser near explosive gases or in other

potentially explosive areas

Specifications

Infrared Thermometer Specifications

Range / Resolution -58 to 1000oF (-50 to 538oC) 0.1°C/F<200 / 1oC/F> 200

Accuracy ± 2% of reading or ± 4oF (2oC) whichever is greater.

Note: Accuracy is specified for the following ambient

temperature range: 64 to 82°F (18 to 28°C)

Emissivity 0.95 fixed value

Field of View D/S = Approx. 8:1 ratio (D = distance, S = spot)

Laser power Less than 1mW

Spectral response 6 to 14 µm (wavelength)

General Specifications

Display 3½ digit backlit LCD display with function indicators

Display rate 1 second approx.

Operating Temperature 32°F to 122°F (0°C to 50°C)

Operating Humidity Max. 80% RH

Power Supply 9V battery

Automatic Power Off Meter shuts off automatically after 7 seconds

Weight 6.35 oz. / 180g

Size 8.3 x 3.5 x 1.5” (211 x 89 x 38mm)

Model 42530 Version 2.4 11/053

Meter Description

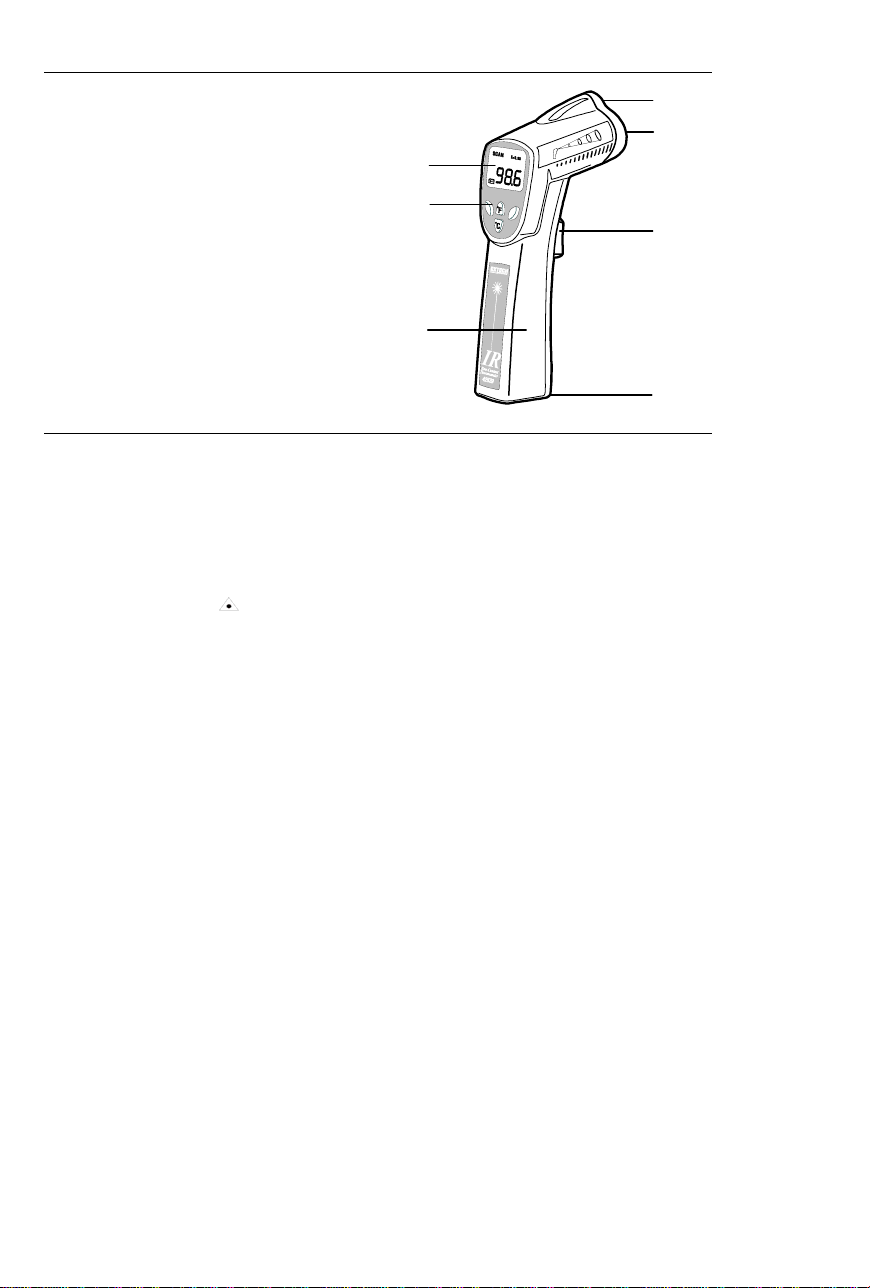

1. LCD Display

2. Function Buttons

3. Handle Grip

4. Laser Pointer

5. IR Sensor

6. Measurement Trigger

7. Battery Compartment

Operating Instructions

1. Hold the meter by its Handle Grip and point it toward the surface to be measured.

2. Pull and hold the red Trigger to turn the meter on and begin testing. The display

will light if the battery is good. Replace the battery if the display does not light.

3. While measuring, the SCAN display icon will appear in the upper left hand corner

of the LCD.

4. While continuing to pull the Trigger:

a. Push the red Laser button to turn on the laser pointer. When the laser is on the

laser icon will appear on the LCD over the temperature. Aim the red beam

approximately a half inch above the point of test (pressing the Laser button

again turns the laser off).

b. Select the temperature units (oC or oF) using the blue oCand oFbuttons.

c. Push the yellow Backlight key to turn on the LCD backlighting function.

5. Release the Trigger and the HOLD display icon will appear on the LCD indicating

that the reading is being held.

6. The meter will automatically power down after approximately 7 seconds after the

trigger is released.

Overrange Indicator

If the temperature being measured exceeds 1000°F (538°C), the thermometer will emit an

audible warning and the OVER icon will be displayed on the LCD.



Support Hotline (781) 890-7440

Tech support: Ext. 200; Email: [email protected]

Repair/Returns: Ext. 210; Email: [email protected]

Website: www.extech.com

Field of View

The meter’s field of view is 8:1, meaning that if the meter is 8 inches from the target, the

diameter of the object under test must be at least 1 inch. Other distances are shown below

in the field of view diagram. Refer to the chart printed on the meter for more information.

Measurement Notes

1. The object under test should be larger than the spot (target) size calculated by the field

of view diagram (see diagram on previous page or on side of the meter).

2. If the surface of the object under test is covered with frost, oil, grime, etc., clean before

taking measurements.

3. If an object's surface is highly reflective apply masking tape or flat black paint before

measuring.

4. The meter may not make accurate measurements through transparent surfaces such

as glass.

5. Steam, dust, smoke, etc. can obscure accurate measurements.

6. The meter compensates for deviations in ambient temperature. It can, however, take

up to 30 minutes for the meter to adjust to extremely wide ambient temperature

changes.

7. To find a hot spot, aim the meter outside the area of interest then scan across (in an up

and down motion) until the hot spot is located.

Battery Replacement

When the low battery symbol appears on the LCD, replace the meter’s 9V battery.

The battery compartment is located on the bottom of the meter's handle. Open the

compartment by sliding the battery compartment cover off in the direction of the arrow.

Replace battery and re-install the battery compartment cover.

Calibration and Repair Services

1” 2”

Distance to Ob

ect

Diameter of Spot

Laser Beam

4”

4” 8” 16” 32”

0.5”

Sensor Beam

0.63”

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176

FAX 781.665.0780 - TestEquipmentDepot.com
