Extech Instruments MO265 Manuel utilisateur

User Guide

Dual Moisture Meter Pro

Pin / Pinless Moisture Meter with remote probe

Model MO265

MO265-EU-EN-V1.0-10/10

Introduction

Congratulations on your purchase of the Extech MO265 Moisture Meter. The MO265

detects moisture in wood and other materials such as particle board, carpeting, and

ceiling/bathroom tiles using the non-invasive method (pinless); the MO265 also measures

moisture in sheet rock and other building materials using the pin method. The remote

probe can also be used to make pin measurements. This meter is shipped fully tested

and calibrated and, with proper use, will provide years of reliable service.

Features

•%WME (wood moisture equivalent) pin moisture reading

•Relative (REL) pinless moisture reading for non-invasive measurement

•Remote probe measurements

•Digital LCD readout with backlighting feature and tri-color LED bargraph

•Quickly indicates the moisture content of materials

•Pinless measurement depth to 0.75" (22mm) below the surface

•Electro-magnetic sensing technology for pinless operation

•Built-in calibration check and calibration zero

•Replaceable measurement electrode pins

•Low battery indication

•Cap protects pins during storage

•Cap can be snapped onto the side of the housing during use

•Complete with 9V battery, replacement pins, protective cap, and pouch case

MO265-EU-EN-V1.0-10/10

Description

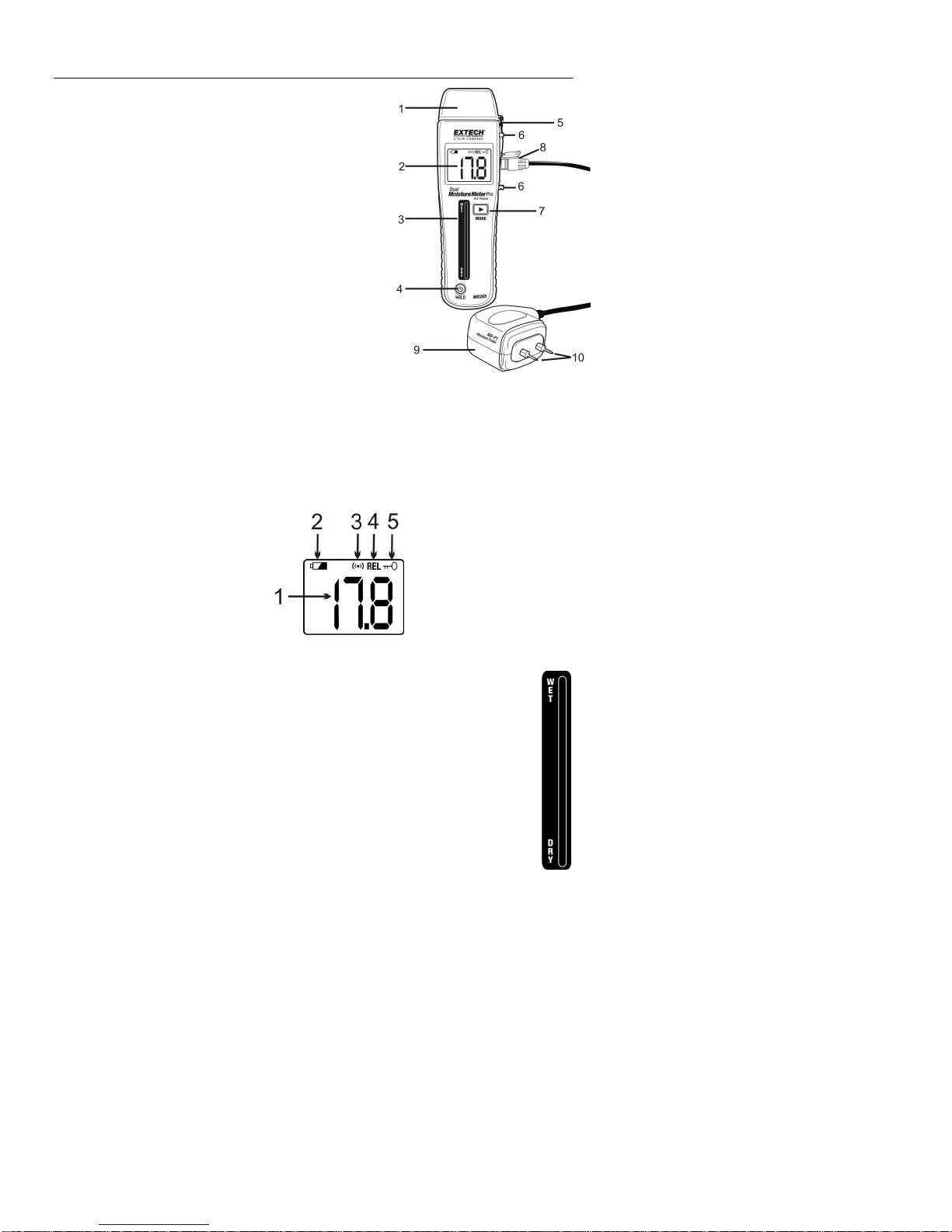

Meter Description

1. Electrode pins protective cap (pins underneath)

2. LCD display

3. Tri-color Bargraph

4. HOLD / POWER key

5. Protective cap attachment

6. Protective cap holders

7. MODE button

8. Remote probe connector plug

9. Remote Probe

10. Measurement pins

Notes:

•Battery/Spare Pin compartment located on the rear of

the instrument

•Electrode pins located beneath the protective cap

•Calibration source located at the top of protective cap

•A tripod mount is located on the rear of the remote probe head

LCD Display Description

1. Measurement reading

2. Battery status

3. Audible alert icon

4. Measurement mode

5. Display HOLD icon

Bargraph Display Description

The bargraph indicates WET / DRY measurements using three LED colors: Green

(for dry), Amber (for moderate moisture), and Red (for very moist). As the reading

moves up the bargraph scale from the DRY indicator to the WET indicator, the LED

color changes from green, to amber, and then to red.

MO265-EU-EN-V1.0-10/10

Operation

Electrode Pins

The electrode pins are replaceable. To insert or replace the pins refer to the illustration

and instructions below. Replacement pins are stored in the battery compartment at the

rear of the meter.

a) Remove the protective cap at the top of the meter by pushing it toward the back

of the meter.

b) To remove the pins, loosen the locknut at the base of the electrode pins

c) Install the new pins and tighten the locknuts

d) Replace the protective cap

1. Electrode pins

2. Locking nuts

3. Threaded posts

4. Electrode jacks at top of meter

Pin Measurements

1. Remove the protective cap to expose the electrode pins. The cap snaps off easily if

it is pushed towards the rear of the meter. The cap can be affixed to the side of the

meter using the protective cap holders (6).

2. Press the key to turn the meter ON / OFF.

3. Press the MODE key to select the Wood Moisture Equivalent (%WME) mode of

operation.

4. Carefully push the electrode pins a minimum of 0.07” (2mm) into the material under

test. Note that the pins should be inserted into wood perpendicular to the wood’s

fiber structure. For high moisture readings, it may take several minutes for the

meter reading to stabilize.

5. Take several readings in several locations on the material for the best

representation of the amount of moisture present.

6. Read the measurement values on the LCD digital display and the LED bar graph

7. Replace the protective cap when finished.

CAUTION

: The electrode measurement pins are extremely sharp. Use care when

handling this instrument. Cover the pins with the protective cap when the

instrument is not in use.

MO265-EU-EN-V1.0-10/10

Pinless Measurements

1. Ensure that the protective cap is attached to the meter

covering the pins.

2. Press the key to turn the meter ON.

3. Press the MODE key to select the Relative (REL) mode of

operation.

4. The pinless moisture detector is located at the rear of the

instrument, just behind the display. Place the meter so that

the sensor is touching the surface of the material under test.

5. Take several readings in several locations on the material

for the best representation of the amount of moisture present.

6. Read the measurement values on the LCD digital display and the LED bar graph.

Remote Probe Pin Measurements

IMPORTANT NOTE: The Remote Probe cannot be used at the same time as the meter

probe. Please use one probe or the other but not both at the same time.

1. Connect the Remote Probe to the right side of the meter using the RJ-11 plug at

the end of the Remote Probe cable.

2. Remove the protective cap from the remote probe to expose the electrode pins.

The cap snaps off easily if it is pushed long-wise to the side.

3. Press the key to turn the meter ON / OFF.

4. Press the MODE key to select the Wood Moisture Equivalent (%WME) mode of

operation.

5. Carefully push the electrode pins a minimum of 0.07” (2mm) into the material under

test. Note that the pins should be inserted into wood perpendicular to the wood’s

fiber structure. For high moisture readings, it may take several minutes for the

meter reading to stabilize.

6. Take several readings in several locations on the material for the best

representation of the amount of moisture present.

7. Read the measurement values on the LCD digital display and the LED bar graph

8. Replace the protective cap and disconnect the remote probe when finished.

Pinless

Sensor

MO265-EU-EN-V1.0-10/10

Calibration Zero for Pinless Mode

1. Switch the meter to the Pinless mode of operation (REL mode).

2. Ensure that the meter is not near any objects or surfaces. Hold the meter near the

bottom to avoid contact with the pinless sensor.

3. Press and Hold the MODE button for 3 seconds until rEL appears in the display.

Release the MODE button and the display will blink for several seconds and then

switch back to the normal display mode.

4. The display should now read zero indicating that the calibration is complete.

5. If an E32 error is displayed, try the zero calibration again with the pins further away

from any objects or surfaces.

Calibration Check for Pin Mode

1. Switch the meter to the Pin mode (%WME).

2. The two calibration check points are located in the holes at the top of the protective

cap.

3. Insert the electrode pins into the two holes at the top of the protective cap to make

contact with the test circuit.

4. The display should read between 17.5 to 18.5 %WME, indicating that the

calibration is verified.

MO265-EU-EN-V1.0-10/10

LCD Backlight ON/OFF

With the meter switched ON, pressing and holding both front panel buttons (MODE and

HOLD) switches the LCD backlight ON and OFF.

Data Hold feature

The Data Hold function freezes the reading in the display. Press the HOLD key

momentarily to activate the Data Hold function. The reading will freezee and the ‘key’

display icon will appear. Press the HOLD key again to exit the Data Hold function (the

‘key’ display icon will switch off).

Meter Setup

•To enter the setup mode:

With the meter switched OFF, press and hold both front panel buttons (MODE and

HOLD buttons) simultaneously for two seconds. The display should now read ‘0 =

x’ where ‘0’ is the OPTION and ‘x’ is the SETTING.

•Use the MODE (right arrow) button to change the SETTING.

•Use the HOLD button to scroll through the OPTIONS.

•The available OPTIONS and SETTINGS:

OPTIONS SETTINGS SET-UP INFORMATION

0 0 Switches all settings to ‘0’ (Factory Default*)

1 Others settings can now be changed. In addition,

Backlight switches ON for 30 seconds and then

automatically switches OFF.

1 0 Audible alert beeps with increasing frequency from a

nominal 17.0 (REL) or 17% (WME) measurement value

upwards

1 Audible alert divided into 3 frequency levels

2 Audible alert beeps when user switches from one mode

to another

3 Beeper OFF. Audio alert display symbol switches OFF

2 0 Auto Switch OFF is not active. User must manually

switch the unit OFF

1 Auto Switch OFF active. Switches OFF after 3 minutes

2 Auto Switch OFF active. Switches OFF after 5 minutes

3 Auto Switch OFF active. Switches OFF after 10 minutes

3 0 Backlight OFF

1 Backlight ON

*FACTORY DEFAULT SETTINGS: 0=0, 1=0, 2=0, 3=0

MO265-EU-EN-V1.0-10/10

Battery Replacement

If the instrument does not switch ON or displays the low battery symbol, replace the battery

as follows:

1. Slide off the rear battery compartment cover

2. Replace the 9V battery

3. Secure the battery compartment

4. You, as the end user, are legally bound (EU Battery ordinance) to return all used

batteries, disposal in the household garbage is prohibited! You can hand over

your used batteries / accumulators at collection points in your community or

wherever batteries / accumulators are sold!

Disposal: Follow the valid legal stipulations in respect of the disposal of the

device at the end of its lifecycle

Maintenance

•Always keep the instrument dry

•To clean, wipe the meter with a damp cloth. Use a mild detergent if necessary but

never use abrasives or solvents.

•Prevent dirt from accumulating at the electrode pins

Specifications

Display Backlit LCD digital display and tri-color LED bargraph scale

Resolution 0.1%

Accuracy Pin mode: ± (5% rdg + 5 digits)

Pinless mode is a relative reading only

Measurement principle Electrical resistance (pins)

Electromagnetic sensor (pinless)

Range 0.0 to 99.9 %Relative (pinless)

6.0 to 94.8 %WME (pins)

Electrode pin length 11mm (0.44”)

Electrode pin type Integrated, replaceable

Power supply 9V alkaline battery

Low Battery Indication Battery symbol displayed on LCD

Meter housing Impact-proof plastic

Operating Temperature 0 to 50

C (32 to 122

Operating Humidity 80% Relative Humidity maximum

Dimensions 203 x 58 x 43mm (8 x 2.3 x 1.7”); not including remote probe

Weight 204g. (7.2 oz); not including remote probe

Table des matières

Autres manuels Extech Instruments Instrument de mesure

Extech Instruments

Extech Instruments MO230 Manuel utilisateur

Extech Instruments

Extech Instruments 407780A Manuel utilisateur

Extech Instruments

Extech Instruments SDL800 Manuel utilisateur

Extech Instruments

Extech Instruments CG206 Manuel utilisateur

Extech Instruments

Extech Instruments DC400 Manuel utilisateur

Extech Instruments

Extech Instruments SL510 Manuel utilisateur

Extech Instruments

Extech Instruments UM200-NIST Manuel utilisateur

Extech Instruments

Extech Instruments EasyView EA33 Manuel utilisateur

Extech Instruments

Extech Instruments LT45 Manuel utilisateur

Extech Instruments

Extech Instruments AN320 Manuel utilisateur

Extech Instruments

Extech Instruments HDV-WTX2 Dimensions

Extech Instruments

Extech Instruments HD450-NIST Manuel utilisateur

Extech Instruments

Extech Instruments 407114 Manuel utilisateur

Extech Instruments

Extech Instruments 341350A Manuel utilisateur

Extech Instruments

Extech Instruments EX810 Manuel utilisateur

Extech Instruments

Extech Instruments MA260 Manuel utilisateur

Extech Instruments

Extech Instruments MultiScope 381270 Manuel utilisateur

Extech Instruments

Extech Instruments ExStik SX800 Series Manuel utilisateur

Extech Instruments

Extech Instruments C015 Manuel utilisateur

Extech Instruments

Extech Instruments MO25 Manuel utilisateur

Extech Instruments

Extech Instruments SDL720 Manuel utilisateur

Extech Instruments

Extech Instruments 475040-SD Manuel utilisateur

Extech Instruments

Extech Instruments MA1500 Manuel utilisateur

Extech Instruments

Extech Instruments MS400 Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
