USER MANUAL

Paperless Humidity/Temperature Chart Recorder

Model RH520B

Additional User Manual Translations available at www.extech.com

2 RH520B-en-US_v5.2 8/20

Introduction

Congratulations on your purchase of the Extech RH520B Temperature + Humidity Chart

Recorder. The RH520B measures and displays Temperature, Humidity, and Dew Point.

The remote (detachable) probe senses the ambient conditions while the LCD display graphs and

provides numerical representation of the readings. Programmable audio-visual alarms alert the

user when ambient conditions reach alarm presets. The optional alarm module permits

automatic relay switching when alarm presets are reached.

The RH520B Internal Memory can store up to 49,152 measurements for later transfer to a PC.

Careful use of this instrument will provide years of reliable service.

CAUTIONS

This device is not a toy, it contains hazardous objects as well as small parts that children can

swallow. Contact a physician immediately if an object is swallowed.

Do not leave batteries or packing material unattended; they can be dangerous to children.

If the device is to be unused for an extended period, remove the batteries to prevent them

from draining.

Expired or damaged batteries can cause cauterization on contact with the skin. Use

protective gloves when necessary.

Do not short-circuit batteries or discard them in a fire.

FCC Compliance

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4. Consult the dealer or an experienced radio/TV technician for help.

WARNING

Changes or modifications not expressly approved by the party responsible for compliance could void the

user's authority to operate the equipment.

3 RH520B-en-US_v5.2 8/20

RH520B Description

1. Remote sensor

2. Sensor cable

3. LCD Display

4. Swivel keypad / table-top

stand

5. PC interface jack

6. Universal alarm module jack

7. AC adaptor jack

8. DATA RESET button (clears recorded measurement data and alarm history)

9. Temperature units select switch (C or F)

10. PROGRAMMING RESET button (clears programming changes but retains measurement

data and alarm history)

11. Display CONTRAST adjust

12. Sensor cable storage area

13. ‘AA’ 1.5V batteries

14. Sensor cable run

15. Wall mount holes

3 4

4 RH520B-en-US_v5.2 8/20

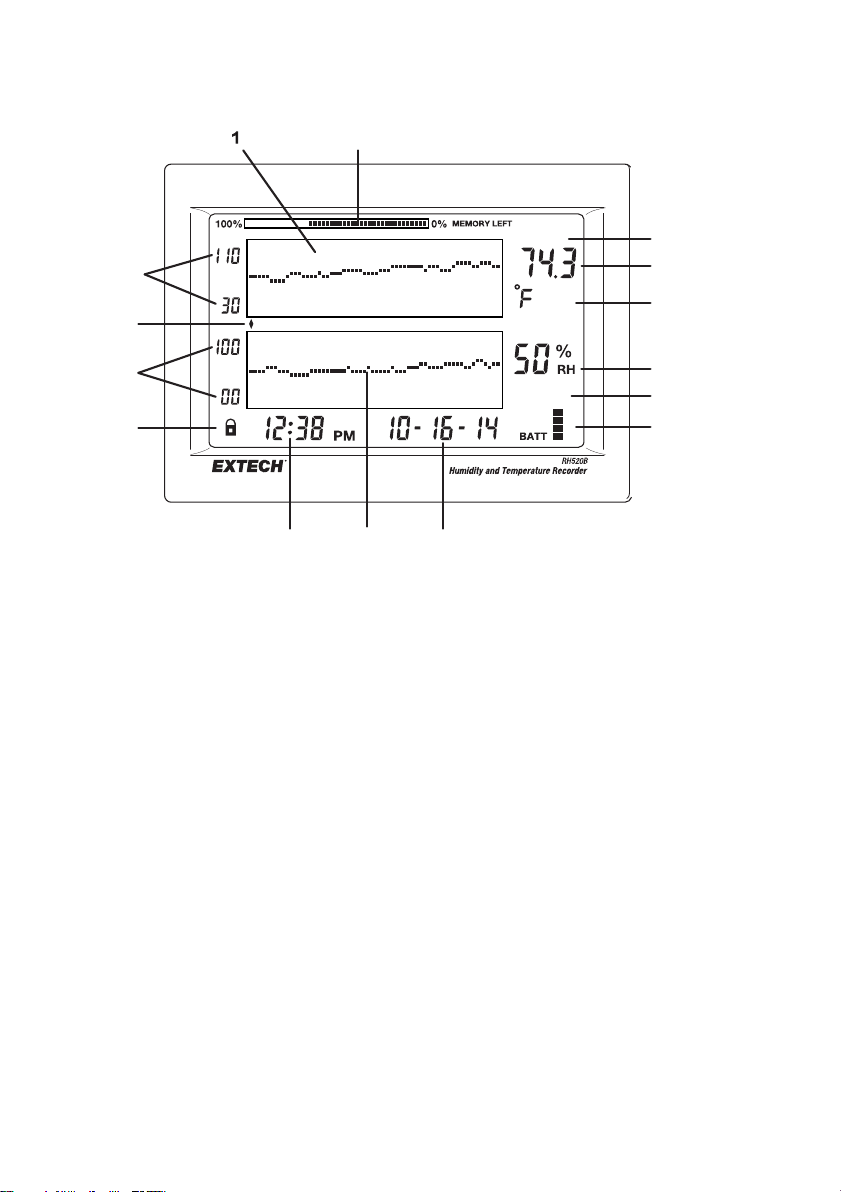

DISPLAY DESCRIPTION

1. Temperature measurement graph

2. Internal memory usage meter

3. Vertical axis scale limits

4. Cursor / Alarm indicators

5. Push-button lock-out status indicator

6. Time display

7. Relative Humidity (RH) measurement graph

8. Date display

9. Function indicators

10. Numerical temperature reading display

11. Numerical RH reading display

12. Battery status indicator

6 7 8

MAX

MIN

ALARM

MAX

MIN

SET

DEW POINT

5 RH520B-en-US_v5.2 8/20

PUSH-BUTTON DESCRIPTION

VIEW Return the LCD to the Standard View

Escape from any setting function without storing value changes

Scrolls highest and lowest (MAX/MIN) readings when in Standard View

ALARM Display or Set alarm values

TIME Display a reading stored at specific Time and Date

Set and Display the recording Sampling Rate

Set the Time and Date

SET Used in combination with other buttons to set new parameter values

Stores new parameter values and returns to the Standard View

TEMP Used in combination with other buttons to set the vertical graph range

Used in combination with other buttons to set temperature alarm values

Used in combination with the RH button to display Dew Point

RH Used in combination with other buttons to set the vertical graph range

Used in combination with other buttons to set RH alarm values

Used in combination with the TEMP button to display Dew Point

Right, left, down, and up arrow buttons for scrolling data and navigating the

display

6 RH520B-en-US_v5.2 8/20

KEYPAD QUICK REFERENCE (ALSO SHOWN ON REAR OF THE RH520B HOUSING)

Key-press

Function

Second / Alternate Keystrokes

VIEW

Selects view mode

VIEW modes: Normal, TEMPmax,

RHmax, TEMPmin, RHmin

SET

Saves new settings

VIEW to cancel, exit mode

ARROW KEYS

Scroll through selections

Movers cursor through stored

points

TIME

View reading at specific

time/date

Arrow keys to select, VIEW to

exit

TEMP + RH

View Dew Point temp.

VIEW to exit

ALARM

Step back through ALARM

points

ALARM selects next Alarm, VIEW

to exit

SET + TEMP +

ALARM

Enters Set TEMP Alarm mode

ALARM selects HIGH/LOW, SET to

save

SET + RH + ALARM

Enters Set RH Alarm mode

ALARM selects HIGH/LOW, SET to

save

TIME + VIEW

View Sample Rate

VIEW to exit

SET + TIME + VIEW

Enter Set Sample Rate mode

SET to save, VIEW to exit

SET + TIME

Enter Set Time/Date mode

SET to save, VIEW to exit

SET + TEMP + UP

Enter Set TEMP Vertical Scale

mode

TEMP selects upper/lower, SET to

save

SET + RH + UP

Enter Set RH Vertical Scale

mode

RH selects upper/lower, SET to

save

7 RH520B-en-US_v5.2 8/20

Getting Started

POWER

1. The RH520B runs on battery power or AC adaptor (5VDC 1A). Battery power consists of three

(3) ‘AA’batteries. See the Battery Replacement section of this manual when

changing/installing the batteries. Note: Batteries and adaptor are supplied.

2. Plug the AC adaptor in the AC adaptor jack shown in the Description section. The batteries

will act as battery back-up in the event of an AC power failure.

3. Once the batteries are installed or the adaptor properly connected, the RH520B will begin

displaying.

4. In the unlikely event that the AC power AND the battery back-up fails, the RH520B will

require a “Programming Reset” to reset the display. Press the RESET button located inside

the battery compartment. “Reset” clears all settings. Time, Date and the logging interval

need to be entered. The measurement data and alarm history, however, will still be retained

in the non-volatile memory.

5. The 5-segment battery life indicator allows the user to track the status of the battery. When

all 5-segments are dark, the battery is fully charged. Segments switch off as the battery ages.

When the battery indicator has only one segment left the batteries must be replaced

immediately.

NOTE: Always set the Date, Time, and Sample rate immediately after batteries have been

installed or after the RESET button in the battery compartment has been pressed.

Then press the Data Reset button on the rear face of the meter for >4 seconds to

clear any recorded data.

MOUNTING THE RH520B

The RH520B can be used in the following ways:

1. Placed on a table top where the swivel keypad is employed as the table stand

2. Wall mounted using the rear mounting holes

MEASUREMENT PROBE

The probe is attached to the meter with a 1-meter cable and can be used stored in the RH520B

probe cradle or remotely. The probe cable length can be easily extended with an RJ45 cable and

a gender changer.

PUSH-BUTTON LOCK-OUT SECURITY FEATURE

The RH520B can be secured from tampering by having its push-buttons locked.

1. Press for approx. 1 second and release the UP, DOWN, LEFT, and SET arrow buttons

simultaneously to lock-out the push-buttons.

Note: The security lock-out can only be performed from the main view screen. If a scroll key

or the time button was pressed prior to setting up the lock-out, the user must scroll back to

the main screen.

2. Press for approx. 1 second and release the UP, DOWN, LEFT, and SET arrow buttons

simultaneously to restore the operation of the push-buttons

8 RH520B-en-US_v5.2 8/20

Programming the RH520B

SETTING THE TIME AND DATE

1. From the Standard View, press the SET and TIME buttons simultaneously

2. The SET indicator will appear

3. Use the UP and DOWN arrow buttons to set the time

4. Use the LEFT and RIGHT arrow buttons to step through the minutes, hours, AM/PM/24-

Hour, day, month, and year parameters

If AM or PM is selected, the date format will be MONTH-DAY-YEAR

If 24-hour is selected, the date format will be DAY-MONTH-YEAR

5. Press SET at any time to store the new value and revert to the Standard View

6. Press VIEW at any time to return to the Standard View without storing any changes

CLEARING THE INTERNAL MEMORY

Press the RESET button (located inside the battery compartment) to clear the display and

measurement parameters (sample rate, vertical resolution), and to reset the display.

Press the DATA RESET button (located on the back of the unit) to clear all the stored readings,

the MAX/MIN values, and the Alarm history.

SELECTING THE UNIT OF MEASURE FOR TEMPERATURE (oC/oF)

The oC/oFswitch, located inside the battery compartment, is used to select the unit of measure

for temperature displays

SETTING THE VERTICAL RESOLUTION FOR THE TEMPERATURE GRAPHIC DISPLAY

1. Press the SET, TEMP, and UP arrow buttons simultaneously

2. The upper temperature range indicator will flash, and the SET icon will appear

3. Use the UP-DOWN buttons to change the upper temperature value (5° increments).

4. Press the TEMP button and the lower temperature range indicator will flash

5. Use the UP-DOWN buttons to change the lower temperature value (5° increments) Note that

the upper and lower temperature values cannot overlap, and the upper value cannot be less

than zero

6. Press the TEMP button to toggle upper and lower range values

7. Press the SET button at any time to store a value and return the instrument to the Standard

View

8. Press VIEW at any time to return to the Standard View

Important: After powering on the unit and setting the Date, Time, or Sample Rate you

MUST clear the internal data memory. If you do not clear the internal data memory

you will not get the correct Time and Date stamps (2004) with your recorded data.

Press the Data Reset button on the rear face of the meter for >4 seconds.

9 RH520B-en-US_v5.2 8/20

SETTING THE VERTICAL RESOLUTION FOR THE RH GRAPHIC DISPLAY

1. Press the SET, RH, and UP arrow buttons simultaneously

2. The upper RH range indicator will flash, and the SET icon will appear

3. Use the UP-DOWN buttons to change the upper RH value in 10% increments

4. Press the RH button and the lower RH range indicator will flash

5. Use the UP-DOWN buttons to change the lower RH value in 10% increments

6. Note that the upper and lower RH values cannot overlap

7. Press the RH button to toggle upper and lower range values

8. Press the SET button at any time to store a value and return the instrument to the Standard

View

9. Press VIEW at any time to return to the Standard View

SETTING THE RECORDING SAMPLE RATE

The Sampling Rate is the rate at which the RH520B automatically records measurements

1. Press the SET, VIEW, and TIME arrow buttons simultaneously from the Standard View

2. The current Sample Rate (in minutes) will appear in the numerical temperature display area

3. The whole minutes area of the numeric display will flash

4. The MIN and the SET icons will switch on. All other TEMP and RH indicators and numeric

displays will switch off

5. The projected TIME and DAYS representing the moment the internal memory will be full

(based on the sample rate) is displayed in the TIME and DATE display areas.

6. Use the UP-DOWN arrow buttons to increment/decrement the rate. Use the LEFT-RIGHT

arrow buttons to step through the units of time

7. Sample rates can be set from 0.1 minutes (6 seconds) up to 199.9 minutes

8. Press the SET button at any time to save changes and return to the Standard View

9. Press VIEW at any time to return to the Standard View without saving the changes

SETTING THE TEMPERATURE ALARM LIMITS

1. Press the SET, TEMP, and ALARM buttons simultaneously from the Standard View

2. The ALARM, SET, and MAX indicators will switch on. All of the RH indicators will switch off

3. Use the UP-DOWN arrow buttons to increment/decrement the HIGH temperature alarm

limit. Use the LEFT-RIGHT arrow buttons to step through the decades

4. Press the ALARM button. The MIN (low alarm) indicator will switch on

5. Use the UP-DOWN arrow buttons to increment/decrement the LOW temperature alarm

limit. Use the LEFT-RIGHT arrow buttons to step through the decades

6. The HIGH and LOW alarm limits cannot overlap

7. Use the ALARM button to toggle between the HIGH and the LOW alarm limits

8. Press the SET button at any time to save changes and return to the Standard View

10 RH520B-en-US_v5.2 8/20

9. Press VIEW at any time to return to the Standard View without saving the changes

SETTING THE RH ALARM LIMITS

1. Press the SET, RH, and ALARM buttons simultaneously from the Standard View

2. The ALARM, SET, and MAX indicators will switch on. All of the TEMP indicators will switch off

3. Use the UP-DOWN arrow buttons to increment/decrement the HIGH RH alarm limit. Use the

LEFT-RIGHT arrow buttons to step through the decades

4. Press the ALARM button. The MIN (low alarm) indicator will switch on

5. Use the UP-DOWN arrow buttons to increment/decrement the LOW RH alarm limit. Use the

LEFT-RIGHT arrow buttons to step through the decades

6. The HIGH and LOW alarm limits cannot overlap

7. Use the ALARM button to toggle between the HIGH and the LOW alarm limits

8. Press the SET button at any time to save changes and return to the Standard View

9. Press VIEW at any time to return to the Standard View without saving the changes

Table des matières

Autres manuels Extech Instruments Instrument de mesure

Extech Instruments

Extech Instruments MG310 Manuel utilisateur

Extech Instruments

Extech Instruments MO57 Manuel utilisateur

Extech Instruments

Extech Instruments 433201A Manuel utilisateur

Extech Instruments

Extech Instruments MA145 Manuel utilisateur

Extech Instruments

Extech Instruments 380942 Manuel utilisateur

Extech Instruments

Extech Instruments MO25 Manuel utilisateur

Extech Instruments

Extech Instruments PH90 Manuel utilisateur

Extech Instruments

Extech Instruments HD755 Manuel utilisateur

Extech Instruments

Extech Instruments EN150 Manuel utilisateur

Extech Instruments

Extech Instruments SDL800-NIST Manuel utilisateur

Extech Instruments

Extech Instruments Oyster Series Manuel utilisateur

Extech Instruments

Extech Instruments FM100 Manuel utilisateur

Extech Instruments

Extech Instruments RC100 Manuel utilisateur

Extech Instruments

Extech Instruments MA120 Manuel utilisateur

Extech Instruments

Extech Instruments SDL310 Manuel utilisateur

Extech Instruments

Extech Instruments 401027 Manuel utilisateur

Extech Instruments

Extech Instruments 407412 Manuel utilisateur

Extech Instruments

Extech Instruments 451104 Manuel utilisateur

Extech Instruments

Extech Instruments ExStik RE300 Manuel utilisateur

Extech Instruments

Extech Instruments LT505 Manuel utilisateur

Extech Instruments

Extech Instruments SDL600 Manuel utilisateur

Extech Instruments

Extech Instruments SDL350-NIST Manuel utilisateur

Extech Instruments

Extech Instruments AN250W Manuel utilisateur

Extech Instruments

Extech Instruments PH220 Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
